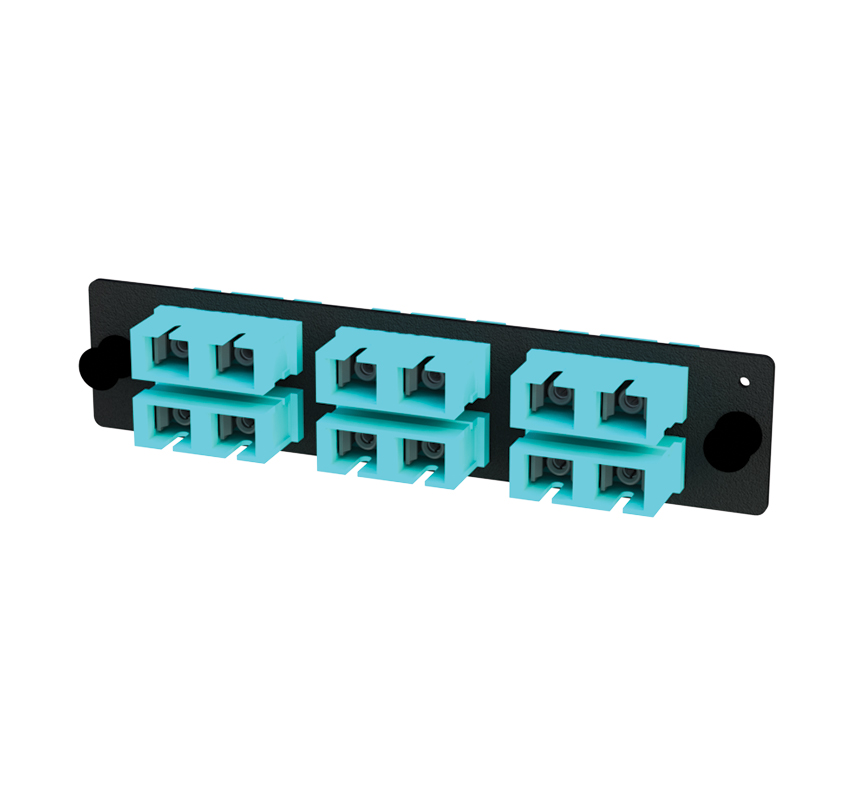

VERTICAL CABLE 264-LAP03-2B6C1 – SC/DX MM/OM3 FLANGELESS LGX ADAPTER PLATE
The 264-LAP03-2B6C1 is a lateral 6-position SC duplex LGX Adapter Plate designed for multimode fiber connectivity in structured cabling deployments. Built with flangeless, spring-retained adapters and a durable powder-coated aluminum frame, this LGX Adapter Plate delivers low-loss, high-return-loss performance for demanding fiber networks. Its universal LGX form factor allows quick integration into standard fiber enclosures, making the 264-LAP03-2B6C1 an ideal choice wherever reliable, high-density SC connectivity is required.
KEY FEATURES
Here’s what makes the 264-LAP03-2B6C1 an ideal LGX Adapter Plate:
- 6-Position SC Duplex Configuration: Supports 6 SC duplex adapters (12 fibers total) for high-density multimode connectivity.
- Flangeless, Spring-Retained Design: Chatter-proof three-sided or two-sided spring retention secures adapters without additional hardware.
- Multimode OM3 Performance: Optimized for MM 50/125 fiber (OM3) polish for reliable connections.
- Low Insertion Loss: Rated at 0.3 dB or lower when used with standard-compliant plugs.
- LGX-Compatible Form Factor: Universal fit into standard LGX enclosures and panels.
- Durable Aluminum Construction: 1.5-mm (15-GA) aluminum alloy plate with black powder coating resists corrosion and wear.
- Precision Cutouts: Ensure secure adapter alignment and consistent fiber mating.
- Lightweight Design: Weighs just 0.07 lb (0.03 kg) for easy handling and installation.
- Telcordia GR-326-CORE Compliant: Meets industry standards for fiber optic connector performance.
APPLICATIONS
The 264-LAP03-2B6C1 LGX Adapter Plate excels in multimode fiber installations:
- Data Centers: Provide high-density, low-loss SC duplex connectivity for multimode backbone and cross-connect applications.
- Telecommunications Rooms: Standardize SC fiber terminations within MDFs and IDFs using a universal LGX footprint.
- Enterprise Fiber Networks: Support multimode uplinks and long-haul fiber runs requiring low insertion and return loss.
- Colocation Facilities: Deliver consistent, standardized fiber mounting for multi-tenant network deployments.
- Central Offices and Carrier Networks: Meet Telcordia GR-326-CORE requirements for carrier-grade fiber connectivity.
WHY CHOOSE THE 264-LAP03-2B6C1 ADAPTER PLATES?
Professionals choose the 264-LAP03-2B6C1 for its high-density SC connectivity, multimode performance, and universal LGX fit. Here are 5 reasons to specify it for your next project:
- High-Density Connectivity – 6-position SC duplex layout supports up to 12 fibers in a compact, standard LGX footprint.
- Optimized Multimode Performance – SC duplex OM3 adapters provide low insertion loss and reliable optical connectivity for high-speed data center, enterprise, and short-reach network applications.
- Tool-Free Flangeless Retention – Spring-retained adapters simplify installation without additional screws or hardware.
- Durable, Corrosion-Resistant Build – Powder-coated aluminum construction ensures long-term reliability in demanding environments.
- Carrier-Grade Compliance – Meets Telcordia GR-326-CORE, REACH, and RoHS2 standards for enterprise and carrier deployments.
WHAT’S NEXT?
Once you’ve specified the 264-LAP03-2B6C1 for your project:
- Select Compatible SC Cables – Choose multimode SC duplex patch cables or pigtails matched to your polish requirement.
- Confirm Enclosure Compatibility – Verify the target LGX enclosure supports standard 118 mm mounting hole spacing.
- Plan Fiber Routing – Map out fiber paths and cable management before installation to maintain proper bend radius.
- Label and Test – Label each of the 6 positions and test insertion/return loss after installation to confirm performance.
