VERTICAL CABLE 264-MCS0U12-2A90 – SC SINGLEMODE UPC SPLICING LGX CASSETTE

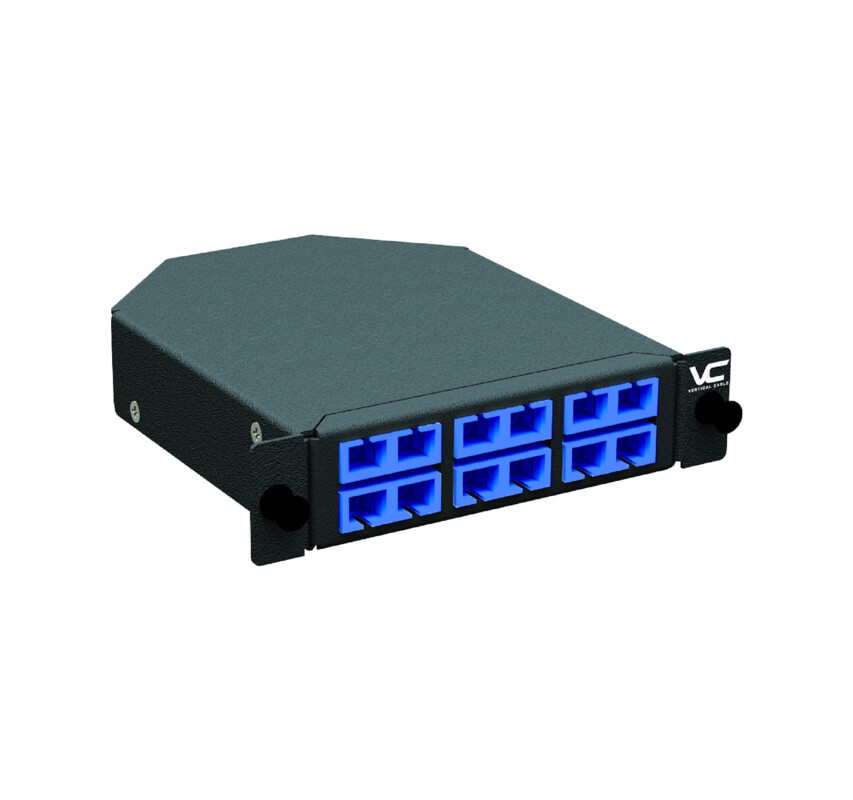

The 264-MCS0U12-2A90 is a 12-fiber SC singlemode UPC LGX Splicing Cassette built to terminate outside-plant, backbone, or building fiber directly through fusion splicing. Functioning as a self-contained splice cassette, it ships as a complete kit with matching singlemode pigtails, splice holders, and protection sleeves, eliminating the need to source these components separately. Built to the standard LGX footprint with a rear M12/PG7 cable gland entry, this LGX Splicing Cassette gives installers a clean, field-terminated solution for long-distance, high-bandwidth singlemode fiber networks using SC UPC connectivity.
KEY FEATURES
Here’s what makes the 264-MCS0U12-2A90 an ideal LGX Cassette:
- 12-Fiber SC Singlemode UPC Configuration: Supports 12 fusion-spliced singlemode fibers terminated to SC UPC connectors for reliable, low-loss optical connectivity.
- Singlemode 9/125 µm Performance: Designed for singlemode fiber applications where low attenuation, high bandwidth, and significantly longer transmission distances are required compared with multimode fiber.
- UPC-Polished SC Connectivity: Ultra Physical Contact (UPC) polishing provides a precision-polished fiber end face designed to minimize insertion loss and back reflection in singlemode optical networks.
- Complete Splicing Kit: Includes ANSI/TIA-598 color-coded 900 µm singlemode pigtails matching the connector type and fiber count — a complete fiber splice tray solution in one enclosure.
- Splice Holders and Protection Sleeves: Ships with splice holders matched to the fiber count and 265-SLV01-3A splice protection sleeves.
- Rear M12/PG7 Cable Gland Entry: Accepts incoming cable with an OD of 0.08–0.25 in (2–6.5 mm) for direct fusion-splice termination.
- Standard LGX Footprint: Fits standard LGX-compatible enclosures and mounting hardware, allowing the cassette to function as a modular termination and splicing component within larger fiber distribution systems.
- Low-Loss SC Interface: Precision SC UPC connectivity provides reliable optical mating for enterprise, telecommunications, campus, carrier, and other singlemode fiber networks.
- Zirconia Ceramic Sleeves: Front adapters use split zirconia ceramic alignment sleeves to maintain precise fiber alignment and consistent optical performance.
- Additional Kit Hardware: Includes base cover, front bracket with installed SC UPC adapters, rear cable gland adapter plate, and 2 blank rear adapter plates.
- Long-Distance Network Ready: Singlemode fiber supports high-speed data transmission over distances ranging from building and campus backbones to metropolitan and long-haul links when paired with compatible optical transceivers.
APPLICATIONS
The 264-MCS0U12-2A90 LGX Splicing Cassette excels in field-terminated singlemode fiber installations:
- Outside Plant (OSP) Terminations: Fusion splice incoming singlemode OSP fiber directly to SC UPC pigtails without requiring a separate splice tray or enclosure.
- Campus and Building Backbones: Provide reliable singlemode connectivity between buildings, telecommunications rooms, equipment rooms, and other network spaces where longer transmission distances are required.
- Data Centers: Terminate singlemode backbone and distribution fiber for high-speed links, inter-building connectivity, and data center interconnect applications.
- Telecommunications Rooms: Create a clean, standardized splice-cassette termination point within MDFs, IDFs, and fiber distribution areas.
- Enterprise Fiber Networks: Support scalable singlemode backbone infrastructure designed for high bandwidth and longer transmission distances.
- Telecommunications and Carrier Networks: Provide SC UPC termination for singlemode infrastructure used throughout telecommunications, central office, and service-provider environments.
- High-Speed Ethernet Networks: Singlemode fiber can support 1G, 10G, 25G, 40G, 100G, 200G, 400G, and other high-speed optical applications when paired with the appropriate transceivers and network equipment.
WHY CHOOSE THE 264-MCS0U12-2A90 LGX CASSETTE?
Professionals choose the 264-MCS0U12-2A90 for its complete splicing kit, long-distance singlemode performance, reliable SC UPC connectivity, and standard LGX fit. Here are 5 reasons to specify it for your next project:
- Complete Splicing Solution – Ships with matching singlemode pigtails, splice holders, and protection sleeves, eliminating separate component sourcing.
- Long-Distance Singlemode Performance – 9/125 µm singlemode fiber provides low attenuation and supports high-bandwidth transmission over significantly greater distances than multimode fiber when used with compatible optics.
- Reliable SC UPC Connectivity – SC connectors provide a durable push-pull interface, while UPC polishing helps reduce insertion loss and optical reflections for dependable singlemode connections.
- Direct OSP Termination – Rear cable gland entry accommodates a range of incoming cable diameters for direct fusion splicing inside the cassette.
- Standard LGX Compatibility – Fits compatible LGX enclosures and mounting hardware, making it easy to integrate into new or existing fiber distribution systems.
GETTING IT INSTALLED
Once you’ve specified the 264-MCS0U12-2A90 for your project:
- Check your cable against the gland. Before installation, confirm the incoming fiber cable’s outer diameter falls between 0.08–0.25 in (2–6.5 mm) so it seats properly in the M12/PG7 gland.
- Verify the fiber and connector type. Confirm that the incoming cable uses compatible singlemode fiber and that the associated patch cords, pigtails, adapters, and optical equipment are designed for SC UPC singlemode connectivity.
- Don’t mix UPC and APC connections. Verify that mating patch cords and equipment interfaces use UPC connectors. UPC and APC end faces should not be directly mated.
- Line up your splicing crew and gear. Fusion splicing requires the appropriate fusion splicer, fiber preparation tools, cleaning supplies, test equipment, and a trained technician.
- Map the fiber routing first. Plan how each fiber will route through the cassette before beginning the splice process. Proper routing helps protect the fibers and maintain the appropriate bend radius.
- Splice, test, then label. After completing the fusion splices, test each fiber for optical performance and label all 12 SC UPC positions to simplify commissioning, maintenance, and future troubleshooting.
