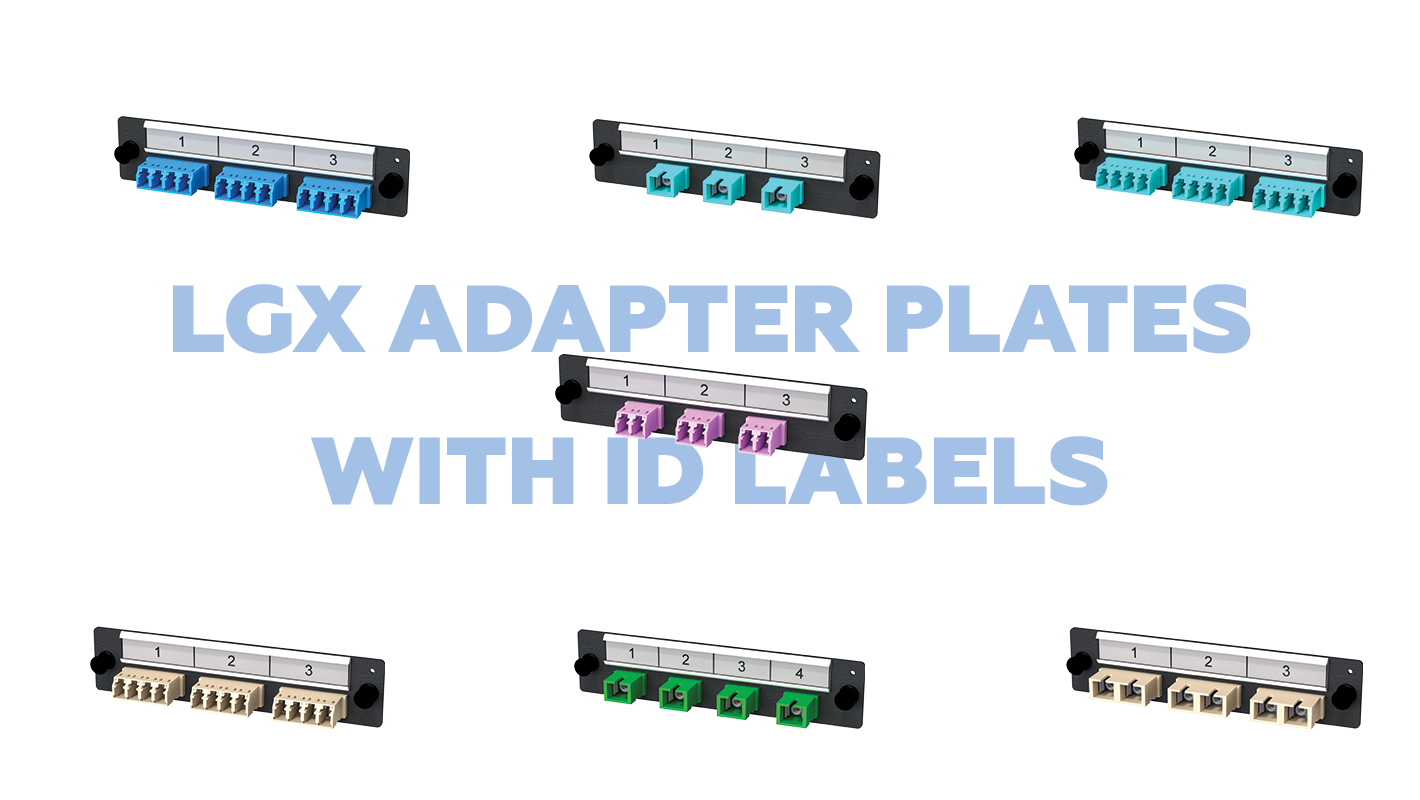

VERTICAL CABLE 264-LAB SERIES – LGX ADAPTER PLATES WITH LABEL ID
The 264-LAB Series is an LGX adapter plate with label collection, designed for organized fiber-optic terminations in data centers, telecommunications rooms, and enterprise networks. These LGX adapter plates with label feature durable 1.5 mm aluminum construction with black powder coating and integrated labeling for easy port identification. Available in SC and LC configurations with singlemode and multimode options, these LGX adapter plates with label provide a universal LGX-compatible fit.
KEY FEATURES
Here’s what makes the 264-LAB Series ideal for organized fiber optic installations:
- Integrated Label ID: Built-in labeling area enables easy port identification and documentation.
- LGX-Compatible Form Factor: Universal fit for standard LGX fiber enclosures, patch panels, and cassettes.
- SC and LC Connector Options: Available with SC simplex/duplex or LC duplex/quad adapters for various fiber applications.
- Singlemode and Multimode: Available in SM 9/125, MM 50/125, and MM 62.5/125 configurations.
- Durable Aluminum Construction: 1.5 mm (15-gauge) aluminum alloy plate provides robust support and long-term reliability.
- Black Powder Coating: A professional finish that resists scratches and corrosion.
- Spring Retaining Design: Secure adapter retention ensures stable connections.
- Split Zirconia Ceramic Sleeves: Precision alignment sleeves provide low insertion loss and reliable fiber-to-fiber contact.
- ANSI/TIA-568.3 Color Coding: Adapter colors identify fiber type (Beige=OM1, Aqua=OM3, Violet=OM4, Blue=SM UPC, Green=SM APC).
- Wide Environmental Range: Operates from -20°C to +70°C with up to 95% RH non-condensing.
- UL 94 V-0 Rated Plastic Parts: Fire-retardant fasteners meet safety requirements.
- RoHS2 and REACH Compliant: Meets environmental compliance requirements.
APPLICATIONS
The 264-LAB Series LGX adapter plates with label excel in organized fiber optic infrastructure:
- Data Centers: Organize high-density fiber connections with labeled ports for easy identification and troubleshooting.
- Telecommunications Rooms: Deploy in LGX enclosures and patch panels with clear port labeling for efficient circuit management.
- Enterprise Networks: Provide organized fiber terminations in MDFs, IDFs, and equipment rooms.
- Colocation Facilities: Standardize fiber connections with labeled adapter plates for multi-tenant environments.
- Broadcast and AV: Install in fiber distribution systems where port identification is critical for signal routing.
WHY CHOOSE THE 264-LAB SERIES ADAPTER PLATES?
Professionals choose the 264-LAB Series for its organized fiber connectivity, integrated labeling, precision construction, and universal LGX compatibility. Here are 5 reasons to specify it for your next project:
- Integrated Labeling – Built-in label ID area enables clear port identification for efficient documentation, troubleshooting, and circuit management.
- Universal LGX Fit – Standard LGX form factor ensures compatibility with enclosures, patch panels, and cassettes from any manufacturer.
- Low Insertion Loss – Split zirconia ceramic sleeves deliver ≤0.3 dB insertion loss for reliable optical performance.
- ANSI/TIA-568.3 Color Coding – Adapter colors identify fiber type at a glance for error-free connections.
- Telcordia Compliant – Meets GR-326-CORE standards for verified performance in telecommunications and enterprise applications.
WHAT’S NEXT
Once you’ve specified the 264-LAB Series for your project:
- Select Connector Type – Choose SC or LC adapters based on your fiber cable and equipment connector types.
- Match Fiber Type – Select the adapter color that matches your fiber type (OM1, OM3, OM4, SM UPC, or SM APC).
- Plan Port Layout – Map out adapter plate positions in your LGX enclosure before installation for organized documentation.
- Label Your Ports – Use the integrated label area to document circuit IDs, destinations, or cable numbers for easy identification.
For more options, visit our other Optical Fiber Adapter Plates to find the perfect fit today!
