VERTICAL CABLE 264-MCS0312-2A90 – SC MULTIMODE OM3 SPLICING LGX CASSETTE

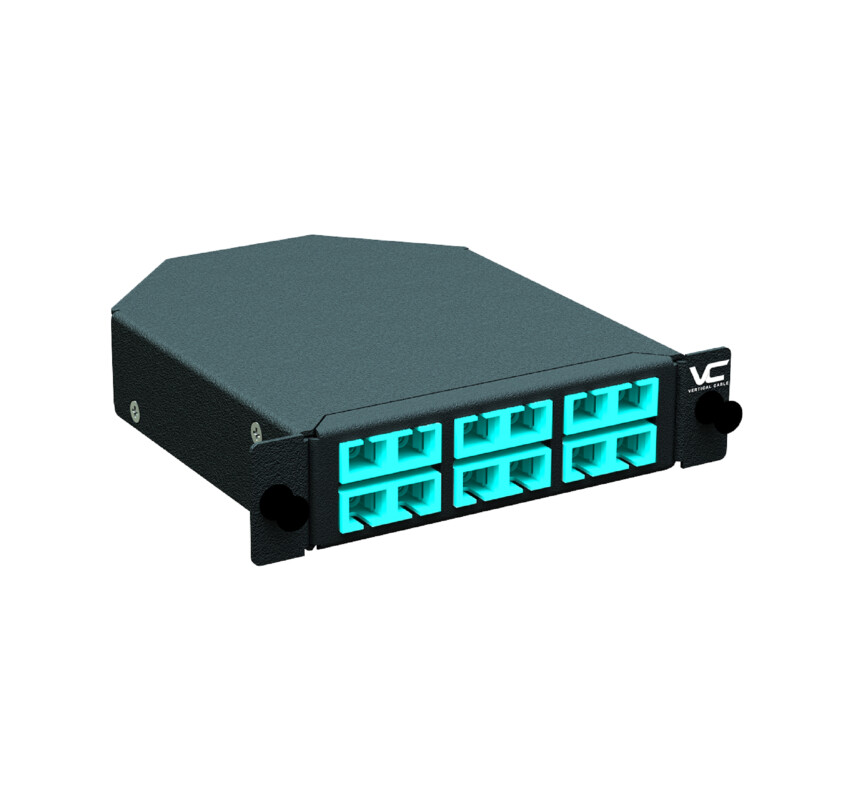

The 264-MCS0312-2A90 is a 12-fiber SC multimode OM3 LGX Splicing Cassette built to terminate multimode fiber directly through fusion splicing. Functioning as a self-contained splice cassette, it ships as a complete kit with matching OM3 pigtails, splice holders, and protection sleeves, so there’s no need to source components separately. Built to the standard LGX footprint with a rear M12/PG7 cable gland entry, this LGX Splicing Cassette gives installers a clean, field-terminated solution for high-speed OM3 multimode fiber networks using SC connectivity.
KEY FEATURES
Here’s what makes the 264-MCS0312-2A90 an ideal LGX Splicing Cassette:
- 12-Fiber SC Multimode OM3 Configuration: Supports 12 fusion-spliced fibers terminated to SC connectors for reliable OM3 multimode connectivity.
- Optimized for OM3 Multimode Networks: Designed around OM3 fiber connectivity for high-speed, short-reach optical links commonly found in enterprise, data center, and backbone environments.
- Complete Splicing Kit: Includes ANSI/TIA-598 color-coded 900 µm pigtails matching the connector type and 12-fiber count, providing essential splice-management components in one enclosure.
- Splice Holders and Protection Sleeves: Ships with splice holders matched to the fiber count and 265-SLV01-3A splice protection sleeves.

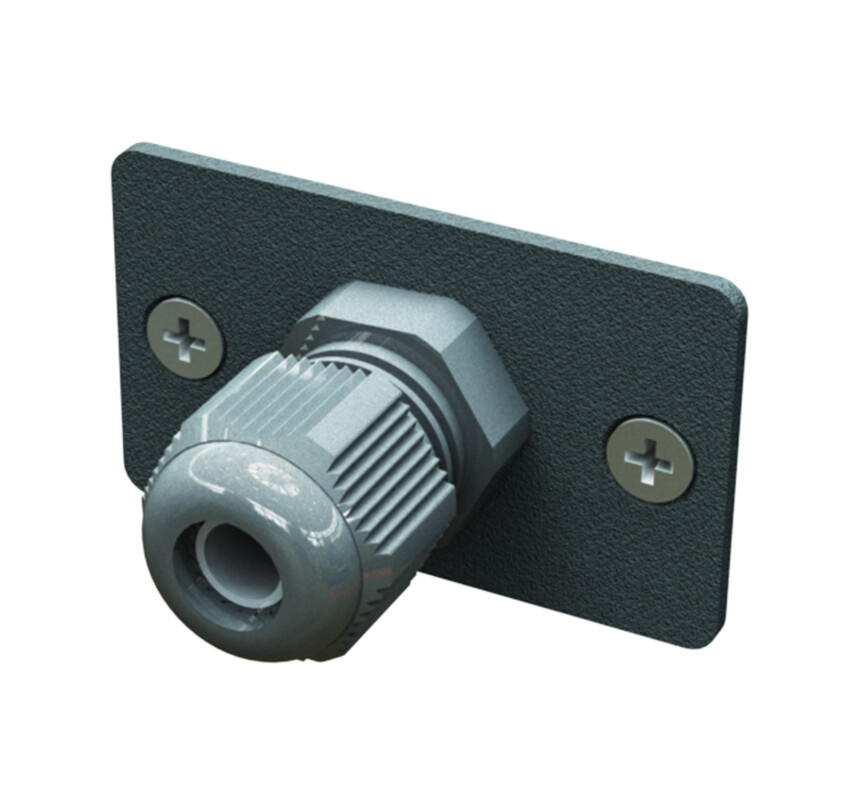

- Rear M12/PG7 Cable Gland Entry: Accepts incoming cable with an OD of 0.08–0.25 in (2–6.5 mm) for direct routing and splicing within the cassette.
- Standard LGX Footprint: Fits standard LGX-compatible enclosures and mounting hardware, allowing the cassette to integrate into modular fiber distribution systems.
- Low Insertion Loss: SC interfaces are rated at 0.3 dB or lower when used with standard-compliant plugs, supporting dependable optical performance.
- Zirconia Ceramic Sleeves: One-piece front adapter construction uses split zirconia ceramic sleeves for precise fiber alignment and reliable optical mating.

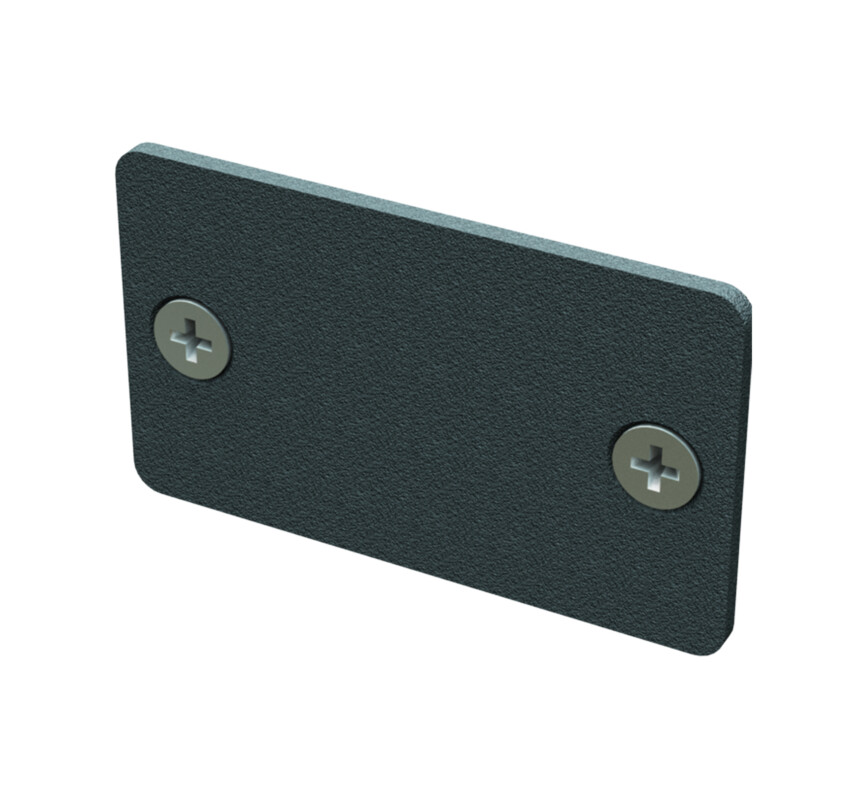

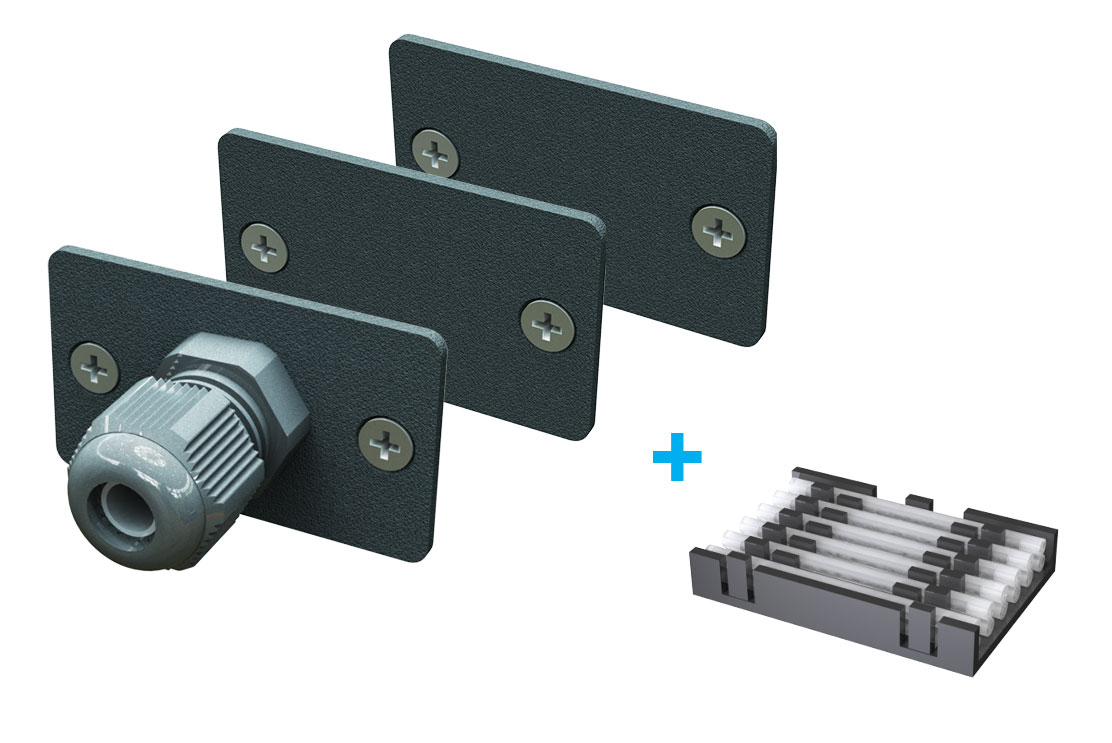

- Additional Kit Hardware: Includes a base cover, front bracket with installed adapters, rear M12/PG7 cable gland adapter plate, and two blank rear adapter plates.
- Telcordia GR-326-CORE Compatible: Designed for dependable fiber connectivity and compatibility with established industry requirements.
APPLICATIONS
The 264-MCS0312-2A90 LGX Splicing Cassette excels in field-terminated multimode fiber installations:
- Data Centers: Terminate OM3 multimode backbone and distribution fiber where field fusion splicing and SC connectivity are required.
- Enterprise Fiber Networks: Provide organized SC termination for high-speed multimode links between network rooms, equipment spaces, and other distribution points.
- Telecommunications Rooms: Create a standardized splice-cassette termination point within MDFs, IDFs, and fiber distribution locations.
- Campus and Building Backbones: Support OM3 multimode backbone connections between telecommunications spaces and equipment locations where link distances are appropriate for multimode fiber.
- Existing SC Fiber Infrastructure: Integrate new OM3 terminations into networks standardized around SC connectivity.
- High-Speed Short-Reach Networks: Provide a compact fusion-splice termination solution for OM3-based optical infrastructure.
WHY CHOOSE THE 264-MCS0312-2A90 LGX CASSETTE?
Professionals choose the 264-MCS0312-2A90 for its all-in-one splicing kit, reliable OM3 multimode connectivity, SC interface, and standard LGX compatibility. Here are five reasons to specify it for your next project:
- Complete Splicing Solution – Ships with matching 900 µm OM3 pigtails, splice holders, and protection sleeves, eliminating the need to source these components separately.
- Reliable OM3 Performance – OM3 multimode connectivity is well suited for high-speed, short-reach fiber networks in data center and enterprise environments.
- SC Connectivity – Provides SC interfaces for networks and equipment standardized around the larger, widely used SC connector form factor.
- Direct Fusion-Splice Termination – Rear cable gland entry accommodates cable diameters from 0.08–0.25 in (2–6.5 mm), allowing incoming fiber to be routed directly into the cassette for splicing.
- Standard LGX Compatibility – Fits standard LGX enclosures and mounting hardware for straightforward integration into modular fiber distribution systems.
GETTING IT INSTALLED
Once you’ve specified the 264-MCS0312-2A90 for your project:
- Confirm your fiber type. Make sure the incoming multimode fiber and associated connectivity are appropriate for the OM3 network design.
- Confirm SC connectivity. Verify that the connecting patch cords, equipment, and other fiber components use the appropriate SC interfaces.
- Check your cable against the gland. Confirm the incoming fiber cable’s outer diameter falls between 0.08–0.25 in (2–6.5 mm) so it can be properly accommodated by the M12/PG7 cable gland.
- Prepare your splicing equipment. Fusion splicing requires appropriate fiber preparation tools, a fusion splicer, and technicians trained to perform and verify multimode fiber splices.
- Plan the fiber routing. Determine how the incoming fibers, splice holders, and OM3 pigtails will be routed inside the cassette while maintaining appropriate bend radius and organization.
- Splice, test, then label. After completing the fusion splices, test the finished optical connections and clearly label all 12 SC positions to simplify documentation, maintenance, and future troubleshooting.
For more premium LGX Cassettes & Accessories, visit Optical Fiber Components & Accessories and discover top-tier solutions today!
