IP68 Inline Coupler | 040-380s Series
CAT6 (040-381/C6/OWP) & CAT6A (040-382/C6A/OWP) RJ45 Outdoor Water-Resistant – Shielded Coupler
250-ICP68-DINR (DIN-Rail Clip)
The DIN-Rail clip features a spring-loaded latch made from fiberglass-reinforced nylon 66. It complies with the RoHS2 directive (2011/65/EU Am. 2015/863/EU).
Surface Mounting Brackets for 250-ICP68-A/C/D Coupler Modules
Mounting Brackets for Coupler Modules.
Sealing Gasket for 250-ICP68-A/C/D Coupler Modules
Sealing Gasket for Coupler Modules, Rubber, Pack of 10.
Optical Fiber IP68 Coupler Modules – 250-ICP68 Series
This product features LC DX format, using fiber types SM 9/125, MM 50/125, and MM 62.5/125. It offers UPC and APC plug types, zirconia ceramic adapter sleeves, and a maximum plug boot length of 15 mm. Additionally, it boasts an insertion loss of 0.3 dB or lower and a return loss of -55 dB or better for UPC.
252-RMP02-A2C10
Modular Plug, 8P8C, CAT6A, STP, Ruggedized, Field-Terminatable, 90-Deg Variable Direction, Pack of 10.
| Height | Width | Depth | Weight |
| 1.9 in | 0.45 in | 0.45 in | 0.75 lbs |
This product features category 6A transmission performance, compatible with T568A/T568B wiring schemes. Made from solid zinc alloy, it offers “360°” coverage. It supports solid wires (22–26 AWG) and stranded wires (22–27 AWG), with a mating durability of 750 cycles and IP20 environmental protection, complying with relevant standards.

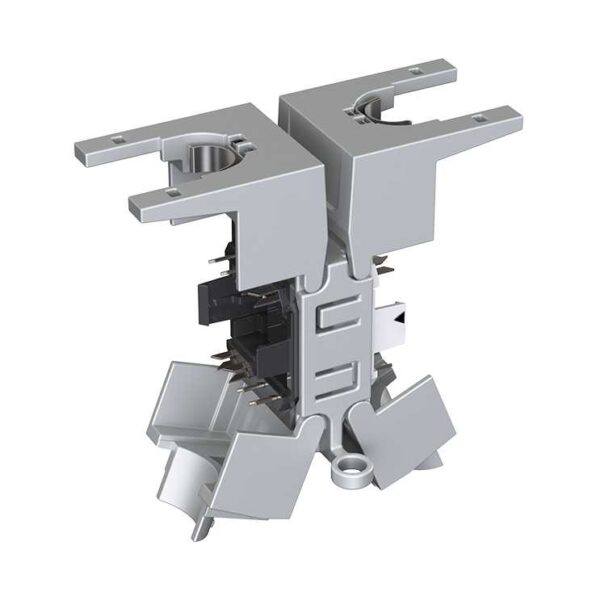

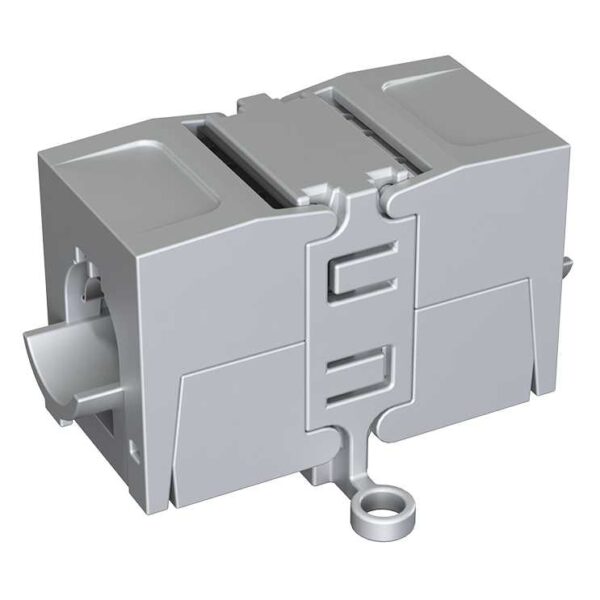

250-ICP20-C2A
Coupler Module, IDC-to-IDC Splice, Standard, CAT6A STP, Panel Mounting, IP20.

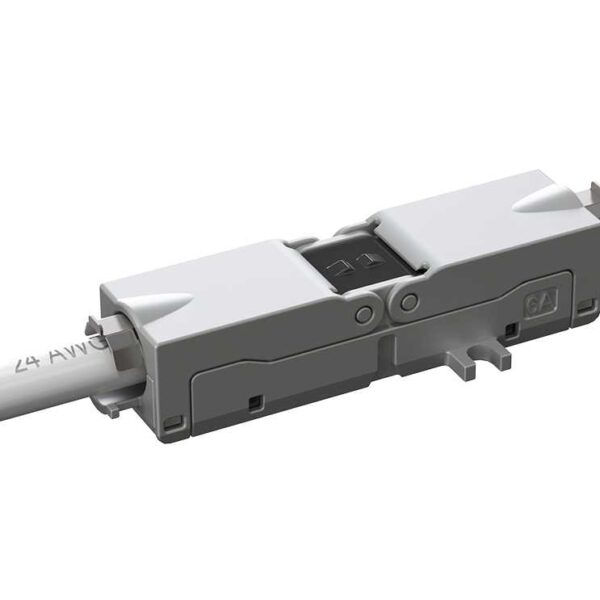

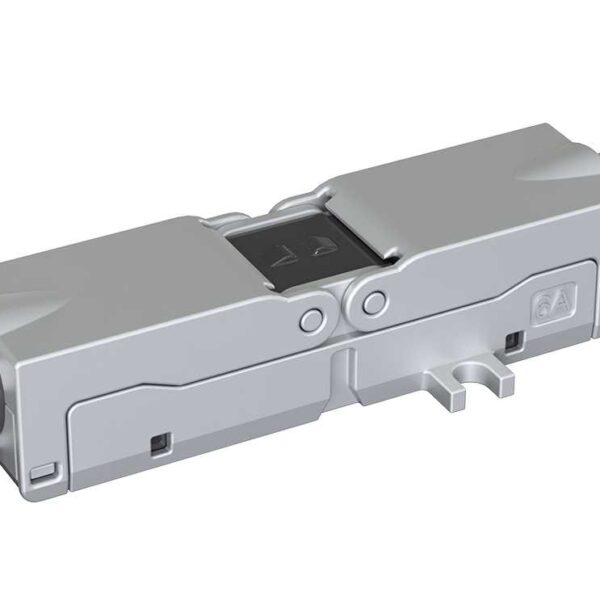

250-ICP20-C1A
Coupler Module, IDC-to-IDC Splice, Compact, CAT6A STP, Panel Mounting, IP20.
250-ICP68-C1A2
Coupler Module, IDC-to-IDC Splice, CAT6A STP, Panel Mounting, IP68.
250-ICP68-A1A2
Coupler Module for Regular 8P8C Plugs, Socket-to-Socket, CAT6A STP, IP68.
| Height | Width | Depth | Weight |
| 8 in | 4 in | 2 in | 0.15 lbs |
250-ICP68-B1A2
Coupler Module for 250-ITM68-A2A2/B1A2 Terminal Modules, Socket-to-Socket, CAT6A STP, IP68.
252-RMP02-A2B10
Modular Plug, 8P8C, CAT6A, STP, Ruggedized, Field-Terminatable, Slim-Profile, Pack of 10
Read the dissembling and mounting instructions HERE
| Height | Width | Depth | Weight |
|---|---|---|---|
| 0.5 in. (12.7 mm) | 0.5 in. (12.7 mm) | 1.9 in. (48.26 mm) | 0.375 lb. (0.17 kg ) |
252-RMP02-A2A10
Modular Plug, 8P8C, CAT6A, STP, Ruggedized, Field-Terminatable, Pack of 10.
| Height | Width | Depth | Weight |
| 8 in | 6 in | 2 in | 0.5 lbs |
012-024/10G
This product features an RJ45 Full Shielded Connector compliant with ANSI/TIA 568C.2 standards. It supports PoE++ (Type 4) IEEE 802.3bt and includes T568A & T568B color codes for easy termination. Copper tape and strain boot are included, making it suitable for 10G applications.
