VERTICAL CABLE 264-LAP04-1B6C1 – LC/DX MM/OM3 FLANGELESS LGX ADAPTER PLATE

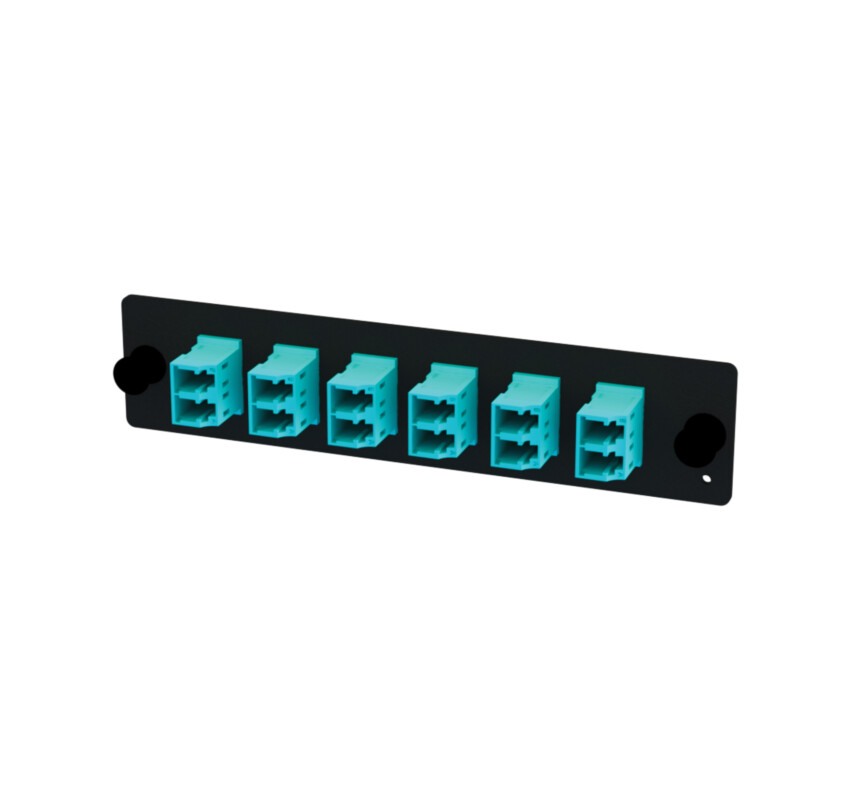

The 264-LAP04-1B6C1 is a 6-position LC duplex LGX Adapter Plate designed for multimode fiber connectivity in structured cabling deployments. Built with flangeless, spring-retained adapters and a durable powder-coated aluminum frame, this LGX Adapter Plate delivers low-loss, high-return-loss performance for OM3/OM4 multimode networks. Its universal LGX form factor allows quick integration into standard fiber enclosures, making the 264-LAP04-1B6C1 an ideal choice wherever reliable, high-density LC multimode connectivity is required.
KEY FEATURES
Here’s what makes the 264-LAP04-1B6C1 an ideal LGX Adapter Plate:
- 6-Position LC Duplex Configuration: Supports 6 LC duplex adapters (12 fibers total) for high-density singlemode connectivity.
- Flangeless, Spring-Retained Design: Chatter-proof three-sided or two-sided spring retention secures adapters without additional hardware.
- Singlemode UPC Performance: Optimized for SM 9/125 fiber with UPC polish for reliable, low-reflectance connections.
- Low Insertion Loss: Rated at 0.3 dB or lower when used with standard-compliant plugs.
- High Return Loss: UPC-rated at 55 dB or more for minimal signal reflection.
- LGX-Compatible Form Factor: Universal fit into standard LGX enclosures and panels.
- Durable Aluminum Construction: 1.5-mm (15-GA) aluminum alloy plate with black powder coating resists corrosion and wear.
- Precision Cutouts: Ensure secure adapter alignment and consistent fiber mating.
- Lightweight Design: Weighs just 0.07 lb (0.03 kg) for easy handling and installation.
- Telcordia GR-326-CORE Compliant: Meets industry standards for fiber optic connector performance.
APPLICATIONS
The 264-LAP04-1B6Z1 LGX Adapter Plate excels in singlemode fiber installations:
- Data Centers: Provide high-density, low-loss LC duplex connectivity for singlemode backbone and cross-connect applications.
- Telecommunications Rooms: Standardize LC fiber terminations within MDFs and IDFs using a universal LGX footprint.
- Enterprise Fiber Networks: Support singlemode uplinks and long-haul fiber runs requiring low insertion and return loss.
- Colocation Facilities: Deliver consistent, standardized fiber mounting for multi-tenant network deployments.
- Central Offices and Carrier Networks: Meet Telcordia GR-326-CORE requirements for carrier-grade fiber connectivity.
WHY CHOOSE THE 264-LAP04-1B6C1 ADAPTER PLATE?
Professionals choose the 264-LAP04-1B6Z1 for its high-density LC connectivity, singlemode performance, and universal LGX fit. Here are 5 reasons to specify it for your next project:
- High-Density Connectivity – 6-position LC duplex layout supports up to 12 fibers in a compact, standard LGX footprint.
- Optimized Singlemode Performance – UPC-polished SM adapters deliver low insertion loss and high return loss for long-haul and backbone applications.
- Tool-Free Flangeless Retention – Spring-retained adapters simplify installation without additional screws or hardware.
- Durable, Corrosion-Resistant Build – Powder-coated aluminum construction ensures long-term reliability in demanding environments.
- Carrier-Grade Compliance – Meets Telcordia GR-326-CORE, REACH, and RoHS2 standards for enterprise and carrier deployments.
WHAT’S NEXT?
Once you’ve specified the 264-LAP04-1B6Z1 for your project:
- Select Compatible LC Cables – Choose singlemode LC duplex patch cables or pigtails matched to your UPC polish requirement.
- Confirm Enclosure Compatibility – Verify the target LGX enclosure supports standard 118 mm mounting hole spacing.
- Plan Fiber Routing – Map out fiber paths and cable management before installation to maintain proper bend radius.
- Label and Test – Label each of the 6 positions and test insertion/return loss after installation to confirm performance.
For more options, visit our other Optical Fiber Adapter Plates to find the perfect fit today!
