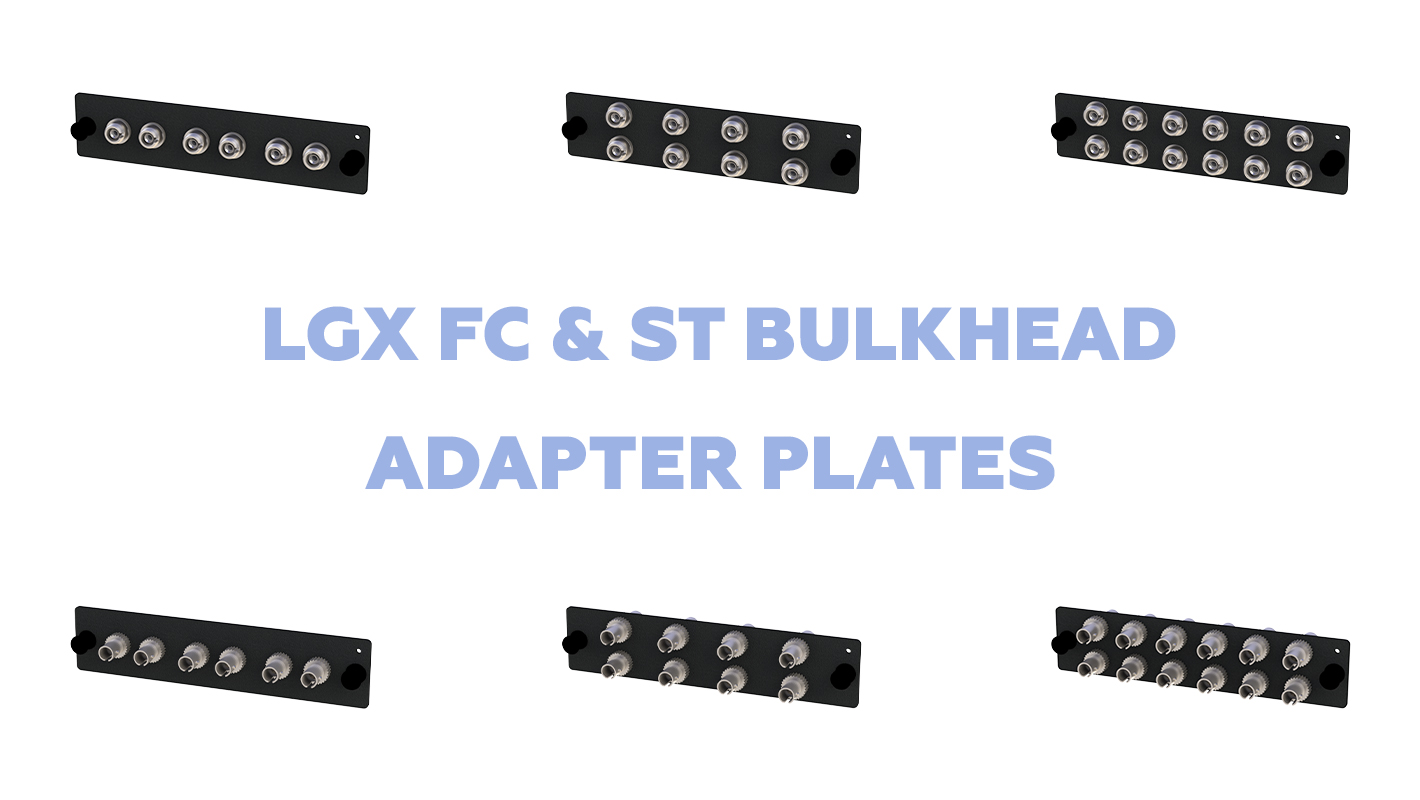

VERTICAL CABLE 264-LAD SERIES – FC & ST BULKHEAD ADAPTER PLATES
The 264-LAD Series is an adapter plate designed for FC and ST fiber optic terminations in data centers, telecommunications rooms, and legacy fiber networks. This adapter plate features durable 1.5 mm aluminum construction with black powder coating and spring-retaining adapters for secure connections. Available in singlemode and multimode configurations with 6-, 8-, or 12-position options, this adapter plate provides a universal LGX-compatible fit with Telcordia GR-326CORE-compliant performance.
KEY FEATURES
Here’s what makes the 264-LAD Series ideal for FC and ST fiber installations:
- LGX-Compatible Form Factor: Universal fit for standard LGX fiber enclosures, patch panels, and cassettes.
- FC and ST Connector Options: Supports FC and ST simplex adapters for legacy and industrial fiber applications.
- 6, 8, and 12-Position Configurations: Multiple port densities to match various fiber count requirements.
- Singlemode and Multimode: Available in SM 9/125, MM 50/125, and MM 62.5/125 configurations.
- Durable Aluminum Construction: 1.5 mm (15-gauge) aluminum alloy plate provides robust support and long-term reliability.
- Black Powder Coating: A professional finish that resists scratches and corrosion.
- Spring Retaining Design: Secure adapter retention ensures stable connections under vibration and handling.
- Split Zirconia Ceramic Sleeves: Precision alignment sleeves provide low insertion loss and reliable fiber-to-fiber contact.
- Wide Environmental Range: Operates from -20°C to +70°C with up to 95% RH non-condensing.
- UL 94 V-0 Rated Plastic Parts: Fire-retardant fasteners meet safety requirements.
- Ultra-Lightweight: Weighs just 0.07 lb (0.03 kg) for easy handling and installation.
- RoHS2 and REACH Compliant: Meets environmental compliance requirements.
APPLICATIONS
The 264-LAD Series adapter plate excels in FC and ST fiber optic infrastructure:
- Data Centers: Organize FC and ST fiber connections in high-density LGX enclosures and patch panels.
- Telecommunications Rooms: Deploy in legacy fiber networks requiring FC or ST connectivity.
- Industrial Networks: Provide robust fiber terminations in manufacturing, utility, and process control environments.
- Broadcast and AV: Install in fiber distribution systems using FC or ST connectors for video and audio transport.
- Test and Measurement: Enable organized fiber connections for lab equipment and testing instrumentation.
WHY CHOOSE THE 264-LAD SERIES ADAPTER PLATES?
Professionals choose the 264-LAD Series for its reliable FC and ST fiber connectivity, precision construction, and universal LGX compatibility. Here are 5 reasons to specify it for your next project:
- FC and ST Support – Accommodates FC and ST simplex adapters for legacy networks, industrial applications, and specialized fiber systems.
- Universal LGX Fit – Standard LGX form factor ensures compatibility with enclosures, patch panels, and cassettes from any manufacturer.
- Multiple Densities – 6-, 8-, and 12-position options match fiber-count requirements for various installation sizes.
- Low Insertion Loss – Split zirconia ceramic sleeves deliver ≤0.3 dB insertion loss for reliable optical performance.
- Telcordia Compliant – Meets GR-326CORE standards for verified performance in telecommunications and enterprise applications.
WHAT’S NEXT
Once you’ve specified the 264-LAD Series for your project:
- Select Connector Type – Choose FC or ST adapters based on your existing fiber cable and equipment connector types.
- Determine Position Count – Select 6, 8, or 12-position plates based on fiber count and density requirements.
- Match Fiber Type – Select the adapter color that matches your fiber type (OM1, OM3, OM4, SM UPC, or SM APC).
- Plan Port Layout – Map out adapter plate positions in your LGX enclosure before installation for organized documentation.
