069-561/CMXT

VERTICAL CABLE 069-561/CMXT – CAT6 DIRECT BURIAL CABLE, F/UTP SHIELDED, 550 MHz, DUAL JACKET

The 069-561/CMXT is a professional-grade CAT6 direct burial cable engineered for outdoor underground installations requiring maximum protection from moisture and environmental exposure. This F/UTP shielded cable features a dual-jacket construction with a UV-resistant LLDPE outer jacket and PVC inner jacket, delivering 550 MHz bandwidth for high-performance network applications. Built with 23 AWG solid bare copper conductors and PoE++ support, this cable is ideal for connecting outdoor buildings, security cameras, and remote network locations.

KEY FEATURES

Here’s what makes the 069-561/CMXT a dependable choice for outdoor underground installations:

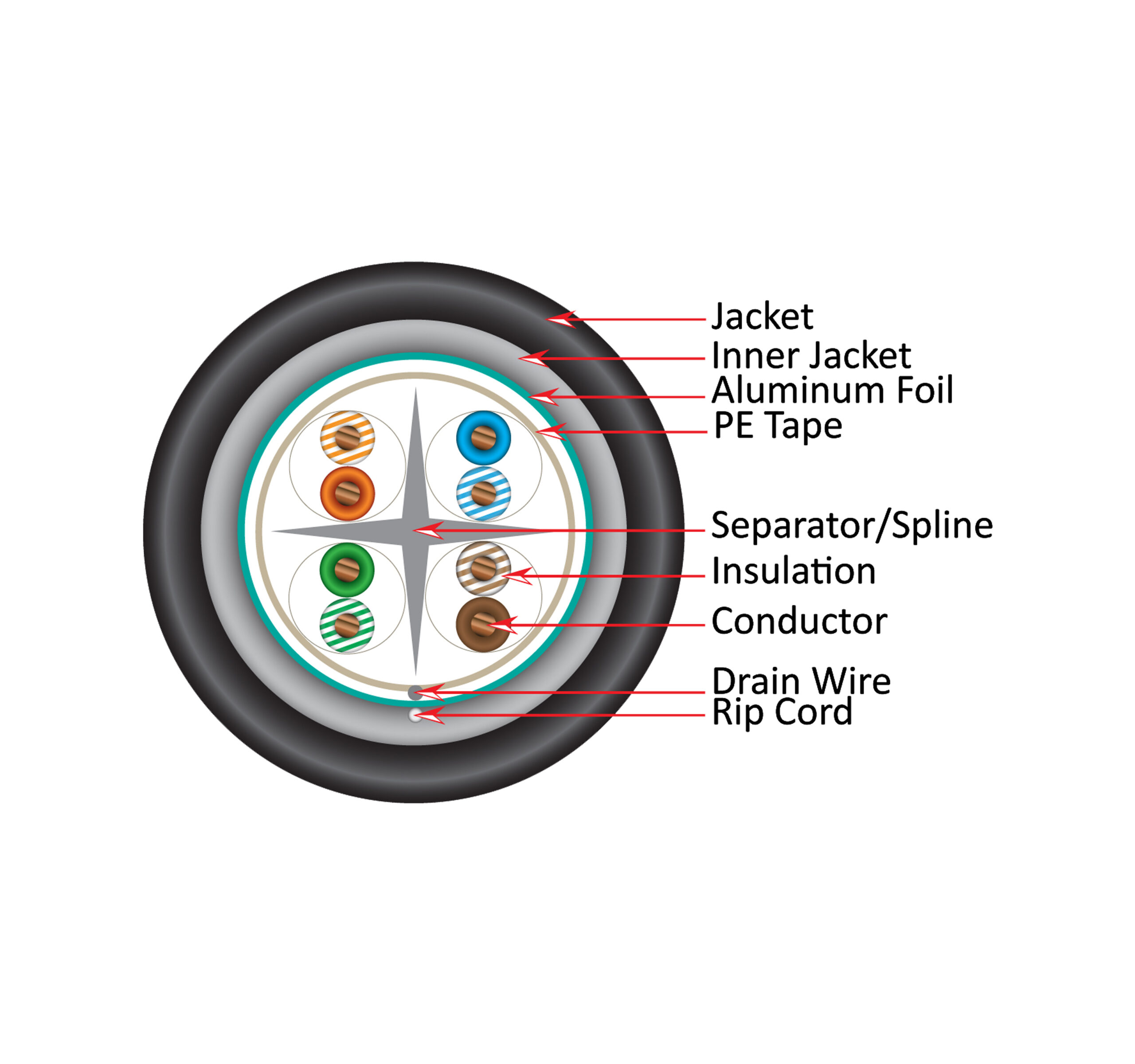

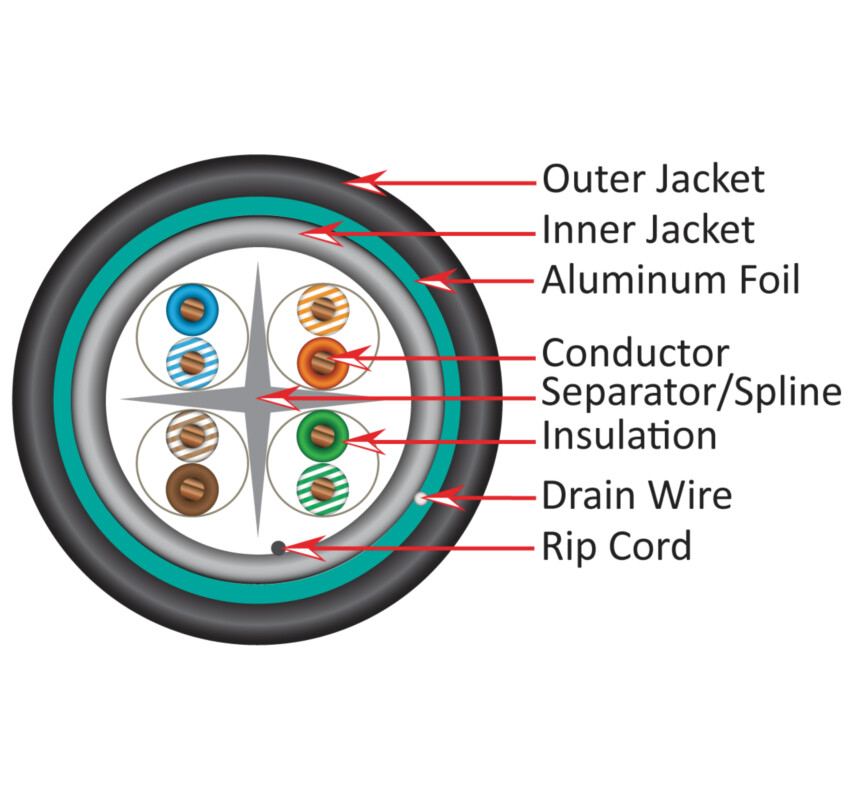

• Dual-Jacket Construction: UV-resistant black LLDPE outer jacket (0.36 in. OD) over gray PVC inner jacket (0.28 in. OD) for superior environmental protection.

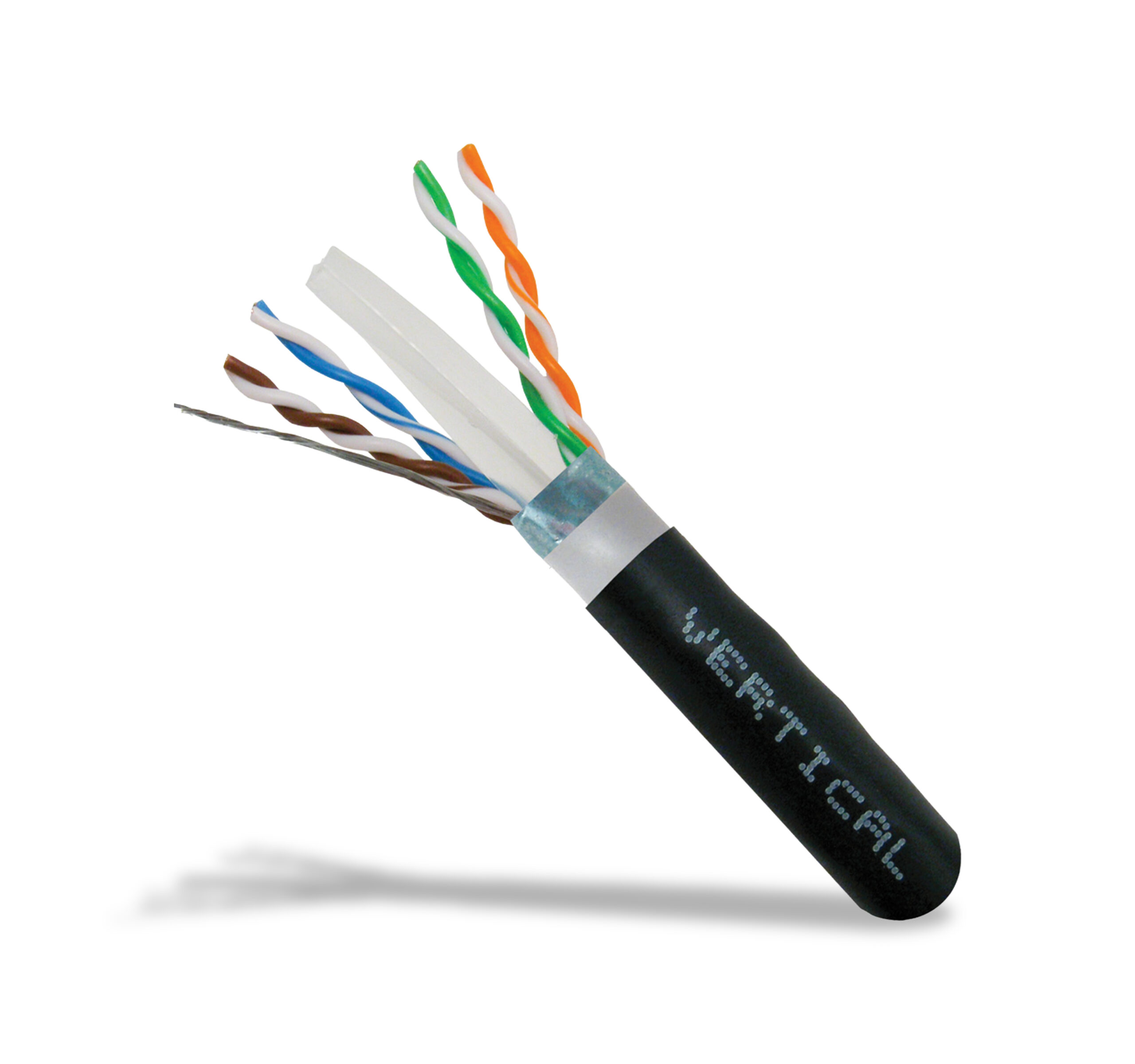

• F/UTP Shielded Design: Foiled shielding with tinned copper drain wire provides EMI/RFI protection for reliable signal transmission.
• 550 MHz Bandwidth: Supports 10/100/1000BASE-T, Fast Ethernet, and 155Mbps TP-PMD/CDDI applications.
• 23 AWG Solid Copper Conductors: Solid bare annealed copper ensures optimal signal integrity and long-term durability.
• PoE++ Compatible: Supports IEEE 802.3bt Power over Ethernet for powering remote devices.
• Direct Burial Rated: Designed for underground installation without conduit in suitable soil conditions.
• Water-Resistant: Dual-jacket design protects against moisture infiltration in wet environments.
• UV-Resistant: LLDPE outer jacket withstands prolonged sun exposure for above-ground outdoor runs.
• Wide Operating Range: Performs reliably from -40°F to 167°F (-40°C to 75°C).
• Industry Compliant: Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 specifications; ETL listed, RoHS compliant.

APPLICATIONS

The 069-561/CMXT CAT6 direct burial cable excels in outdoor installations requiring underground or exposed cable runs:

• Building-to-Building Connections: Run network cabling between structures across parking lots, courtyards, or campuses.
• Outdoor Security Systems: Connect IP cameras, access control panels, and intercoms in parking lots and perimeters.
• Landscape Lighting Controls: Support networked outdoor lighting systems with PoE-powered fixtures.
• Wireless Access Point Backhaul: Provide connectivity to outdoor WiFi access points on poles or building exteriors.
• Agricultural & Industrial Sites: Extend networks to barns, outbuildings, pump stations, and remote monitoring equipment.

WHY CHOOSE THE 069-561/CMXT CAT6 DIRECT BURIAL CABLE?

Professionals choose the 069-561/CMXT because it combines high-performance networking with rugged outdoor durability. Here are 5 reasons to include it in your next outdoor installation:

1. True Direct Burial Construction – Dual-jacket design with water-resistant materials allows underground installation without conduit in appropriate conditions.
2. Shielded Performance – F/UTP foil shielding protects against electromagnetic interference from outdoor sources like motors, lighting, and power lines.
3. All-Weather Durability – UV-resistant LLDPE jacket withstands sun exposure while the dual-layer construction resists moisture and temperature extremes.
4. Full PoE++ Support – Power remote cameras, access points, and outdoor devices over a single cable run up to 100 meters.
5. Exceeds Industry Standards – ETL-listed performance that meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 specifications.

WHAT’S NEXT?

Once you’ve installed the 069-561/CMXT:

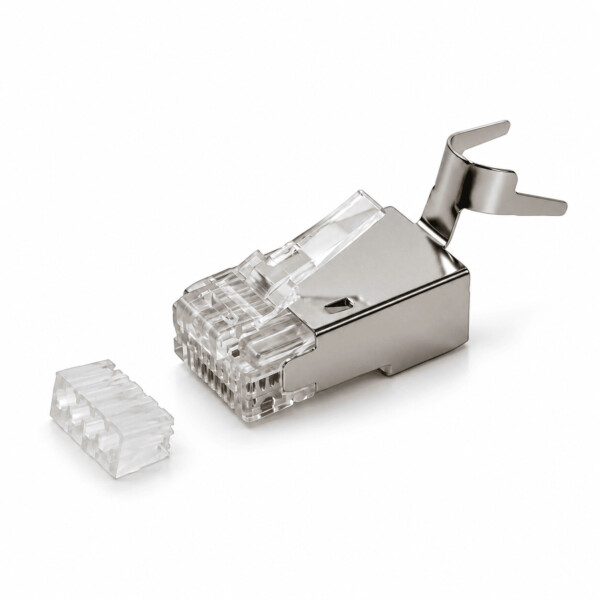

• Terminate with Shielded Components – Use shielded keystone jacks and patch panels for end-to-end EMI protection.
• Test and Certify – Verify CAT6 performance with a cable certifier before putting links into service.
• Document Your Runs – Record burial depth and routing for future reference and maintenance.
• Ground the Shield – Properly terminate the drain wire to ensure effective shielding performance.
