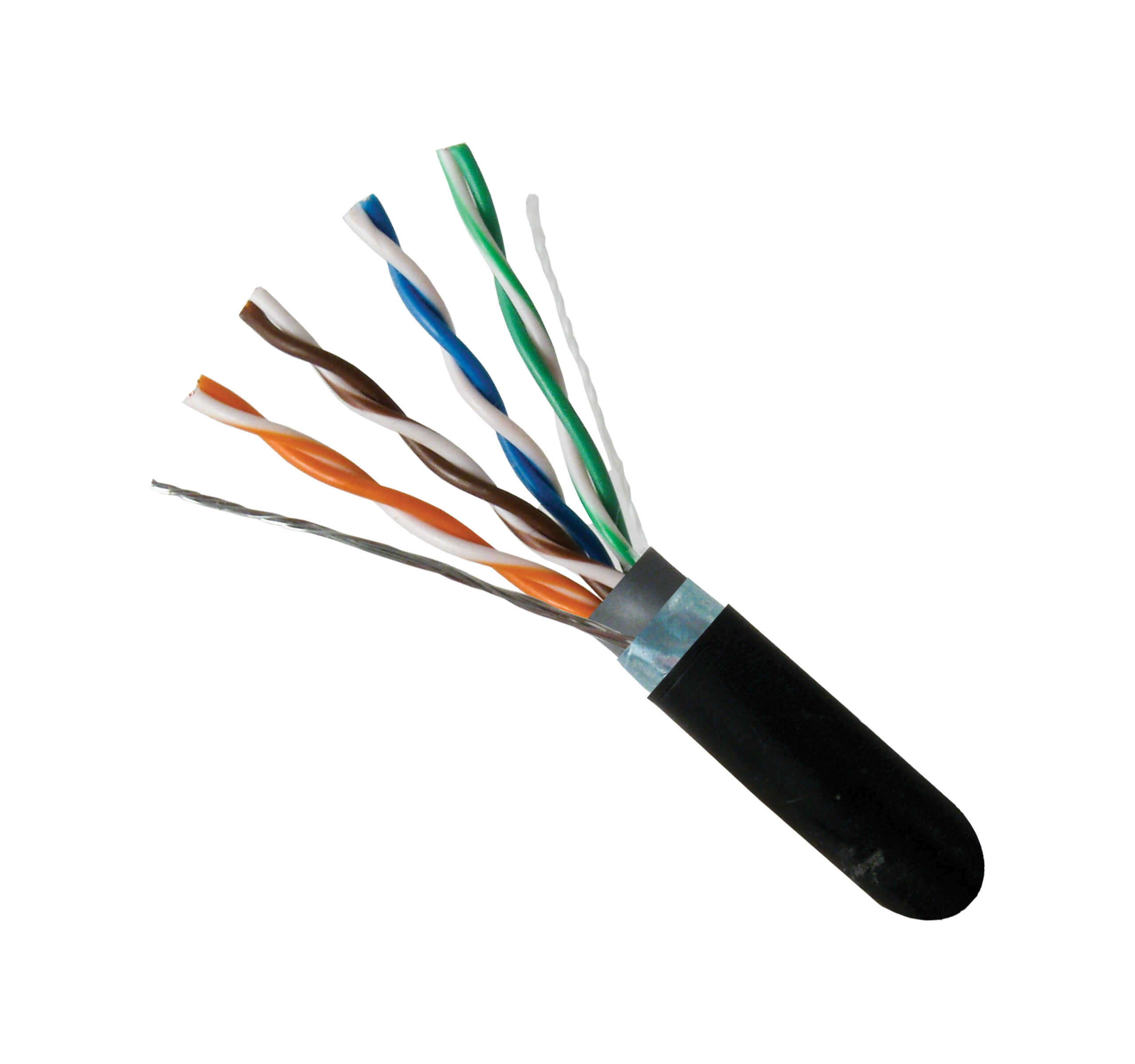

VERTICAL CABLE 059-486/CMXT – CAT5E DIRECT BURIAL CABLE
The 059-486/CMXT CAT5E cable is designed for shielded, direct-burial installations. Featuring a waterproof dual-jacket design and an LSZH outer layer, it’s ideal for rugged outdoor environments that demand high performance and long-lasting durability.
KEY FEATURES
Here are its key features:

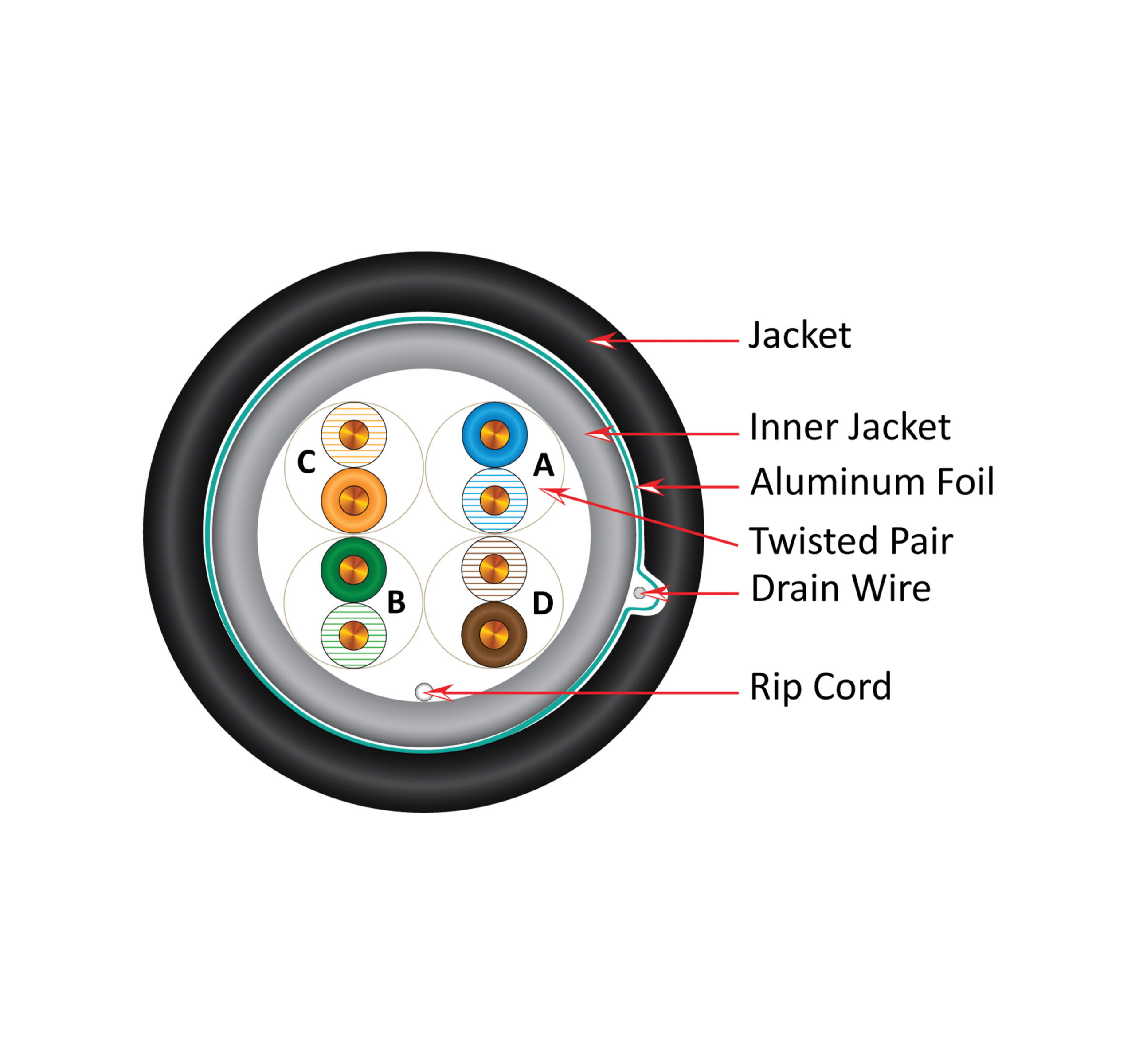

- Cable Type: CAT5E F/UTP (Foiled Unshielded Twisted Pair), 4 shielded pairs
- Bandwidth: Supports up to 350 MHz for Gigabit Ethernet and PoE applications
- Conductor: 24 AWG solid bare annealed copper, 8 conductors
- Drain Wire: 0.016″ (0.40 mm) tinned copper for enhanced grounding
- Insulation: PE, 0.04″ (0.91 mm) diameter with easy-to-strip rip cord
- Shielding: Overall foil (F/UTP) for EMI and crosstalk protection
- Jacket: Dual-layer, waterproof, and UV-resistant Low Smoke Zero Halogen (LSZH)
- Outer Diameter: 0.20″ (5.10 mm)
- Jacket Thickness (Avg/Min): 0.0236″ / 0.0212″ (0.60 mm / 0.54 mm)
- Operating Temperature: –40 °F to 167 °F (–40 °C to 75 °C)
- Color Coding: Standard pair sequence (White/Blue, White/Orange, White/Green, White/Brown)
- Markings: ETL Verified, RoHS Compliant, CMX Rated for Direct Burial

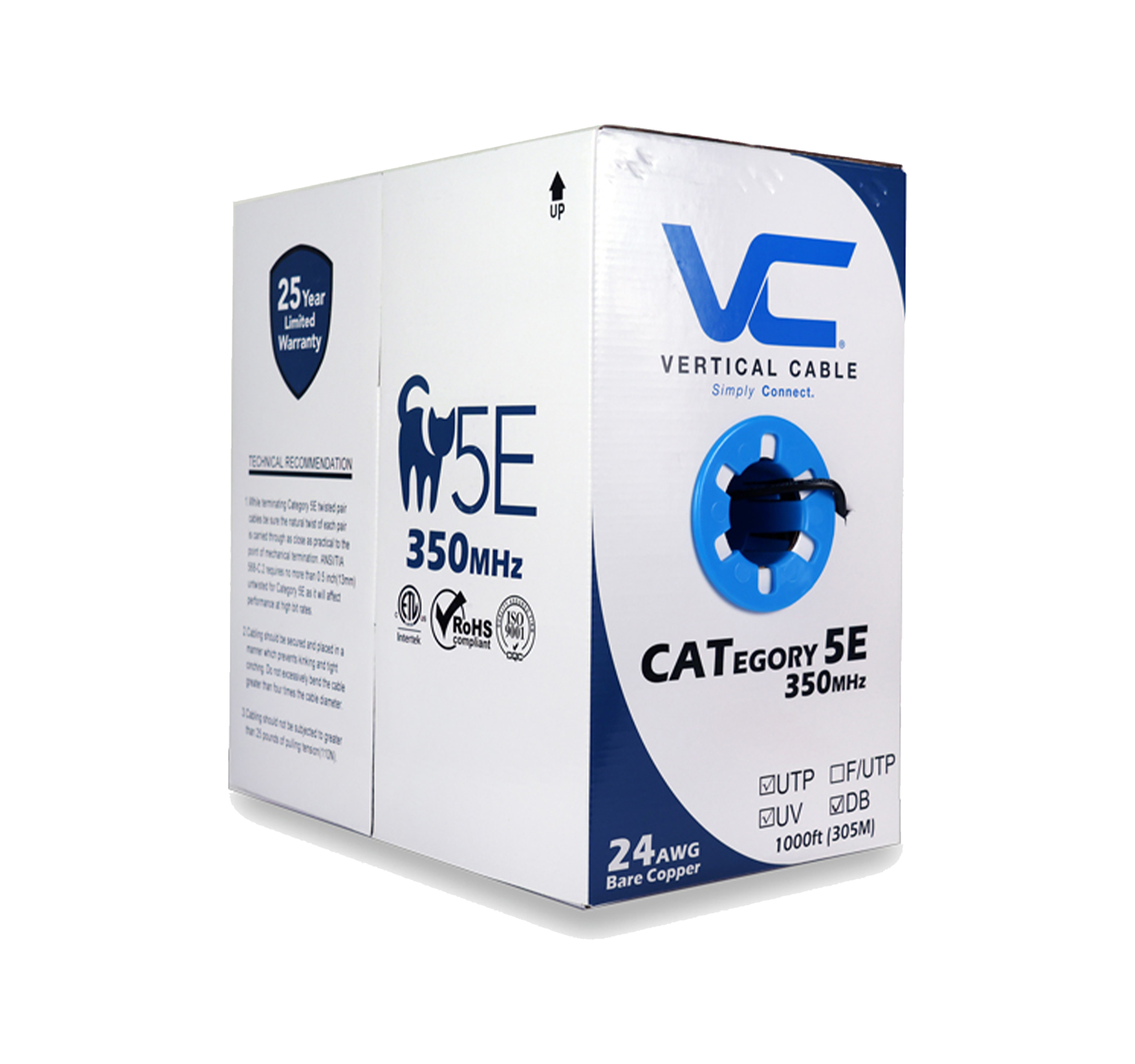

- Packaging: 1000 ft (304.8 m) pull box
- Weight: 32.1 lb (14.56 kg)
- Color: Black
APPLICATIONS
Perfect for direct burial and EMI-sensitive outdoor applications. Best suited for:
- Ground-level PoE IP Security Systems
- Outdoor Access Points and Networking
- Campus and Facility Backbone Extensions
- Gate Entry and Driveway Communication
- Telecom and Utility Infrastructure
WHY CHOOSE THE 059-486/CMXT – CAT5E DIRECT BURIAL CABLE?
This cable delivers superior shielding and environmental resistance for challenging outdoor installations:
- Shielded for Reliability: Foil shielding protects data from EMI and cross-talk.
- Waterproof Build: Dual-jacketed and rated for direct burial without conduit.
- Fire-Resistant: The LSZH jacket minimizes toxic smoke in the event of a fire.
- Installer-Friendly: Rip cord and standard color coding simplify field termination.
- Certified Performance: ETL listed, RoHS compliant, and ANSI/TIA-568.2-D verified.
WHAT’S NEXT?
After selecting the 059-486/CMXT:
- Trench & Lay – Install directly into soil without additional conduit
- Terminate Cleanly – Use CAT5E-rated shielded connectors
- Label & Protect – Weather-seal junctions and use UV-stable labeling
For more premium CAT5E Direct Burial Cables and other solutions, visit CAT5E Direct Burial and discover top-tier solutions today!
