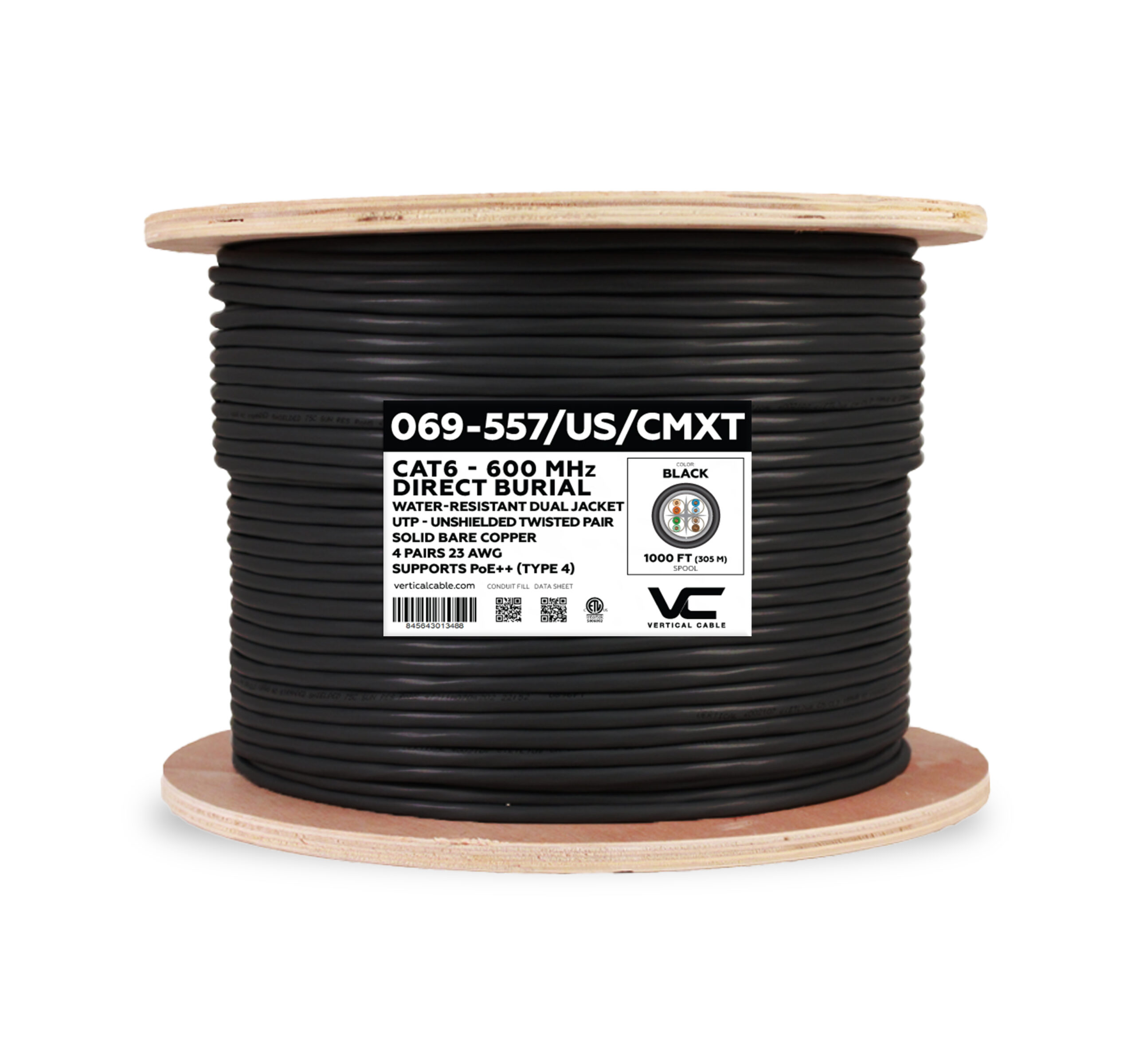

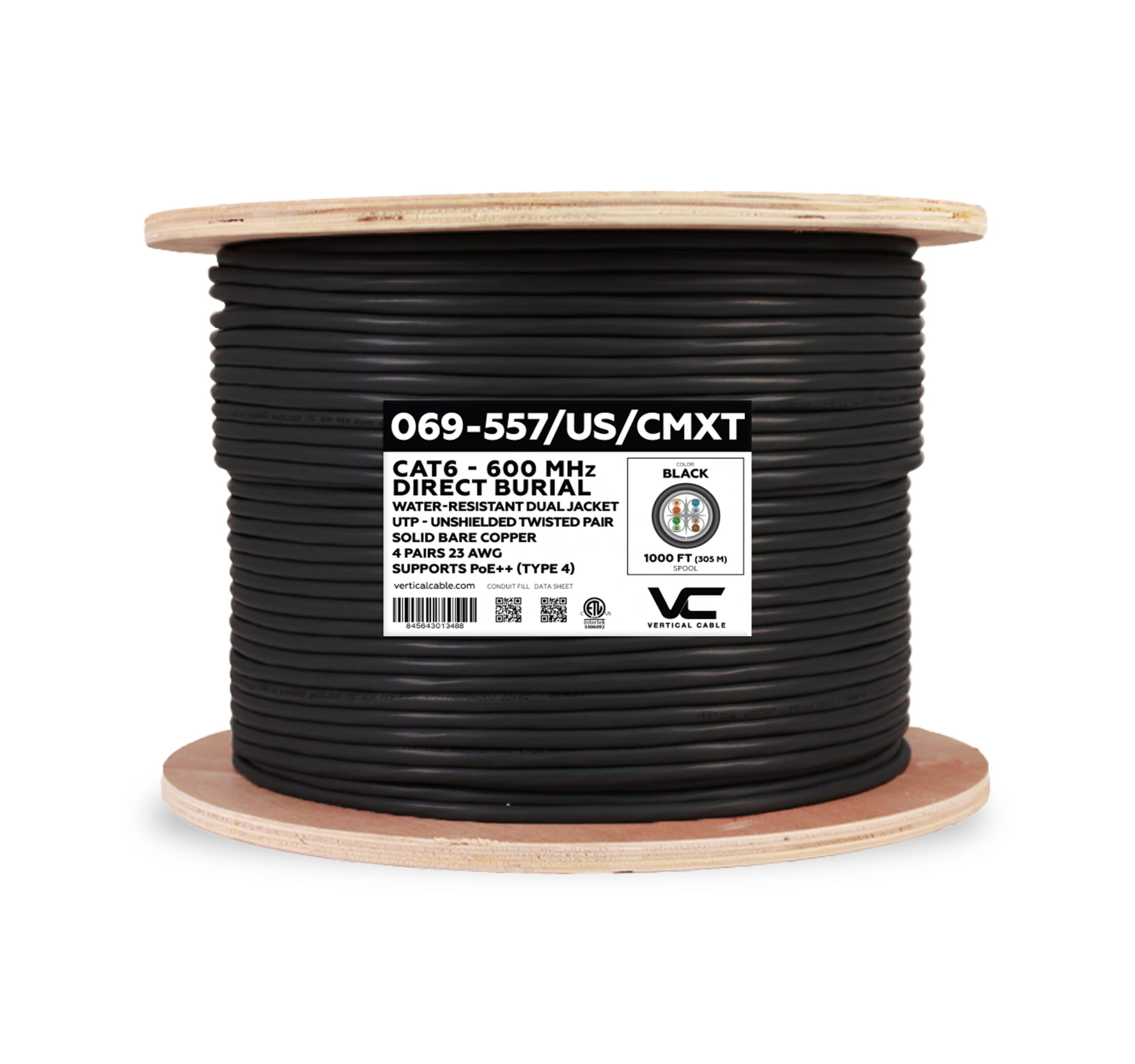

VERTICAL CABLE 069-557/US/CMXT – CAT6 DIRECT BURIAL CABLE, UTP UNSHIELDED, DUAL JACKET, 1000 FT

The 069-557/US/CMXT is a CAT6 Direct Burial Cable engineered for outdoor and underground installations requiring reliable performance without the complexity of shielded terminations. This CAT6 cable features a dual-jacket construction with a PVC inner jacket and black UV-resistant LLDPE outer jacket for maximum environmental protection.

KEY FEATURES

Here’s what makes the 069-557/US/CMXT ideal for outdoor and direct burial installations:

600 MHz High-Performance Rating: Supports Fast Ethernet, 155 Mbps TP-PMD/CDDI, and high-bandwidth applications.
Dual-Jacket Construction: PVC inner jacket (0.23 in. OD) plus black LLDPE outer jacket (0.30 in. OD) for maximum protection.
UTP Unshielded Design: Simplified termination without grounding requirements while maintaining reliable performance.
23 AWG Solid Bare Copper Conductors: Eight solid copper conductors deliver consistent signal transmission over long distances.
UV-Resistant Outer Jacket: Black LLDPE jacket withstands prolonged sun exposure without degradation.
Water-Resistant Design: Engineered to prevent moisture ingress in direct burial and wet location applications.
PoE++ Compatible: Conductors handle up to PoE Type 3 voltages (60V) for powering outdoor IP cameras, access points, and other devices.
Wide Operating Temperature: Performs reliably from -40°C to +70°C (-40°F to 158°F) in extreme conditions.
Easy Identification: Color-striped pairs for quick and accurate termination.
Convenient Installation: Dual nylon rip cords for easy jacket removal; sequential foot markers on jacket; 1000 ft wooden spool packaging.
Industry Compliant: Meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 specifications; ETL Listed, RoHS compliant.

APPLICATIONS

The 069-557/US/CMXT CAT6 Direct Burial Cable excels in outdoor and underground networking installations:

Direct Burial Runs: Install underground without conduit for building-to-building or site-wide network connections.
Outdoor Security Systems: Connect IP cameras, access control panels, and surveillance equipment in exposed locations.
Wireless Access Points: Provide PoE++ powered connectivity to outdoor Wi-Fi access points and antennas.
Campus Networks: Link buildings across educational, corporate, or industrial campuses.
Residential Outdoor Networks: Extend network connectivity to detached garages, workshops, and outbuildings.

WHY CHOOSE THE 069-557/US/CMXT CAT6 DIRECT BURIAL CABLE?

Professionals choose the 069-557/US/CMXT because it delivers reliable outdoor performance with straightforward installation. Here are 5 reasons to specify it for your next outdoor installation:

Maximum Environmental Protection – Dual-jacket construction with UV-resistant LLDPE outer jacket and water-resistant design ensures long-term reliability underground or exposed.
Simplified Termination – UTP unshielded design eliminates the need for drain wire grounding, making field termination faster and easier.
Pure Copper Performance – 23 AWG solid bare copper conductors deliver consistent signal quality and support full PoE++ power delivery.
Extreme Temperature Operation – Rated for -40°C to +70°C operation, this cable performs in climates from arctic cold to summer heat.
Verified Compliance – ETL Listed and exceeds ANSI/TIA-568.2-D standards for guaranteed Category 6 performance.

WHAT’S NEXT?

Once you’ve specified the 069-557/US/CMXT for your project:

Plan Your Route – Map underground paths and verify clearance from other utilities before trenching.
Check Local Codes – Confirm burial depth requirements and any conduit specifications for your jurisdiction.
Use Quality Connectors – Select high-quality CAT6 unshielded connectors for reliable termination.
Test After Installation – Verify performance with cable certification testing before commissioning the network.
