VERTICAL CABLE 264-MCS0U12-3A90 – LC SINGLEMODE UPC SPLICING LGX CASSETTE

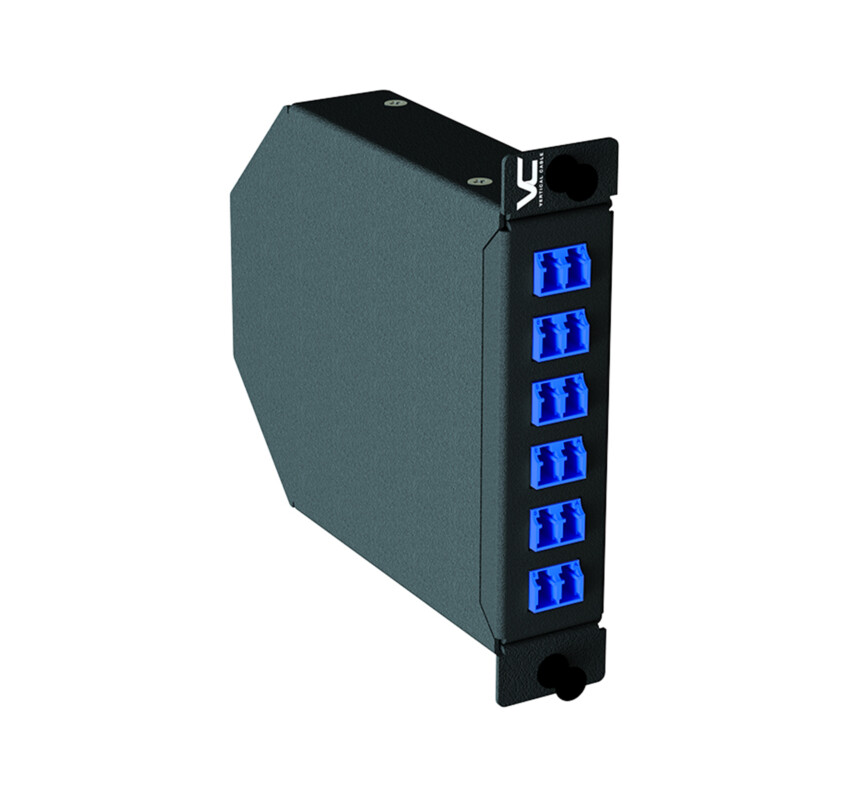

The 264-MCS0U12-3A90 is a 12-fiber LC singlemode UPC LGX Splicing Cassette built to terminate singlemode fiber directly through fusion splicing. Functioning as a self-contained splice cassette, it ships as a complete kit with matching singlemode UPC pigtails, splice holders, and protection sleeves, so there’s no need to source components separately. Built to the standard LGX footprint with a rear M12/PG7 cable gland entry, this LGX Splicing Cassette gives installers a clean, field-terminated solution for singlemode backbone, campus, enterprise, and other longer-distance fiber networks.
KEY FEATURES
Here’s what makes the 264-MCS0U12-3A90 an ideal LGX Cassette:
- 12-Fiber LC Singlemode UPC Configuration: Supports 12 fusion-spliced singlemode fibers terminated to LC UPC connectors for reliable, low-loss optical connectivity.
- UPC-Polished Singlemode Connectivity: UPC interfaces provide high return-loss performance for general-purpose singlemode applications, including enterprise, campus, backbone, and telecommunications networks.
- Complete Splicing Kit: Includes ANSI/TIA-598 color-coded 900 µm pigtails matching the connector type and 12-fiber count, providing the essential splice-management components in one enclosure.
- Splice Holders and Protection Sleeves: Ships with splice holders matched to the fiber count and 265-SLV01-3A splice protection sleeves.
- Rear M12/PG7 Cable Gland Entry: Accepts incoming cable with an OD of 0.08–0.25 in (2–6.5 mm) for direct splicing within the cassette.
- Standard LGX Footprint: Fits standard LGX-compatible enclosures and mounting hardware, allowing the cassette to integrate into modular fiber distribution systems.
- Low Insertion Loss: SC/LC interfaces are rated at 0.3 dB or lower when used with standard-compliant plugs, supporting reliable optical transmission.
- High UPC Return Loss: UPC SC/LC interfaces provide return loss of ≥55 dB when used with standard-compliant plugs, helping minimize back reflections in singlemode links.
- Zirconia Ceramic Sleeves: One-piece front adapter construction uses split zirconia ceramic sleeves for precise fiber alignment and dependable optical connections.
- Additional Kit Hardware: Includes a base cover, front bracket with installed adapters, rear cable gland adapter plate, and two blank rear adapter plates.
- Telcordia GR-326-CORE Compatible: Designed around established performance requirements for fiber-optic connectors and connectivity hardware.
APPLICATIONS
The 264-MCS0U12-3A90 LGX Splicing Cassette excels in field-terminated singlemode fiber installations requiring compact LC UPC connectivity:
- Campus and Building Backbones: Terminate singlemode fiber links connecting buildings, telecommunications spaces, and network distribution points.
- Enterprise Fiber Networks: Provide organized LC UPC termination for singlemode infrastructure requiring greater transmission distances than typical multimode links.
- Data Centers: Terminate singlemode backbone and interconnect fiber where LC UPC connectivity and field fusion splicing are required.
- Telecommunications Rooms: Provide a standardized splice-cassette termination point within MDFs, IDFs, and fiber distribution locations.
- Outside Plant (OSP) Terminations: Route compatible incoming fiber through the rear cable gland for direct fusion splicing to the cassette’s singlemode pigtails.
- Telecommunications Infrastructure: Provide LC UPC connectivity for general-purpose singlemode optical links where low insertion loss and high return-loss performance are required.
WHY CHOOSE THE 264-MCS0U12-3A90 LGX CASSETTE?
Professionals choose the 264-MCS0U12-3A90 for its all-in-one splicing kit, reliable singlemode performance, and universal LGX fit. Here are 5 reasons to specify it for your next project:
- Complete Splicing Solution – Ships with matching 900 µm singlemode pigtails, splice holders, and protection sleeves, eliminating the need to source these components separately.
- Optimized Singlemode Performance – LC UPC connectivity provides low insertion loss and high return loss for backbone, campus, enterprise, and longer-distance optical links.
- UPC Return Loss ≥55 dB – High return-loss performance helps reduce reflected optical power while providing reliable connectivity for general-purpose singlemode networks.
- Direct Fusion-Splice Termination – Rear cable gland entry accommodates cable diameters from 0.08–0.25 in (2–6.5 mm), allowing incoming fiber to be routed directly into the cassette for splicing.
- Standard LGX Compatibility – Fits standard LGX enclosures and mounting hardware while supporting integration into modular fiber distribution systems.
GETTING IT INSTALLED
Once you’ve specified the 264-MCS0U12-3A90 for your project:
- Confirm the fiber and polish type. Make sure the incoming fiber is singlemode and that the connecting equipment and patch cords use the appropriate LC UPC connectivity.
- Check your cable against the gland. Confirm the incoming fiber cable’s outer diameter falls between 0.08–0.25 in (2–6.5 mm) so it can be properly accommodated by the M12/PG7 cable gland.
- Prepare your splicing equipment. Fusion splicing requires appropriate fiber preparation tools, a fusion splicer, and technicians trained to perform and verify singlemode fiber splices.
- Plan the fiber routing. Determine how the incoming fibers, splice holders, and pigtails will be routed inside the cassette while maintaining appropriate fiber bend radius and organization.
- Splice, test, then label. After completing the fusion splices, test the finished optical connections and clearly label all 12 LC positions to simplify documentation, maintenance, and future troubleshooting.
- Keep UPC connectivity consistent. Use compatible UPC-polished connectors and patch cords throughout the connection rather than mixing UPC and APC interfaces.
