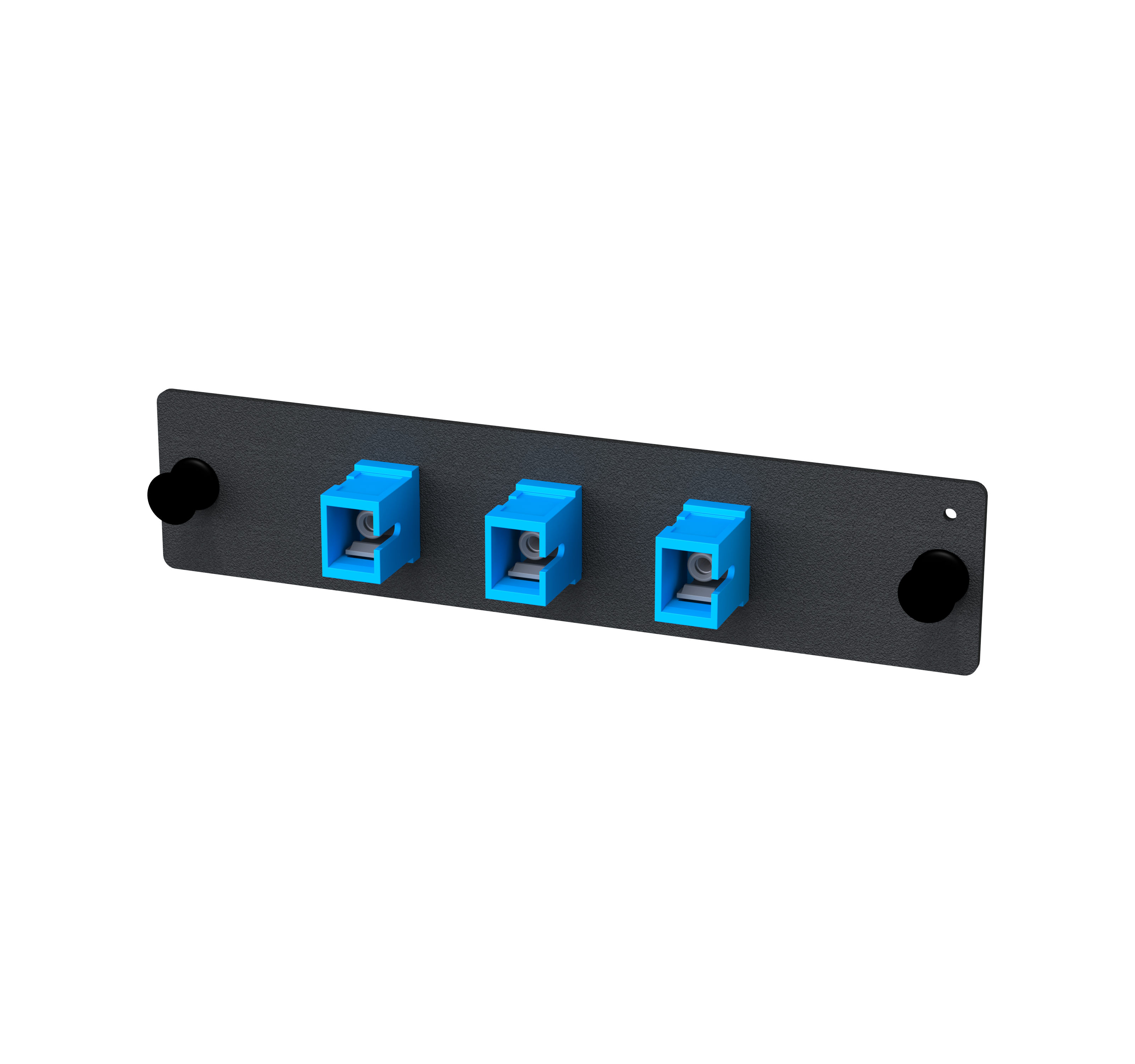

264 MAP041A3AA 1A3AOF3DT0301NF264 LAP03 TA3Z1 LGX Adapter Plates - Flangeless (264-LAP Series)
Click to enlarge
210-224ST/DB
Back to products
CAT6 UTP CMP (Slim Type) - 166 Series

LGX Adapter Plates – Flangeless (264-LAP Series)

Optical Fiber Spring-Retaining Adapter Plates (Flangeless).

CHOOSE YOUR ADAPTER PLATE:

Clear
Compare
Add to wishlist
15 People watching this product now!
SKU: 264-LAP03-TA3Z1 Category:
Download Specification
Description

Features :

  • LGX compatible
  • 0.6 in. (1.5 mm) (15-GA) lightweight aluminum alloy, black powder coating
  • nylon/ABS panel fasteners
  • Fiber type compatibility: SM 9/125, MM 50/125, MM 62.5/125
  • Plug type compatibility:  PC, UPC, APC
  • Horizontal or Vertical mounting positions
  • Compliance: Regulation (EC) No 1907/2006 (REACH); Directive 2011/65/EU Am. 2015/863/EU (RoHS2)
    • Plastic parts: ANSI/UL 94 V-0.
  • Telcordia GR-326-CORE compatible
  • Dimensions:
    • width: 5.12 in. (130 mm);
    • height: 1.14 in. (29 mm);
    • mounting hole distance: 4.65 in. (118 mm) ctc.
    • depth:
      • FC:  0.6 in. (15 mm);
      • MPO:  1 in. (25 mm);
      • ST, SC, LC: 1.2 in. (30 mm)
  • Adapter construction:
    • one-piece or two-piece design;
    • split Zirconia ceramic sleeves (single-fiber adapters);
    • retention:         –   flangeless adapters: chatter-proof three-sided or two-sided spring;
          • flanged adapters:  flanges with holes for two self-tapping screws; optional plastic integral latches or two-sided metal springs; dust-proof plugs (with integral key in K-SW adapters).

Color Code reference (per ANSI/TIA-568.3):

BLUE:        adapter is intended to be used for connecting cabling based on SM fiber and UPC plugs.
GREEN:    adapter is intended to be used for connecting cabling based on SM fiber and APC plugs.
BEIGE:       adapter is intended to be used for connecting cabling based on OM1 fiber.
AQUA:       adapter is intended to be used for connecting cabling based on OM3 fiber.
VIOLET:     adapter is intended to be used for connecting cabling based on OM4 fiber

Please, note that adapter body color is used for identification purposes only and does not denote adapter’s transmission performance. All Vertical Cable’s adapters are equipped with zirconia ceramic split sleeves capable to efficiently connect all types of fibers.

Additional information
Fiber Class

OM1, OM3, OM4, SM APC, SM UPC, UNIVERSAL

Adapter Type

LC Duplex 1-Position 2-Fibers, LC Duplex 1-Position 2-Fibers (Vertical), LC Duplex 2-Positions 4-Fibers, LC Duplex 2-Positions 4-Fibers (Vertical), LC Duplex 3-Positions 6-Fibers, LC Duplex 3-Positions 6-Fibers (Vertical), LC Duplex 4-Positions 8-Fibers, LC Duplex 4-Positions 8-Fibers (Vertical), LC Duplex 6-Positions 12-Fibers (Vertical), LC Duplex 8-Positions 16-Fibers (Vertical), LC Quadruplex 1-Position 4-Fibers, LC Quadruplex 2-Positions 8-Fibers, LC Quadruplex 3-Positions 12-Fibers, LC Quadruplex 4-Positions 16-Fibers, LC Quadruplex 6-Positions 24-Fibers, MPO 1-Position, MPO 1-Position (Vertical), MPO 2-Positions, MPO 2-Positions (Vertical), MPO 3-Positions, MPO 3-Positions (Vertical), MPO 4-Positions, MPO 4-Positions (Vertical), MPO 6-Positions, MPO 8-Positions, SC Duplex 1-Position 2-Fibers, SC Duplex 3-Positions 6-Fibers, SC Duplex 4-Positions 4-Fibers, SC Duplex 4-Positions 8-Fibers, SC Duplex 6-Positions 12-Fibers, SC Simplex 1-Position 1-Fiber, SC Simplex 1-Position 1-Fiber (Vertical), SC Simplex 2-Positions 2-Fibers, SC Simplex 2-Positions 2-Fibers (Vertical), SC Simplex 3-Positions 3-Fibers, SC Simplex 3-Positions 3-Fibers (Vertical), SC Simplex 4-Positions 4-Fiber, SC Simplex 4-Positions 4-Fibers (Vertical), SC Simplex 6-Positions 6-Fibers (Vertical), SC Simplex 8-Positions 8-Fibers (Vertical)
