VERTICAL CABLE 264-LAP04-1C3Z1 – LC/QX SM/UPC FLANGELESS LGX ADAPTER PLATE

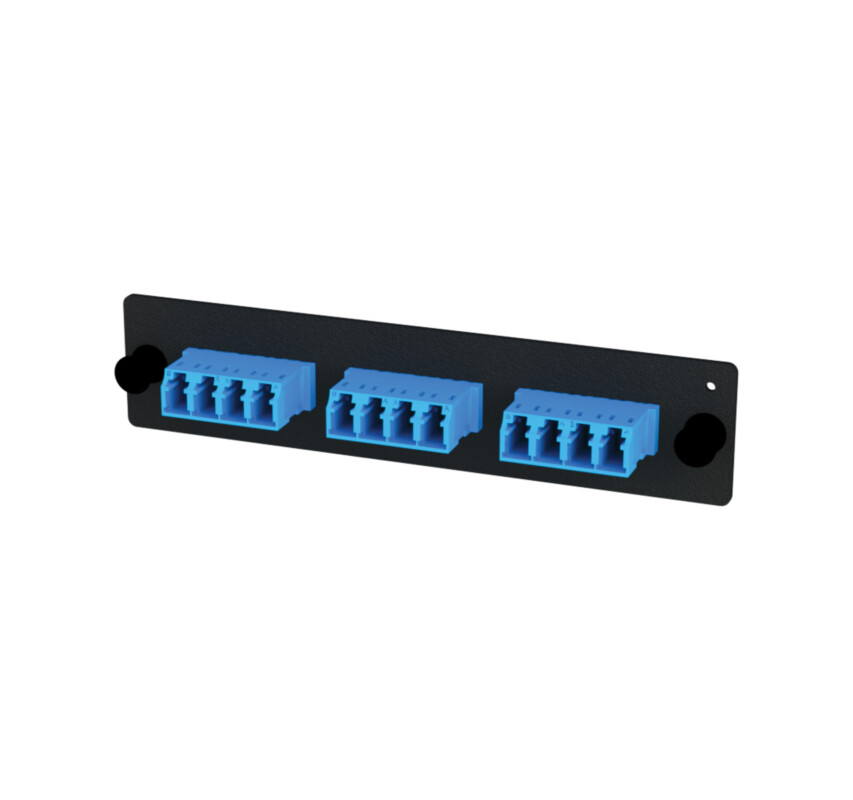

The 264-LAP04-1C3Z1 is a 3-position LC quad LGX Adapter Plate designed for high-density singlemode fiber connectivity in structured cabling deployments. Built with flangeless, spring-retained adapters and a durable powder-coated aluminum frame, this LGX Adapter Plate delivers low-loss, high-return-loss performance while maximizing fiber count per rack unit. Its universal LGX form factor allows quick integration into standard fiber enclosures, making the 264-LAP04-1C3Z1 an ideal choice wherever maximum-density LC singlemode connectivity is required.
KEY FEATURES
Here’s what makes the 264-LAP04-1C3Z1 an ideal LGX Adapter Plate:
- 3-Position LC Quad Configuration: Supports 3 LC quad adapters (12 fibers total) for maximum-density singlemode connectivity.
- Flangeless, Spring-Retained Design: Chatter-proof three-sided or two-sided spring retention secures adapters without additional hardware.
- Singlemode UPC Performance: Optimized for SM 9/125 fiber with UPC polish for reliable, low-reflectance connections.
- Low Insertion Loss: Rated at 0.3 dB or lower when used with standard-compliant plugs.
- High Return Loss: UPC-rated at 55 dB or more for minimal signal reflection.
- LGX-Compatible Form Factor: Universal fit into standard LGX enclosures and panels.
- Durable Aluminum Construction: 1.5-mm (15-GA) aluminum alloy plate with black powder coating resists corrosion and wear.
- Precision Cutouts: Ensure secure adapter alignment and consistent fiber mating.
- Lightweight Design: Weighs just 0.07 lb (0.03 kg) for easy handling and installation.
- Telcordia GR-326-CORE Compliant: Meets industry standards for fiber optic connector performance.
APPLICATIONS
The 264-LAP04-1C3Z1 LGX Adapter Plate excels in high-density singlemode fiber installations:
- Data Centers: Maximize LC singlemode port density per rack unit for backbone and cross-connect applications.
- Telecommunications Rooms: Standardize high-density LC fiber terminations within MDFs and IDFs using a universal LGX footprint.
- Enterprise Fiber Networks: Support singlemode uplinks and long-haul fiber runs requiring low insertion and return loss.
- Colocation Facilities: Deliver dense, standardized fiber mounting for multi-tenant network deployments with limited rack space.
- Central Offices and Carrier Networks: Meet Telcordia GR-326-CORE requirements for carrier-grade, high-density fiber connectivity.
WHY CHOOSE THE 264-LAP04-1C3Z1 LGX ADAPTER PLATE?
Professionals choose the 264-LAP04-1C3Z1 for its maximum-density LC connectivity, singlemode performance, and universal LGX fit. Here are 5 reasons to specify it for your next project:
- Maximum Fiber Density – 3-position LC quad layout packs 12 fibers into a compact, standard LGX footprint, saving valuable rack space.
- Optimized Singlemode Performance – UPC-polished SM adapters deliver low insertion loss and high return loss for long-haul and backbone applications.
- Tool-Free Flangeless Retention – Spring-retained adapters simplify installation without additional screws or hardware.
- Durable, Corrosion-Resistant Build – Powder-coated aluminum construction ensures long-term reliability in demanding environments.
- Carrier-Grade Compliance – Meets Telcordia GR-326-CORE, REACH, and RoHS2 standards for enterprise and carrier deployments.
WHAT’S NEXT?
Once you’ve specified the 264-LAP04-1C3Z1 for your project:
- Select Compatible LC Cables – Choose singlemode LC quad-compatible patch cables or pigtails matched to your UPC polish requirement.
- Confirm Enclosure Compatibility – Verify the target LGX enclosure supports standard 118 mm mounting hole spacing.
- Plan Fiber Routing – Map out fiber paths and cable management before installation to maintain proper bend radius given the higher fiber density.
- Label and Test – Label each of the 3 positions and test insertion/return loss after installation to confirm performance.
For more options, visit our other Optical Fiber Adapter Plates to find the perfect fit today!
