CAT6A Plenum UTP – UL – 065-300s Series

VERTICAL CABLE 065-300s SERIES – CAT6A PLENUM UTP CABLE

The 065-300s Series offers a high-performance CAT6A UTP cable built for PoE+ and 10GBASE-T applications. It’s UL-listed and plenum-rated for safety and compliance.

KEY FEATURES

Here’s a closer look at what makes the 065-300s Series a premium cabling solution:

• PoE & PoE+ Support: Handles 15W PoE (802.3af) and 30W PoE+ (802.3at Type 2) power applications.
• 10 Gigabit Speed Ready: Supports up to 10 Gb/s Ethernet (IEEE 802.3an).
• 23 AWG Solid Copper Conductors: Delivers reliable signal performance and efficiency.
• Unshielded Twisted Pair (UTP): 4-pair design meets TIA-568.2-D standards.
• Plenum Rated (CMP): Suitable for use in air-handling spaces per UL 910.

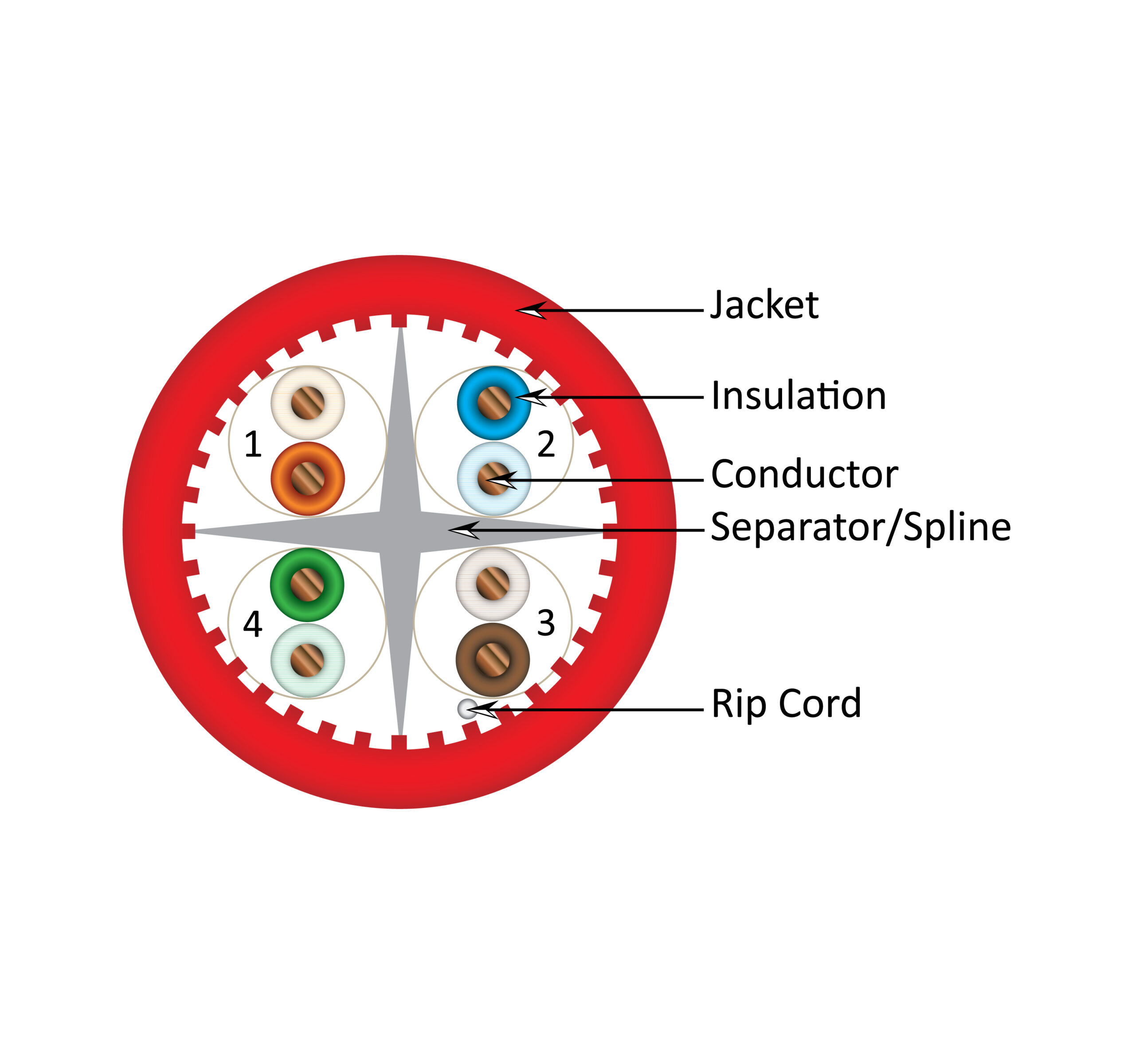

• Central Spline & Ribbed Jacket: Enhances crosstalk resistance and physical stability.
• Outer Diameter: 0.26 in. (6.6 mm ± 0.10 mm) for easy pulling and bending.
• Rip Cord Included: Simplifies jacket stripping during installation.
• Available Colors: Red (065-307/A/P/RD) or White (065-308/A/P/WH).

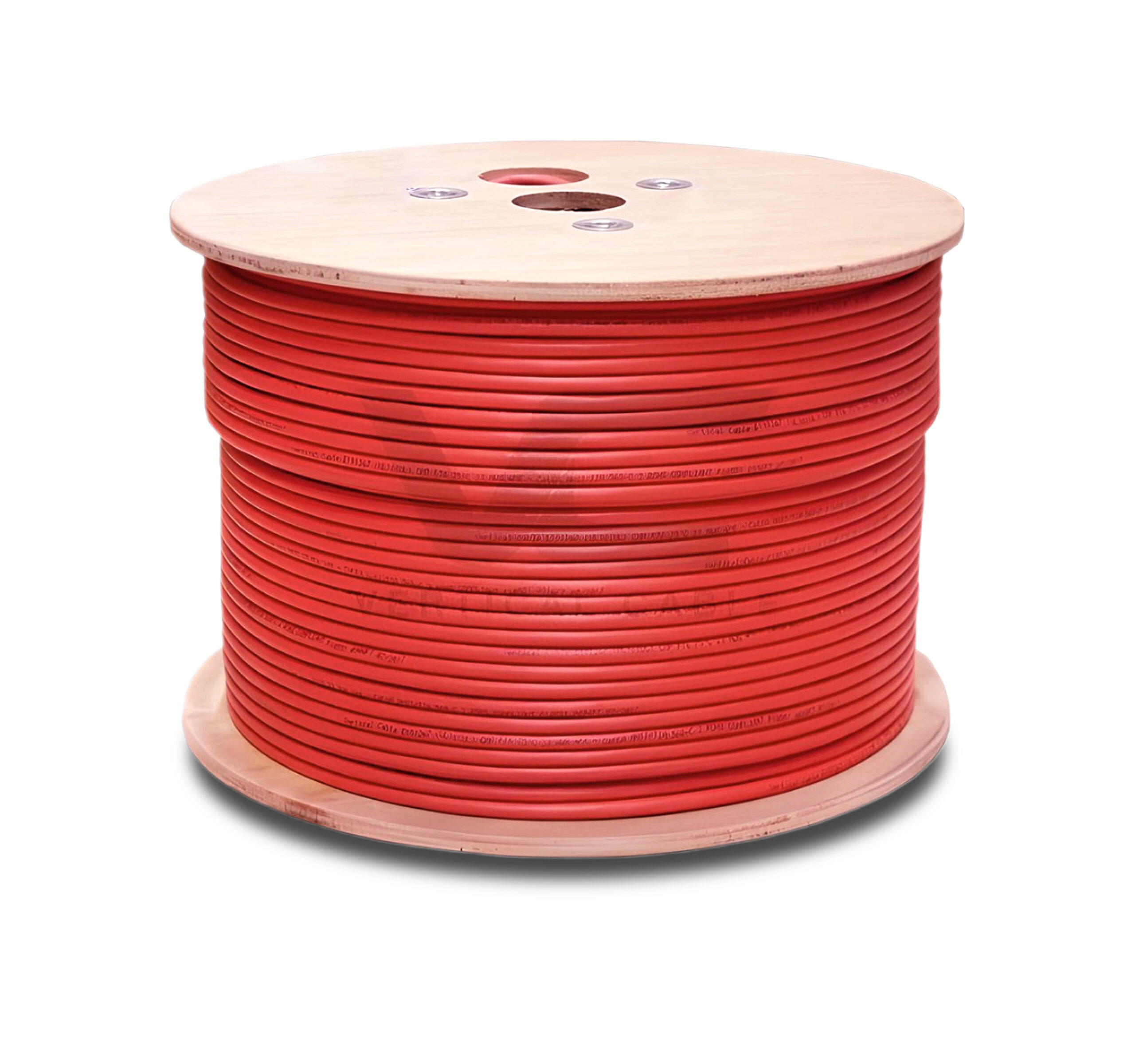

• Supplied on Wooden Spool: Comes in 1000 ft (304.8 m) lengths for large-scale deployments.

APPLICATIONS

The 065-300s Series excels across commercial and enterprise-grade installations:

• Data Centers and Server Rooms
• Enterprise Network Infrastructure
• High-Speed Workstation Links
• PoE+ Security Camera Systems
• VoIP and Digital Audio Networks
• Healthcare and Educational Facilities
• Plenum-Rated Structured Cabling Projects

WHY CHOOSE THE 065-300s SERIES CAT6A CABLE?

Professionals choose the 065-300s Series for performance, safety, and dependability:

1. Certified for Plenum Spaces: Safe for use in ceilings, ducts, and return-air spaces.
2. 10GBASE-T Support: Future-proofs networks with high-speed data capabilities.
3. PoE+ Ready: Power IP cameras, access points, and VoIP phones with ease.
4. Built to Last: Solid copper, ribbed jacket, and spline enhance durability and crosstalk suppression.
5. UL and TAA Certified: Compliant with stringent performance and government standards.

WHAT’S NEXT?

Once you’ve selected your CAT6A plenum cable:

• Install with Confidence – Ideal for commercial-grade structured cabling and MDF/IDF builds.
• Pair with Keystone Jacks or Patch Panels – Match with CAT6A-rated terminations.
• Explore Other Cabling Colors or Options – Customize cable identification and organization.
• Browse More Copper Solutions – From patch cords to enclosures, Vertical Cable has you covered.

For more CAT6A and other cabling solutions, visit CAT6A Cable and discover top-tier solutions today!
