VERTICAL CABLE 176 Series – CAT6A UTP CMP Cable

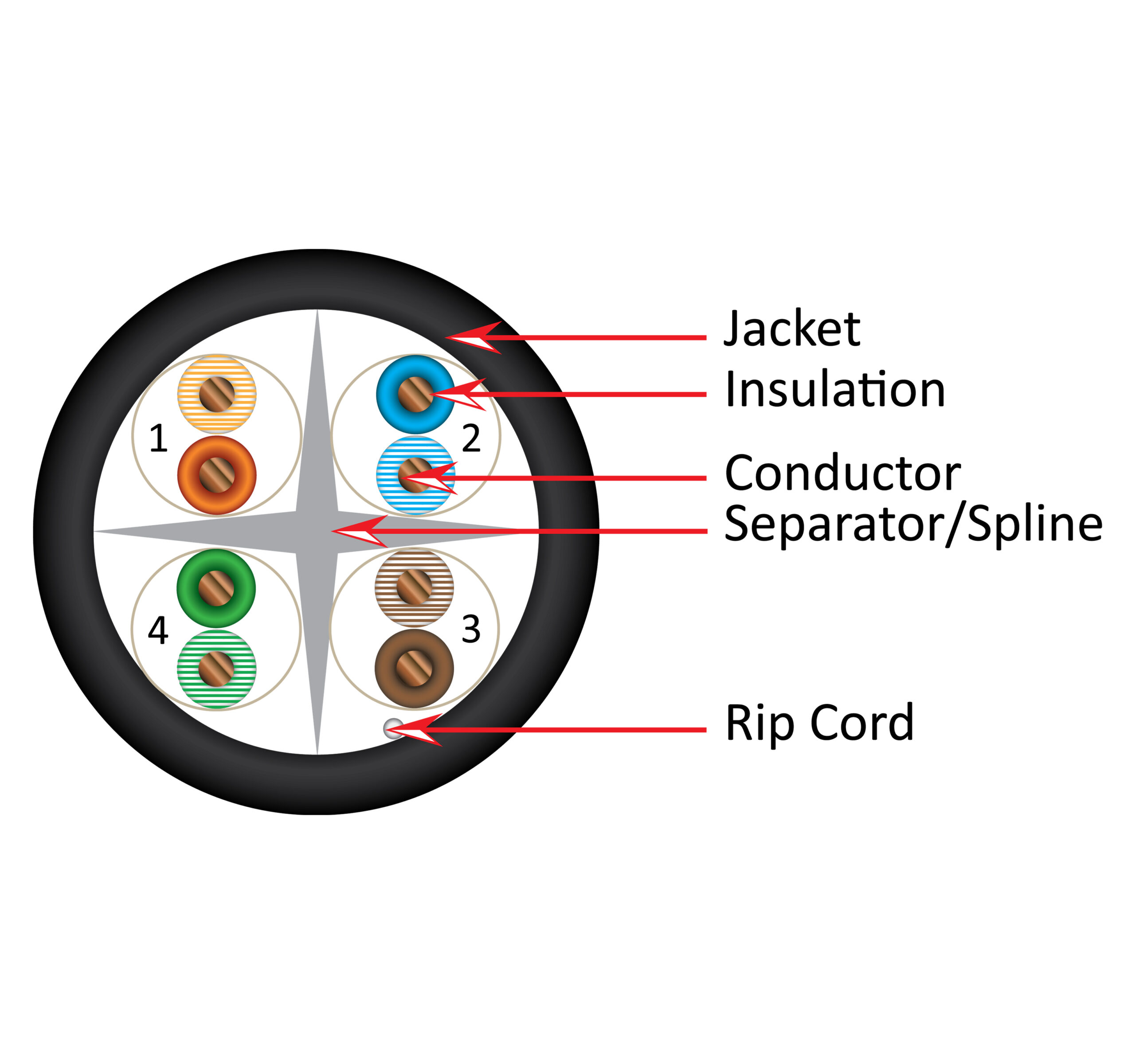

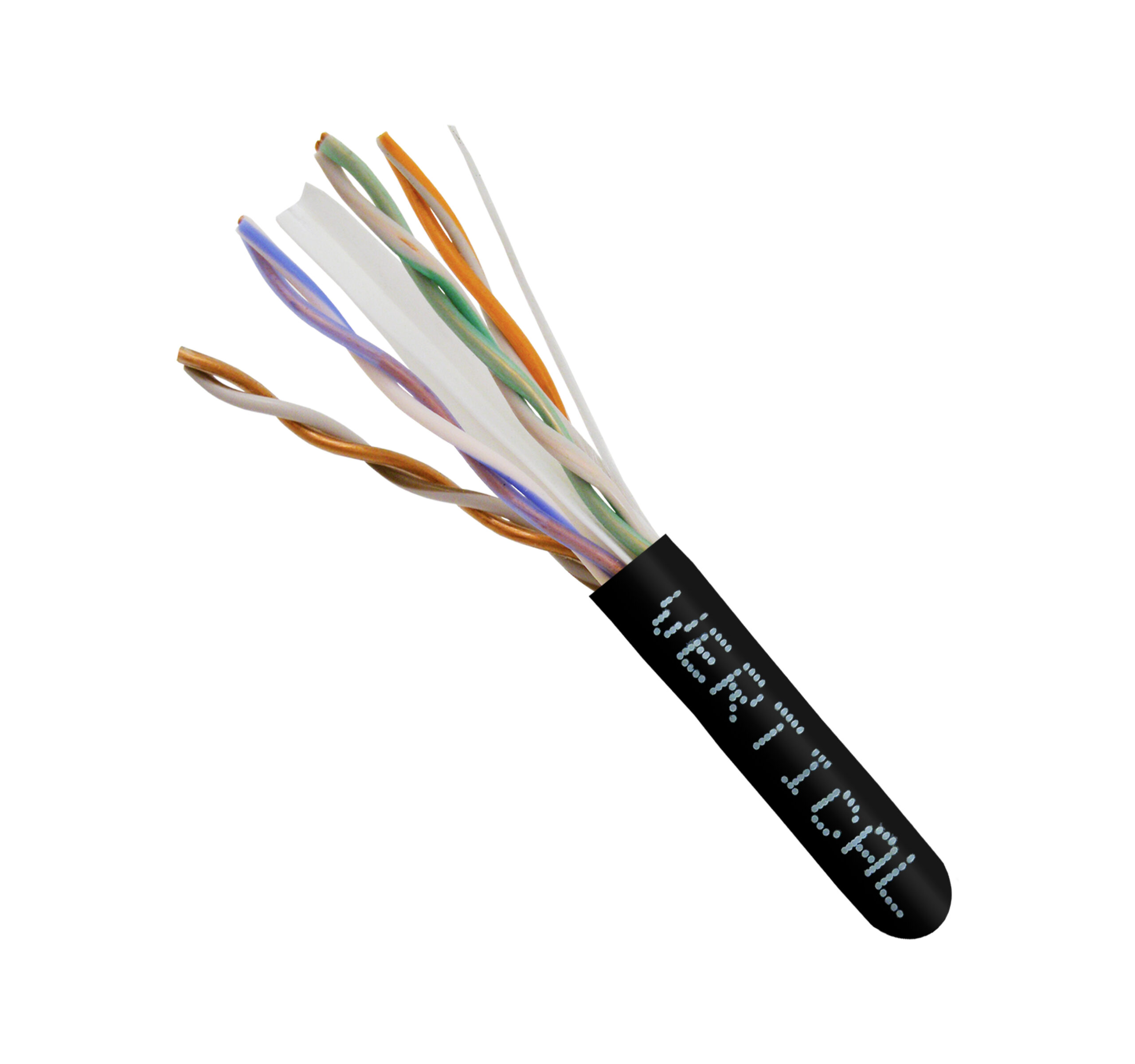

The 176 Series is a premium CAT6A UTP CMP cable engineered for high-density plenum installations that demand both 10 Gigabit performance and strict fire-safety compliance. Built with 23 AWG solid bare copper conductors, a fluoropolymer spline, and a ribbed CMP-rated PVC jacket, this 750 MHz, 4-pair unshielded cable exceeds ANSI/TIA-568.2-D Category 6A Augmented requirements and is ETL-verified for performance and safety.
KEY FEATURES
Here’s what makes the 176 Series the ideal CAT6A UTP CMP cable for your next plenum installation:
- 750 MHz High-Bandwidth Performance: Supports 10GBASE-T applications with headroom for future network upgrades.
- 23 AWG Solid Bare Copper Conductors: Eight solid copper conductors (4 pairs) deliver consistent signal transmission and PoE power delivery.
- Spline-Based Construction: Fluoropolymer spline with ribbed jacket ensures excellent crosstalk (X-talk) performance.
- Plenum-Rated (CMP): Low-smoke, fire-retardant PVC jacket tested per NFPA 262 for installation in air-handling spaces.
- FEP Insulation: High-quality FEP insulation on all pairs for superior electrical performance.
- Full PoE++ Support: Supports all PoE standards including 100-W PoE++ Type 4 (IEEE 802.3bt).
- HDBase-T Compatible: Supports HDBase-T Class A through Class D for AV-over-IP applications.
- Made in the USA: Manufactured domestically with strict quality control standards.
- Multiple Color Options: Available in 10 colors for easy circuit identification and organization.
- ETL-Listed: Tested per UL 444 and ETL-verified to ANSI/TIA-568.2-D standards.
- 25-Year Warranty: Backed by comprehensive manufacturer warranty for long-term peace of mind.

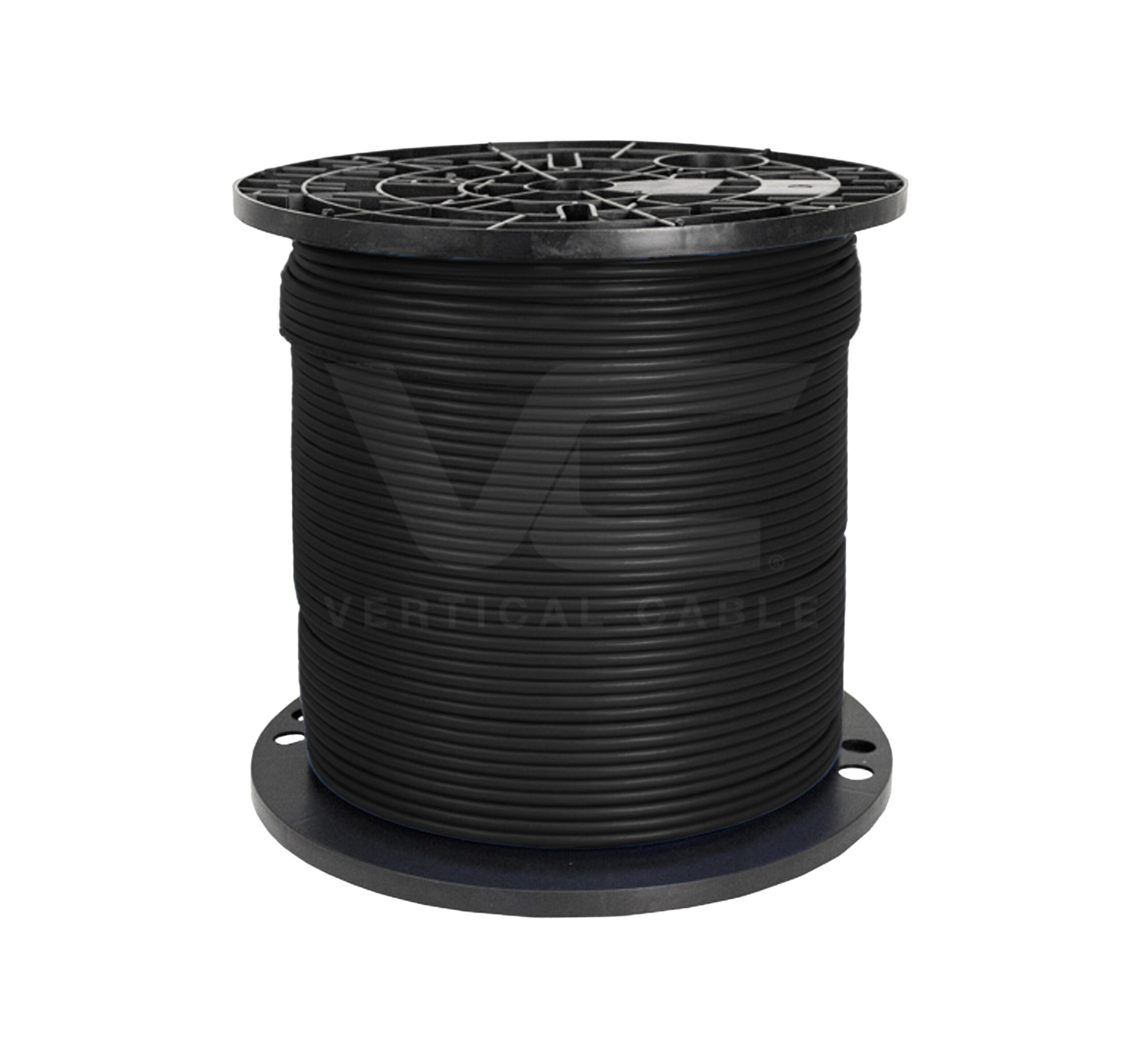

- Pull Box Packaging: 1000 ft pull box with polyester ripcord for efficient installation.
APPLICATIONS
The 176 Series CAT6A UTP CMP cable excels in high-performance commercial and enterprise installations:
- Data Centers: Deploy 10 Gigabit Ethernet connections in plenum-rated environments with full bandwidth headroom.
- Commercial Buildings: Install in drop ceilings and air-handling spaces where CMP-rated cable is required by code.
- Healthcare Facilities: Provide high-speed, PoE-powered connectivity for medical devices, workstations, and imaging systems.
- Educational Institutions: Support bandwidth-intensive classroom technology, wireless access points, and digital learning platforms.
- AV-over-IP Systems: Deliver HDBase-T Class A–D performance for professional video distribution and digital signage.
WHY CHOOSE THE 176 SERIES CAT6A UTP CMP CABLE?
Professionals choose the 176 Series because it delivers verified 10 Gigabit performance with plenum compliance and domestic manufacturing quality. Here are 5 reasons to specify it for your next project:
- True 10G Performance – 750 MHz bandwidth with spline-based construction delivers reliable 10GBASE-T performance across the full channel length.
- Plenum Compliant – CMP-rated, low-smoke jacket meets NEC requirements for installation in air-handling spaces without conduit.
- Full PoE++ Support – Supports all PoE standards up to 100-W Type 4 for powering high-wattage devices like PTZ cameras and wireless access points.
- Made in the USA – Domestic manufacturing ensures consistent quality, shorter lead times, and compliance with Buy American requirements.
- 25-Year Warranty – Comprehensive warranty coverage provides long-term assurance for your infrastructure investment.
WHAT’S NEXT?
Once you’ve specified the 176 Series for your project:
- Select Your Colors – Choose from 10 available colors to implement your color-coding scheme for easy circuit identification.
- Verify Plenum Requirements – Confirm CMP rating meets local code requirements for your specific air-handling space installation.
- Use Quality Connectors – Select high-quality CAT6A unshielded connectors rated for 750 MHz performance.
- Test After Installation – Certify all links to CAT6A standards using appropriate test equipment before commissioning.
