VERTICAL CABLE 059-486/US/CMXT – CAT5E DIRECT BURIAL CABLE

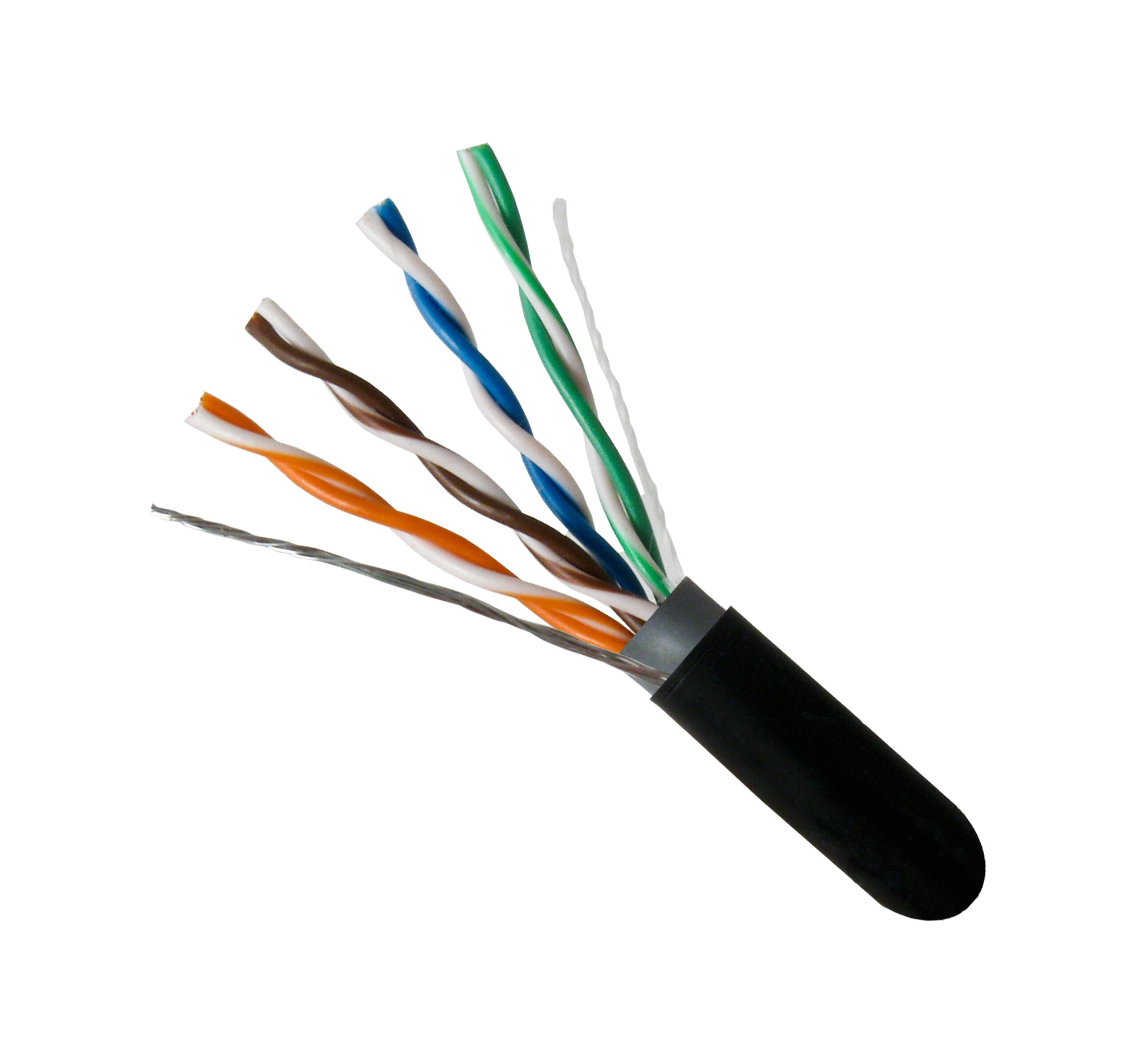

The 059-486/US/CMXT is a CAT5E direct burial cable engineered for outdoor and underground installations requiring reliable performance without the complexity of shielded terminations. This CAT5E cable features a dual-jacket construction with a gray PVC inner jacket and black UV-resistant LSZH outer jacket for maximum environmental protection.

KEY FEATURES

Here’s what makes the 059-486/US/CMXT ideal for outdoor and direct burial installations:

350 MHz High-Performance Rating: Supports 10/100/1000BASE-T applications for reliable Gigabit Ethernet connectivity.

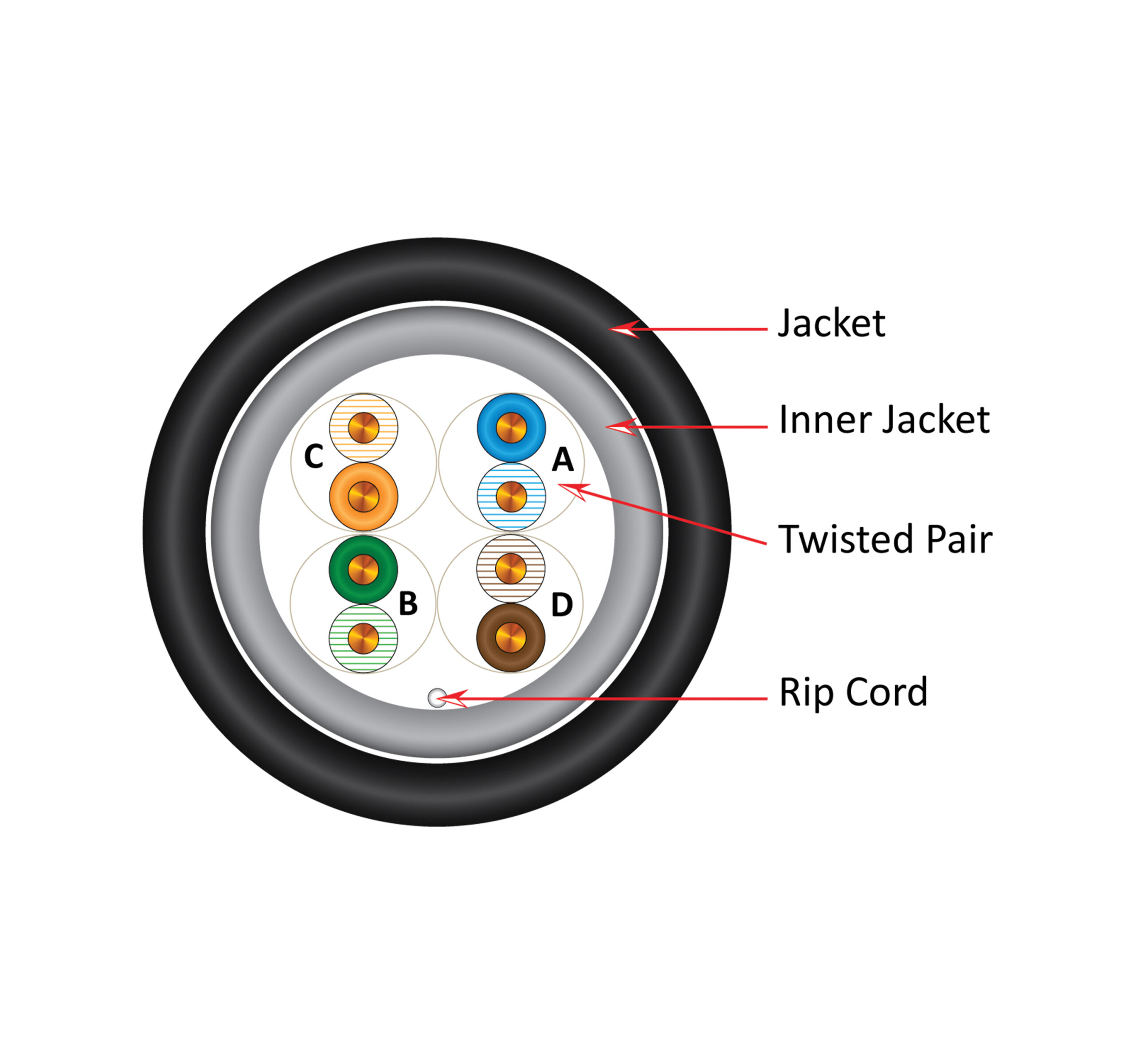

Dual-Jacket Construction: Gray PVC inner jacket (0.19 in. OD) plus black LSZH outer jacket (0.24 in. OD) for maximum protection.
UTP Unshielded Design: Simplified termination without grounding requirements while maintaining reliable performance.
24 AWG Solid Bare Copper Conductors: Eight solid annealed copper conductors deliver reliable signal transmission over long distances.
LSZH Outer Jacket: Low Smoke Zero Halogen material minimizes toxic emissions in the event of fire—ideal for environmentally sensitive installations.
UV-Resistant Design: Black outer jacket withstands prolonged sun exposure without degradation.
Water-Resistant Construction: Engineered for dry direct burial applications with moisture protection.
PoE++ Compatible: Supports PoE++ Type 3 (60V) for powering outdoor IP cameras, access points, and other devices.
Wide Operating Temperature: Performs reliably from -40°F to 167°F (-40°C to 75°C) in extreme conditions.
CMX Rated: Approved for outdoor use per NEC® requirements.
Industry Compliant: Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 specifications; CAN/CSA-C22.2 No. 214 certified, ETL Listed, RoHS compliant.

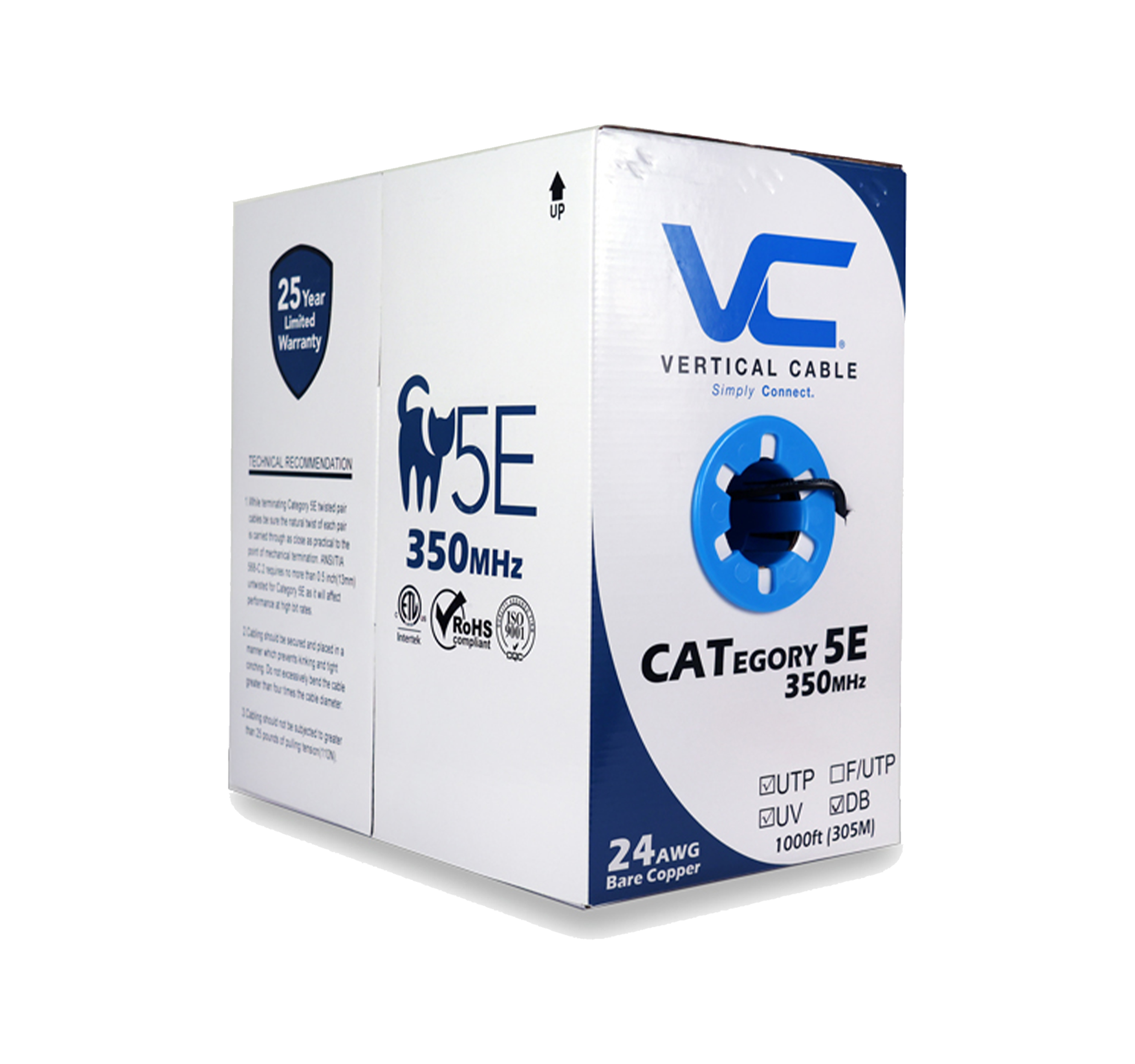

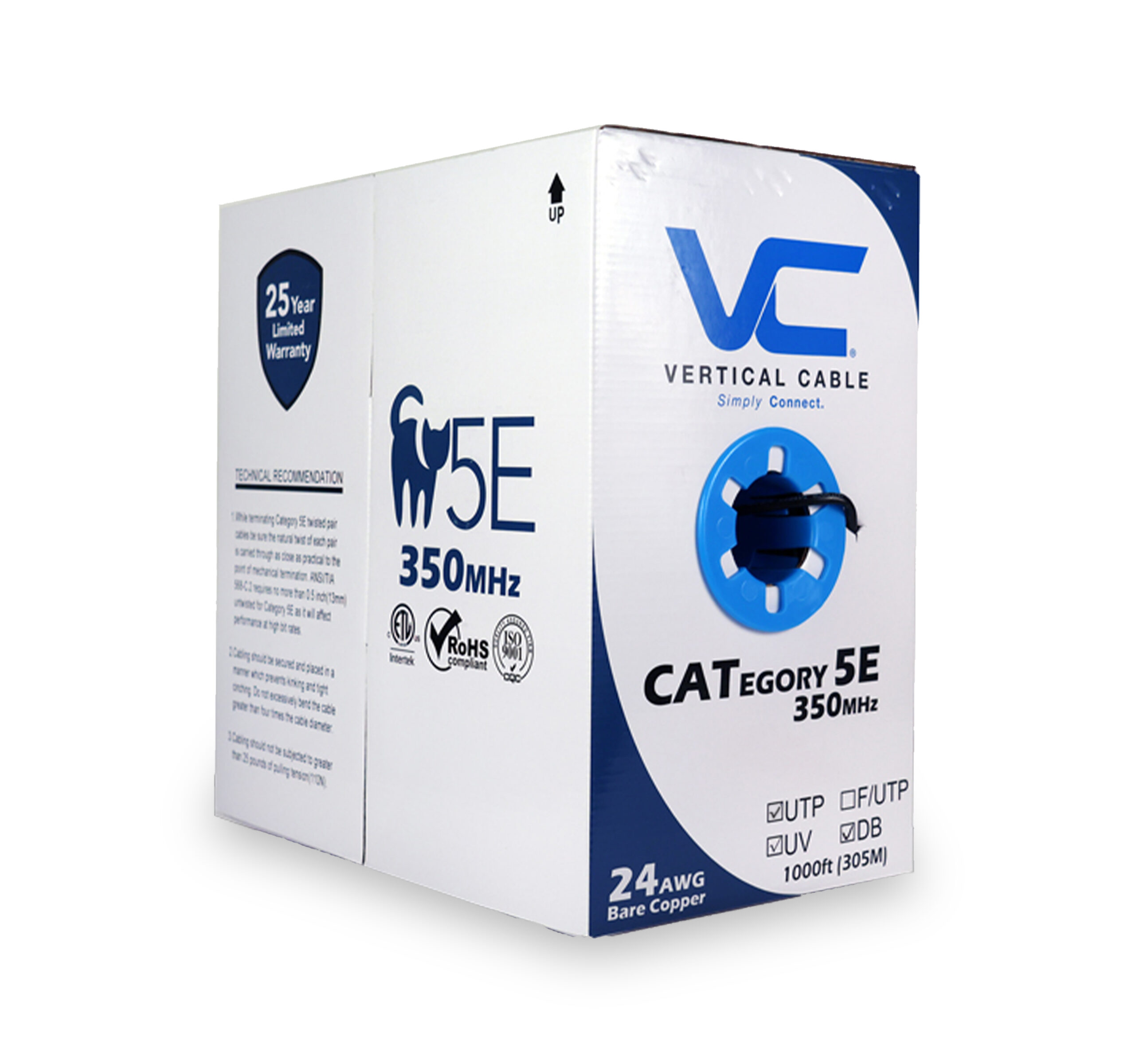

Pull Box Packaging: 1000 ft pull box allows easy dispensing and tangle-free installation.

APPLICATIONS

The 059-486/US/CMXT cat5e direct burial cable excels in outdoor and underground networking installations:

Direct Burial Runs: Install underground in dry conditions for building-to-building or site-wide network connections.
Outdoor Security Systems: Connect IP cameras, access control panels, and surveillance equipment in exposed locations.
Wireless Access Points: Provide PoE++ powered connectivity to outdoor Wi-Fi access points and antennas.
Campus Networks: Link buildings across educational, corporate, or industrial campuses.
Environmentally Sensitive Areas: LSZH jacket is ideal for installations where low smoke and halogen-free materials are preferred.

WHY CHOOSE THE 059-486/US/CMXT – CAT5E DIRECT BURIAL CABLE?

Professionals choose the 059-486/US/CMXT because it delivers reliable outdoor performance with comprehensive protection, environmentally conscious materials, and installer-friendly packaging. Here are 5 reasons to specify it for your next outdoor installation:

Maximum Environmental Protection – Dual-jacket construction with UV-resistant LSZH outer jacket and water-resistant design ensures long-term reliability underground or exposed.
Simplified Termination – UTP unshielded design eliminates the need for drain wire grounding, making field termination faster and easier.
Eco-Friendly Materials – LSZH outer jacket produces minimal smoke and no halogen emissions, making it suitable for environmentally sensitive installations.
Pure Copper Performance – 24 AWG solid bare annealed copper conductors deliver consistent signal quality and support full PoE++ Type 3 power delivery.
Efficient Installation – Pull box packaging allows smooth, tangle-free cable dispensing for faster installation on the job site.

WHAT’S NEXT?

Once you’ve specified the 059-486/US/CMXT for your project:

Plan Your Route – Map underground paths and verify clearance from other utilities before trenching; this cable is rated for dry direct burial applications.
Check Local Codes – Confirm burial depth requirements and any conduit specifications for your jurisdiction.
Use Quality Connectors – Select high-quality CAT5E unshielded connectors for reliable termination.
Test After Installation – Verify performance with cable certification testing before commissioning the network.
