047-WTH-2018
20 RMU Open Frame Wall-Mount Rack, Adjustable Depth
| Height | Width | Mounting Depth | Depth | Color | Weight | Capacity |
| 38.8 in. (985.5 mm) | 20 in. (508 mm) | 19 in. (482.6 mm) | 18-30 in. (457.2-762 mm) | Black | 32.8 lb (14.9 kg) | 150 lb (68 kg) |
047-WTH-1618
16 RMU Open Frame Wall-Mount Rack, Adjustable Depth
| Height | Width | Mounting Width | Depth | Color | Weight | Capacity |
| 31.8 in. (807.7 mm) | 20 in. (508 mm) | 19 in. (482.6 mm) | 18-30 in. (457.2-762 mm) | Black | 30 lbs (13.6 kg) | 150 lbs (68 kg) |
047-WTH-1218
12 RMU Open Frame Wall-Mount Rack, Adjustable Depth
| Height | Width | Mounting Width | Depth | Color | Weight | Capacity |
| 24.8 in. (629.9 mm) | 20 in. (508 mm) | 19 in. (482.6 mm) | 18-30 in. (457.2-762 mm) | Black | 27.3 lbs (12.4 kg) | 150 lbs (68 kg) |
047-WTH-0918
9 RMU Open Frame Wall-Mount Rack, Adjustable Depth
| Height | Width | Mounting Width | Depth | Color | Weight | Capacity |
| 19.5 in. (495.3 mm) | 20 in. (508 mm) | 19 in. (482.6 mm) | 18-30 in. (457.2-762 mm) | Black | 27.3 lbs (12.4 kg) | 150 lbs (68 kg) |
Optical Fiber OSP Transition Box
This product, made from high-impact, UV-resistant, and water-resistant materials (PC and ABS), is suitable for outdoor applications such as FTTx and CATV. It complies with ANSI/TIA-568.3-D and GR-769 standards, with various color options available, including beige, aqua, and violet, depending on the model chosen.
Please see Installation Instructions for the OSP Transition Boxes.
CAT5e UTP CMP – 055 Series
CAT5e Unshielded Twisted-Pair (UTP), CMP (Plenum-Rated), 24 AWG Solid Bare Copper, ETL-Listed. Designed in the USA.
268-EZV01-1A1L1 (Optical Fiber Wall-Mount Enclosure)
Optical Fiber Wall-Mount Enclosure
LGX, Viewport Door, Slim, Cam Latch, comes with “L” type Blank Bracket & Large Grommet cable entry adapters.
Each unit is recommended to be ordered with a choice of two additional cable entry adapters (see spec sheet), which provide specific options for cable entry, fixation, or connection, and serve as structural binding elements.
Component Checklist [Interactive PDF]
| Height | Width | Depth (Box Only) | Color | Weight |
| 7 in | 11 in | 2 in | Black | 2 lb |
Optical Fiber IP68 Coupler Modules – 250-ICP68 Series
This product features LC DX format, using fiber types SM 9/125, MM 50/125, and MM 62.5/125. It offers UPC and APC plug types, zirconia ceramic adapter sleeves, and a maximum plug boot length of 15 mm. Additionally, it boasts an insertion loss of 0.3 dB or lower and a return loss of -55 dB or better for UPC.
269-FOK12-580C
This product features a 12-fiber, single round cable made from polyvinyl chloride (PVC) with aramid yarn for added strength. It has a diameter of 0.23 inches (5.8 mm) and includes fiber buffer sizes of 250 µm and 900 µm, with a tube diameter of 0.08 inches (2 mm).

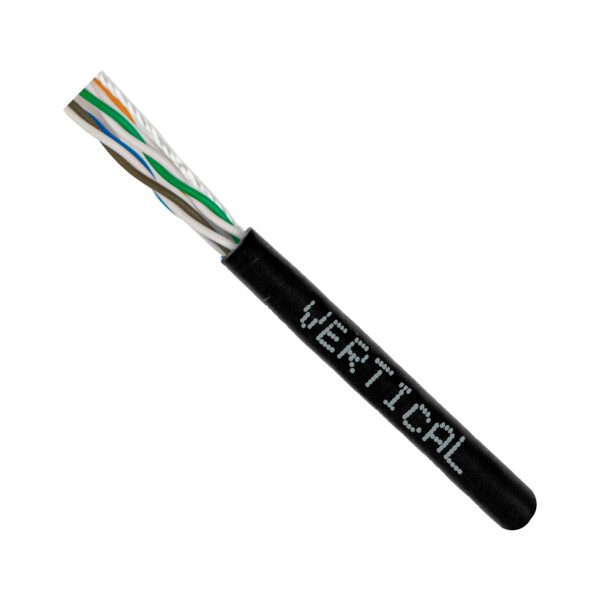

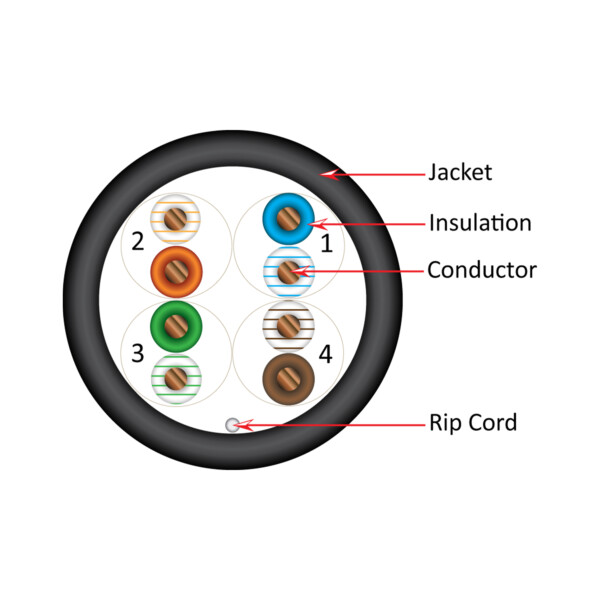

CAT6A CM UTP – STRANDED SLIM TYPE (173 Series)
CAT6A UTP, Slim Type 28 AWG 4 Conductor STRANDED Bare Copper (Cordage), CM-Rated, UL-Listed.
Download Termination Instructions here.
CAT6A Patch Cords: S/STP with Boot and Protector | 076 Series
CAT6A Shielded Patch Cord, Boot & Protector, Stranded, 26 AWG, F/UTP, UL-Listed. It supports PoE+ (IEEE 802.3at) and is UL-listed and RoHS compliant. Constructed with four pairs of 26 AWG stranded, insulated, bare copper conductors, it is available in various colors and lengths.
Choose color first, then your desired length:
CAT6A UTP CMP – 065-700s Series
CAT6A UTP Plenum-Rated Cable – High-performance 4-pair 23 AWG solid bare copper cable. CMP-rated for plenum spaces, supports 10G Ethernet up to 100 meters. Ideal for commercial and enterprise networks.
CAT6 CMR F/UTP (062 Series)
CAT6 550 MHz F/UTP cable with 23 AWG solid conductors, 4 pairs, shielded for reduced interference. 1000 ft is ideal for high-speed data applications.
CAT5E CMR F/UTP Cable – 057 Series
This high-performance Category-5E shielded twisted pair data cable features a 350MHz bandwidth, 24AWG solid copper conductors, and color-striped pairs for easy identification. It supports PoE++ (Type 3) and meets ANSI/TIA-568.2-D standards. The cable is ETL listed, RoHS compliant, and has a riser-rated PVC jacket.
CAT5E CMP F/UTP Cable – 057-900 Series
CAT5E, 24 AWG, F/UTP, 4P 8C Solid Bare Copper, Plenum Rated (CMP), PVC Jacket 1000 ft box.
