VERTICAL CABLE 060 SERIES – CAT6 UTP CMR CABLE
The 060 Series is a CAT6 CMR cable engineered for high-performance riser installations requiring Gigabit Ethernet and full PoE++ Type 4 power delivery. This CAT6 CMR cable features 23 AWG solid bare copper conductors, a 550 MHz bandwidth, and a PVC riser-rated jacket.
KEY FEATURES
Here’s what makes the 060 Series ideal for riser-rated network installations:

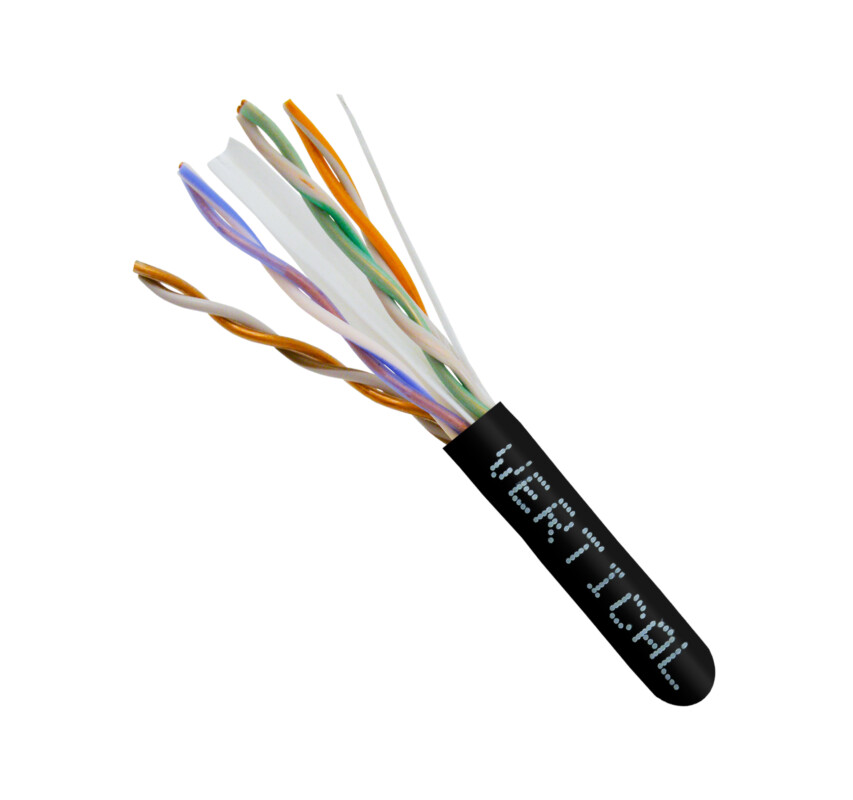

- 23 AWG Solid Bare Copper: Eight solid copper conductors (4 pairs) deliver consistent signal transmission and optimal PoE power delivery.
- 550 MHz Bandwidth: Supports Gigabit Ethernet with headroom for demanding network applications.
- Full PoE++ Type 4 Support: Supports IEEE 802.3bt up to 100W for powering high-wattage devices like PTZ cameras and wireless access points.
- UTP Construction: Unshielded twisted-pair design simplifies termination without grounding requirements.
- CMR Riser-Rated Jacket: PVC jacket meets NEC requirements for installation in vertical risers between floors.

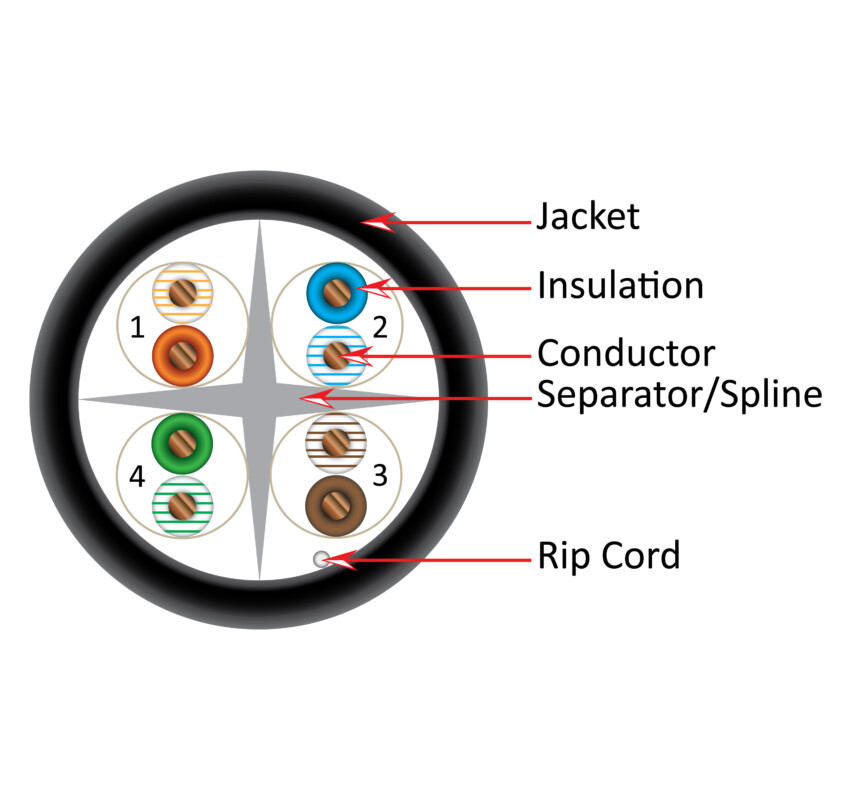

- Polypropylene Separator: PP spline maintains pair geometry for excellent crosstalk performance.
- PE Insulation: Polyethylene insulation ensures stable electrical characteristics across the frequency range.
- Integrated Ripcord: Easy jacket removal for efficient termination.
- Standards Compliant: Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 transmission performance specifications.
- ETL-Listed and RoHS Compliant: Third-party verified for safety and environmental compliance.
- Multiple Color Options: Available in 5 colors for easy circuit identification.

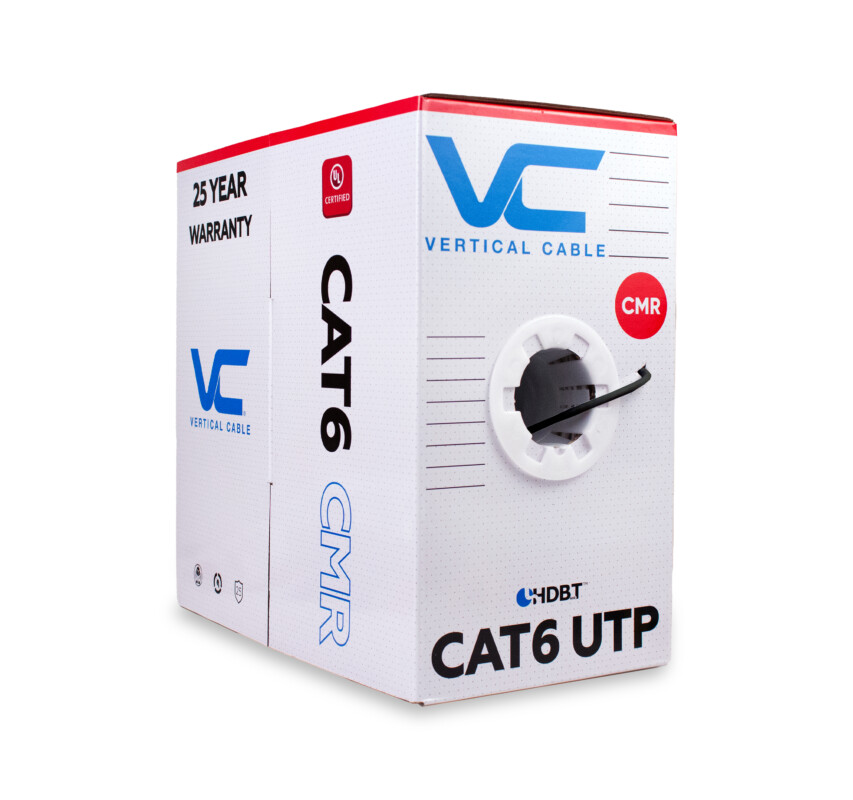

- 1000 ft Pull Box: Convenient pull box packaging for efficient installation.
APPLICATIONS
The 060 Series CAT6 CMR cable excels in commercial and enterprise riser installations:
- Commercial Buildings: Install vertical backbone cabling between floors in office buildings, hotels, and multi-story facilities.
- Enterprise Networks: Deploy Gigabit Ethernet with full PoE++ support for workstations, VoIP phones, and wireless access points.
- Educational Facilities: Run riser cables between floors in schools, universities, and campus buildings.
- Healthcare Facilities: Provide reliable connectivity for patient rooms, nursing stations, and medical devices across multiple floors.
- Retail Environments: Install backbone cabling for POS systems, security cameras, and digital signage throughout multi-level stores.
WHY CHOOSE THE 060 SERIES CAT6 CABLE?
Choosing the 060 Series means investing in dependable performance and long-term reliability:
- Full PoE++ Type 4 Support – Supports IEEE 802.3bt up to 100W for powering high-wattage network devices without separate power infrastructure.
- True Riser Compliance – CMR-rated PVC jacket meets NEC requirements for vertical installations between floors without conduit.
- 550 MHz Bandwidth – Exceeds Category 6 requirements with headroom for demanding Gigabit Ethernet applications.
- Quality Construction – 23 AWG solid bare copper with PP separator delivers consistent performance across the full channel length.
- Verified Compliance – ETL-Listed and tested to exceed ANSI/TIA-568.2-D and ISO/IEC 11801 standards.
WHAT’S NEXT?
Once you’ve specified the 060 Series for your project:
- Select Your Colors – Choose from 5 available colors to implement your color-coding scheme for easy circuit identification.
- Plan Vertical Runs – Ensure proper support intervals for vertical cable runs per NEC and TIA guidelines.
- Use Compatible Connectors – Terminate with Vertical Cable CAT6 RJ45 plugs (012-022-100 or 012-023/EZF-100) for optimal performance.
- Test After Installation – Certify all links to CAT6 standards using appropriate test equipment before commissioning.
Explore more options from our extensive range of CAT6 CMR Riser cables to find the perfect fit for your networking projects!
