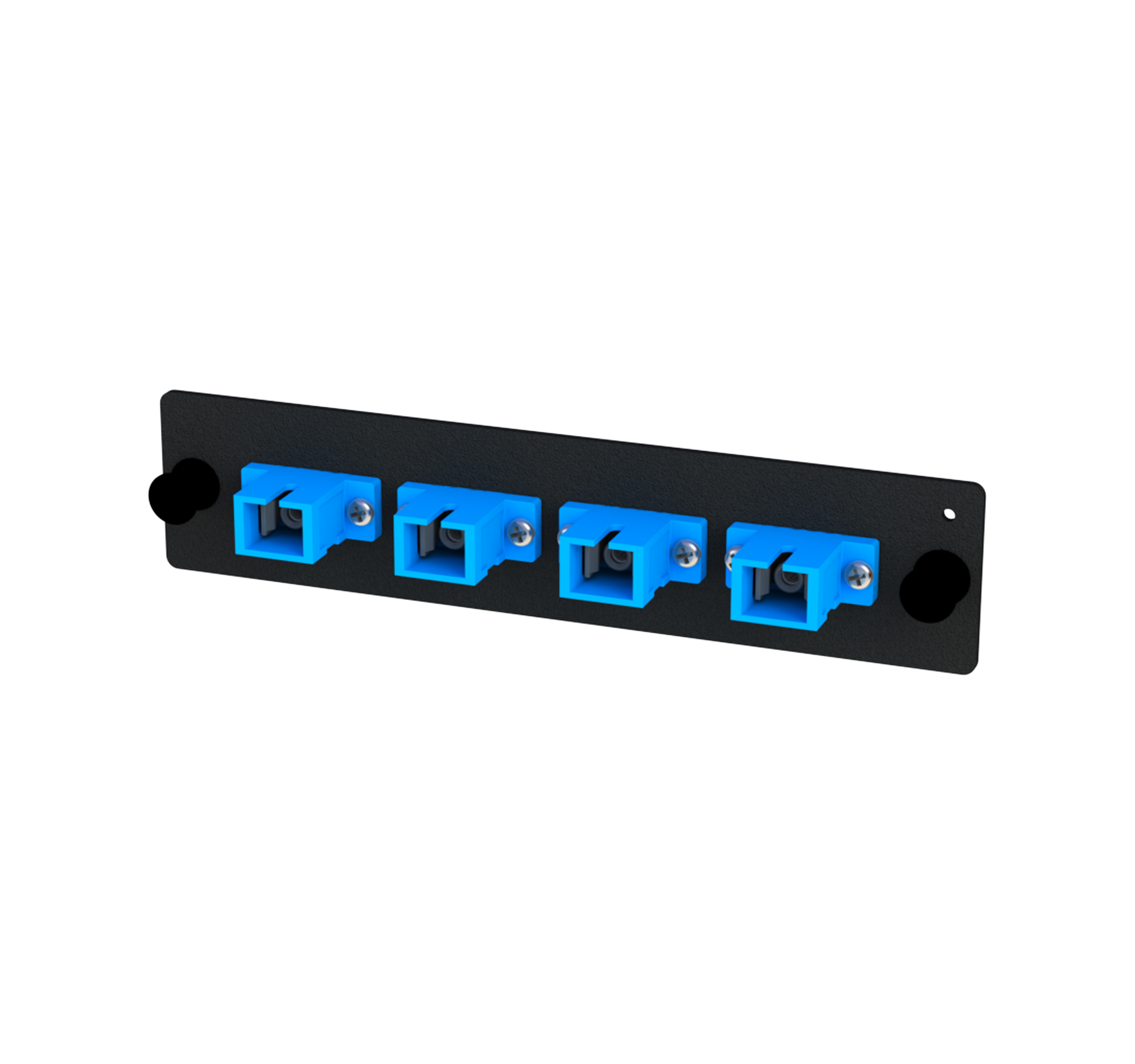

Features :
- LGX compatible, LGX adapter plates
- 0.6 in. (1.5-mm) (15-GA) lightweight aluminum alloy, black powder coating
- nylon/ABS panel fasteners
- Operating temp: -20 °C–+70 °C (-4 °F–+158 °F)
- Fiber type compatibility: SM 9/125, MM 50/125, MM 62.5/125
- Plug type compatibility: PC, UPC, APC
- Horizontal or Vertical mounting positions
- Compliance: Regulation (EC) No 1907/2006 (REACH); Directive 2011/65/EU Am. 2015/863/EU (RoHS2)
- Telcordia GR-326-CORE compatible
- Dimensions:
- width: 5.12 in. (130 mm);
- height: 1.14 in. (29 mm);
- mounting hole distance: 4.65 in. (118 mm) ctc.
- depth:
- FC: 0.6 in. (15 mm);
- MPO: 1 in. (25 mm);
- ST, SC, LC: 1.2 in. (30 mm)
- Adapter retention:
- flangeless adapters: chatter-proof three-sided or two-sided spring;
- flanged adapters: flanges with holes for two self-tapping screws; optional plastic integral latches or two-sided metal spring.
- Adapter construction:
- one-piece or two-piece design;
- split Zirconia ceramic sleeves (single-fiber adapters);
- dust-proof plugs (with integral key in K-SW adapters).
Color code reference (per ANSI/TIA-568.3):
| BLUE: adapter is intended to be used for connecting cabling based on SM fiber and UPC plugs. |
| GREEN: adapter is intended to be used for connecting cabling based on SM fiber and APC plugs. |
| BEIGE: adapter is intended to be used for connecting cabling based on OM1 fiber. |
| AQUA: adapter is intended to be used for connecting cabling based on OM3 fiber. |
| VIOLET: adapter is intended to be used for connecting cabling based on OM4 fiber |
Please, note that adapter body color is used for identification purposes only and does not denote adapter’s transmission performance. All Vertical Cable’s adapters are equipped with zirconia ceramic split sleeves capable to efficiently connect all types of fibers.
