VERTICAL CABLE 285-NAS2B-34201 – INDUSTRIAL ETHERNET SWITCH
The 258-NAS2B-34201 is a rugged, unmanaged industrial Ethernet switch built for high-speed networking in extreme environments. It offers four copper ports and two SFP slots, with full support for PoE Type 2 devices.
KEY FEATURES
Here are the key features that make it stand out:
- Port Configuration: 5 × 10/100/1000 Mbps RJ-45 ports provide fast and reliable Ethernet connectivity. Four ports deliver both power and data to connected PoE devices.

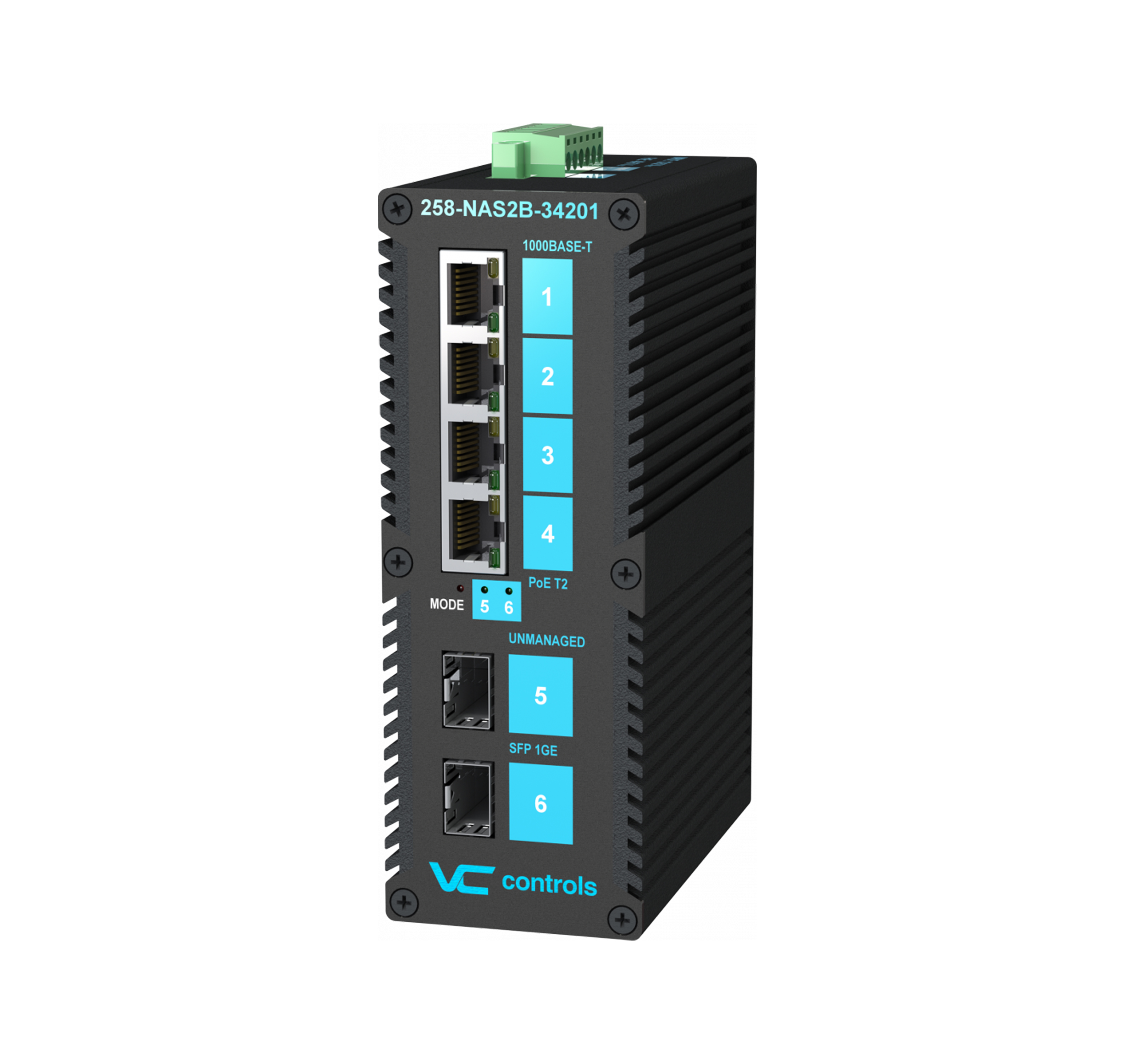

- Ports: 4 × 10/100/1000 Mbps RJ45, 2 × 1000 Mbps SFP
- Speed: 1000 Mbps switching for high-bandwidth networks
- PoE: Supports IEEE 802.3af/at (Type 2), up to 30 W per port
- PoE Budget: Delivers up to 120 W total power budget
- Construction: Rugged aluminum alloy housing, IP40 protection class

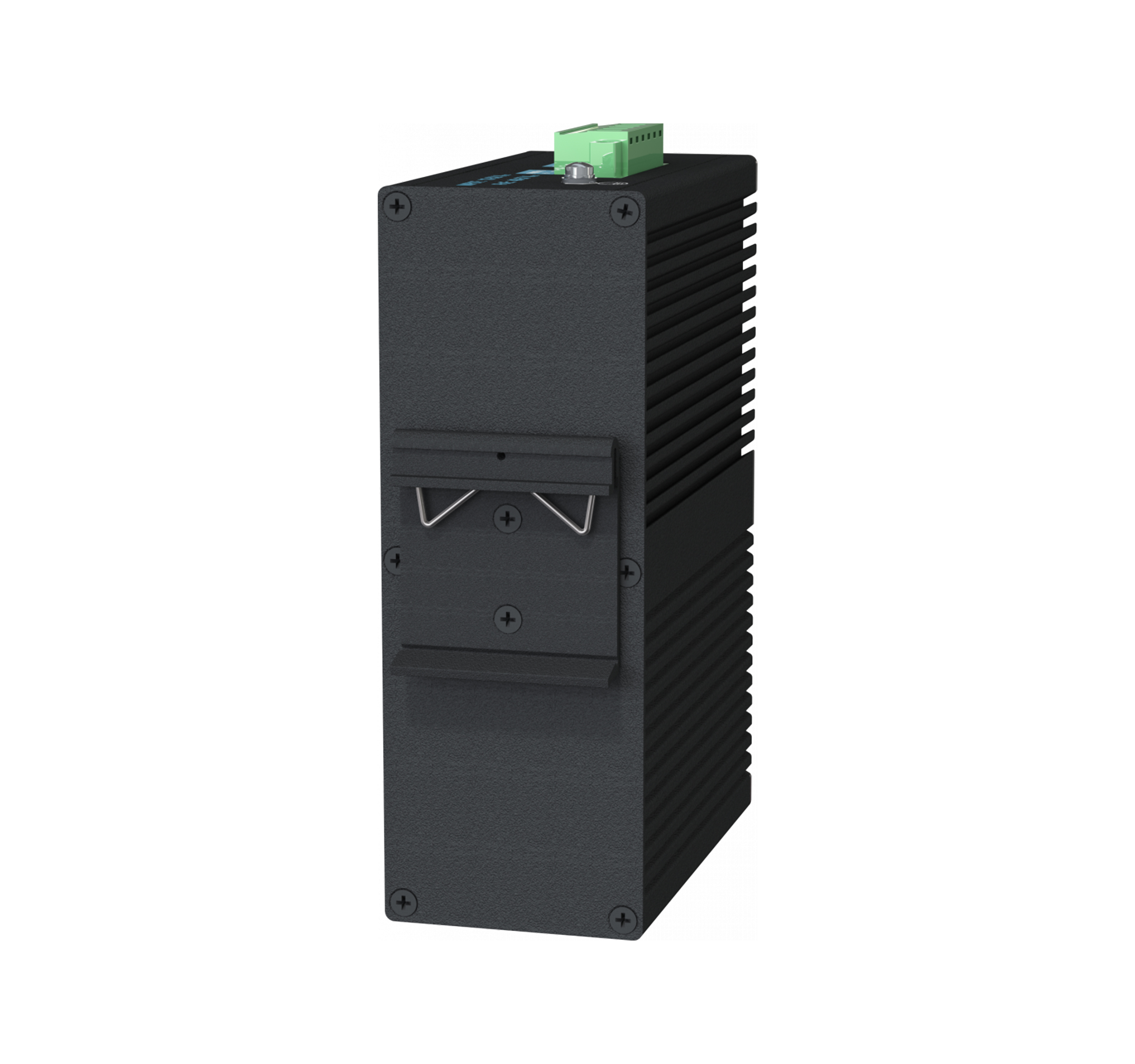

- Mounting: 35 mm DIN rail mount with integral metal clip

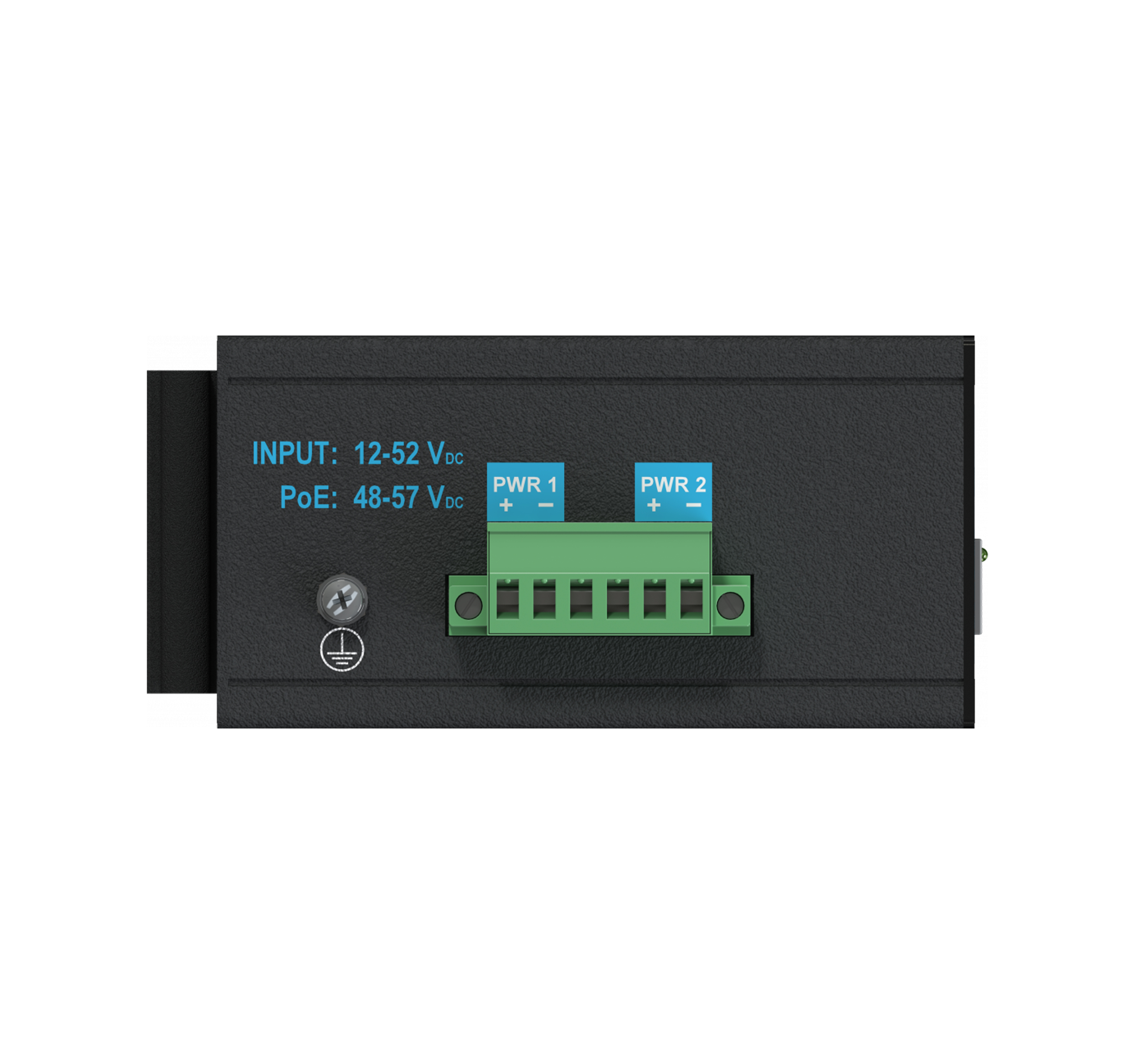

- Power: Dual redundant 12–52 VDC input with reverse polarity protection
- Output Voltage: 48 VDC–57 VDC; automatic PoE type detection
- Indicators: Multicolor LEDs for operational and status display
- EMI/EMC Compliance: EN 55032 Class A, IEC 61000-series
- Operating Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Relative Humidity: 5%–95% non-condensing
- Dimensions: 1.6″ W × 3.6″ D × 4.7″ H (40.5 mm × 91 mm × 120 mm)
- Weight: 1.43 lb (0.65 kg) net; 1.65 lb (0.75 kg) packed
- Warranty: Lifetime limited
APPLICATIONS
This industrial switch is designed for demanding field and automation environments. Perfect for:
- Factory and Industrial Automation
- Outdoor and Harsh Environments
- Security and Surveillance Installations
- Transportation and Infrastructure Projects
- Power Utilities and Substations
WHY CHOOSE THE 258-NAS2B-34201 INDUSTRIAL ETHERNET SWITCH?
Built for reliability and high performance, this PoE switch offers industrial-grade networking with plug-and-play ease:
- Reliable Performance: Provides gigabit-speed connections and high port-to-port forwarding rates.
- PoE Type 2 Support: Powers up to four PoE devices with complete compatibility and safety.
- Compact Design: DIN rail-mountable, with a small footprint that fits tightly into control cabinets.
- Rugged Build: Withstands vibration, shock, and temperature extremes.
- Intelligent Power: Automatic detection and allocation of PoE power across active ports.
WHAT’S NEXT?
After installing your 258-NAS2B-34201:
- Pair with PoE Devices – Cameras, sensors, or VoIP phones
- Use Redundant Power – Enhance uptime with backup voltage sources
- Mount with Ease – Use in compact or distributed network cabinets
