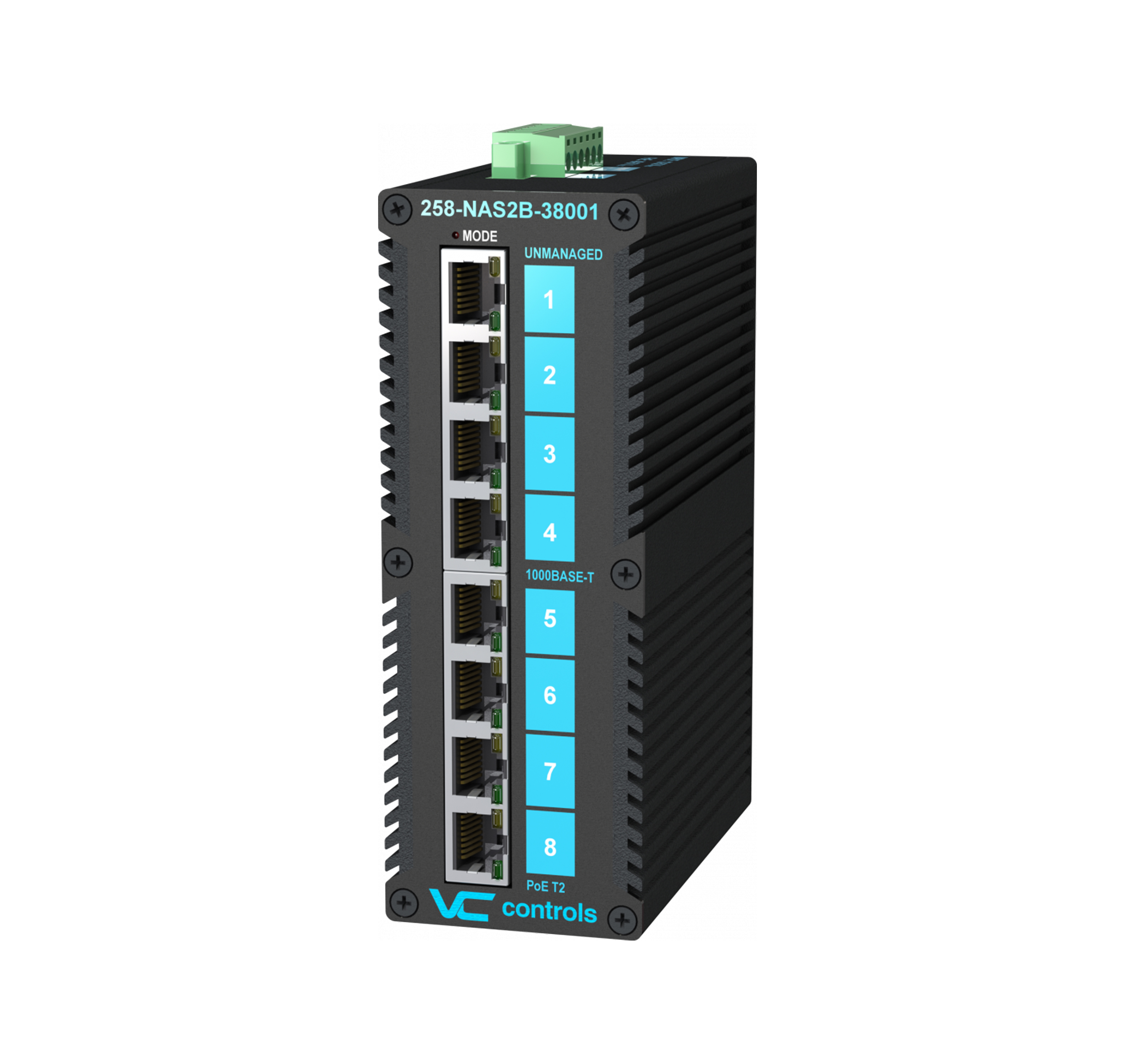

VERTICAL CABLE 285-NAS2B-38001 – INDUSTRIAL ETHERNET SWITCH
The 258-NAS2B-38001 is a compact unmanaged industrial switch that delivers Gigabit connectivity and PoE+ power to critical devices.
KEY FEATURES
Here are the key features that make it stand out:
- Port Configuration: 8 × 10/100/1000 Mbps RJ-45 ports support high-speed wired Ethernet connections. All ports support auto-negotiation and auto-MDI/MDI-X crossover.
- PoE Support: IEEE 802.3af/at (Type 1/2) compliant. Delivers up to 30W per port with a total power budget of 120W: power cameras, phones, sensors, and access points over Ethernet.
- Performance: 14 Gbps switching bandwidth handles heavy traffic with minimal delay. 10.5 Mpps packet forwarding rate maintains efficiency during data bursts. 2 K MAC address table supports moderate-sized industrial networks.
- Ruggedized Housing: An industrial-grade aluminum alloy body ensures long-term durability, with IP40-rated protection guarding against dust and debris.

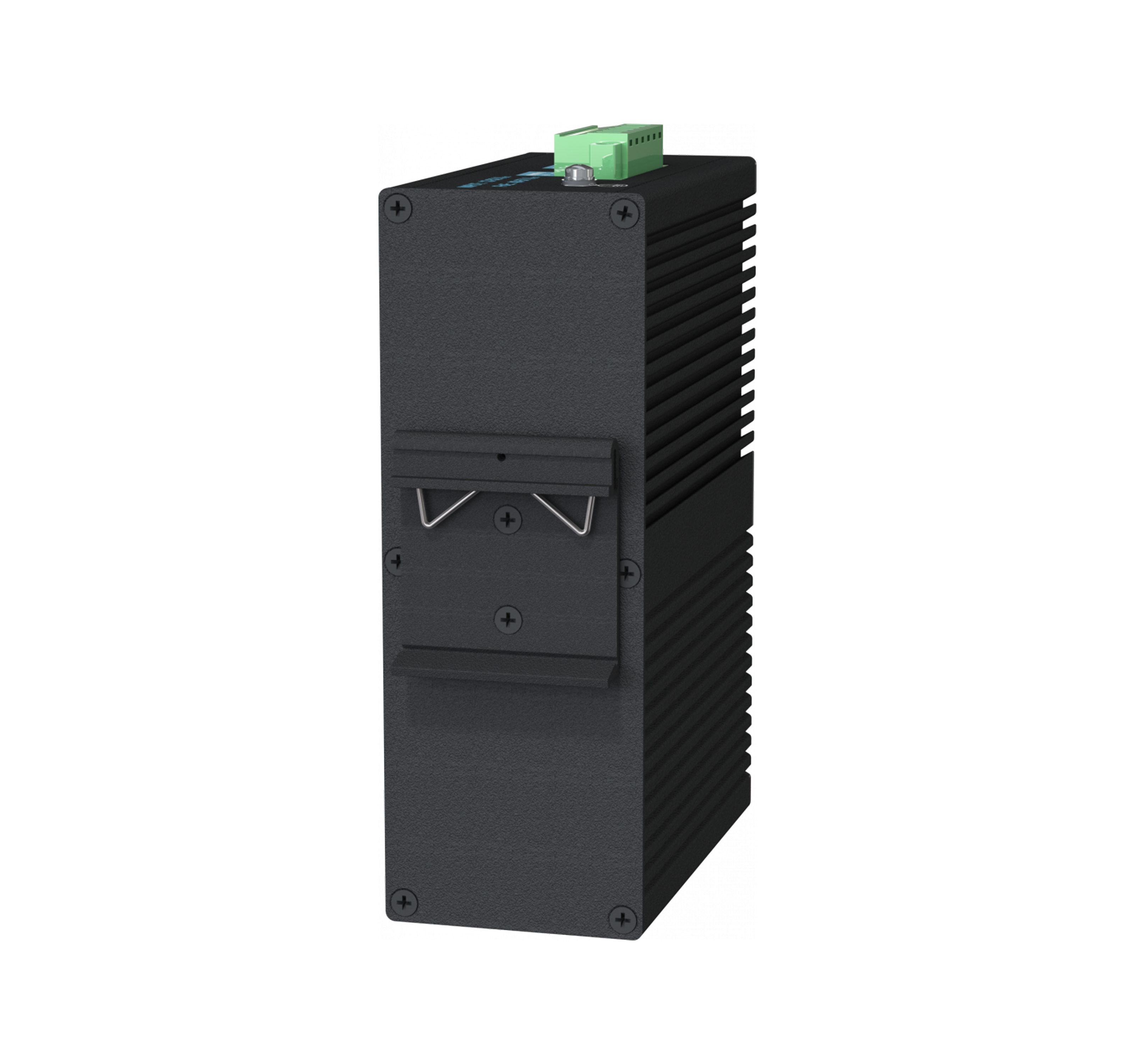

- DIN-Rail Mountable: The integrated 35 mm DIN-rail clip provides a secure and straightforward installation in control enclosures.

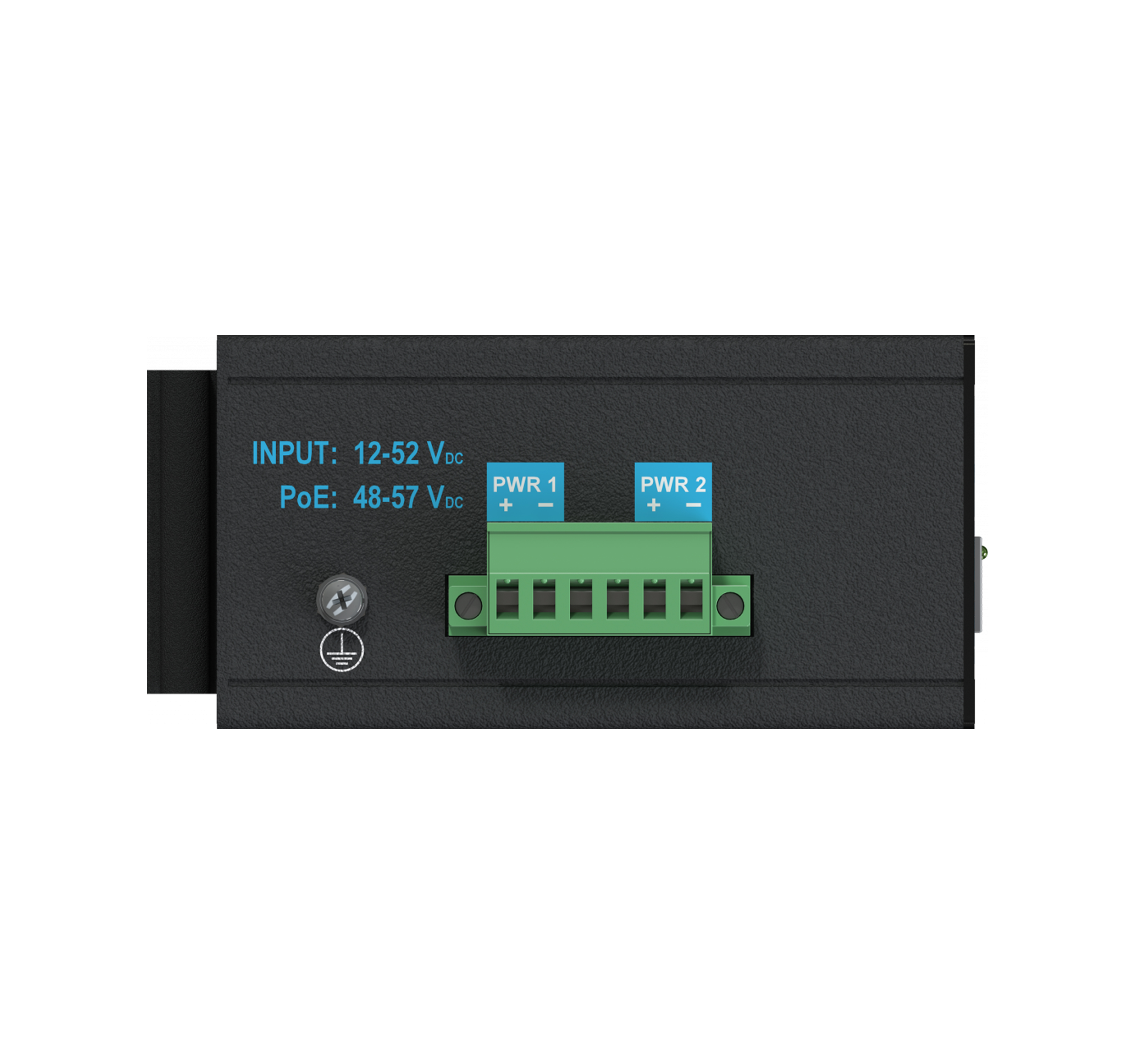

- Power Input: Operates on 12–52 VDC via screw-terminal block. Includes reverse polarity and dual-source redundancy protection.
- Thermal & Electrical Tolerance: Operating temperature range of -40°F to 185°F (-40°C to 85°C). Withstands vibration, shock, and electrical surges common in industrial settings.
- Compact Size: Width: 1.6 in (40.5 mm); Height: 4.7 in (120 mm); Depth: 3.6 in (91 mm); Net weight: 1.43 lb (0.65 kg)
APPLICATIONS
The 258-NAS2B-38001 Industrial Ethernet Switch is designed for a range of installations, including:
- IP Surveillance & Security Systems
- Wireless Access Points & Bridges
- Smart City Infrastructure
- Industrial Automation & Control
- Utility Monitoring & Transportation Hubs
WHY CHOOSE THE 258-NAS2B-38001 INDUSTRIAL ETHERNET SWITCH?
This switch combines industrial-grade build with plug-and-play convenience:
- All-in-One: Power and connect eight devices via one box
- No Setup Needed: Plug-and-play deployment saves time and resources
- Hardened Design: Built to perform in extreme temperatures and conditions
- Energy Efficient: Optimized for low power draw and stable PoE output
- Flexible Power: Supports dual-source input and reverse polarity protection
WHAT’S NEXT?
Once your 258-NAS2B-38001 Industrial Ethernet Switch is in place:
- Add Additional Switches – Seamlessly connect more devices as needed
- Mount with Confidence – Use DIN rails for secure industrial integration
- Pair with PoE Devices – Ideal for cameras, phones, and wireless gear
