258-NAS2B-38001

258-NAS2B-35001

The 258-NAS2B-35001 unmanaged switch features a ruggedized aluminum alloy housing and a metal DIN-rail clip. It offers five TP ports with a data transfer rate of 1000 Mb/s and provides PoE Type 2 capabilities. The device has an IP40 protection class, ensuring durability in various environments.

Compare
Add to wishlist
16 People watching this product now!
Categories: ,
Download Specification
Description

VERTICAL CABLE 285-NAS2B-35001 – INDUSTRIAL ETHERNET SWITCH

The 258-NAS2B-35001 is a rugged, unmanaged industrial Gigabit switch with 4 PoE+ ports, ideal for space-limited applications.

KEY FEATURES

Here are the key features that make it stand out:

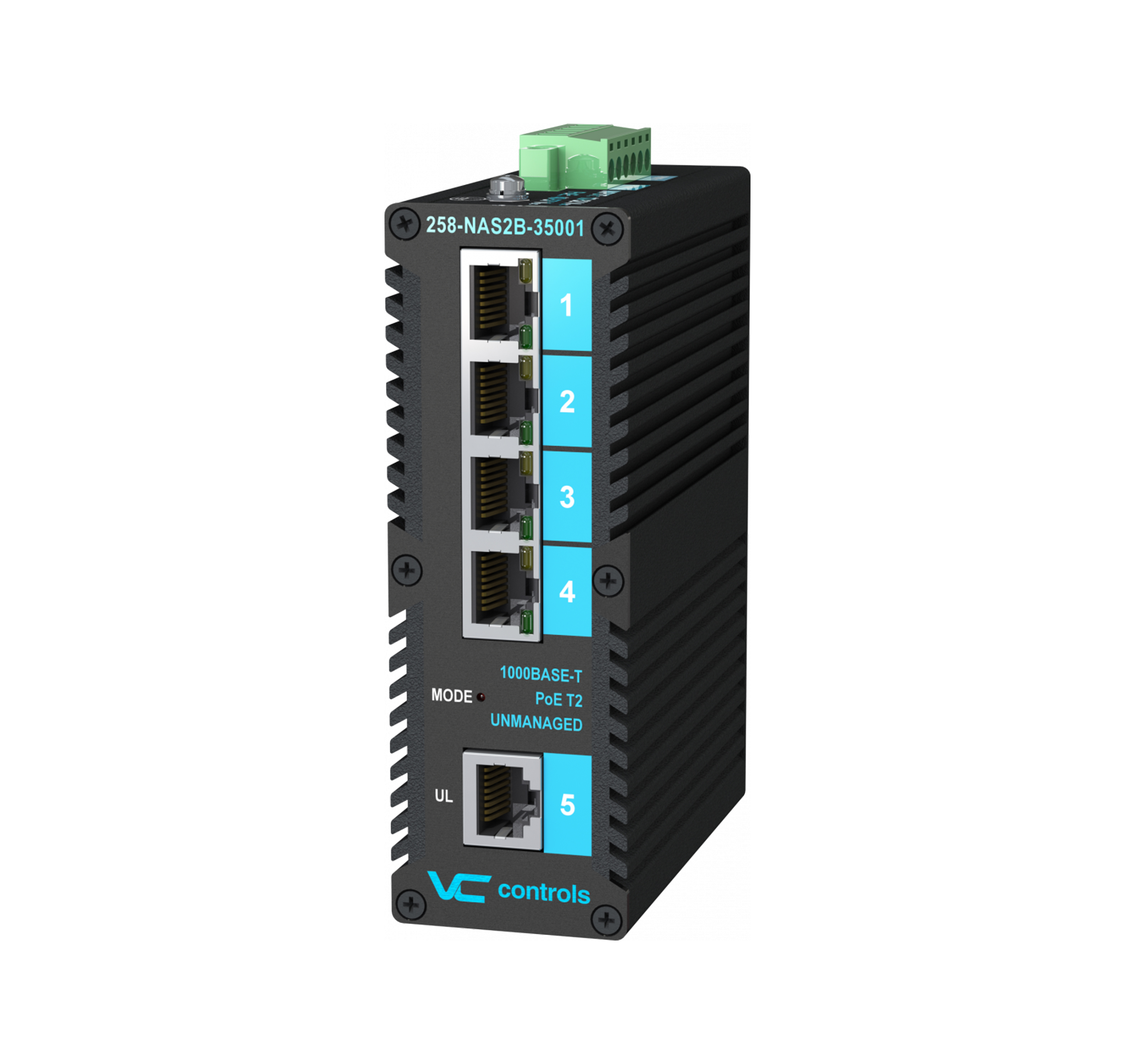

  • Port Configuration: 5 × 10/100/1000 Mbps RJ-45 ports provide fast and reliable Ethernet connectivity. Four ports deliver both power and data to connected PoE devices.
  • PoE Support: Supports IEEE 802.3af (Type 1) and 802.3at (Type 2) standards. Delivers up to 30W per port with a total 120W PoE budget. Ideal for IP cameras, phones, and wireless access points.
  • Performance: 14 Gbps switching bandwidth handles heavy traffic with minimal latency. 10.5 Mpps packet forwarding rate ensures efficiency in small-scale industrial networks. A 2 K MAC address table supports connected device management.
  • Rugged Design: Durable aluminum alloy housing with IP40-rated dust protection. Designed to withstand harsh environments and vibration.

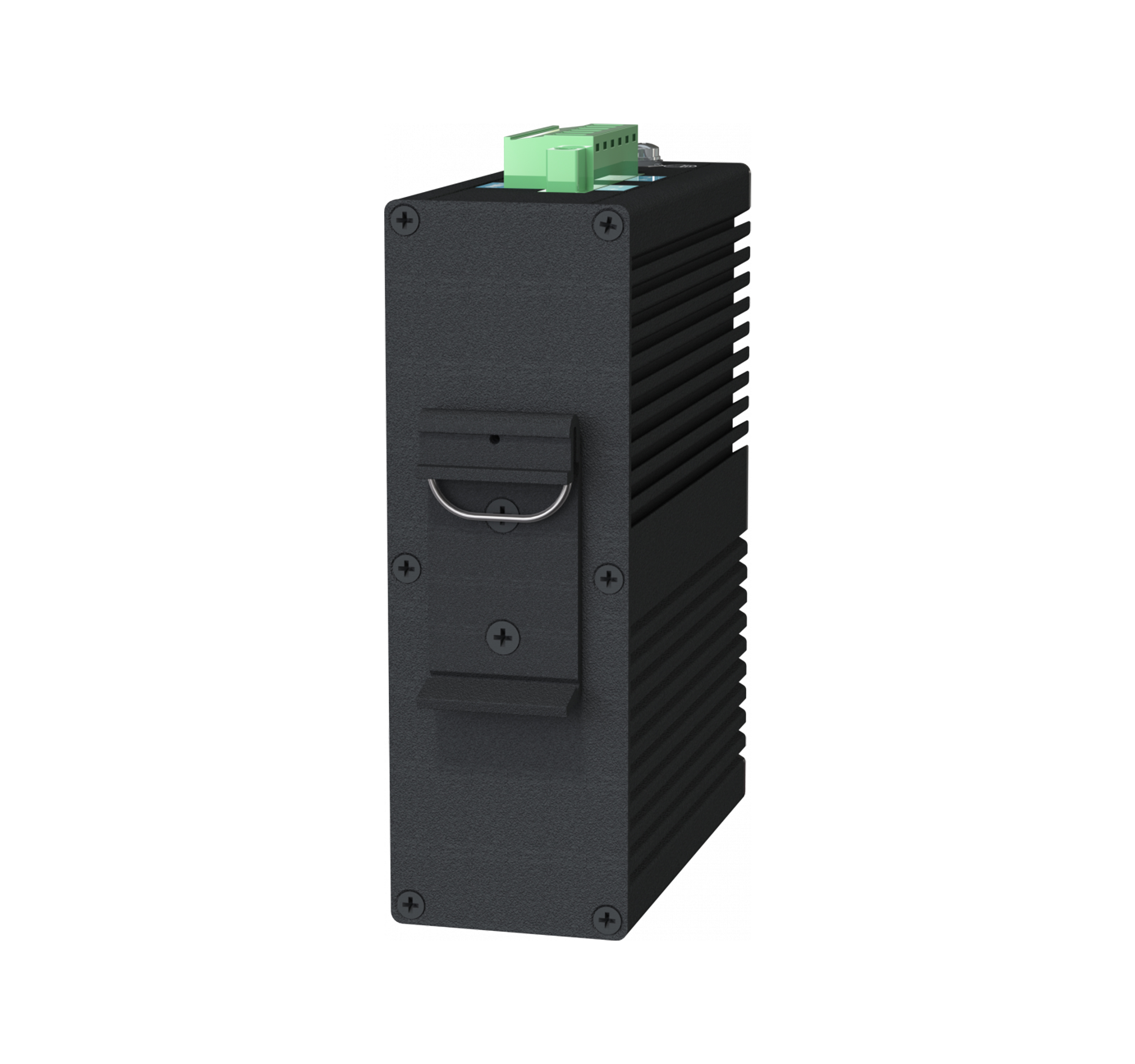

  • DIN-Rail Mounting: Built-in 35 mm DIN-rail clip allows secure mounting in control panels. Compact form factor suits space-restricted enclosures.

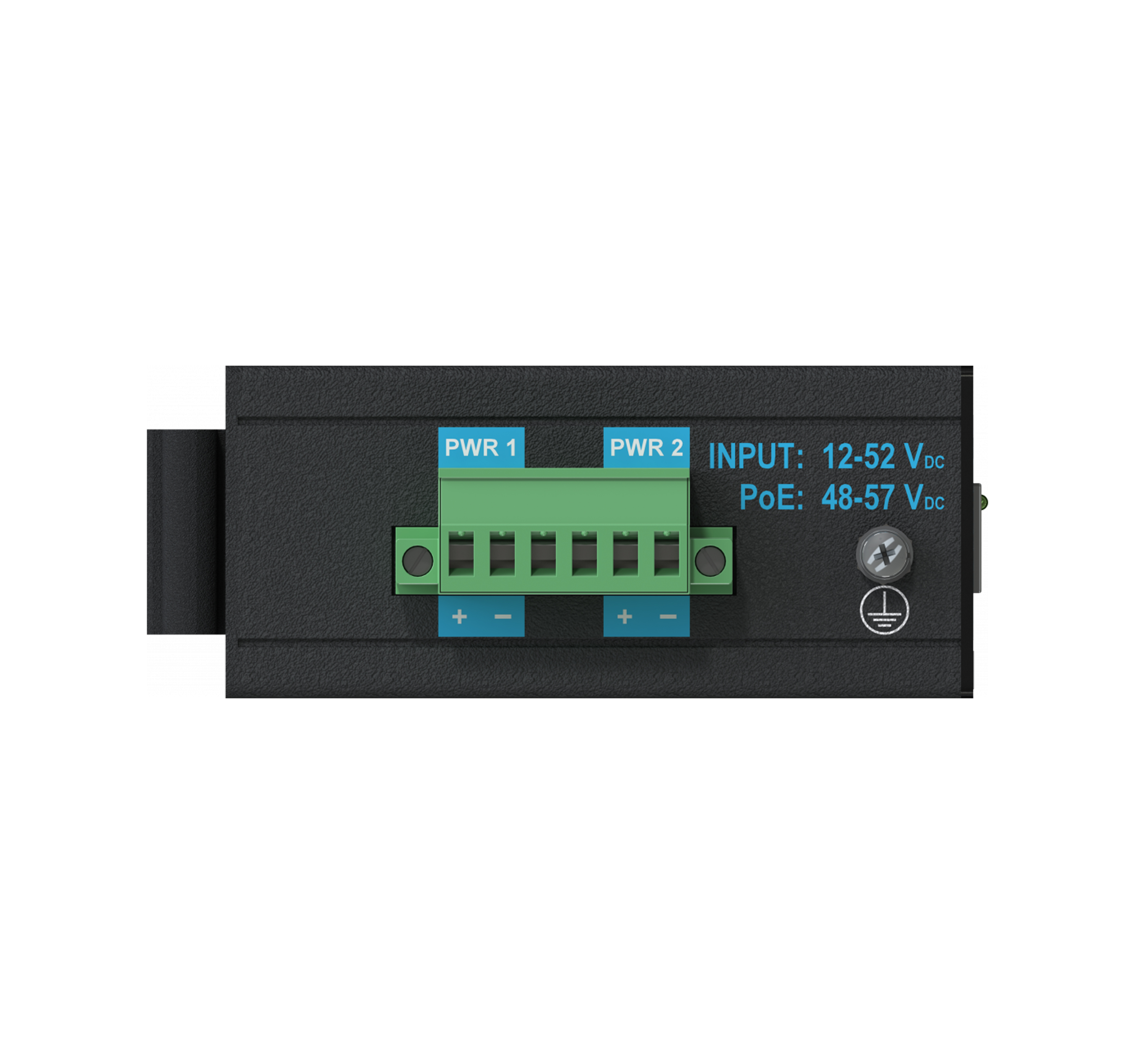

  • Power Input: Accepts 12–52 VDC via screw terminal. Features dual-source redundancy and reverse polarity protection.
  • Environmental Tolerance: Operates from -40°F to 185°F (-40°C to 85°C). Withstands industrial shock, vibration, and surge conditions.
  • Dimensions & Weight: Width: 2.1 in (53.5 mm); Height: 5.8 in (148 mm); Depth: 4.2 in (107 mm); Net weight: 1.21 lb (0.55 kg)

APPLICATIONS

The 258-NAS2B-35001 Industrial Ethernet Switch is designed for a range of installations, including:

  • IP Surveillance Systems
  • Factory Floor Equipment Networks
  • Access Control & Security Gateways
  • Smart Lighting & IoT Devices
  • Outdoor or Harsh-Environment Wireless Access

258 NAS final chart watermark 258-NAS2B-35001

WHY CHOOSE THE 258-NAS2B-35001 INDUSTRIAL ETHERNET SWITCH?

Compact yet powerful, this switch is built for industrial reliability:

  1. Space-Saving Power: 4 PoE+ ports in a small, durable frame
  2. Plug-and-Play Simplicity: No configuration required
  3. Flexible Mounting: DIN-rail ready for fast panel installation
  4. Reliable in Harsh Conditions: Extreme temperature and surge tested
  5. Efficient Networking: Supports real-time data transfer without interruption

WHAT’S NEXT?

Once your 258-NAS2B-35001 Industrial Ethernet Switch is in place:

  • Pair with PoE Devices – Cameras, sensors, or VoIP phones
  • Use Redundant Power – Enhance uptime with backup voltage sources
  • Mount with Ease – Use in compact or distributed network cabinets
