042-381/U6A/24

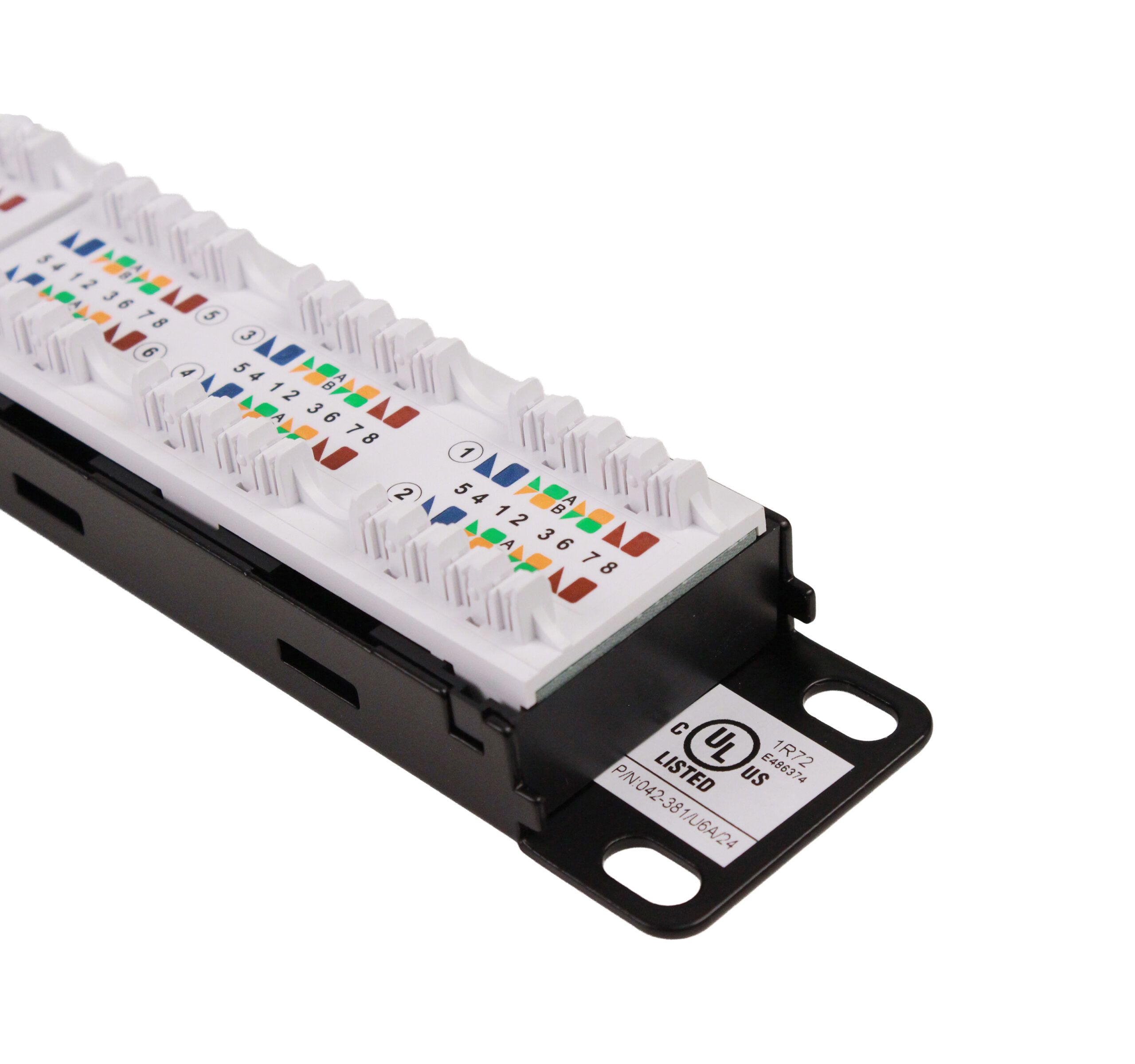

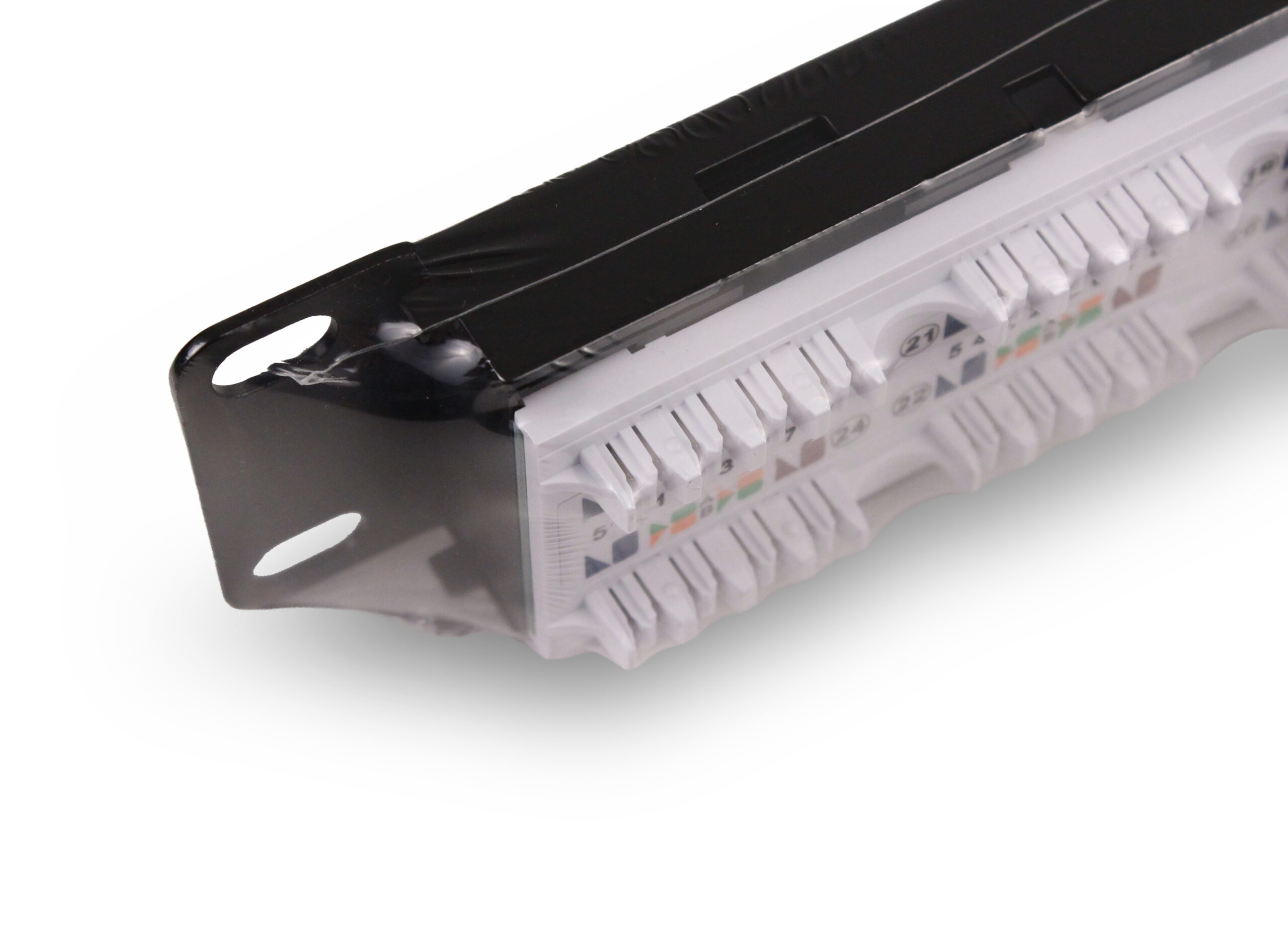

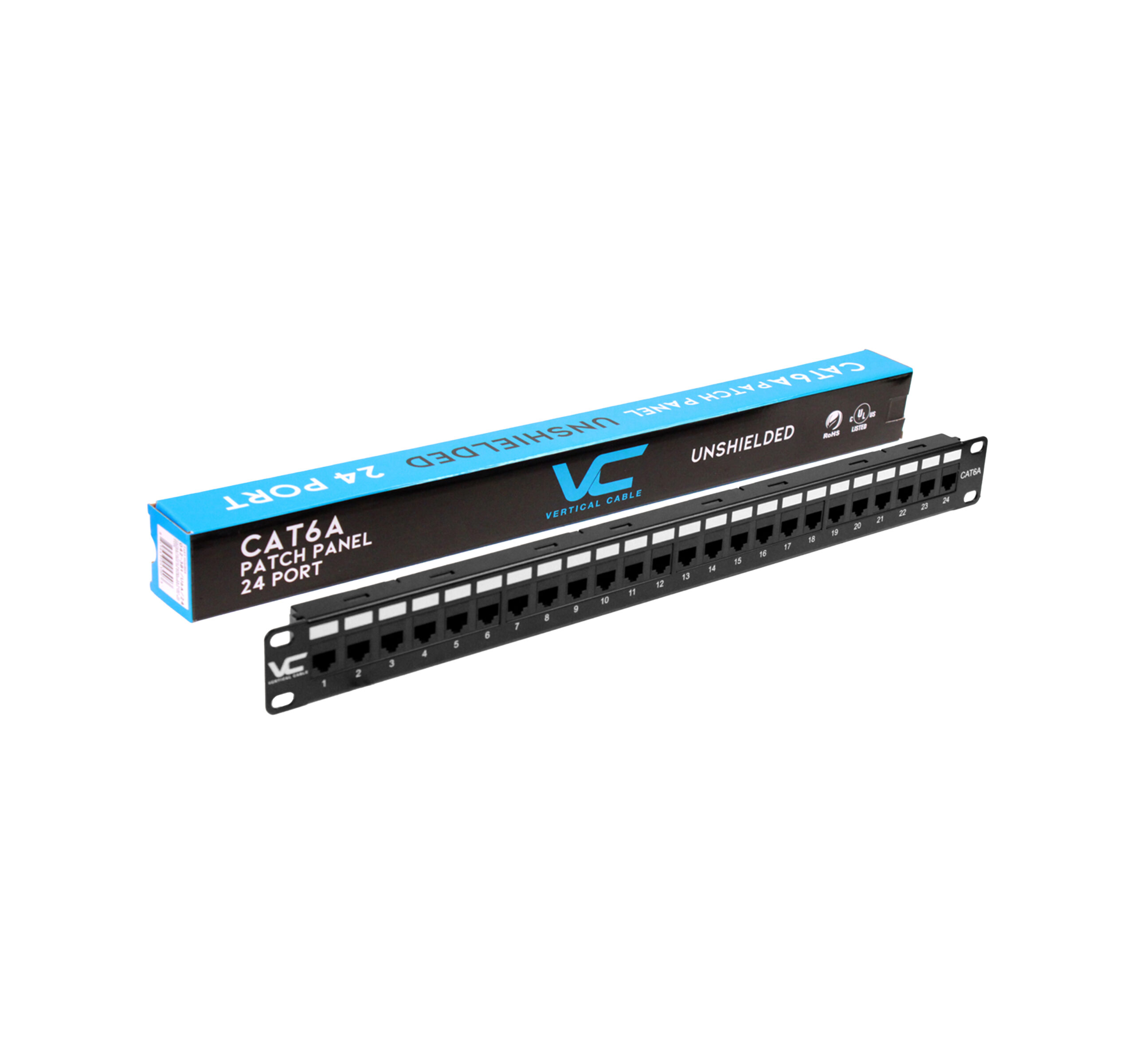

VERTICAL CABLE 042-381/U6A/24 – 24 PORT CAT6A PATCH PANEL | 1 RMU

The 042-381/U6A/24 is a durable, 24-port CAT6A patch panel designed for high-performance data applications. Built for 19-inch racks, it supports both T568A and T568B wiring schemes. The panel includes clearly labeled ports for quick identification and is made with high-impact materials to ensure longevity in commercial and enterprise networks. Its 110-IDC termination is compatible with both solid and stranded conductors for flexible installations.

KEY FEATURES

Here’s what makes the 042-381/U6A/24 an ideal choice for data patching environments:

• 24 Port Configuration: CAT6A-rated, unshielded design for standard 19 in. rack installations.
• 110-Type IDC Termination: Compatible with 22–26 AWG solid and stranded cable; uses standard 110 punch down tool.
• Clear Port Labeling: Numbered positions simplify identification and cable management.
• Dual Wiring Support: Supports both T568A and T568B color codes for universal system integration.
• Durable Build: Steel housing made from SPCC with a 0.06 in. (1.5 mm) thickness and tough black painted finish.
• Premium Contacts: Gold-plated phosphor bronze contact points ensure reliable signal transmission over time.
• Safety-Rated Materials: PCB, jack housing, and IDC connector are all UL 94V-rated for flame resistance.
• Environmentally Compliant: Meets ISO/IEC 11801, ANSI/TIA 568.2-D, and IEC 60603-7-41 standards.
• Operating Temperature: Functional in environments ranging from -10°C to 60°C (14°F to 140°F).
• Long Service Life: Jack rated for 750 mating cycles and high retention strength of 17 lbs. (7.7 mm separation).

APPLICATIONS

The 042-381/U6A/24 excels in environments requiring dense copper terminations with long-term durability:

• Data Centers: Ideal for high-speed CAT6A backbone terminations and cross-connects.
• Corporate IT Rooms: Fits easily into standard 1 RMU slots for centralized patching.
• Telecom Closets: Enables neat transitions between structured cabling and active devices.
• Schools & Campuses: Supports modern learning environments with high-bandwidth demands.
• Enterprise Offices: Maintains network performance while allowing for fast reconfigurations.

WHY CHOOSE THE 042-381/U6A/24 PATCH PANEL?

Professionals rely on the 042-381/U6A/24 for quality construction and consistent performance. Here’s why:

1. High-Density Design – 24 ports in a single RMU conserve valuable rack space.
2. Versatile Compatibility – Termination works with both solid and stranded CAT6A conductors.
3. Long-Term Reliability – Industrial-grade components support high-volume network activity.
4. Effortless Installation – Clearly labeled ports and standard punch-downs reduce setup time.
5. Trusted Standards – Conforms to global cabling specs for dependable compliance in all installs.

WHAT’S NEXT?

After installing the 042-381/U6A/24:

• Bundle and Organize – Use wire managers to keep front and rear cabling neat.
• Label Your Ports – Use number labels or asset tags for rapid troubleshooting.
• Test and Certify – Verify CAT6A performance with Fluke or equivalent cable testing tools.
• Secure Patch Cables – Add strain relief bars or support trays if needed.
• Expand as Needed – Pair with additional patch panels or enclosures for larger networks.

For more Cable Management Solutions, explore our complete line of Patch Panels and Accessories.
