VERTICAL CABLE 285-NAS2B-38201 – INDUSTRIAL ETHERNET SWITCH
The 258-NAS2B-38201 is a rugged industrial switch with PoE+, ideal for high-speed, high-demand remote or harsh environments.
KEY FEATURES
Here are the key features that make it stand out:

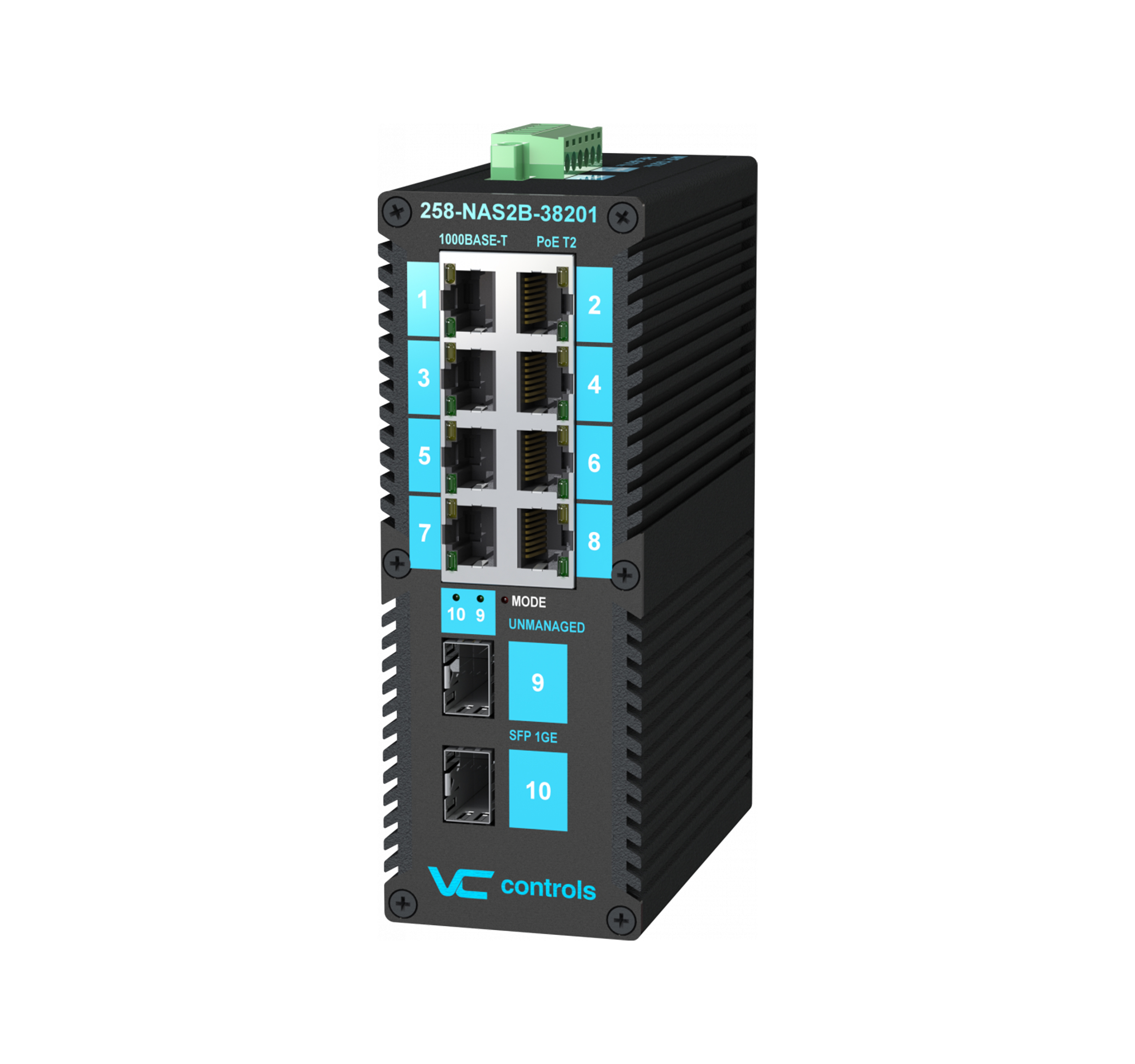

- Port Configuration: 8 Gigabit RJ-45 ports connect cameras, access points, and controllers. 2 SFP ports allow fiber uplinks for long-range or EMI-sensitive links.
- PoE Support: IEEE 802.3af/at (Type 1/2) compliant. Delivers up to 30W per port, with a total budget of 240W. Ideal for powering IP cameras, VoIP phones, and wireless bridges.
- Performance: 20 Gbps switching bandwidth ensures smooth traffic flow. 15 Mpps forwarding rate handles large volumes of small packets. Jumbo frame support increases efficiency for large data transfers.
- Durable Housing: Made from rugged aluminum alloy with an IP40 rating for dust protection. Suitable for demanding industrial environments.

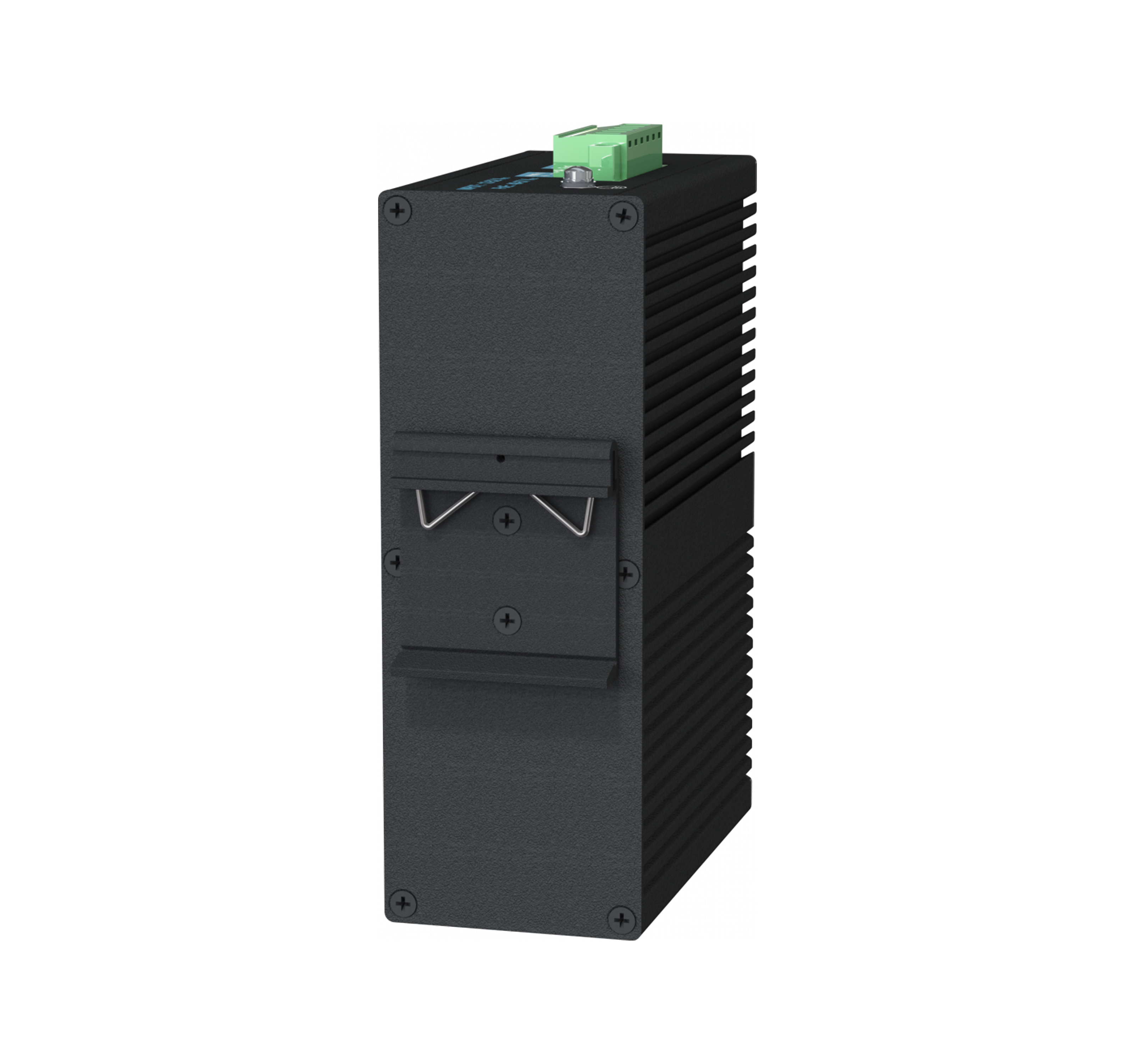

- DIN-Rail Mountable: Integrated metal clip fits standard 35 mm DIN rails. Enables easy installation in control cabinets and panels.

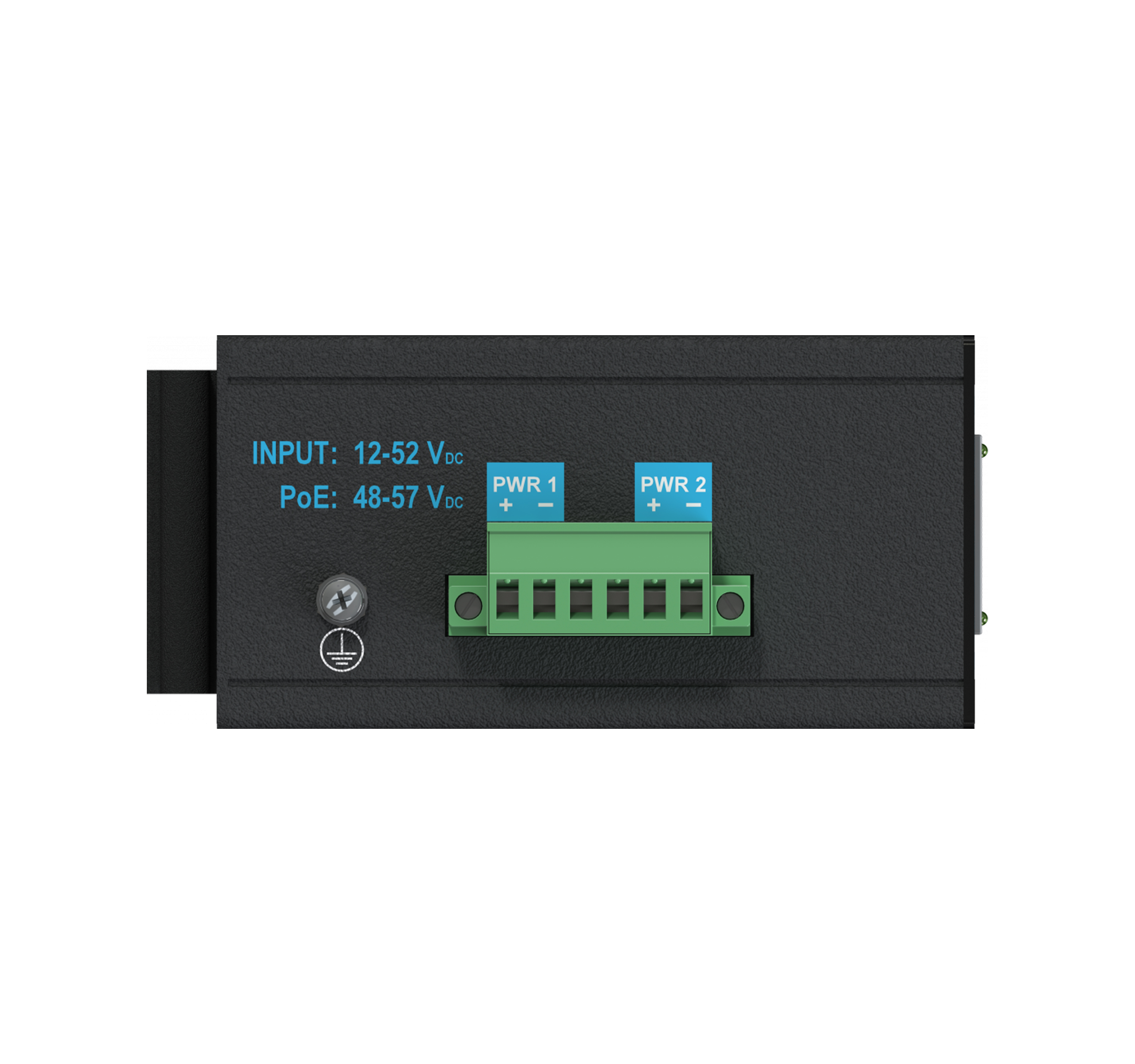

- Power Input: Accepts 12–52 VDC via terminal block. Supports redundant power input for continuous uptime.
- Surge & Voltage Protection: Includes reverse polarity protection and grounding terminal. Designed for electrical safety in industrial settings.
- Environmental Tolerance: Operates from -40°F to 185°F (-40°C to 85°C): Withstands shock, vibration, and harsh weather conditions.
- Compact Dimensions: 2.1 in (53.5 mm) wide × 5.8 in (148 mm) high × 4.1 in (103 mm) deep. Net weight: 1.54 lb (0.70 kg).
APPLICATIONS
The 258-NAS2B-38201 Industrial Ethernet Switch is designed for a range of installations, including:
- Surveillance & IP Camera Systems
- Industrial Automation & Control
- Transportation & Traffic Networks
- Smart Cities & IoT Deployments
- Outdoor Wireless & Telecom Backhaul
WHY CHOOSE THE 258-NAS2B-38201 SWITCH?
This switch combines industrial-grade build with plug-and-play convenience:
- High PoE Power: 240W total supports power-hungry PoE+ devices
- Fiber-Ready: Two SFP ports enable long-range, interference-free connections
- Built for Harsh Sites: Wide operating temperature and strong surge protection
- Instant Deployment: Unmanaged design—no configuration required
- Safety First: Reverse polarity protection and grounding support
WHAT’S NEXT?
Once your 258-NAS2B-38201 Industrial Ethernet Switch is in place:
- Add SFPs – Use compatible 1 Gbps fiber modules for uplinks
- Pair with Cameras – Power and connect IP surveillance gear instantly
- Scale Efficiently – Expand your network with additional switches as needed
