251-DCN01-B1B05

VERTICAL CABLE 251-DCN01-B1B05 – SURFACE-MOUNT CONNECTIVITY NODE

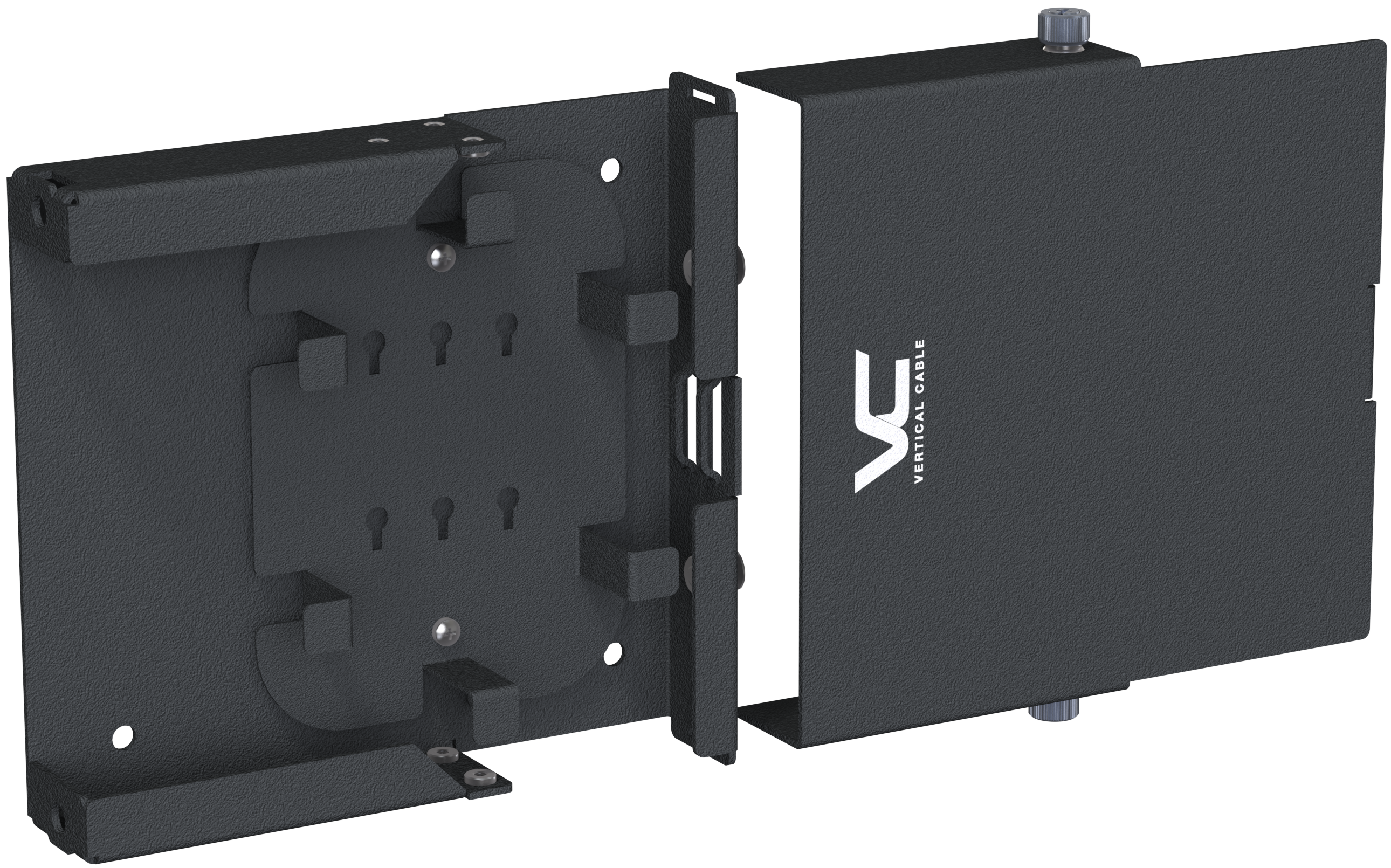

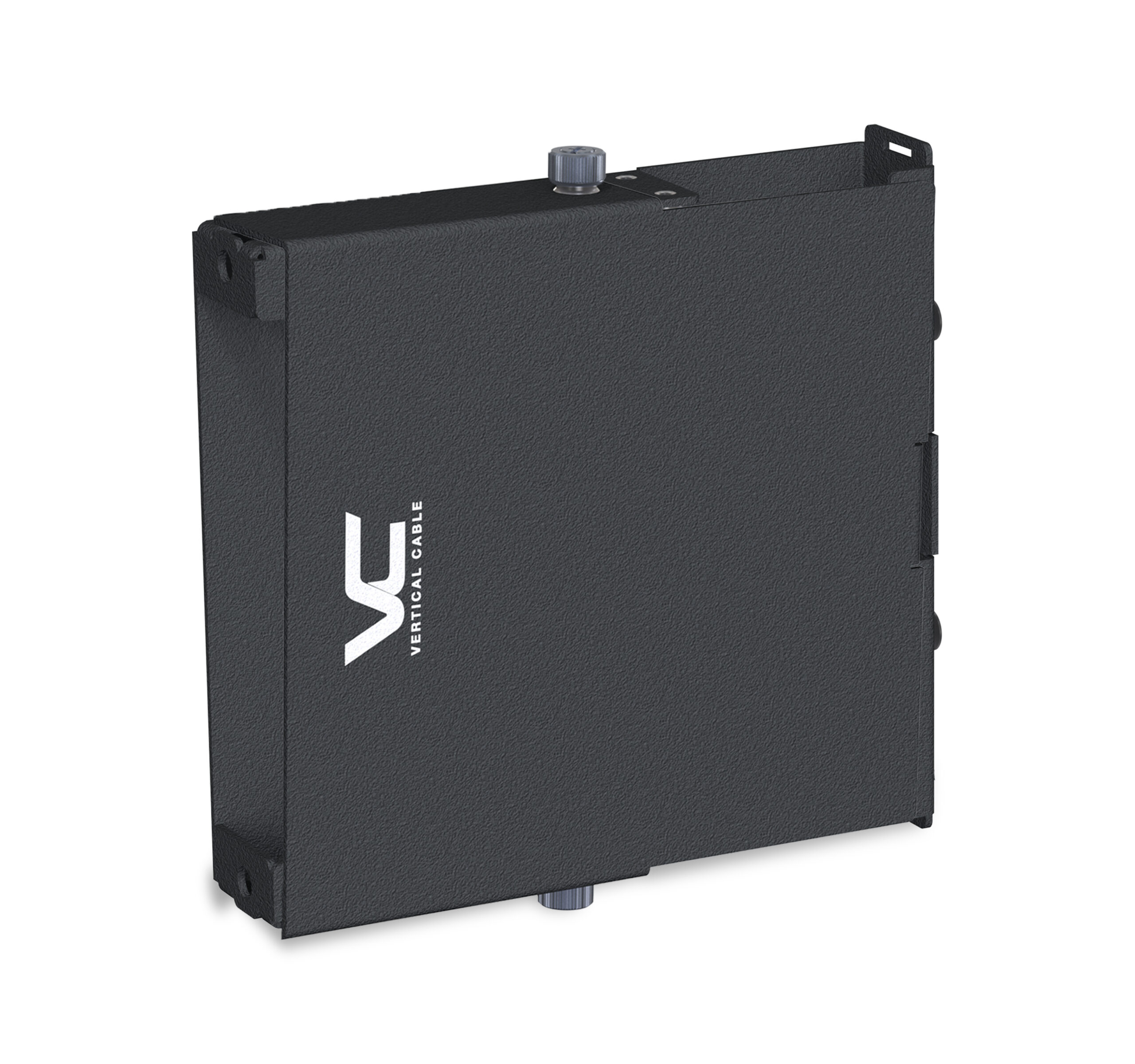

The 251-DCN01-B1B05 is a surface-mount connectivity node designed for versatile fiber and copper termination in industrial, commercial, and residential environments. This surface-mount connectivity node accommodates one LGX adapter plate supporting up to 24 optical fibers or up to 6 keystone modules, providing flexible connectivity options in a single compact enclosure.

KEY FEATURES

Here’s what makes the 251-DCN01-B1B05 ideal for versatile fiber and copper termination:

• One-Position LGX Capacity: Holds one LGX adapter plate supporting up to 24 optical fibers or up to 6 keystone modules.

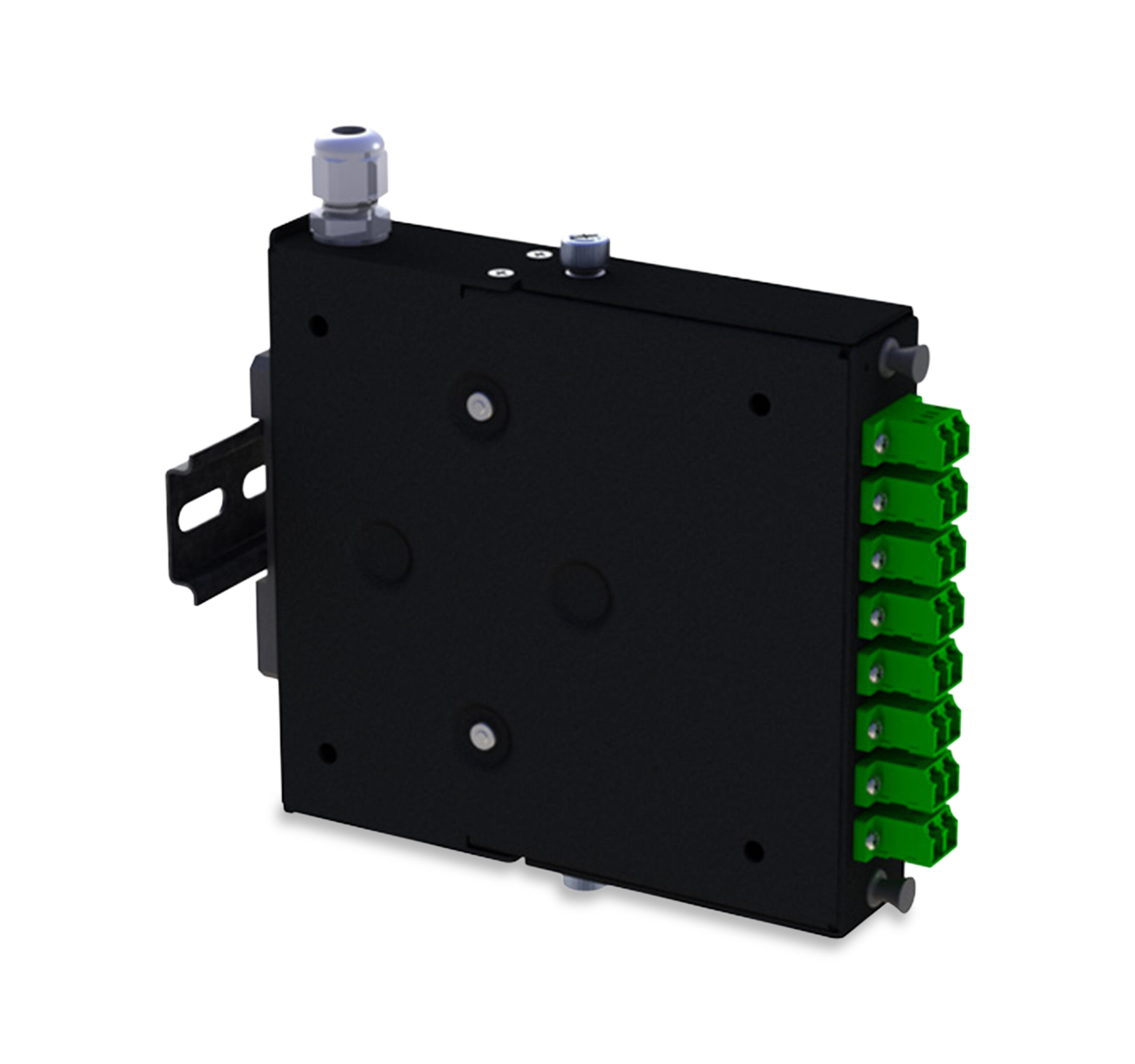

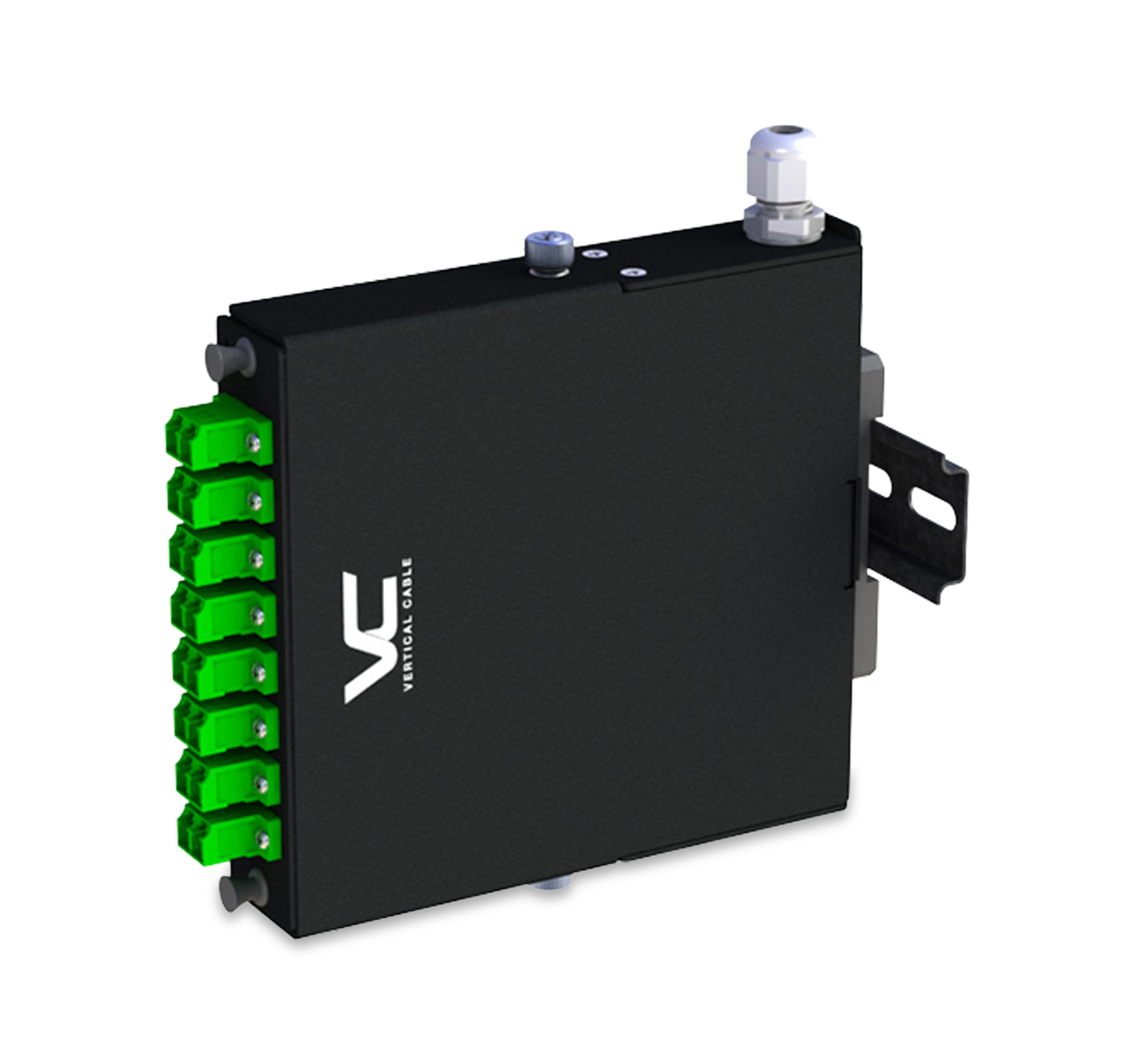

• Dual Mounting Options: Surface-mount with screw fastening or 35-mm DIN-rail mounting with detachable clip (sold separately).
• Left/Right-Hand Independent: Install in either orientation to suit cable routing and space requirements.
• Durable Construction: Aluminum alloy with black powder-coated finish for lasting durability in demanding environments.

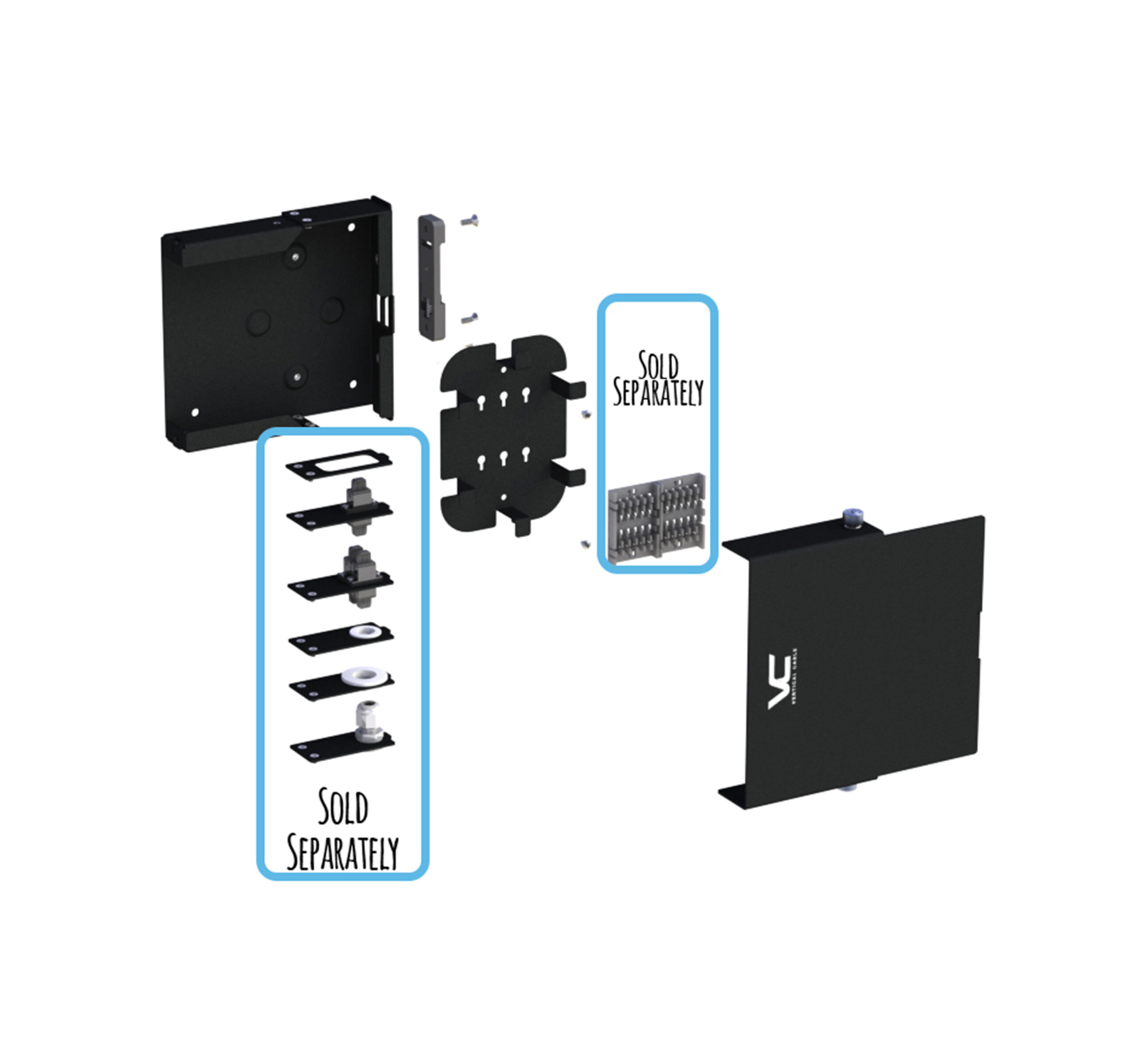

• Comprehensive Cable Management: Cable anchor points (bridge lances), removable fiber/splice management stage, and included cable ties.
• Splice Capacity: Accommodates 1 or 2 splice holders with up to 24 fibers total (12 fibers per holder).

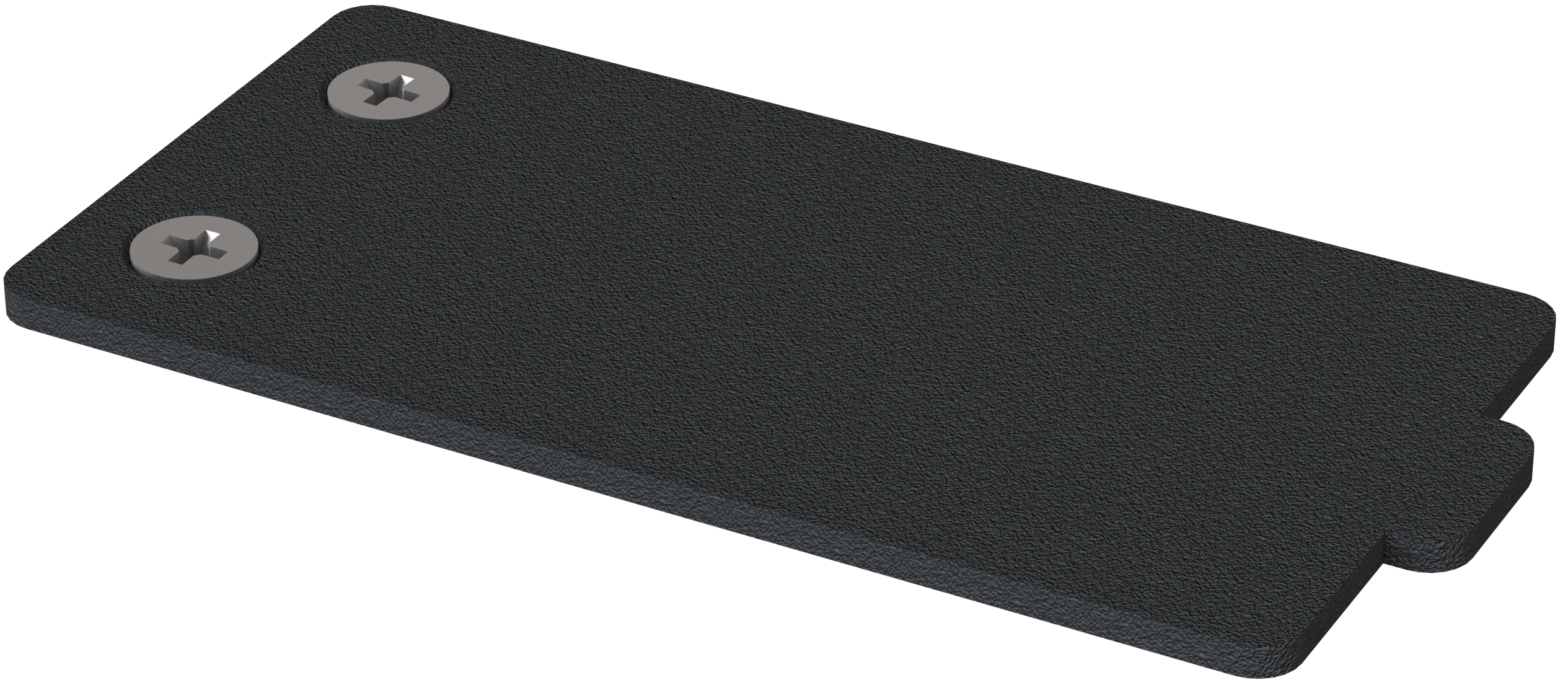

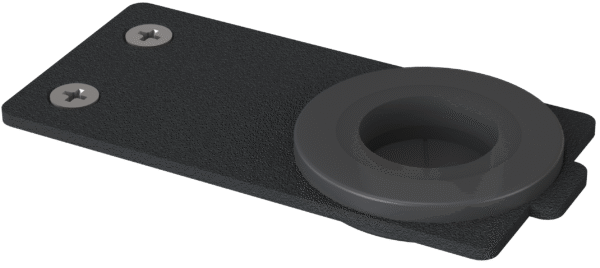

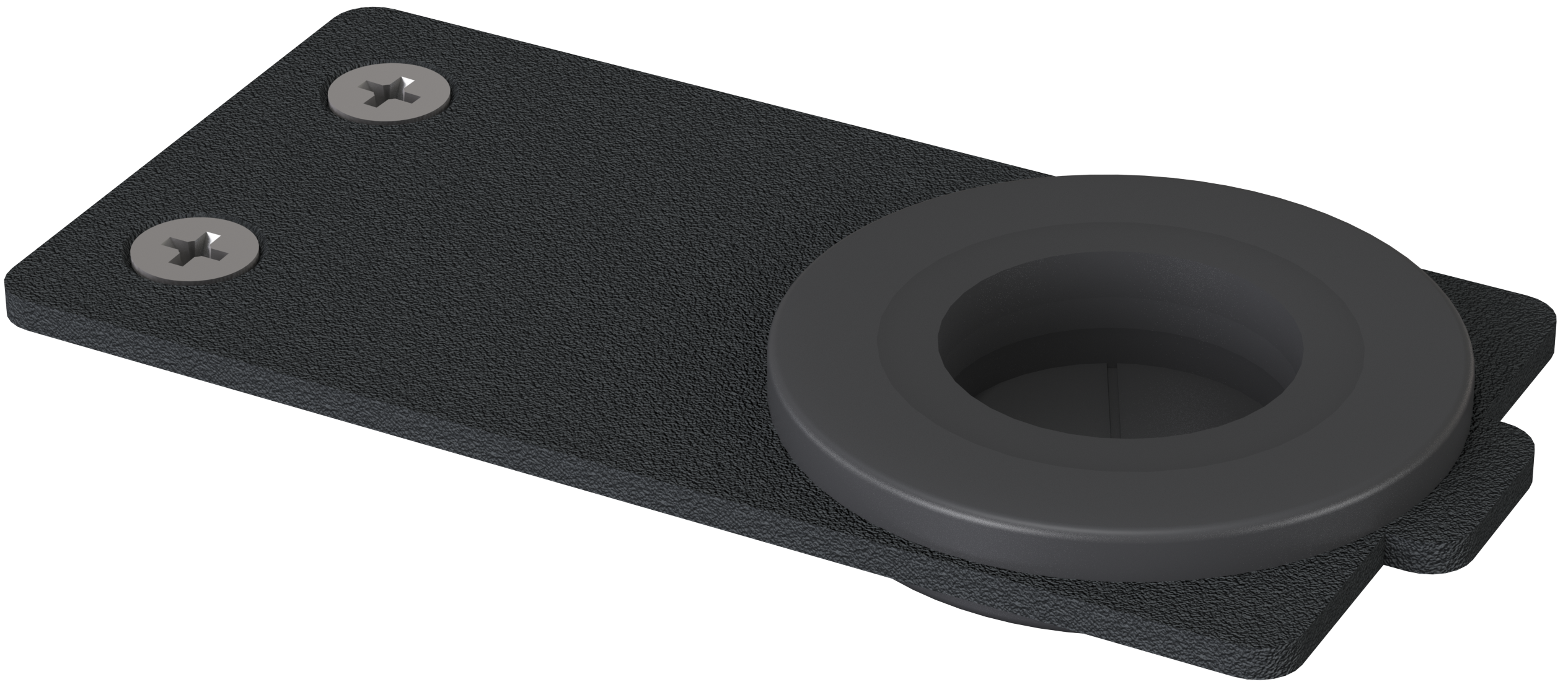

• Flexible Cable Entry: Supports 1 or 2 cable entry point adapters; includes one medium grommet adapter.
• Secure Cover Fixation: Two captive screws provide secure access while preventing hardware loss.
• Wide Operating Range: Performs reliably from -20°C to +70°C (-4°F to +158°F) at up to 93% RH non-condensing.
• Industry Compliant: Meets IEC/EN 60715, DIN 43880, ANSI/TIA-568.3-D, GR-769, and RoHS2 standards.

APPLICATIONS

The 251-DCN01-B1B05 surface-mount connectivity node excels in diverse termination scenarios:

• Industrial Control Panels: Mount on DIN-rail alongside PLCs and automation equipment for fiber connectivity in manufacturing environments.
• Telecommunications Closets: Provide compact fiber termination points in MDFs, IDFs, and network closets.
• FTTH Deployments: Serve as a flexible termination point for fiber-to-the-home installations in residential and MDU settings.
• Building Automation: Terminate fiber or copper connections for BMS, access control, and security systems.
• Edge Computing: Deploy fiber connectivity at network edge locations, remote equipment rooms, or outdoor cabinets.

COMPATIBLE VERTICAL CABLE ACCESSORIES

This optical fiber surface-mount box pairs well with:

• 264-MAP Series & 264-LAP Series | LGX Adapter Plates
• 265-HLD01-2B-00 | Optical Fiber Splice Holder, Adhesive Mounting
• 265-SLV01-3A | Optical Fiber Splice Protection Sleeves
• 251-DCN-DINRAIL | DIN-Rail Mounting Clip

WHY CHOOSE THE 251-DCN01-B1B05 SURFACE-MOUNT CONNECTIVITY NODE?

Professionals choose the 251-DCN01-B1B05 because it delivers flexible fiber and copper termination with versatile mounting options for any environment. Here are 5 reasons to specify it for your next project:

1. Ultimate Mounting Flexibility – Surface-mount or DIN-rail options with left/right-hand orientation adapt to any installation requirement.
2. Fiber and Copper Ready – Accepts LGX adapter plates for fiber or keystone modules for copper, providing true hybrid connectivity.
3. Industrial-Grade Construction – Aluminum alloy with powder-coated finish withstands demanding industrial and commercial environments.
4. Comprehensive Splice Support – Accommodates up to 24 fusion splices with removable fiber management stage for organized terminations.
5. Standards Compliant – Meets IEC/EN 60715, DIN 43880, ANSI/TIA-568.3-D, and GR-769 for assured compatibility and performance.

WHAT’S NEXT?

Once you’ve specified the 251-DCN01-B1B05 for your project:

• Select Your Adapter Plate – Choose the appropriate 264-MAP or 264-LAP Series LGX adapter plate for your connector type, or configure with keystone modules.
• Determine Mounting Method – For DIN-rail installations, add the 251-DCN-DINRAIL mounting clip accessory.
• Plan Splice Requirements – If splicing is needed, add 265-HLD01/HLD02 splice holders and 265-SLV01 splice protection sleeves.
• Test After Installation – Verify optical continuity and insertion loss after termination is complete.
