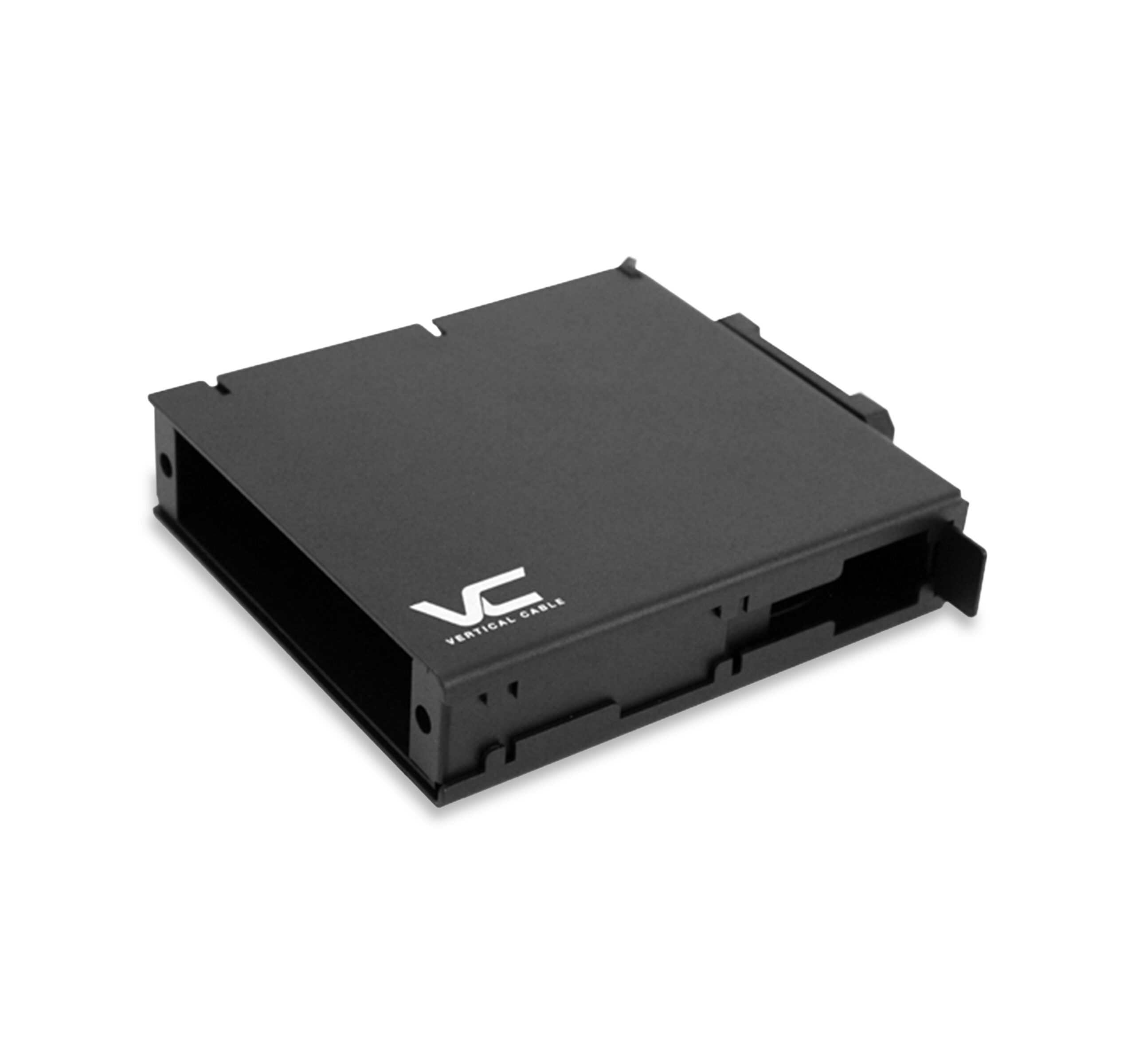

EZ-Mount DIN-Rail Cassette | 268-EZM01-1A-05

DIN-Rail Modular LGX Optic Fiber Cassette, Mountable universal cassette, compatible with standard LGX-format adapter plates

Supplied as a kit:

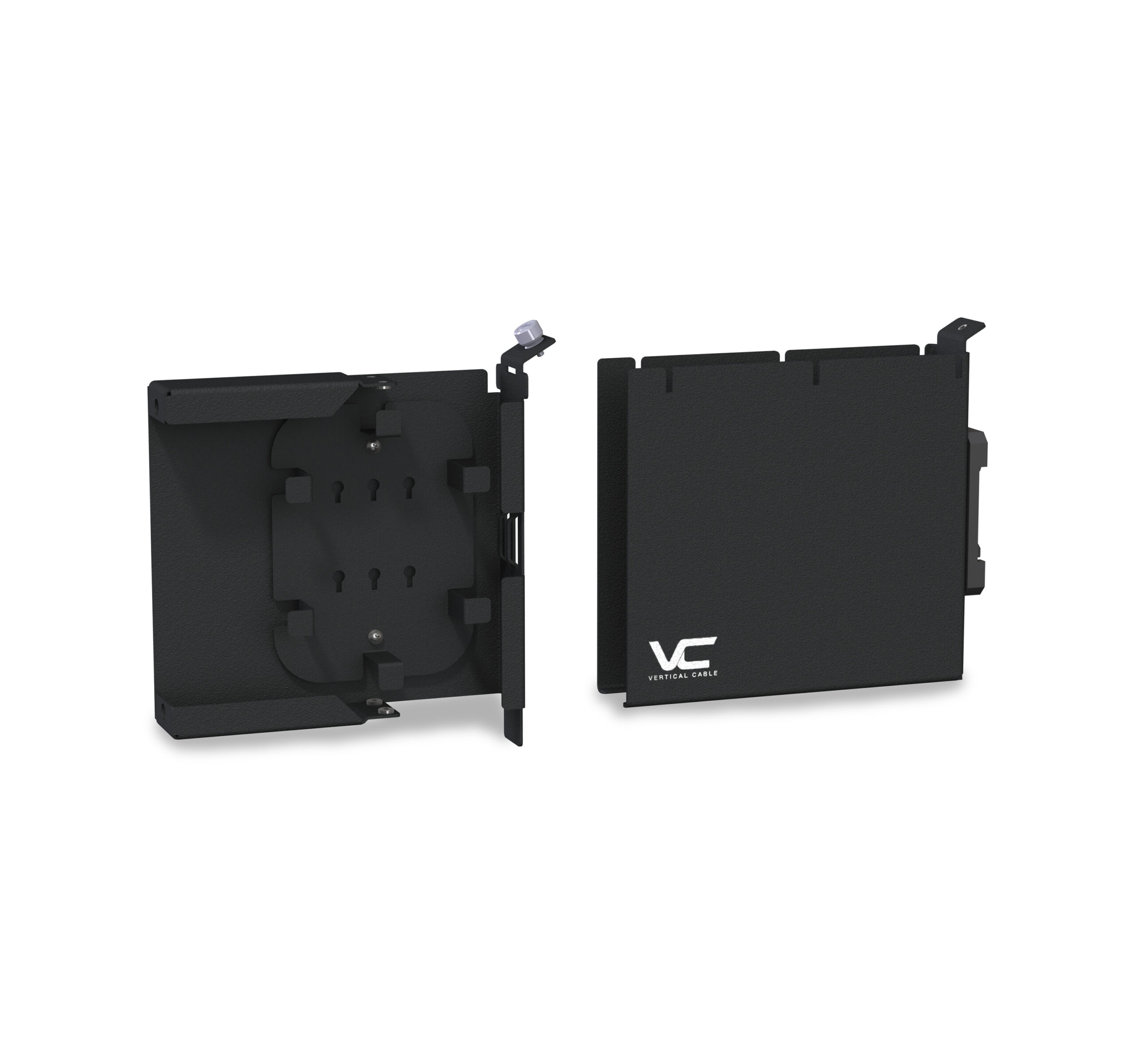

Bay x 1, Cassette x 1, FM stage x 1, DIN-Rail Clip x 1, Blank cable entry adapter x 1, Medium grommet cable entry adapter x 1, Identification label x 1, Cable Tie x 2.
Each unit is recommended to be ordered with a choice of two cable entry adapters (see accessories below), which provide specific options for cable entry, fixation, or connection.

[Download Instructions]

Height	Width	Depth	Weight
6.7 in. (170 mm)	1.4 in. (35 mm)	5.5 in. (150 mm)	12.5 oz. (350 g)

13 People watching this product now!

Download Specification

VERTICAL CABLE 268-EZM01-1A-05 – DIN-RAIL MODULAR CASSETTE, EZ MOUNT SERIES

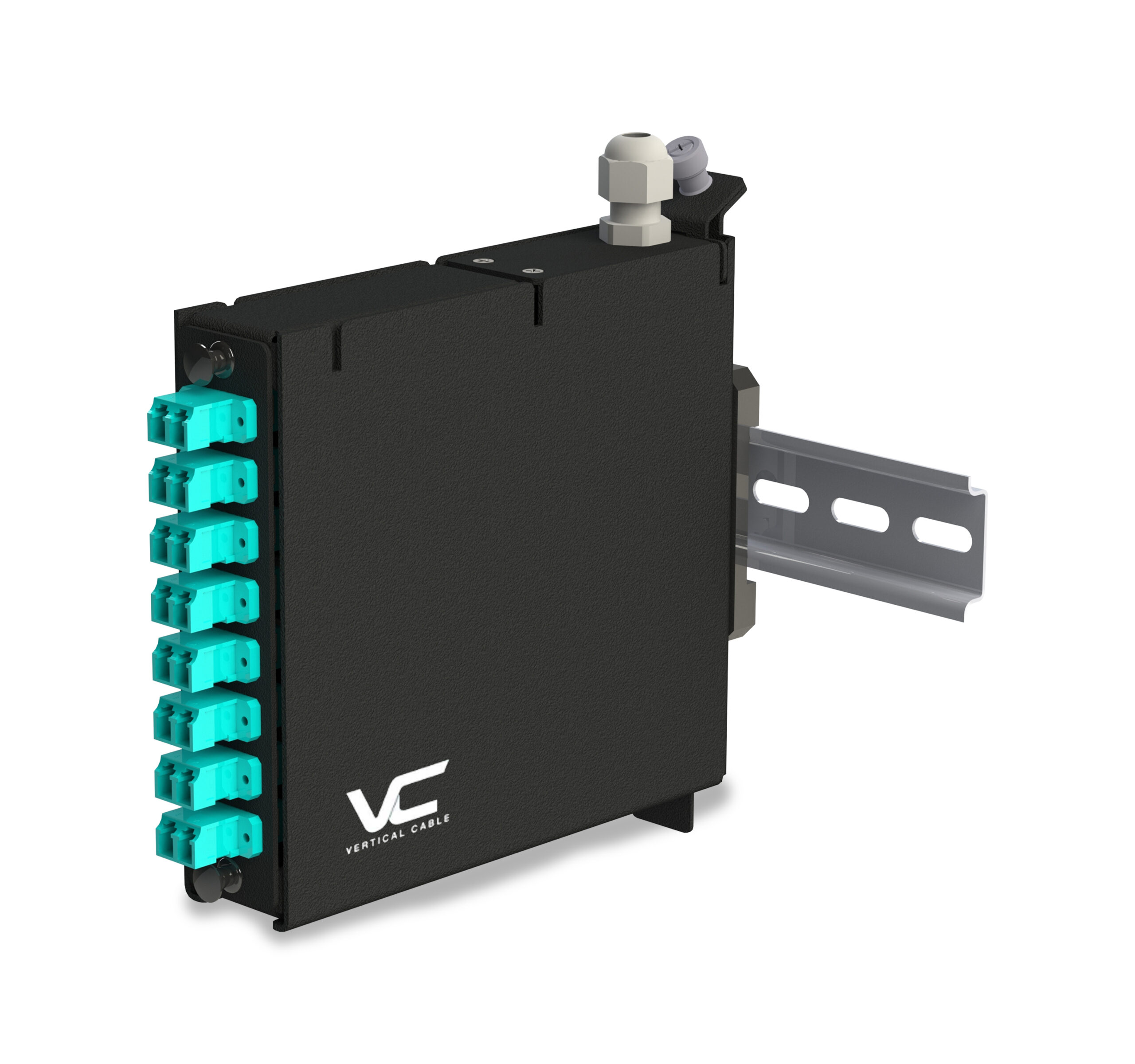

The 268-EZM01-1A-05 is a DIN-rail modular cassette designed for fiber termination in industrial control panels, automation systems, and equipment enclosures. This din-rail modular cassette accommodates one LGX adapter plate supporting up to 24 optical fibers or up to 6 keystone modules, providing flexible connectivity options directly on standard 35-mm DIN-rail.

KEY FEATURES

Here’s what makes the 268-EZM01-1A-05 ideal for industrial fiber termination:

One-Position LGX Capacity: Holds one LGX adapter plate supporting up to 24 optical fibers or up to 6 keystone modules.
35-mm DIN-Rail Mounting: Mounts directly onto standard DIN-rail alongside PLCs, terminal blocks, and automation equipment.

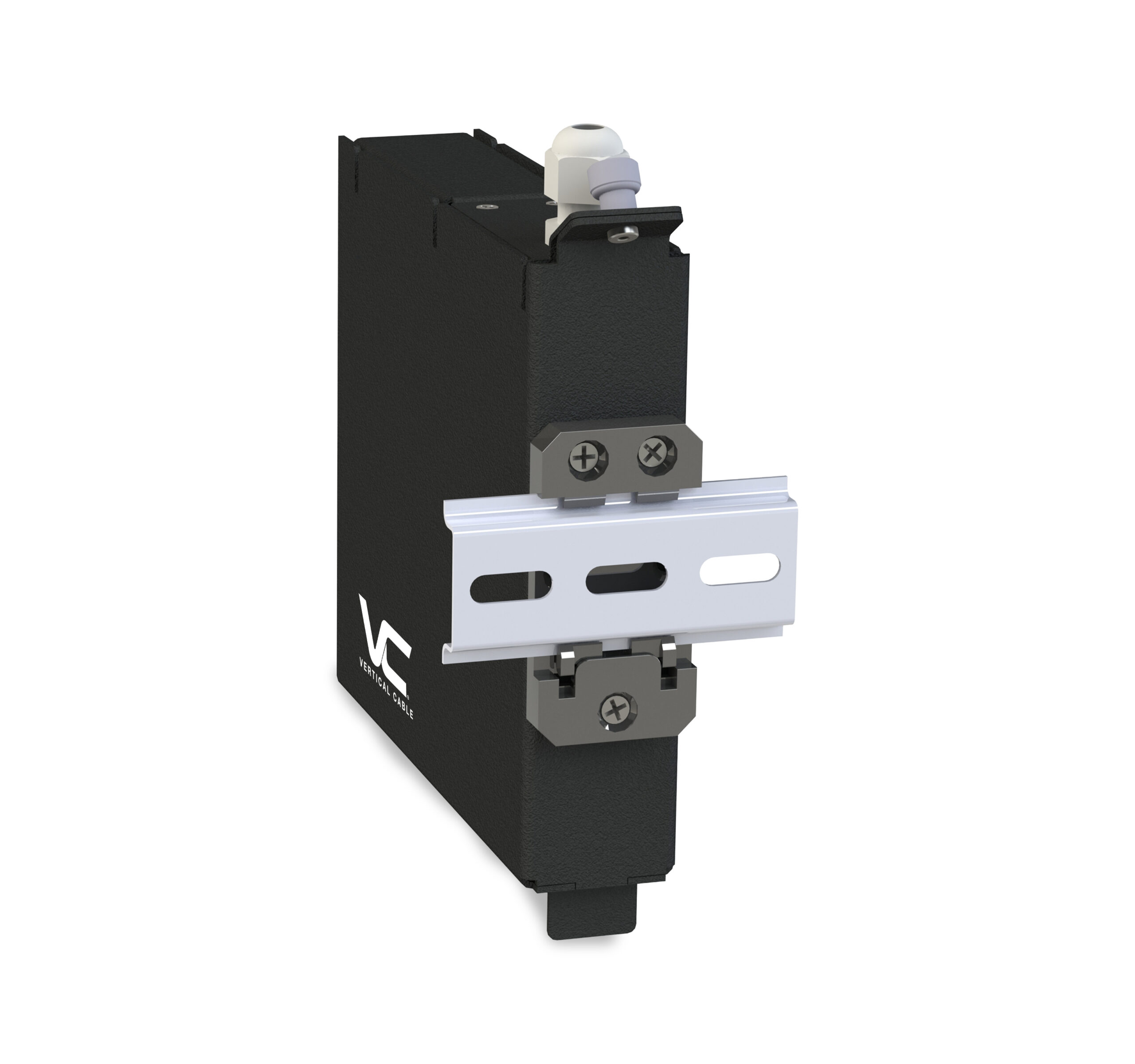

Detachable DIN-Rail Clip: Spring-loaded latch on fiberglass-reinforced nylon 66 clip ensures secure yet removable installation.
Durable Construction: Aluminum alloy with black powder-coated finish for lasting durability in industrial environments.
Comprehensive Cable Management: Cable anchor points (bridge lances), removable fiber/splice management stage, and included cable ties and wraps.
Splice Capacity: Accommodates 1 or 2 splice holders with up to 24 fibers total (12 fibers per holder).
Flexible Cable Entry: Includes blank and grommet cable entry adapters; supports 1 or 2 entry point adapters.
Modular Bay and Cassette Design: Separate bay and cassette components allow easy access and maintenance.
Wide Operating Range: Performs reliably from -10°C to +60°C (14°F to 140°F) at up to 93% RH non-condensing.
Industry Compliant: Meets IEC/EN 60715, DIN 43880, ANSI/TIA-568.3-D, GR-769, and RoHS2 standards.

APPLICATIONS

The 268-EZM01-1A-05 DIN-rail modular cassette excels in industrial and commercial fiber termination scenarios:

Industrial Control Panels: Mount directly alongside PLCs, VFDs, and automation equipment for fiber connectivity in manufacturing environments.
Building Automation Systems: Terminate fiber connections for BMS, HVAC controls, and building management networks.
Process Control: Provide reliable fiber termination in harsh industrial environments including factories, refineries, and processing plants.
Transportation Infrastructure: Deploy in rail, transit, and traffic control systems where DIN-rail mounting is standard.
Data Centers: Install in equipment racks and cabinets where DIN-rail infrastructure is utilized for fiber distribution.

COMPATIBLE VERTICAL CABLE ACCESSORIES

This din-rail modular cassette pairs well with:

264-MAP Series & 264-LAP Series | LGX Adapter Plates
265-HLD01-2B-00 | Optical Fiber Splice Holder, Adhesive Mounting
265-SLV01-3A | Optical Fiber Splice Protection Sleeves

WHY CHOOSE THE 268-EZM01-1A-05 DIN-RAIL MODULAR CASSETTE?

Professionals choose the 268-EZM01-1A-05 because it brings professional fiber termination directly into industrial control environments. Here are 5 reasons to specify it for your next project:

True Industrial Integration – Mounts on standard 35-mm DIN-rail alongside PLCs, terminal blocks, and automation equipment for unified panel design.
Fiber and Copper Ready – Accepts LGX adapter plates for fiber or keystone modules for copper, providing true hybrid connectivity.
Modular Serviceability – Separate bay and cassette design allows easy access for maintenance, testing, and reconfiguration without disturbing adjacent equipment.
Comprehensive Splice Support – Accommodates up to 24 fusion splices with removable fiber management stage for organized terminations.
Standards Compliant – Meets IEC/EN 60715, DIN 43880, ANSI/TIA-568.3-D, and GR-769 for assured compatibility in industrial and telecom applications.

WHAT’S NEXT?

Once you’ve specified the 268-EZM01-1A-05 for your project:

Select Your Adapter Plate – Choose the appropriate 264-MAP or 264-LAP Series LGX adapter plate for your connector type, or configure with keystone modules.
Plan DIN-Rail Space – Ensure adequate DIN-rail length (35 mm width) and clearance depth (150 mm) in your control panel or enclosure.
Plan Splice Requirements – If splicing is needed, add 265-HLD01-2B-00 splice holders and 265-SLV01 splice protection sleeves.
Test After Installation – Verify optical continuity and insertion loss after termination is complete.
