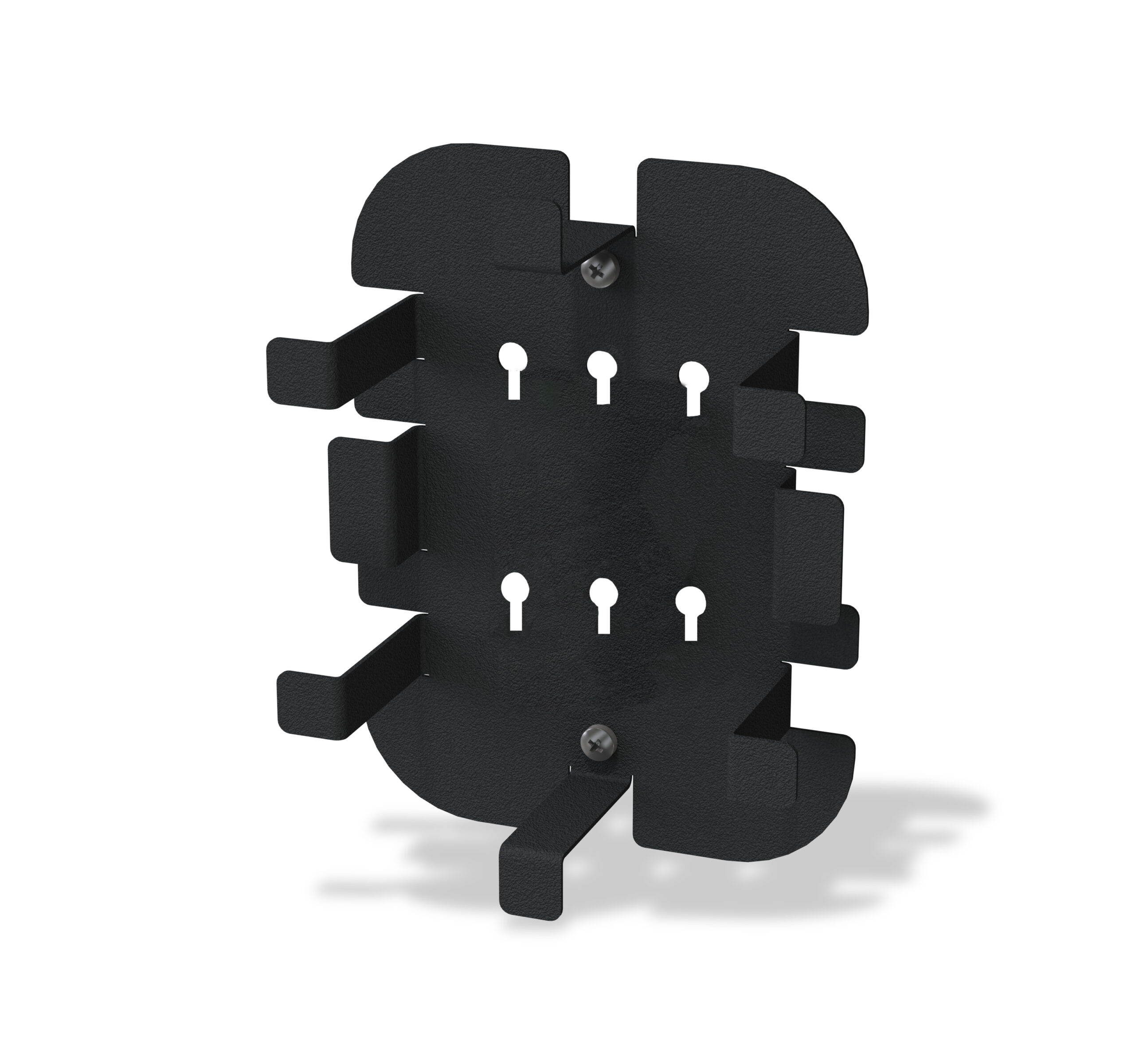

VERTICAL CABLE 268-ACC03-11-00 – FIBER MANAGEMENT SPLICING STAGE FOR EZ SERIES
The 268-ACC03-11-00 fiber management splicing stage is a purpose-built component designed for Vertical Cable’s EZ Series optical fiber wall-mount enclosures. Crafted from high-quality powder-coated aluminum, this add-on provides structured support for splice sleeves without pre-installed holders or protection sleeves. It enables professional fiber routing and organization while maintaining enclosure integrity.
KEY FEATURES
Here’s what makes the 268-ACC03-11-00 a valuable addition to your EZ Series enclosure:
- Splice Holder-Ready: Supports up to twelve 0.10 in. (2.5 mm) splice sleeves, stackable in two rows.
- High-Quality Construction: Made from 0.03 in. (0.8 mm) 20-GA aluminum alloy with black RAL 9005 powder coating.

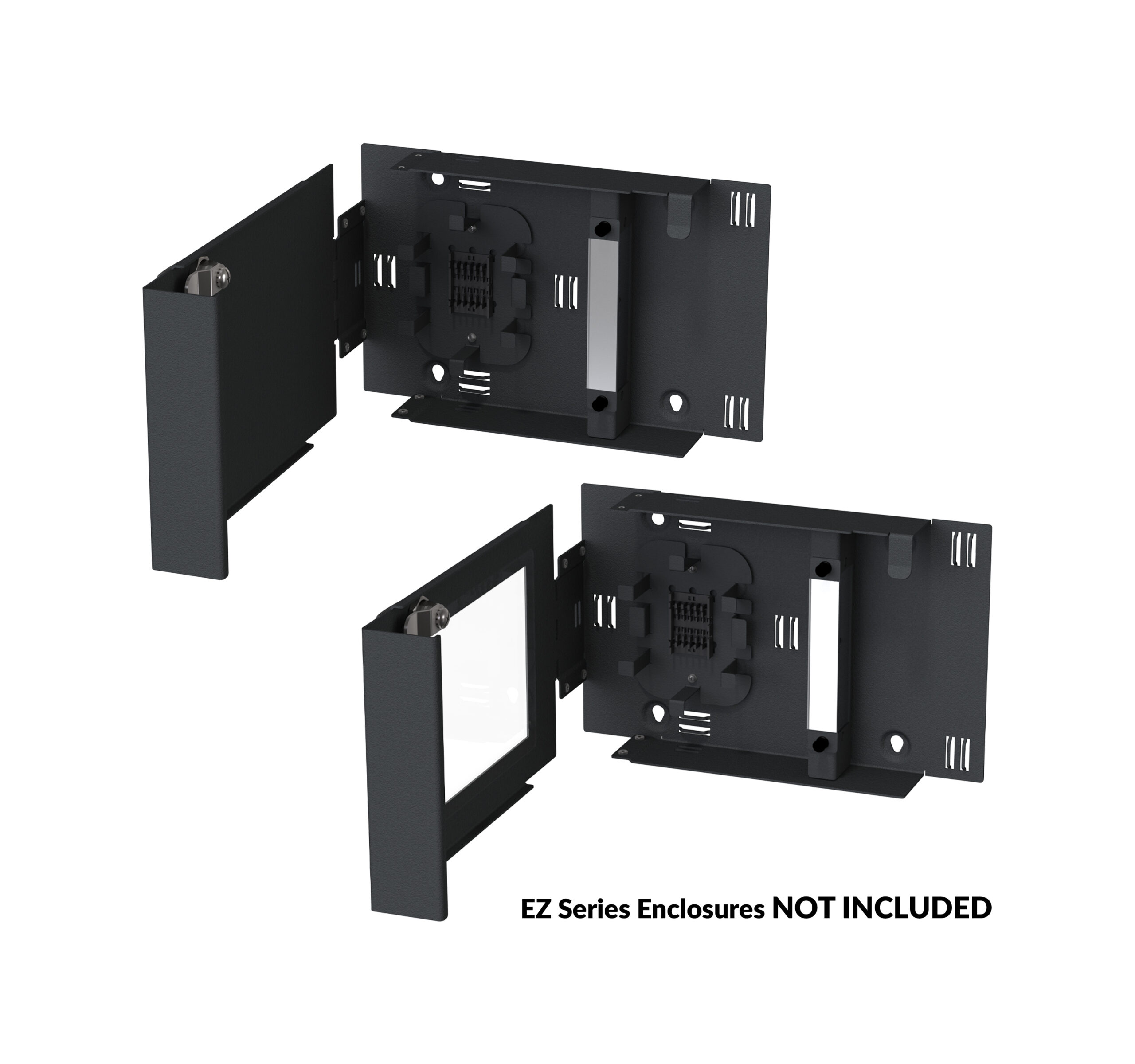

- Optimized for EZ Series: Designed specifically for 268-EZX and 268-EZV Series wall-mount enclosures.
- Threaded Mounting Points: Includes SI (metric) thread joints for secure attachment.
- Clean and Modular Design: Allows installers to build their own splicing stage setup with or without holders
APPLICATIONS
The 268-ACC03-11-00 fiber management accessory excels in installations requiring organized splice protection:
- Enterprise Networks: Organize and protect fusion splices in structured cabling builds.
- Security & Surveillance: Integrate splicing within access control enclosures and backbone links.
- FTTH/FTTP Installations: Terminate customer drops in compact wall-mounted housings.
- Campus Infrastructure: Route and manage spliced fiber trunks between buildings.
- Data Centers: Enhance fiber patching and splicing workflows in MPO or SC/LC patch environments.
COMPATIBLE VERTICAL CABLE PRODUCTS
This fiber management accessory is built for seamless integration with:
- 268-EZX01-1A1L1 (EZ Series Blank Door Enclosure)
- 268-EZV01-1A1L1 (EZ Series Viewport Door Enclosure)
Optional Accessories (ordered separately):
- 265-HLD01-2B-00 (Optical Fiber Splice Holder, Adhesive Mounting)
- 265-SLV01 Series (Optical Fiber Splice Protection Sleeve)
WHY CHOOSE THE 268-ACC03-11-00 FIBER MANAGEMENT SPLICING STAGE?
Professionals choose the 268-ACC03-11-00 because it adds essential splice management to compact EZ Series enclosures. Here are 5 reasons to include it in your next fiber installation:
- Customizable Splicing – Provides space for your preferred splice holders and protection sleeves.
- Built for EZ Series – Purpose-built for integration with Vertical Cable’s EZ fiber wall-mount enclosures.
- Premium Materials – Constructed with durable 20-GA powder-coated aluminum for longevity and aesthetics.
- Professional Fit and Finish – Matches enclosure color and finish for a unified appearance.
- Installer-Friendly – Pre-threaded points make it easy to secure in place with standard hardware.
WHAT’S NEXT?
Once you’ve added the 268-ACC03-11-00 to your EZ Series enclosure:
- Add Splice Holders – Order 265-HLD01-2B-00 adhesive-mount splice holders for your specific splice count needs.
- Stock Splice Sleeves – Keep 265-SLV01-3A-1H splice protection sleeves on hand for fusion splicing operations.
- Plan Your Layout – Position the splicing stage for optimal access during installation and future maintenance.
- Pair with Cable Entry Adapters – Combine with 268-ACC01 Series adapters for a complete fiber management solution.
For more high-performance fiber solutions and other enclosure accessories, explore our complete line of Surface- and Wall-Mount Enclosures Accessories today!
