VERTICAL CABLE 268-EZ SERIES – OPTICAL FIBER WALL-MOUNT ENCLOSURE, LGX, BLANK DOOR/VIEWPORT DOOR
The 268-EZ Series is a compact optical fiber wall-mount enclosure designed for small-scale fiber termination requiring a slim, low-profile form factor. This single-position enclosure holds one LGX adapter plate, supporting up to 24 optical fibers. Available with blank door or viewport door options, and built from durable 15-GA aluminum alloy with a black powder-coated finish, this wall-mount enclosure delivers professional fiber protection with flexible mounting orientation.
KEY FEATURES
Here’s what makes the 268-EZ Series a dependable solution for compact fiber installations:
- Single-Position LGX Capacity: Holds one LGX adapter plate supporting up to 24 optical fibers.
- Door Options: Available with blank door (268-EZX01-1A1L1) or viewport door (268-EZV01-1A1L1) for visual access to connections.

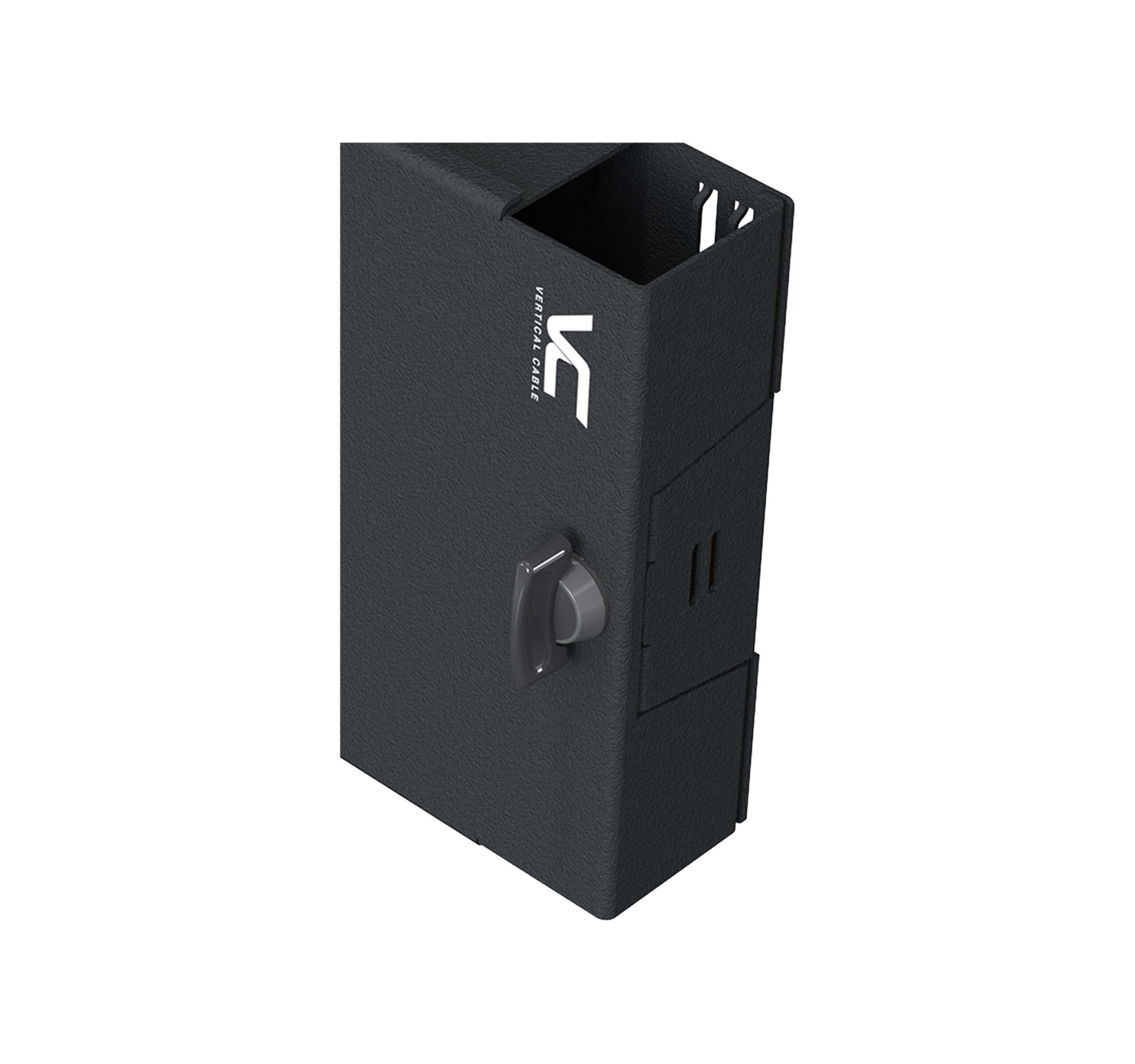

- Cam Latch Access: Single door with cam latch provides secure, tool-free entry.
- Flexible Mounting: Surface/wall mount with left or right hand independent orientation.
- Lightweight Aluminum Construction: Built from 0.06 in. (1.5 mm) 15-GA aluminum alloy with black powder-coated finish.
- Ultra-Slim Profile: Measures just 7 in. × 11 in. × 2 in. (180 mm × 280 mm × 50 mm) for minimal wall footprint.
- Removable Label Holder: Accepts plain paper inserts for easy identification.
- Comprehensive Cable Management: Cable entry port adapters (ordered separately), bridge lance anchor points, and included cable ties and self-gripping tie wraps.
- Fiber Management Tools: FM spools maintain proper bend radius for delicate fibers.
- High Cycle Life: Rated for 25,000 cycles at no load for long-term reliability.
- Wide Operating Range: Performs reliably from -20°C to +70°C (-4°F to +158°F) in up to 95% RH non-condensing environments.
WHAT’S INCLUDED
Each 268-EZ Series enclosure ships with:
- Base
- Cover (Blank or Viewport)
- Cam Latch
- FM Spools
- Label Holder
- Blank Cable Entry Bracket
- Large Grommet Cable Entry Bracket
APPLICATIONS
The 268-EZ Series wall-mount enclosure excels in environments requiring minimal, space-efficient fiber termination:
- Residential FTTH: Terminate fiber drops for fiber-to-the-home installations in utility closets or basements.
- Small Office Networks: Manage fiber connections in single-room offices or remote work locations.
- Retail Point-of-Sale: Support fiber connectivity for individual cash wrap stations or kiosks.
- Security Systems: House fiber terminations for IP camera and access control installations.
- Industrial Equipment: Provide fiber connectivity at individual machine or control stations.
COMPATIBLE VERTICAL CABLE PRODUCTS
This wall-mount enclosure is designed for use with:

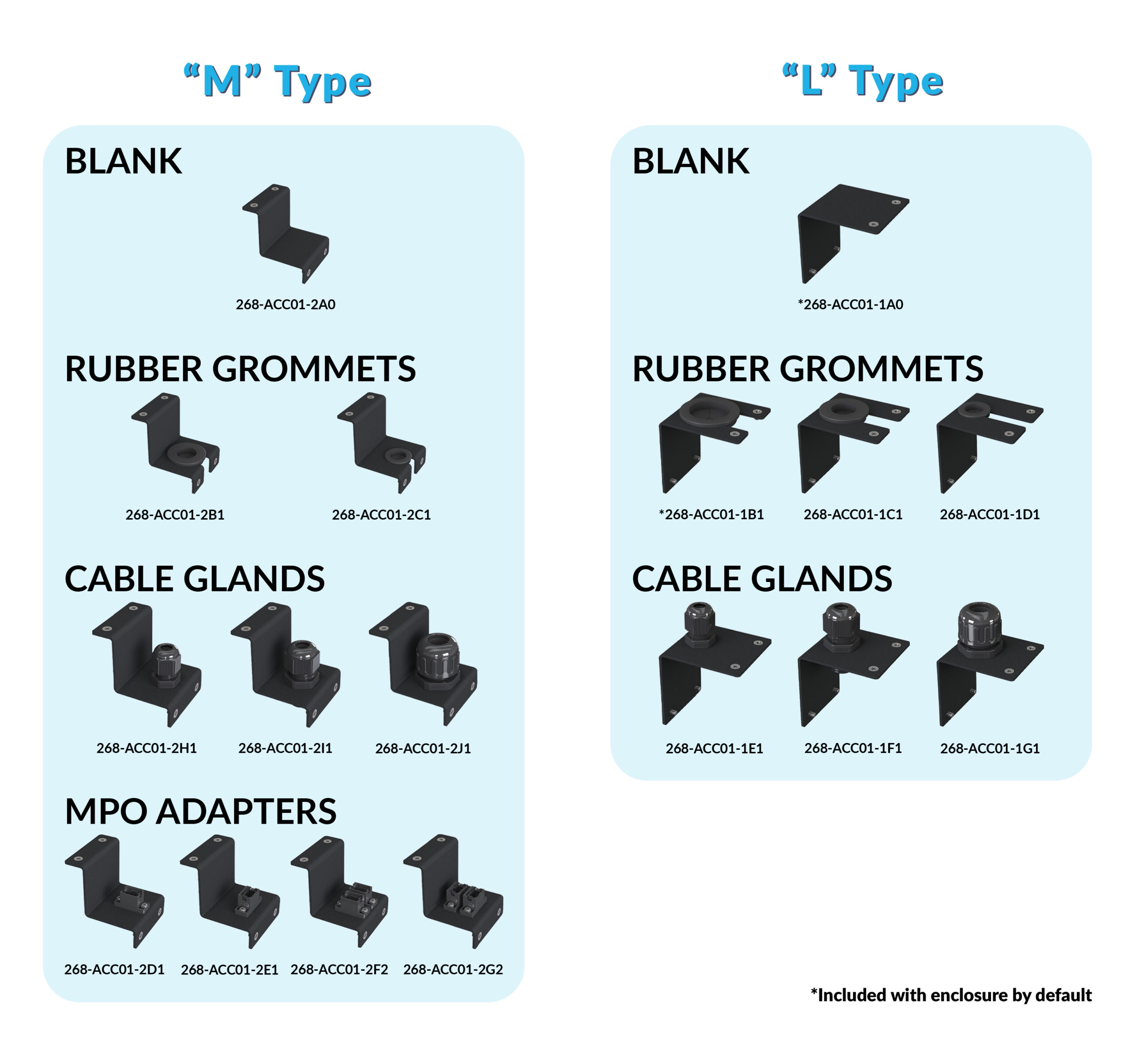

- 268-ACC01 Series L-Type & M-Type Cable Entry Adapters
- 268-ACC03-11-00 Splicing Stage
- 265-HLD01-2B-00 Optical Fiber Splice Holder, Adhesive Mounting
- 265-SLV01-3A-1H Optical Fiber Splice Protection Sleeve
- 264-LAP Series LGX Adapter Plates
WHY CHOOSE THE 268-EZ SERIES OPTICAL FIBER WALL-MOUNT ENCLOSURE?
Professionals choose the 268-EZ Series because it delivers reliable fiber protection in the smallest possible footprint. Here are 5 reasons to include it in your next fiber installation:
- Ultra-Compact Design – At just 2 in. deep, this enclosure fits tight spaces where larger enclosures won’t work.
- Flexible Door Options – Choose blank door for a clean look or viewport door for quick visual inspection without opening.
- Ambidextrous Mounting – Left or right hand independent orientation adapts to any installation environment.
- Lightweight Durability – Aluminum alloy construction weighs only 2 lbs while providing lasting protection.
- High Cycle Rating – 25,000-cycle cam latch ensures reliable access over years of service.
WHAT’S NEXT?
Once you’ve installed the 268-EZ Series:
- Add LGX Adapter Plate – Populate with a 264-LAP Series plate to match your connector requirements.
- Install Splice Tray – Add one 24-fiber splice tray for fusion or mechanical splicing if needed.
- Configure Cable Entry – Order 268-ACC01 Series adapters to match your cable entry requirements.
- Label the Enclosure – Use the included label holder with plain paper inserts for clear identification.
