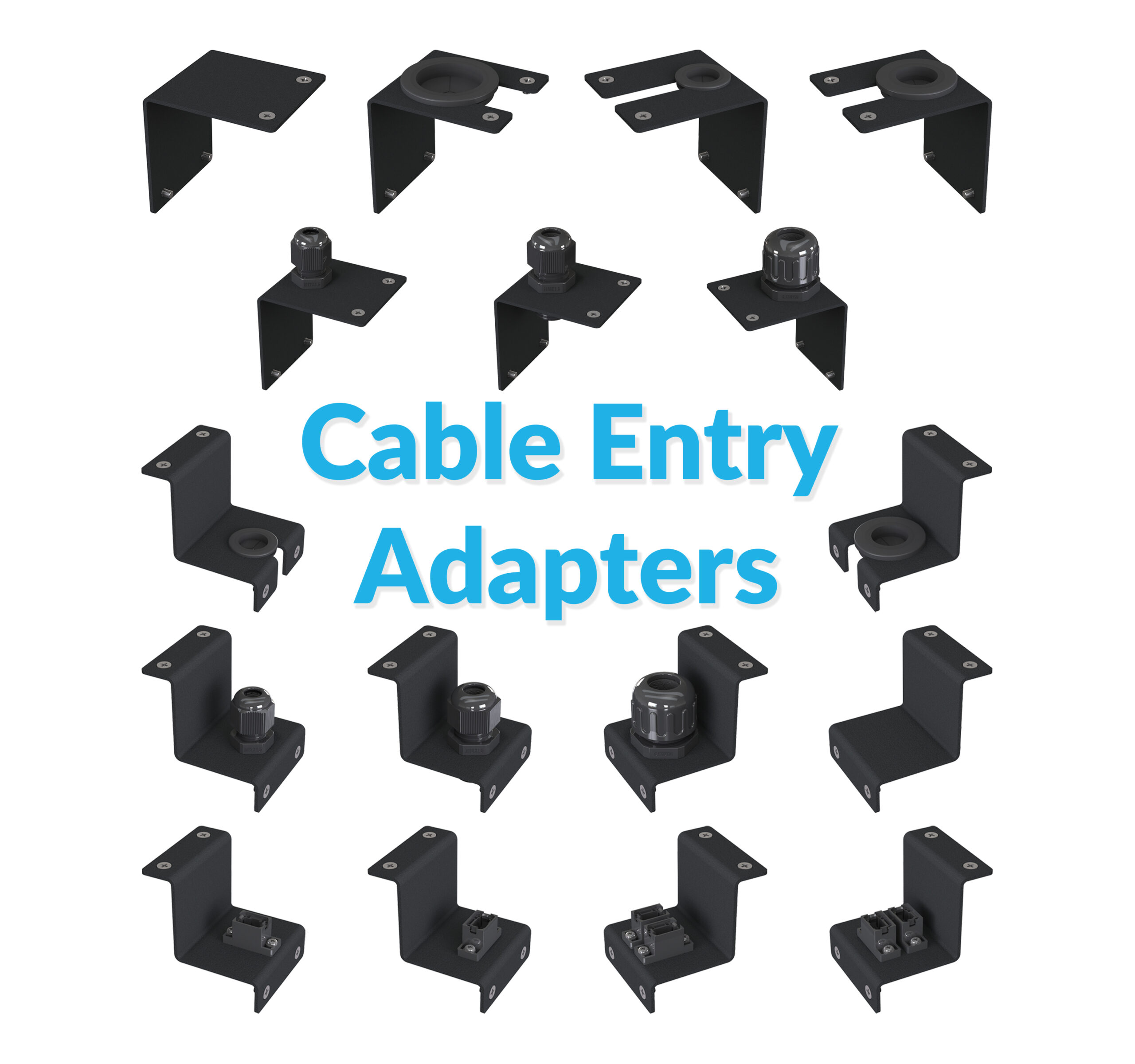

VERTICAL CABLE 268-ACC01 SERIES – CABLE ENTRY ADAPTERS, M-TYPE & L-TYPE
The 268-ACC01 Series cable entry adapters are modular accessories designed for use with Vertical Cable EZX and EZV Series optical fiber wall-mount enclosures. Available in M-Type and L-Type configurations, they offer flexible options including blank covers, rubber grommets, cable glands, and MPO adapters.
KEY FEATURES
Here’s what makes the 268-ACC01 Series a versatile addition to your fiber enclosure setup:
- Two Form Factors: M-Type and L-Type brackets accommodate different cable entry orientations and enclosure mounting positions.
- Multiple Entry Options: Choose from blank covers, rubber grommets, cable glands, or MPO adapters based on your application needs.
- Rubber Grommet Sizes: Available in three sizes supporting cable diameters up to 0.8 in. (20 mm), 0.5 in. (12 mm), or 0.3 in. (8 mm) with UL 94 V-2 rated TPE material.
- Cable Gland Options: M12, M16, and M20 form factors in polyamide/neoprene construction supporting cable diameters from 0.08 in. to 0.47 in. (2 mm to 12 mm).
- MPO Adapter Configurations: Single or dual Type A MPO adapters with lateral or transversal mounting orientation.
- Durable Aluminum Construction: Built from 0.06 in. (1.5 mm) 15-GA aluminum alloy with black powder-coated finish.
- Complete Hardware Included: Four M3 CSK machine screws included for installation.
- Lightweight Design: Weighs only 0.05 lbs (0.02 kg) per adapter.
APPLICATIONS
The 268-ACC01 Series cable entry adapters excel in fiber installations requiring customized cable entry solutions:
- Fiber-to-the-Home (FTTH): Configure cable entry points for residential fiber termination enclosures.
- Industrial Environments: Use cable glands to provide strain relief and environmental sealing for harsh conditions.
- High-Density Fiber Networks: Deploy MPO adapters for multi-fiber trunk connections in data center applications.
- Security Installations: Route fiber cables cleanly into enclosures at camera locations and access control points.
- Custom Configurations: Mix and match adapter types to accommodate varying cable sizes and connector requirements.
COMPATIBLE VERTICAL CABLE PRODUCTS
These cable entry adapters are designed for use with:
- 268-EZX01-1A1L1 (EZ Series Blank Door Enclosure)
- 268-EZV01-1A1L1 (EZ Series Viewport Door Enclosure)
WHY CHOOSE THE 268-EZ SERIES OPTICAL FIBER WALL-MOUNT ENCLOSURE?
Professionals choose the 268-ACC01 Series because they provide flexible, professional cable entry solutions. Here are 5 reasons to include them in your next fiber installation:
- Modular Flexibility – Mix and match blank covers, grommets, glands, and MPO adapters to meet exact installation requirements.
- Multiple Cable Sizes – Rubber grommets and cable glands support a wide range of cable diameters from 2 mm to 20 mm.
- MPO Integration – Direct MPO adapter mounting enables high-density multi-fiber connections without additional hardware.
- Professional Finish – Black powder-coated aluminum construction matches EZ Series enclosures for a clean, unified appearance.
- Easy Installation – Included M3 machine screws and simple bracket design enable quick adapter changes and reconfigurations.
WHAT’S NEXT?
Once you’ve selected your 268-ACC01 Series adapters:
- Plan Your Layout – Determine cable entry positions and select M-Type or L-Type brackets accordingly.
- Match Cable Sizes – Choose grommet or gland sizes appropriate for your fiber cable diameters.
- Consider Future Expansion – Install blank adapters in unused positions for easy future upgrades.
- Pair with EZ Enclosures – Combine with 268-EZX or 268-EZV Series enclosures for a complete fiber termination solution.
