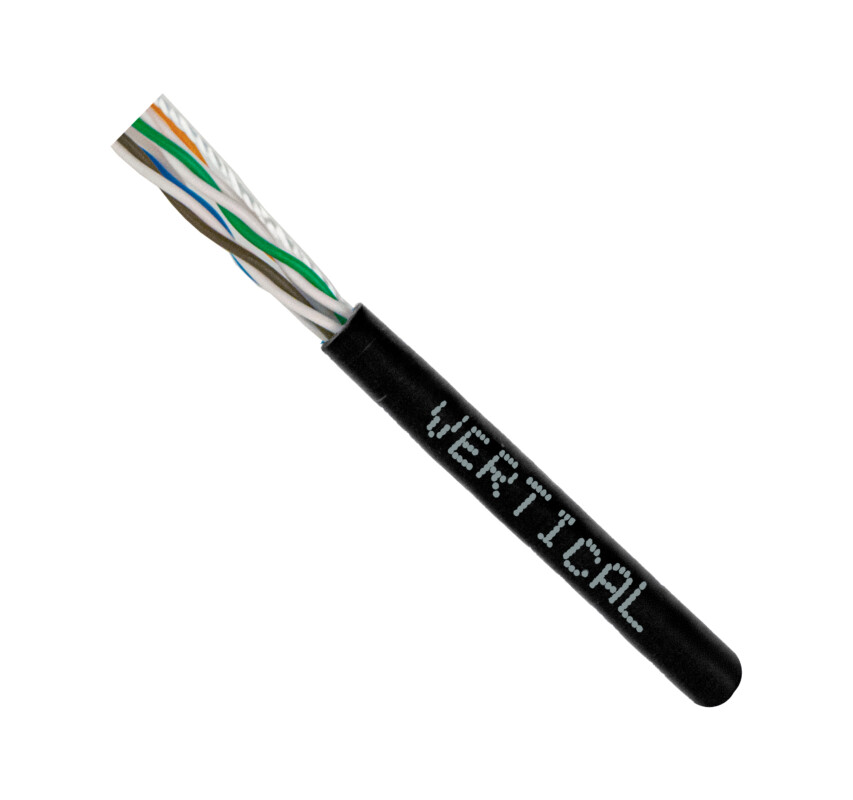

VERTICAL CABLE 173 SERIES – CAT6A STRANDED SLIM TYPE CABLE
The 173 Series is a CAT6A stranded slim type cable engineered for high-density patch cord fabrication and space-constrained installations. This CAT6A stranded slim type cable features 28 AWG stranded bare copper conductors and a compact 3.8 mm outer diameter for improved airflow and cable management.
KEY FEATURES
Here’s what makes the 173 Series ideal for slim patch cord fabrication:

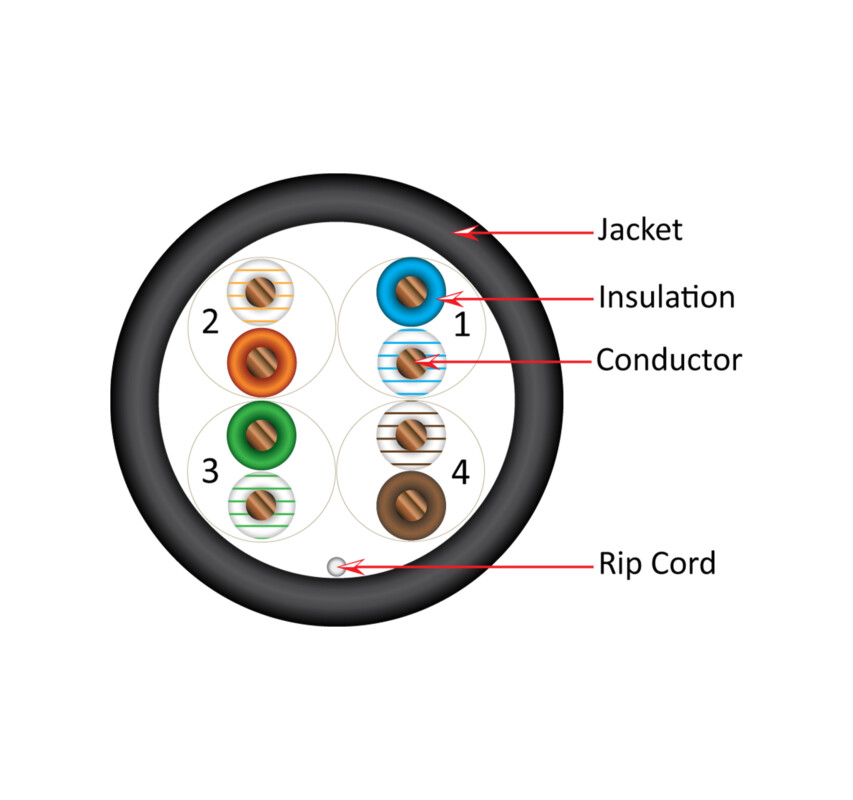

- 28 AWG Stranded Bare Copper: Seven-strand construction (7 × 0.12 mm) provides flexibility for patch cord applications and tight routing.
- Ultra-Slim 3.8 mm Diameter: Compact profile improves airflow and reduces cable congestion in high-density environments.
- 500 MHz Bandwidth: Supports 10 Gigabit Ethernet applications with headroom for demanding network requirements.
- UTP Construction: Unshielded twisted-pair design simplifies termination without grounding requirements.
- HDPE Insulation: High-density polyethylene insulation ensures stable electrical performance.
- CM-Rated Jacket: Semi-matte PVC jacket meets NEC requirements for general-purpose riser installations.
- Integrated Ripcord: Easy jacket removal for efficient termination.
- Vivid Color Coding: Easy-to-see conductor insulation colors for accurate pair identification during termination.
- PoE Type 1 Support: Supports IEEE 802.3af up to 15.4W for powering basic network devices.
- Standards Compliant: Meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 transmission performance specifications.
- UL-Listed and RoHS Compliant: Third-party verified for safety and environmental compliance.

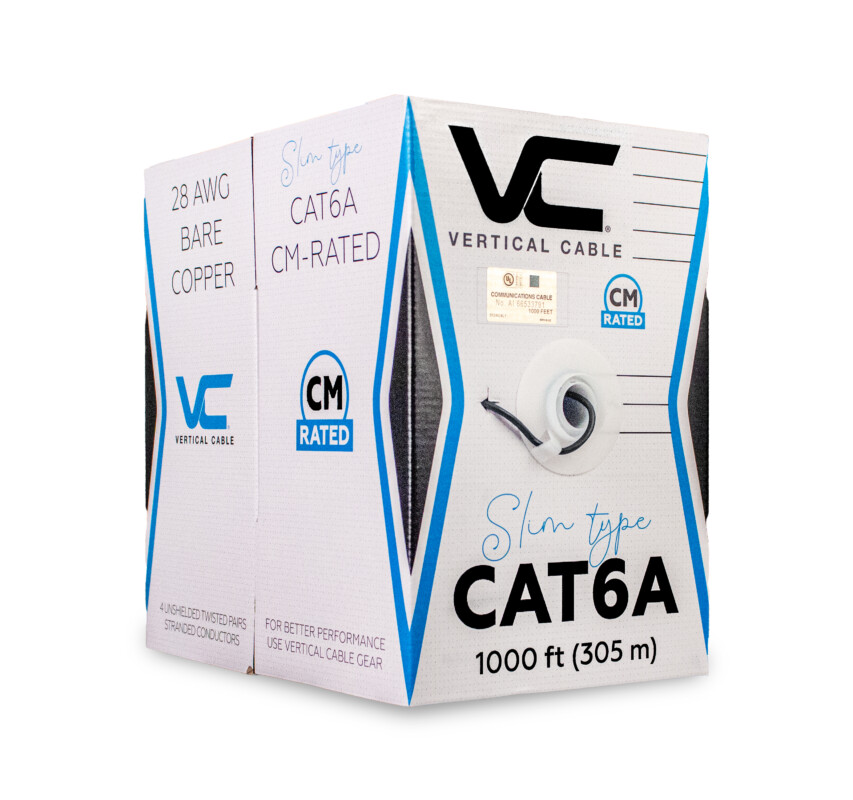

- 1000 ft. Pull Box: Convenient pull box packaging for efficient installation.
APPLICATIONS
The 173 Series CAT6A stranded slim type cable excels in high-density and custom patch cord applications:
- Data Centers: Fabricate custom slim patch cords for high-density server and switch connections with improved airflow.
- Enterprise Networks: Create flexible patch cords for workstation connections and patch panel management.
- Telecommunications Rooms: Build custom-length patch cords for organized, space-efficient cable management.
- AV Installations: Manufacture slim patch cords for AV equipment connections where space is limited.
- Custom Cable Assembly: Produce bulk quantities of slim CAT6A patch cords for resale or large deployments.
WHY CHOOSE THE 173 SERIES CAT6A STRANDED SLIM TYPE CABLE?
Professionals choose the 173 Series because it delivers verified 10 Gigabit performance in an ultra-slim, flexible design optimized for custom patch cord fabrication. Here are 5 reasons to specify it for your next project:
- Ultra-Slim Profile – 3.8 mm outer diameter reduces cable bulk by up to 50% compared to standard CAT6A, improving airflow and density.
- Stranded Flexibility – 28 AWG seven-strand conductors provide the flexibility required for patch cords and frequent handling.
- True 10G Performance – 500 MHz bandwidth meets ANSI/TIA-568.2-D and ISO/IEC 11801 specifications for reliable 10GBASE-T support.
- Easy Termination – UTP construction with integrated ripcord and vivid color coding simplifies accurate, efficient terminations.
- Quality Verified – UL-Listed and RoHS compliant for assured safety and environmental responsibility.
WHAT’S NEXT?
Once you’ve specified the 173 Series for your project:
- Select Your Colors – Choose from Black, Blue, or White jacket colors to match your installation requirements.

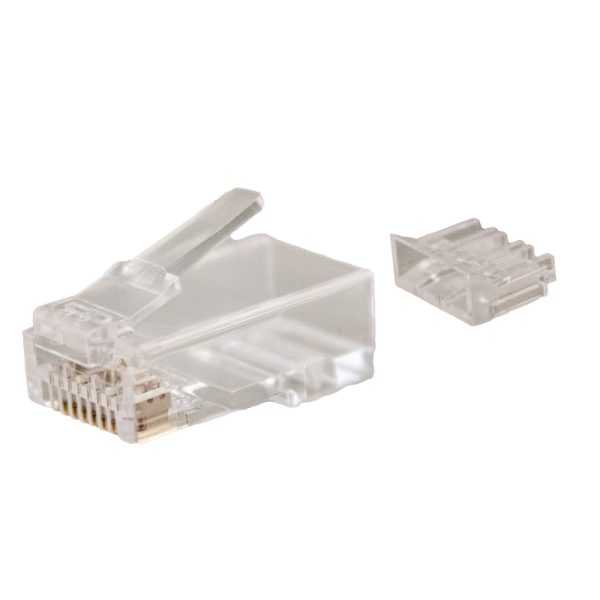

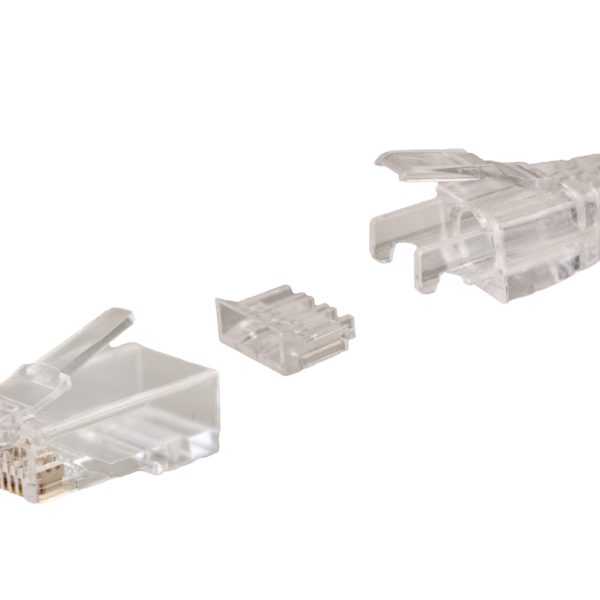

- Use Compatible Connectors – Terminate with Vertical Cable 012-027SLM-100 slim RJ45 plugs designed for 28 AWG conductors.
- Wire to T568A or T568B – Follow your organization’s wiring standard consistently for all patch cord terminations.
- Test After Termination – Verify all patch cords with appropriate test equipment before deployment.
