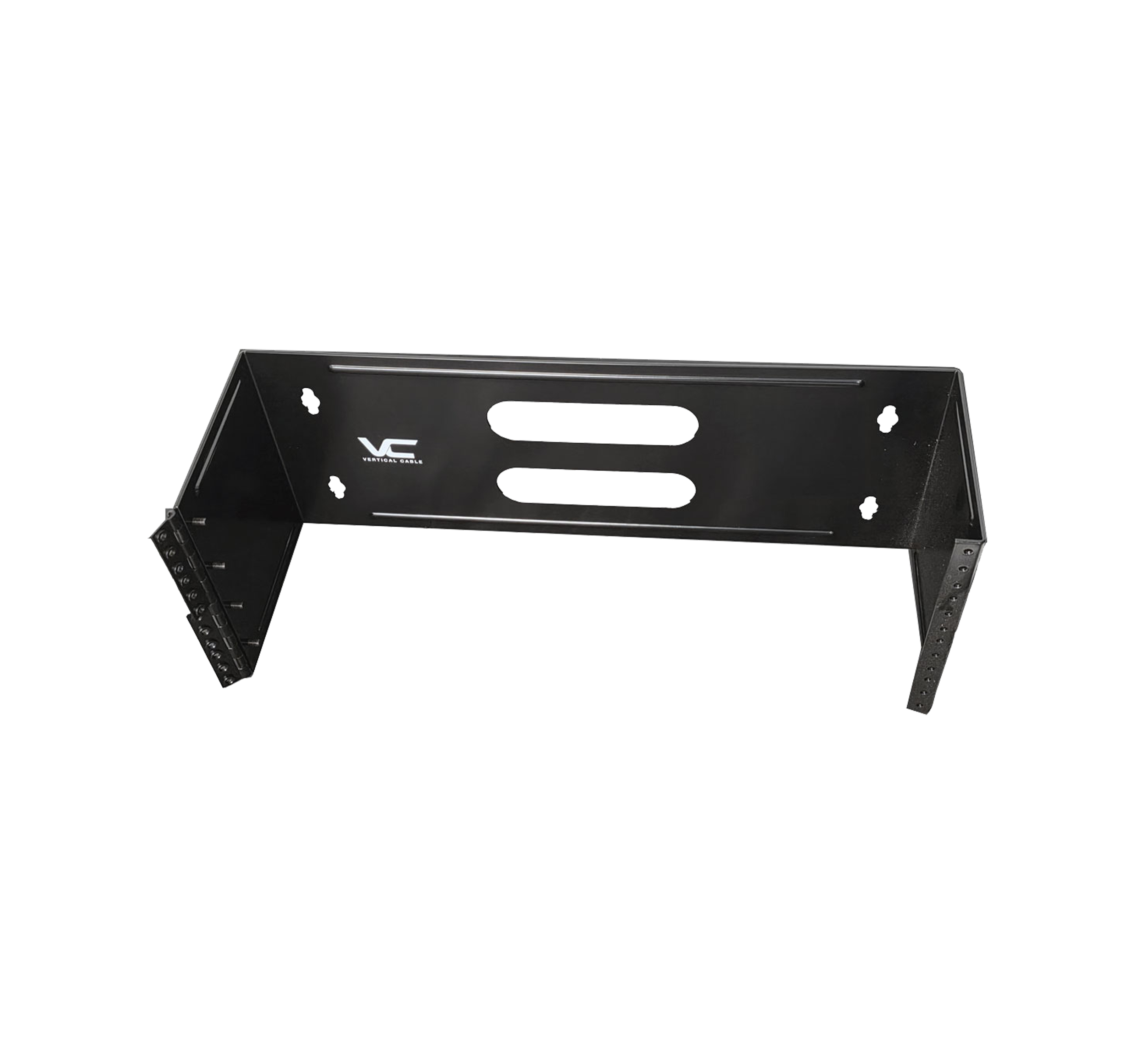

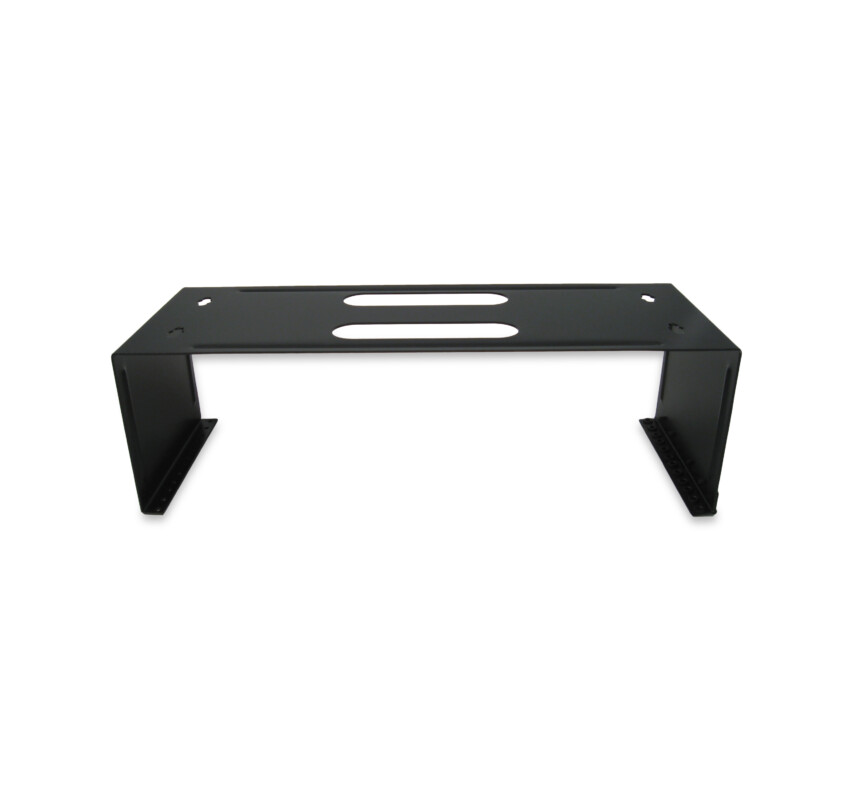

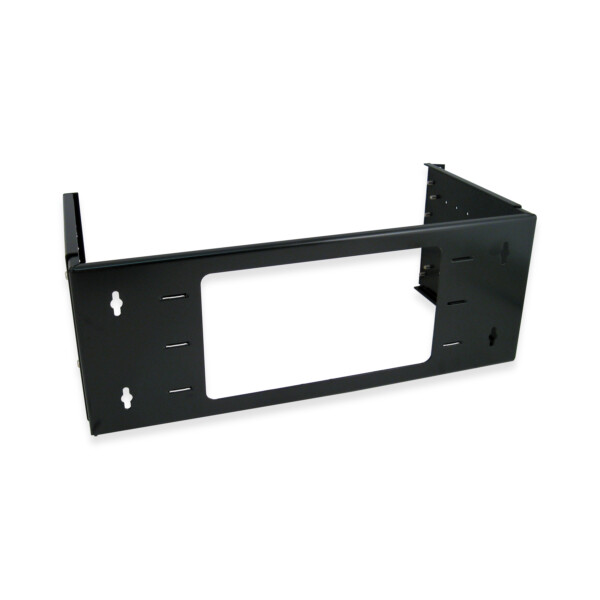

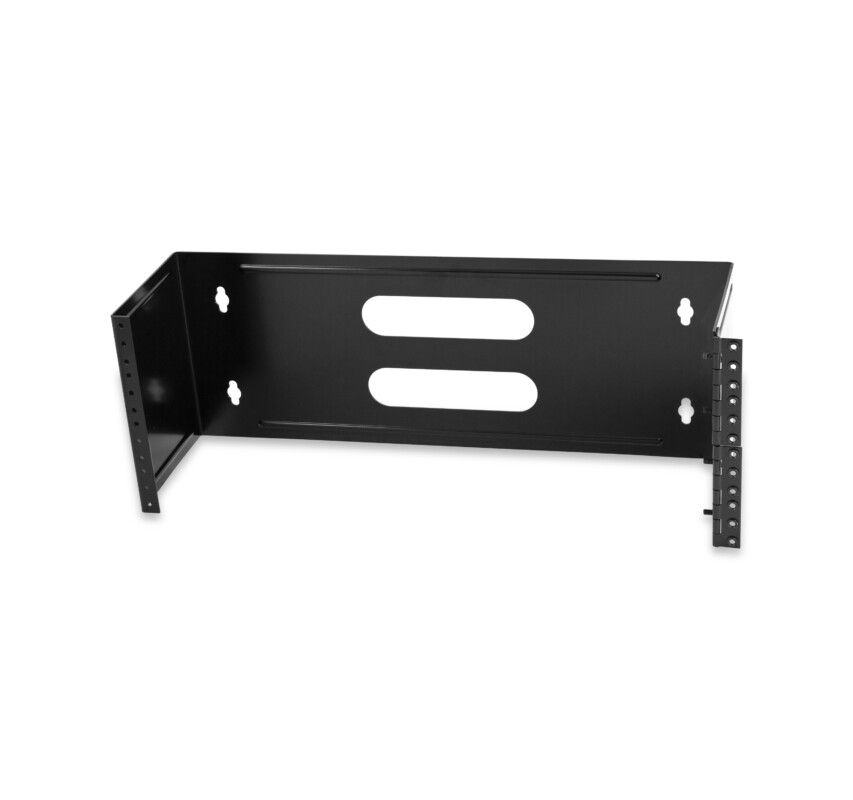

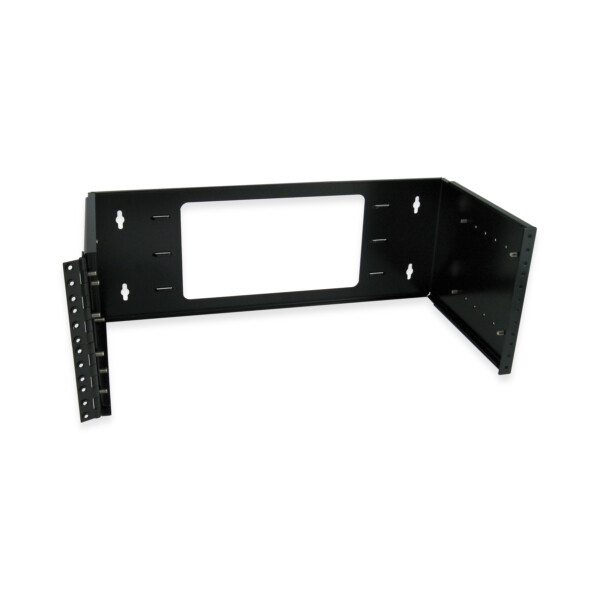

VERTICAL CABLE 046-390 – WALL-MOUNT BRACKET – HINGED TYPE – 4 RMU

The 046-390 is a wall-mount bracket designed for secure, space-efficient installation of standard 19-inch patch panels and rack equipment in compact network environments. This wall-mount bracket features a hinged design for easy rear access to cable connections and terminations without removing the panel from the wall.

KEY FEATURES

Here’s what makes the 046-390 ideal for wall-mounted network equipment:

4 RMU Capacity: Fits any standard 4 RMU 19-inch patch panel or multiple smaller rack-mount devices for maximum mounting flexibility.
Hinged Design: Swing-out access allows easy rear cable management and equipment servicing without wall removal.
Fixed 5.8-Inch Depth: Compact profile minimizes wall projection while providing adequate space for cable routing.
Heavy-Duty Construction: 2 mm (14-gauge) cold-rolled steel (SPCC) provides robust support and long-term durability.
Standard 19-Inch Width: Compatible with industry-standard rack-mount equipment and patch panels.
Black Finish: Professional appearance matches standard network equipment aesthetics.
Hardware Included: Ships with M4 screws for patch panel mounting.
Lightweight: Weighs just 2.5 lb. (1.13 kg) for easy handling and installation.

APPLICATIONS

The 046-390 wall-mount bracket excels in compact network installations:

Telecommunications Closets: Mount multiple patch panels in IDFs and MDFs where floor space is limited.
Small Server Rooms: Provide professional equipment mounting for patch panels and network switches without a full rack enclosure.
Retail Locations: Install network equipment discreetly in back offices or storage areas.
Residential Installations: Mount comprehensive home network equipment in utility closets, basements, or media centers.
Remote Equipment Locations: Deploy multiple patch panels at satellite offices, branch locations, or remote sites.

WHY CHOOSE THE 046-390 WALL-MOUNT BRACKET?

Professionals choose the 046-390 because it delivers secure, accessible equipment mounting with expanded capacity in a compact, lightweight package. Here are 5 reasons to specify it for your next installation:

Easy Rear Access – Hinged design swings out from the wall for convenient cable management, terminations, and equipment servicing.
Maximum Capacity – 4 RMU height accommodates large patch panels or multiple smaller devices for comprehensive network installations.
Compact Profile – Fixed 5.8-inch depth minimizes wall projection for tight spaces and clean aesthetics.
Heavy-Duty Construction – 14-gauge cold-rolled steel provides reliable support for rack-mount equipment in demanding environments.
Universal Compatibility – Standard 19-inch width accepts any combination of rack-mount equipment totaling up to 4 RMU.

WHAT’S NEXT?

Once you’ve specified the 046-390 for your project:

Verify Wall Structure – Ensure mounting surface can support the bracket and equipment weight; use appropriate wall anchors or mount to studs for heavier loads.
Confirm Depth Requirements – Verify that 5.8-inch fixed depth is adequate for your patch panels and cable routing needs.
Allow Swing Clearance – Ensure adequate side clearance for hinged access when selecting mounting location.
Plan Equipment Layout – Determine optimal arrangement of patch panels and cable managers within the 4 RMU space before installation.
