044-2397/2U

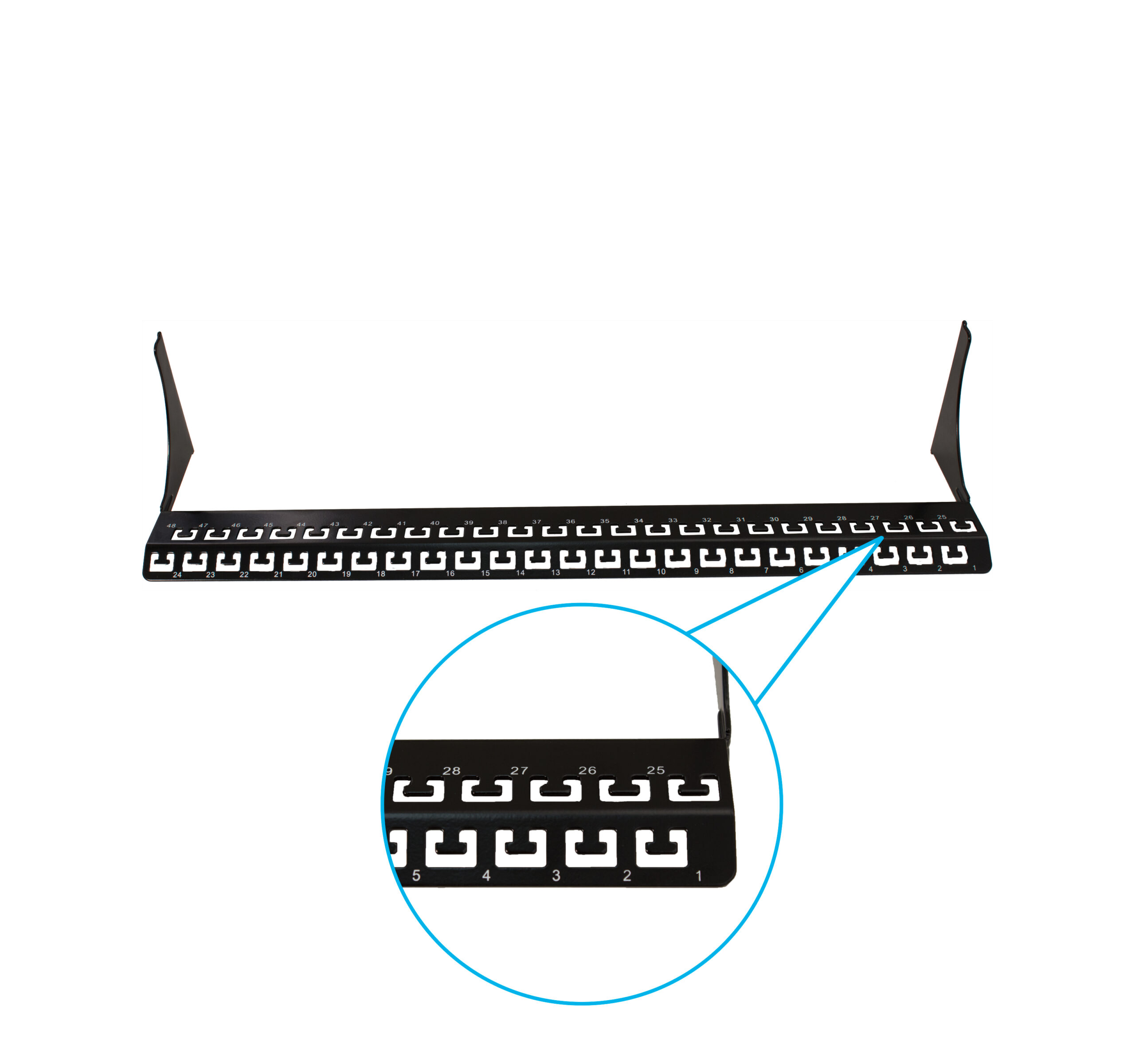

VERTICAL CABLE 044-2397/2U – 2 RMU PATCH PANEL SUPPORT BRACKET

The 044-2397/2U is a robust, 2 RMU steel support bracket designed for Vertical Cable 48-port patch panels. Its durable construction helps reinforce panel stability while maintaining an efficient rack layout. Finished in a sleek black powder coating, this bracket delivers functionality with a professional appearance. Ideal for installations requiring added patch panel support.

KEY FEATURES

Here’s what makes the 044-2397/2U a dependable addition to any rack setup:

• 2 RMU Form Factor: Designed specifically for 48-port patch panel configurations.
• Optimized for VC Patch Panels: Only compatible with Vertical Cable 19-inch patch panels.
• Powder-Coated Finish: Smooth black surface provides a clean, professional appearance.
• Durable Steel Construction: Built from 1.5 mm (0.059 in.) thick steel for strength and stability.
• Lightweight Design: Weighs only 1.1 lbs (0.5 kg), ensuring low added rack weight.
• Full Coverage Support: Enhances patch panel performance by reducing flex or sag over time.

APPLICATIONS

The 044-2397/2U excels in structured cabling environments where patch panel integrity is critical:

• Data Centers: Secures high-density patch panels in network switch cabinets.
• Enterprise IT Rooms: Supports long-term reliability in corporate LAN setups.
• Telecom Rooms: Enhances structured cabling setups for voice/data transmission.
• Network Closets: Maintains rack uniformity and panel security.
• A/V Control Centers: Assists in clean cable routing and equipment layout.

INSTALLATION GUIDE

Installing the 044-2397/2U is straightforward for professionals and DIY installers alike:

1. Align the Bracket: Position the bracket into a standard 19 in. rack with 1 RMU of vertical space.
2. Mount with Screws: Secure using standard rack screws (not included) through front-mounting holes.
3. Attach Patch Panel: Align your 12- or 24-port Vertical Cable patch panel and fasten it directly onto the bracket.
4. Cable Routing: Once secured, route incoming or outgoing cables through rear clearance for strain-free management.
5. Check Stability: Ensure the bracket and panel are flush and firm with minimal movement.

The bracket’s precise width of 17.3 in. (439.42 mm) ensures seamless fitment within industry-standard racks.

WHY CHOOSE THE 044-2397/2U 2 RMU PATCH PANEL SUPPORT BRACKET?

Professionals choose the 044-2397/2U because it delivers simplicity, strength, and no-nonsense usability. Here are 5 reasons to include it in your next rack install:

1. Built for VC Panels – Engineered to exclusively support Vertical Cable 19-inch patch panels for guaranteed compatibility.
2. Simple Integration – Installs easily into any EIA 19-inch rack with no custom tools required.
3. Steel Strength – Fabricated from thick 1.5 mm steel, offering superior durability for heavy patching environments.
4. Professional Appearance – Matte black powder coating complements modern data environments.
5. Optimized Functionality – Prevents panel deflection and ensures long-term alignment of patch cabling.

WHAT’S NEXT?

Once you’ve installed the 044-2397/2U:

• Route and Separate – Feed and organize patch cables through open fingers
• Add Cable Labels – Keep your runs easy to identify.
• Use with Cable Ties – Secure bundles cleanly and keep ports clear.
• Pair with Vertical Cable Patch Panels – Maintain clean and functional rack environments.
• Plan Future Expansion – Easily add more wire managers or vertical accessories.

For more rack accessories and cable organization tools, explore our Rack Wire Managers.
