044-2396/1U

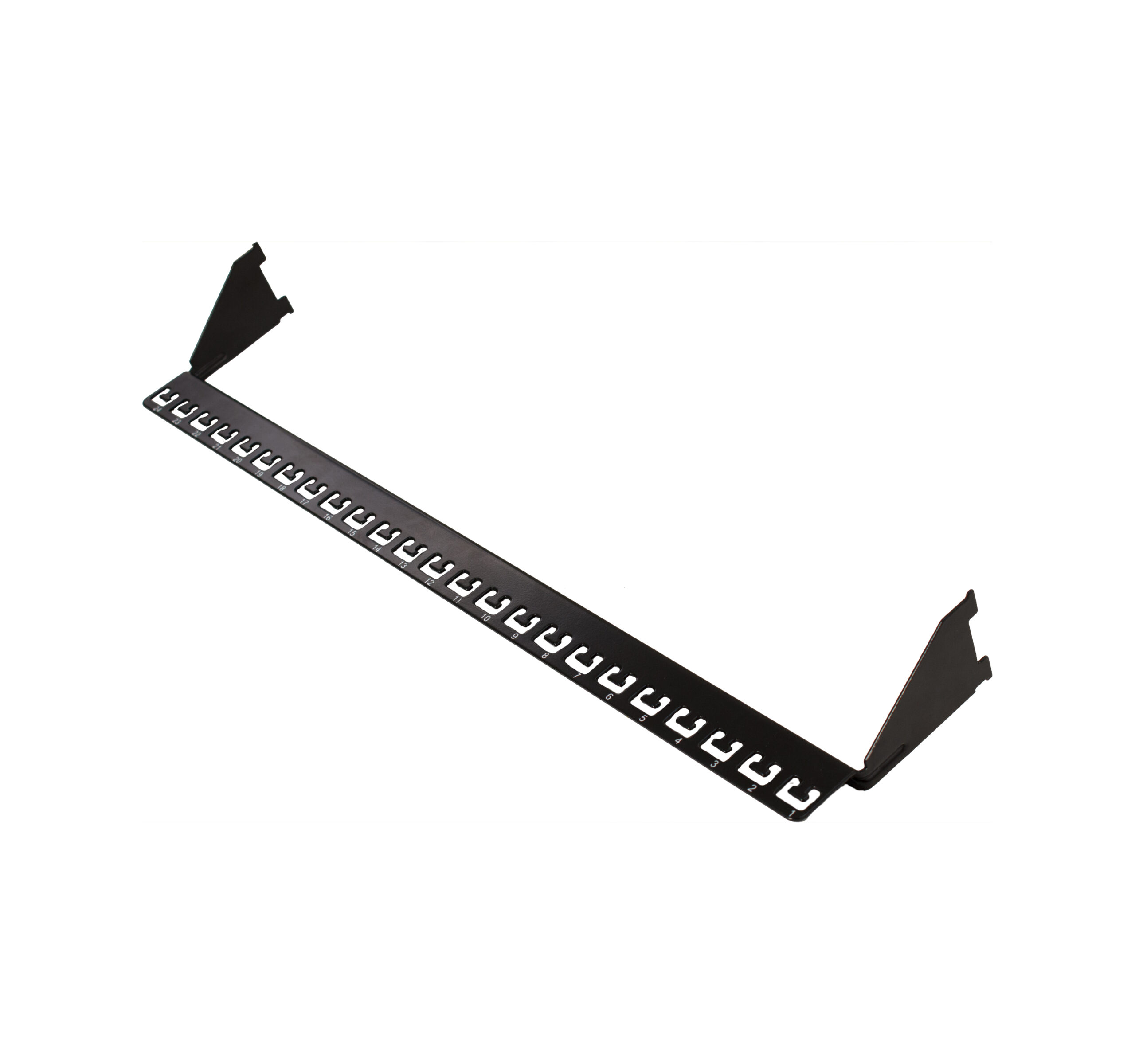

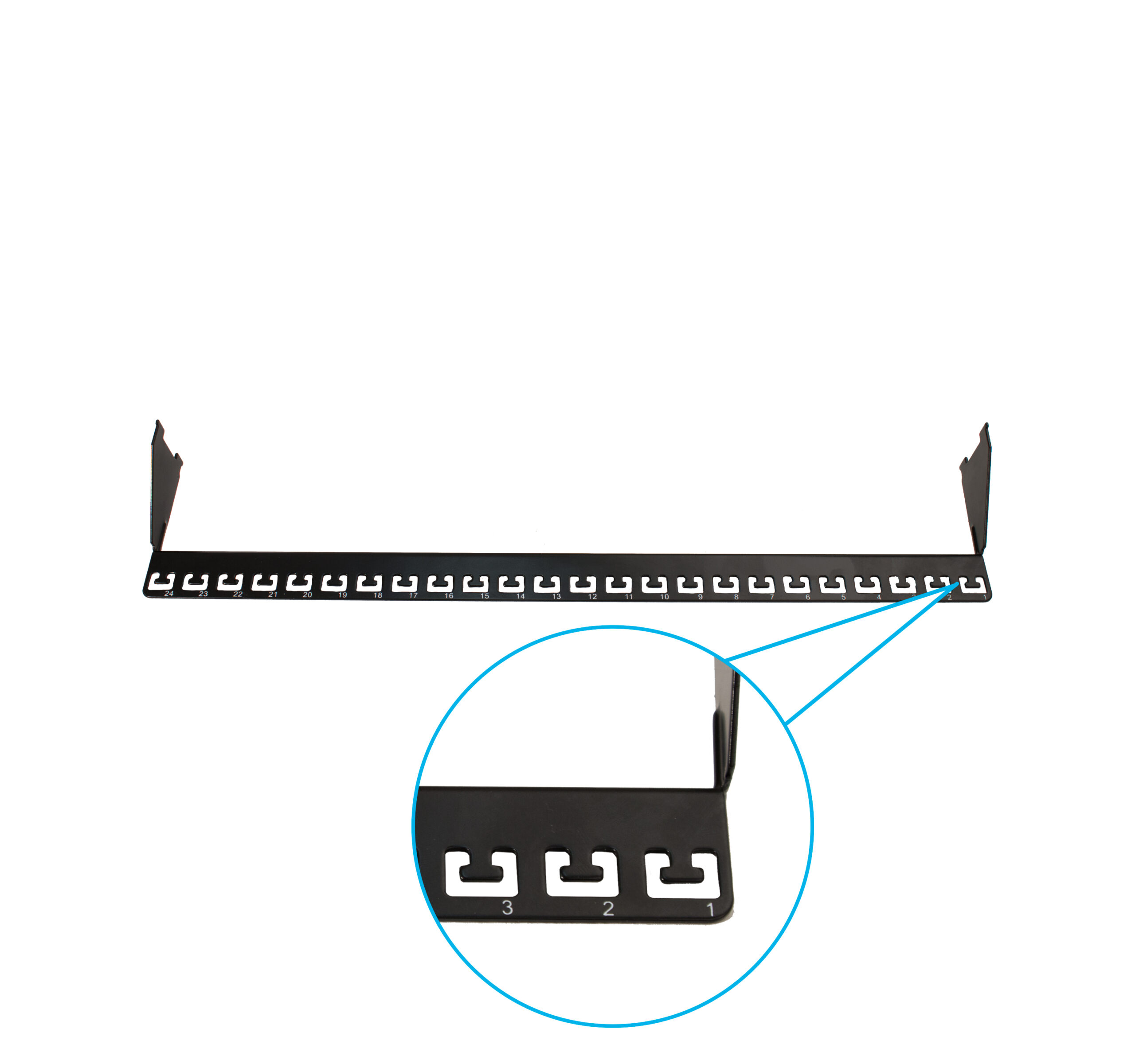

VERTICAL CABLE 044-2396/1U – 1 RMU PATCH PANEL SUPPORT BRACKET

The 044-2396/1U is a steel support bracket designed to secure 12 and 24 port patch panels in standard 19-inch racks. It provides enhanced structural support while maintaining a low profile within 1 RMU of rack space. Built from high-strength powder-coated steel, it’s tailored for use with Vertical Cable patch panels only. This bracket is ideal for permanent or semi-permanent installations in network closets, server rooms, and AV rack systems.

KEY FEATURES

Here’s what makes the 044-2396/1U Patch Panel Support Bracket a reliable choice:

• Designed for 1 RMU (1.75 in. / 44.45 mm) mounting height
• Compatible with Vertical Cable 19-inch patch panels only
• Ideal for 12- and 24-port patch panels
• Durable powder-coated black steel construction (1.5 mm / 0.059 in. thick)
• Compact footprint: 17.3 in. (439.42 mm) width × 3 in. (76.2 mm) depth
• Lightweight: 1.1 lbs (0.5 kg)
• Provides stability and cable strain relief for mounted patch panels

APPLICATIONS

The 044-2396/1U is a simple but essential addition to many structured cabling or network rack setups. Typical use cases include:

• Data Centers and Network Closets: Stabilizes patch panels in high-traffic or high-density installs
• AV Equipment Racks: Keeps signal distribution panels secure
• IT Rooms and MDF/IDF Closets: Improves overall equipment support and longevity
• Wall-Mount Rack Cabinets: Reduces torque and sag on horizontal mounts
• Telecom Infrastructure: Ideal for copper or fiber terminations needing minimal rack depth

INSTALLATION GUIDE

Installing the 044-2396/1U Patch Panel Support Bracket is quick and tool-friendly:

1. Align the Bracket: Position the bracket into a standard 19 in. rack with 1 RMU of vertical space.
2. Mount with Screws: Secure using standard rack screws (not included) through front-mounting holes.
3. Attach Patch Panel: Align your 12- or 24-port Vertical Cable patch panel and fasten it directly onto the bracket.
4. Cable Routing: Once secured, route incoming or outgoing cables through rear clearance for strain-free management.
5. Check Stability: Ensure the bracket and panel are flush and firm with minimal movement.

This bracket is designed for use with Vertical Cable panels only. Ensure alignment before fastening.

WHY CHOOSE THE 044-2396/1U 1 RMU PATCH PANEL SUPPORT BRACKET?

Professionals choose the 044-2396/1U because it delivers simplicity, strength, and no-nonsense usability. Here are 5 reasons to include it in your next rack install:

1. Perfect Fit: Engineered specifically for Vertical Cable’s patch panels ensures no compatibility issues.
2. Space-Saving Profile: Occupies only 1 RMU while offering full-length support.
3. Durable Construction: 1.5 mm steel and powder coat finish resist flexing and corrosion.
4. Improved Cable Management: Enhances strain relief for incoming and outgoing connections.
5. Fast Setup: Simple to install with minimal hardware—ideal for quick upgrades or rollouts.

WHAT’S NEXT?

Once you’ve installed the 044-2396/1U:

• Route and Separate – Feed and organize patch cables through open fingers
• Add Cable Labels – Keep your runs easy to identify.
• Use with Cable Ties – Secure bundles cleanly and keep ports clear.
• Pair with Vertical Cable Patch Panels – Maintain clean and functional rack environments.
• Plan Future Expansion – Easily add more wire managers or vertical accessories.

For more rack accessories and cable organization tools, explore our Rack Wire Managers.
