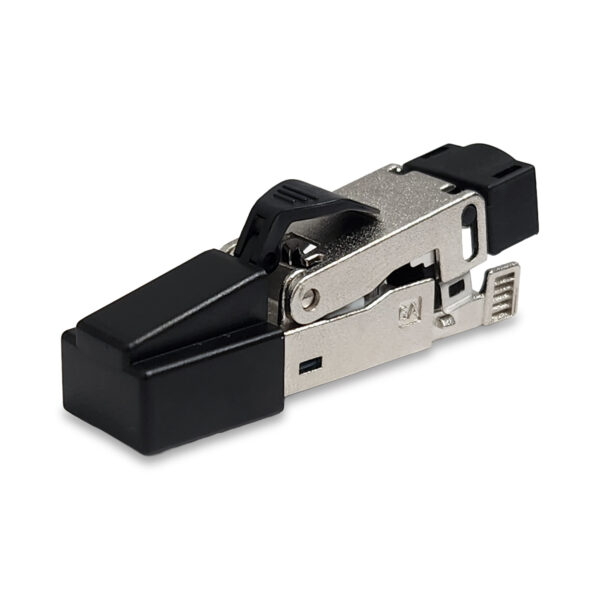

252-RMP02-A2A10

Features :

• • Transmission performance: category 6A
  • Wiring schemes: T568A/T568B.
  • Housing/screening: solid zinc alloy, “360°” coverage.
  • Conductor gauge: solid: 22–26 AWG.
  • Mating durability: Level 1, 750 mating cycles min.
  • Environmental protection: IP20.
  • Compliance: IEC 60603-7; UL DUXR; IEEE 802.3bt (4PPoE).
  • Supports PoE++ (Type 4) IEEE 802.3bt (71.3W)
  • Contacts: phosphor bronze, 50-μin gold plating.
  • Cable diameter: 5–9 mm.

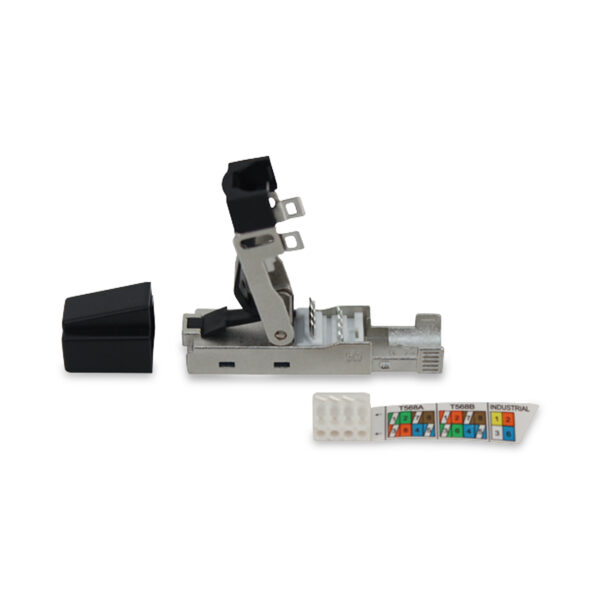

  • “Toolless” termination.
  • Re-termination limit: 5 times.
  • Current rating: 1.5 A.

Accessories (ACCESSORIES AVAILABLE ARE SHOWN ON THE ENCLOSED SPEC).
