J-Hooks with Angle Bracket | 048-150/AB Series

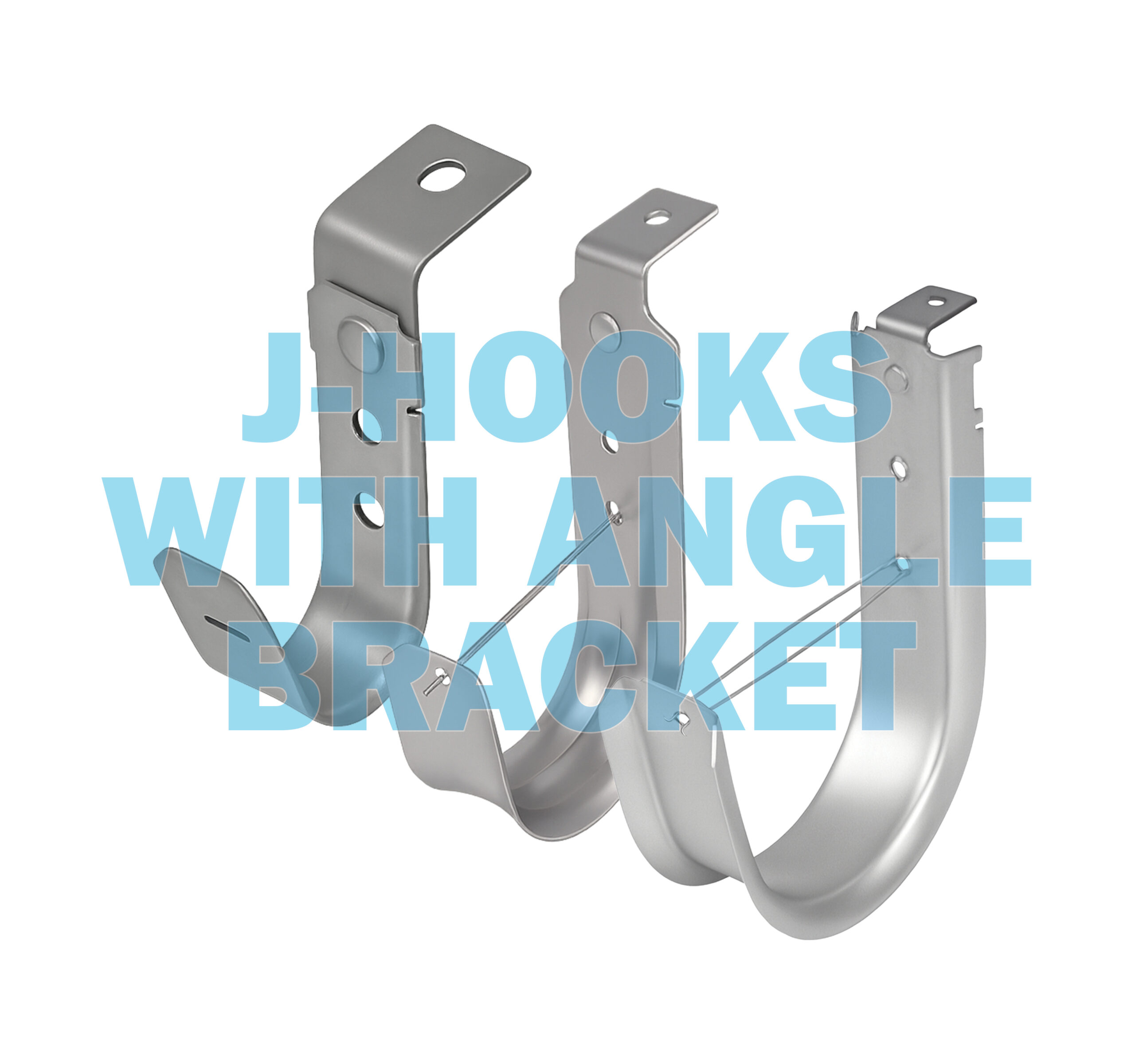

VERTICAL CABLE 048-150/AB SERIES – J-HOOKS WITH ANGLE BRACKET (0.75 IN | 2 IN | 4 IN)

The 048-150/AB Series J-Hooks with Angle Bracket are designed for strong support and easy cable routing. Made from pre-galvanized steel, they offer a secure mounting solution for cable management. The angle bracket adds stability when mounted to walls or beams. Each size is built to support various bundle sizes while maintaining proper bend radius. These J-Hooks are ideal for voice, data, and video cabling in structured installations.

KEY FEATURES

Here’s what makes the 048-150/AB Series a dependable choice:

• Available Sizes: 0.75 in. (19.05 mm), 0.31 in. (7.87 mm), 2 in. (50.8 mm), and 4 in. (101.6 mm) widths
• Three Size Options: Available in 0.75 in. (19.05 mm), 2 in. (50.8 mm), and 4 in. (101.6 mm) widths.
• Angle Bracket Design: Fixed steel bracket provides additional mounting stability.
• Pre-Galvanized Finish: Durable, corrosion-resistant steel with no oil finish for long-term use.
• Smooth Construction: Free of sharp edges and burrs for cable jacket protection.
• Consistent Quality: Max burr height limited to 0.005 in. (0.127 mm) for safety and consistency.
• Strong and Sturdy: Steel thickness of 0.05 in. (1.27 mm) across all sizes.
• Compact Form Factor: Minimalist profile supports tight routing paths without compromising support.
• Bulk Packaging:
  • 0.75 in. and 2 in. hooks: 100 per master box
  • 4 in. hooks: 25 per master box
• Supports High Cable Count: Load capacities detailed in Vertical Cable’s reference chart.
• Easy Identification: Clearly labeled part numbers for quick project fulfillment.

MECHANICAL CAPACITY

NOTE: The capacity chart provided above shows maximum possible values calculated based on the geometry parameters of the J-hooks. In real life installations, due to imperfection of cable bundles and variable paths cables take within the bundles, actual J-hook’s capacity could be lower and reach 50 % of the maximum as the worst-case scenario, the uncertainty grows as the number of cables placed on the J-hook grows. Typical recommended quantity reduction should be 25 % against the values provided in the graphs.

Additional limitations on discrete support load and capacity established by codes and standards:

1. For all power and power-limited cables, please, refer to the requirements set up in NFPA 70, National Electrical Code (NEC).
2. For all twisted-pair and optical fiber cables, follow the following guidelines set up by TIA and BICSI standards and manuals:

BICSI ITSIMM 8th Ed.:

• • • Open-top cable supports (e.g., J-hooks) … should not be used for installations of more than 50 cables. Do not overload open-top cable supports by using plastic cable ties to retain additional cables. Open-top cable supports should be attached to the building structure and installed on a center spacing varying between ≈1.2 m (4 ft) to ≈1.5 m (5 ft). These cable supports shall not be painted nor used for purposes not intended. Where not specified by the AHJ, open-top cable supports should be installed to maintain a minimum of ≈75 mm (3 in) vertical clearance between the cabling and cable supports and elements such as ceiling tiles, electrical conduit, luminaires, and piping and ducting. Open-top cable supports shall not be attached to a ceiling grid support system but may require a secondary connection to the ceiling grid to prevent lateral movement of the supports. No single support device should exceed the manufacturer’s recommended load rating, and the pulling tension used for placing a cable should not exceed the manufacturer’s recommendations.

BICSI TDMM 13th Ed.:

• • • For large quantities of cables (50 or more), provide cable trays or other special supports that are specifically designed to support the required cable weight and volume.

ANSI/TIA-569-E:

• • • Non-continuous supports shall be located at intervals not to exceed 1.5 m (5 ft).

TIA TSB-184-A:

• • • When installing PoE systems, calculate number of cables in a bundle per TIA TSB-184-A specifications; if calculations are not available, it is recommended to limit the number of cables per bundle to 24.

APPLICATIONS

The 048-150/AB Series is built for professional-grade cabling environments. It’s ideal for use in:

• Office and Commercial Spaces: Route data, voice, or coaxial lines discreetly and reliably.
• Industrial Facilities: Manage large cable bundles while keeping them out of the way.
• Education Campuses: Create scalable infrastructure for classrooms and networking closets.
• Data Centers and Server Rooms: Organize and support multi-run cable systems securely.
• Retail and Hospitality: Maintain a professional, uncluttered environment for customer-facing locations.

WHY CHOOSE THE 048-150/AB SERIES J-HOOKS?

Here’s why professionals choose this series:

1. Reinforced Stability: The angle bracket ensures reliable surface mounting in various orientations—walls, ceilings, beams, and more.
2. Cable-Friendly Design: Smooth edges and burr-free construction protect delicate jackets and ensure signal integrity.
3. Versatile Sizing Options: With 0.75 in., 2 in., and 4 in. options, installers can match the hook to any job requirement.
4. Industry-Ready Durability: Constructed from pre-galvanized steel, the hooks stand up to commercial demands and environmental exposure.
5. Efficient Bulk Supply: Packaging options streamline installation workflows and make bulk orders simple for large-scale projects.

WHAT’S NEXT?

Once you install your 048-150/AB Series J-Hooks:

• Plan Your Pathways – Combine hook sizes to match cable loads and space constraints.
• Add Cable Labels – Ensure easy identification and maintenance.
• Bundle Smartly – Use hook-and-loop straps to keep cables neat within the hooks.
• Maintain Compliance – Follow TIA and BICSI best practices for spacing and support.
• Expand As Needed – Scalable installation lets you add more hooks as networks grow.

Explore more mounting and support options, visit Cable Management and discover top-tier solutions today!
