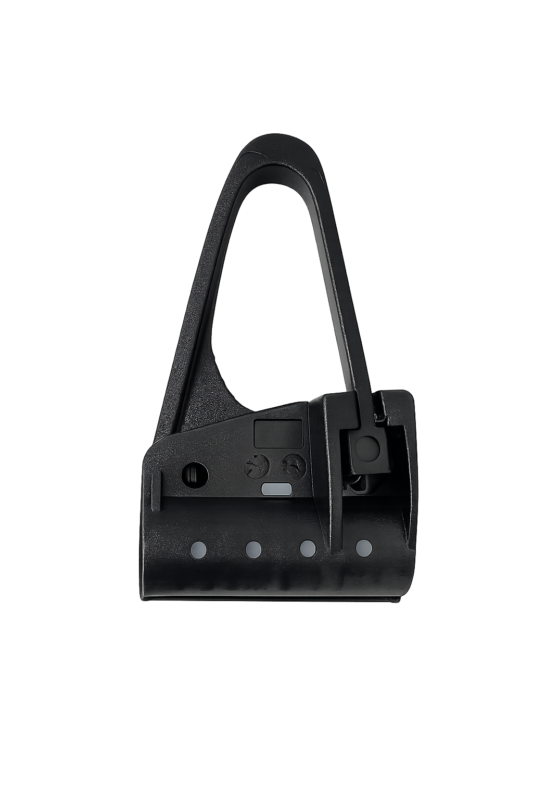

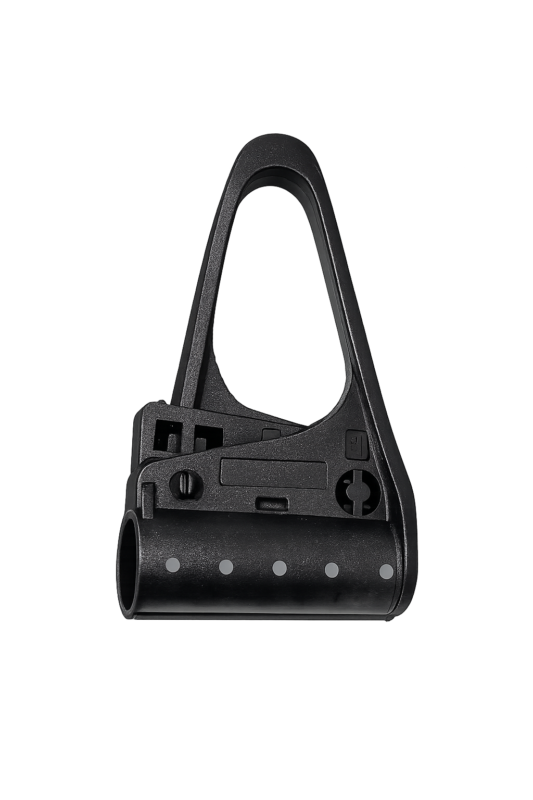

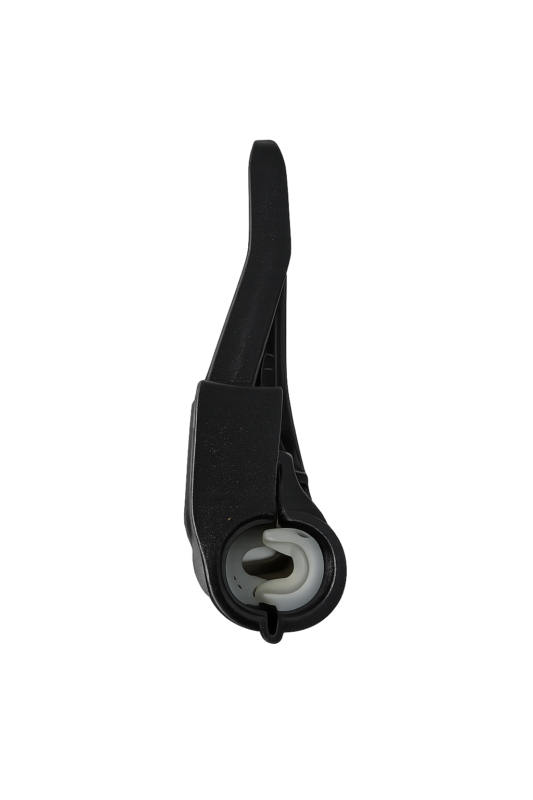

269-OPH01-D0P3

Features :

• • • Cable construction: Round drop
    • Cable/messenger diameter: 0.08 in – 0.4 in (2 mm – 8 mm)
    • Load capacity: 0.3 kN (~70 lbf)
    • 70 m (230 ft) max span
    • 20 ° max line/span angle
    • Compression cable retention mechanism
    • Nylon, UV resistant (housing material)
    • Elastomer (insert material)

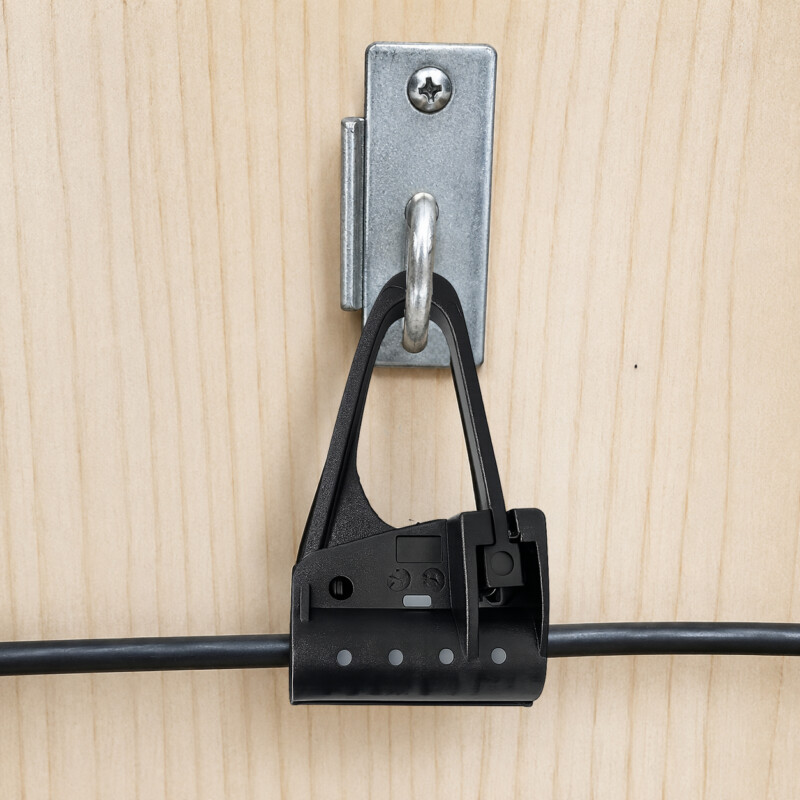

    • Wall or pole using clamp anchor points (brackets)
    • Applications: Support for FTTH drop cables
