268-STD02-1B12

VERTICAL CABLE 268-STD02-1B12 – OPTICAL FIBER WALL-MOUNT ENCLOSURE, DUAL-DOOR, LGX, TWO-POSITION

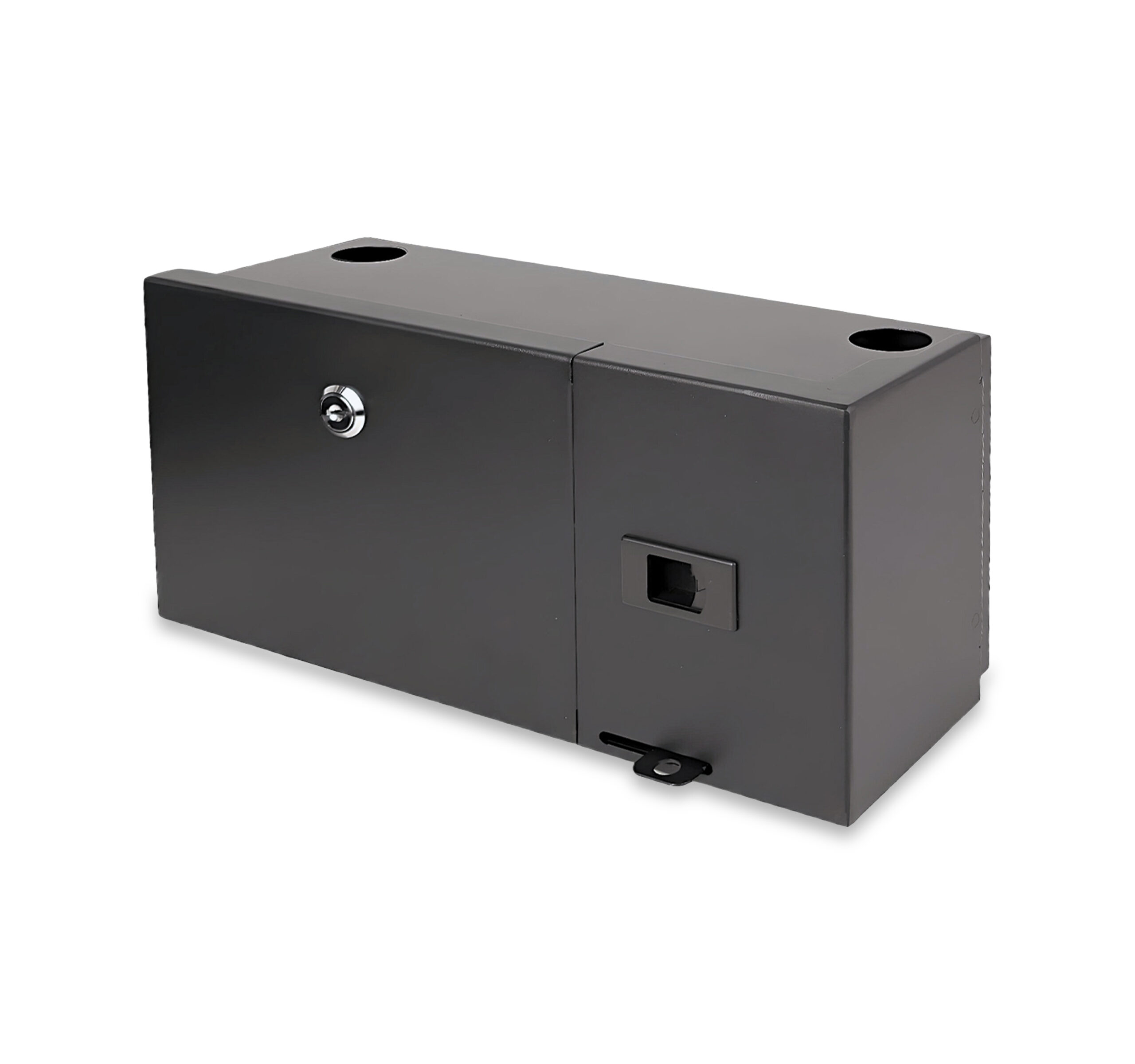

The 268-STD02-1B12 is a secure optical fiber wall-mount enclosure featuring a dual-door design with both latch and lock access points. This enclosure holds up to two LGX adapter plates, supporting up to 48 optical fibers in a compact wall-mounted format. Built from durable 16-GA cold-rolled steel with a black powder-coated finish, this wall-mount enclosure provides enhanced security and flexible access for professional fiber installations.

KEY FEATURES

Here’s what makes the 268-STD02-1B12 a dependable solution for secure wall-mounted fiber infrastructure:

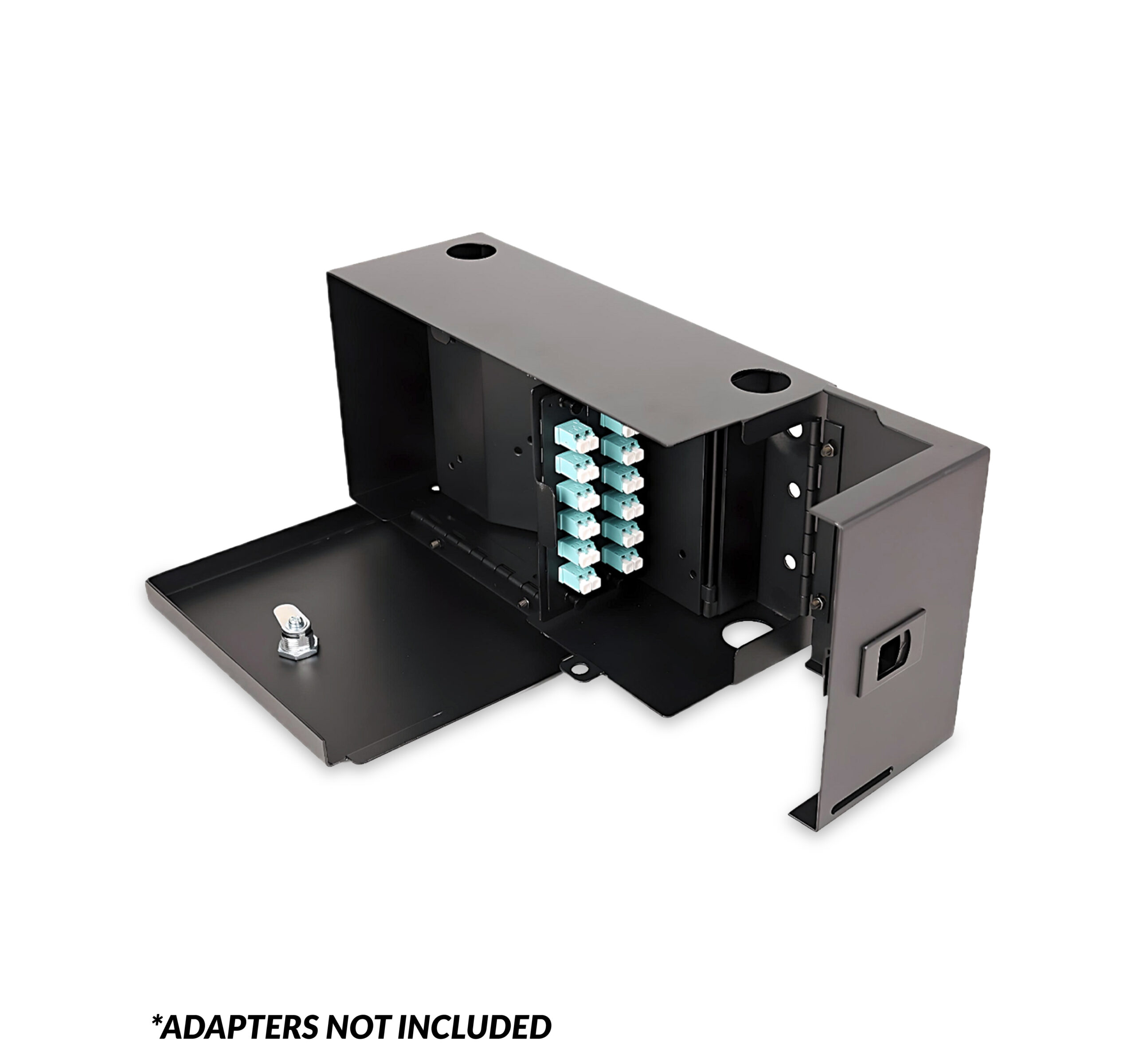

• Two-Position LGX Capacity: Holds up to two LGX adapter plates supporting up to 48 optical fibers.

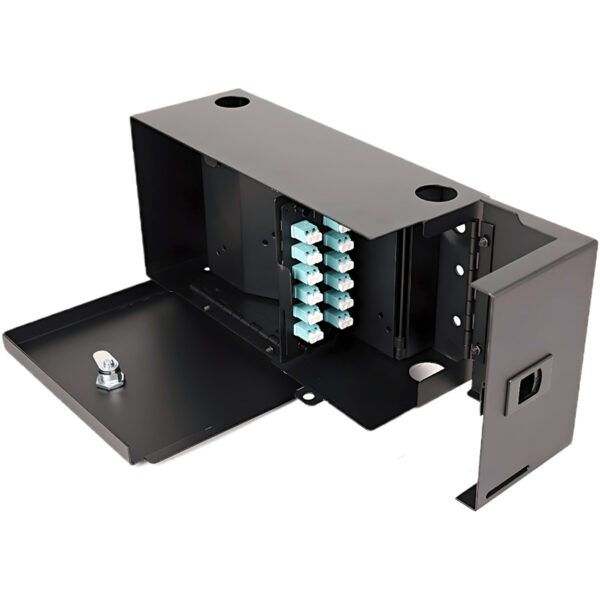

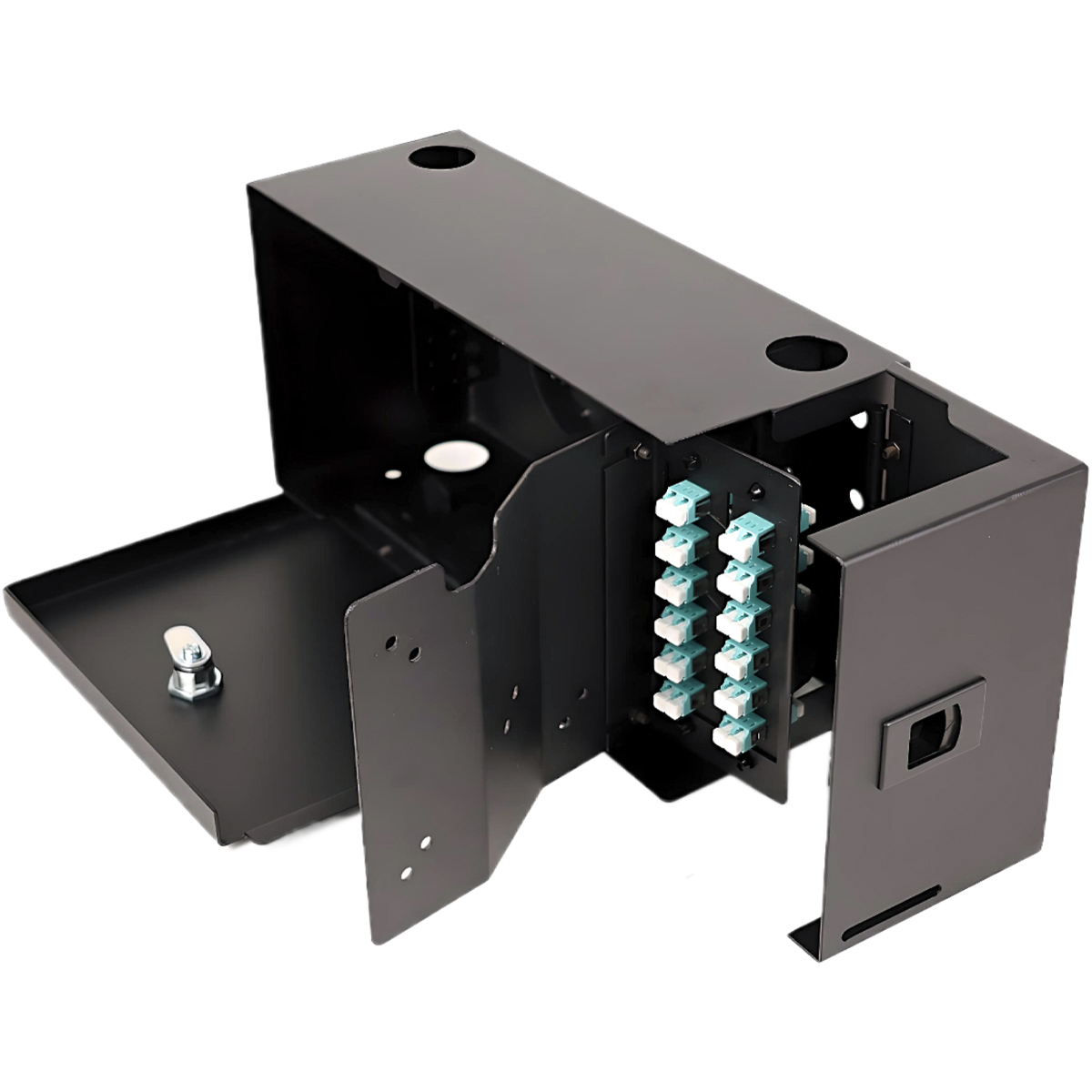

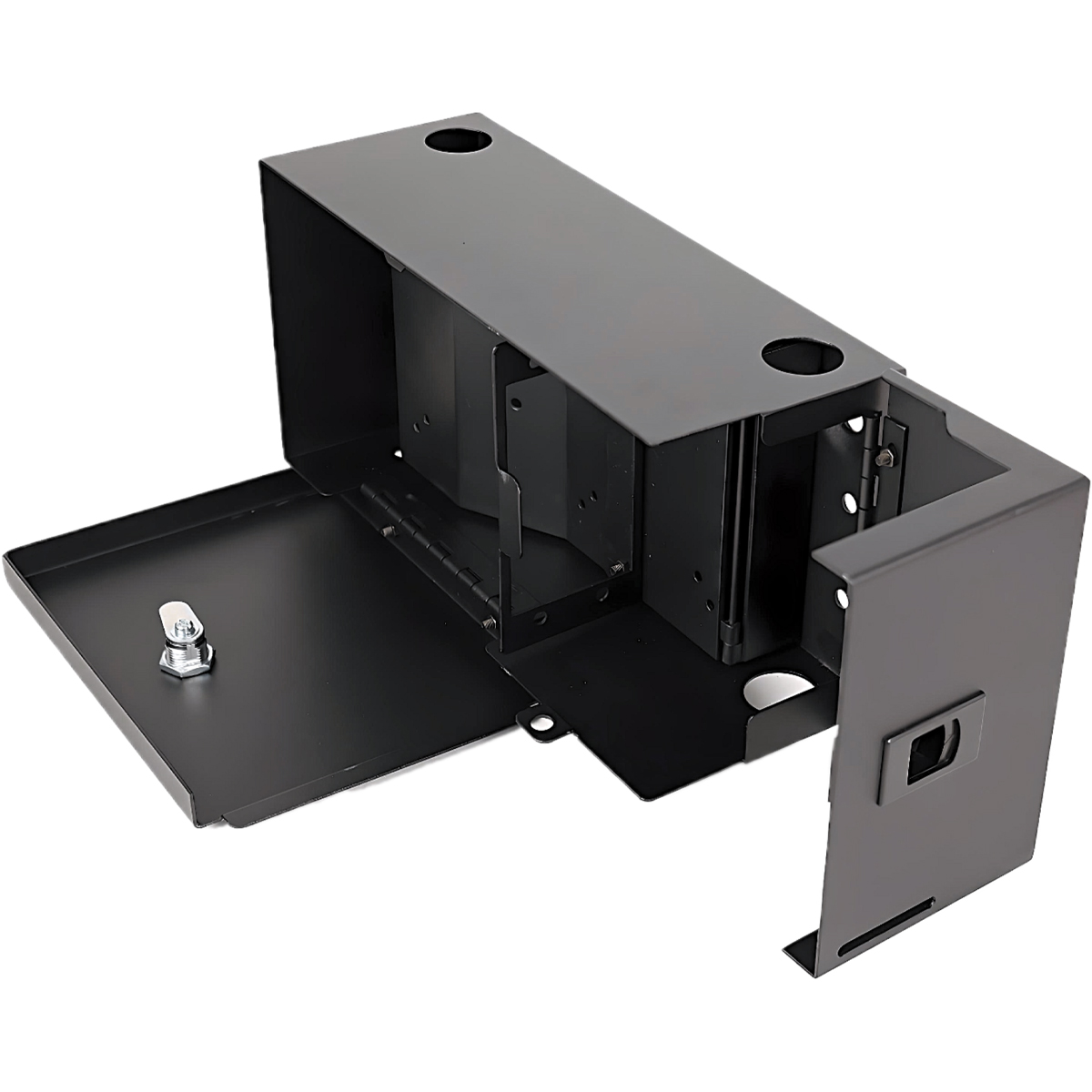

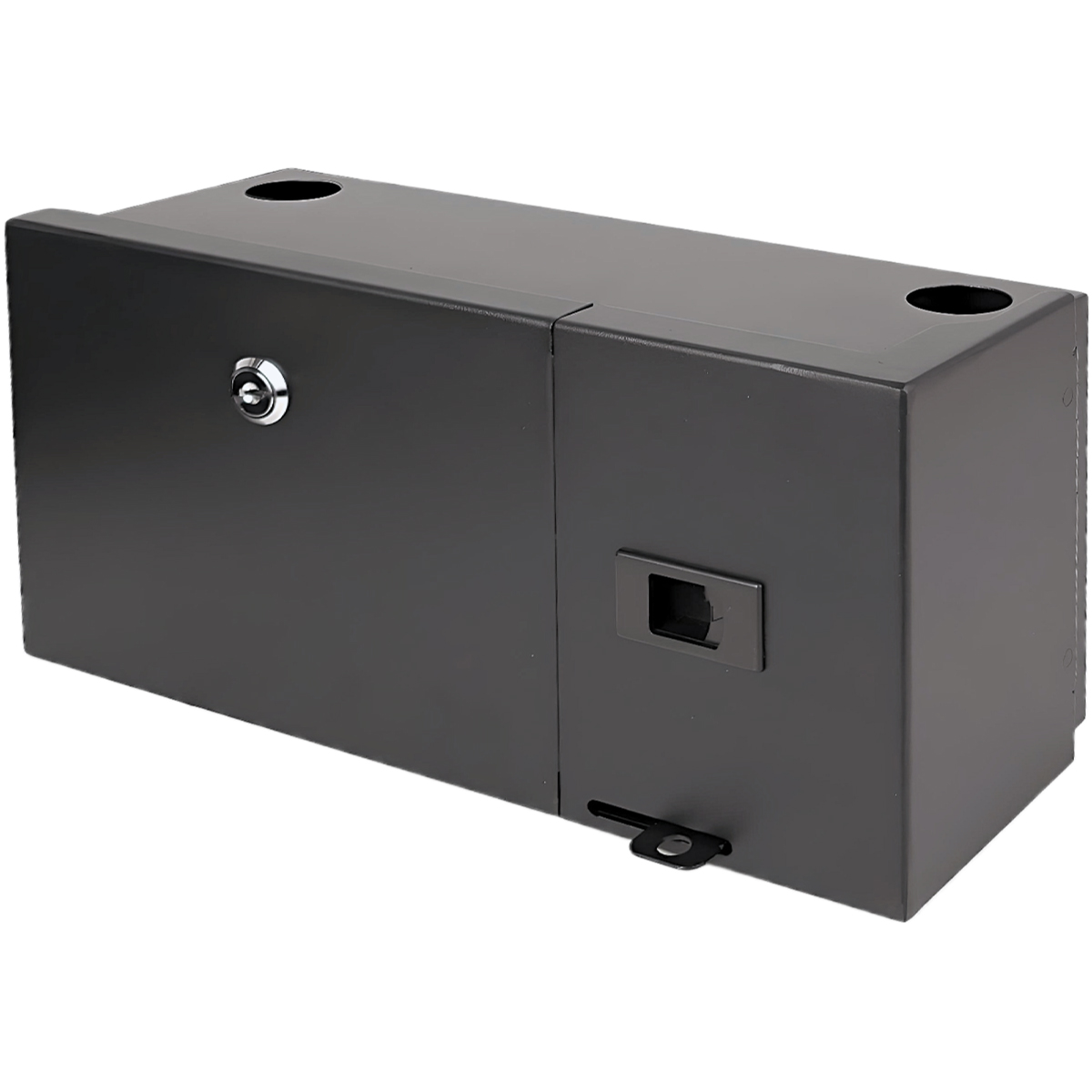

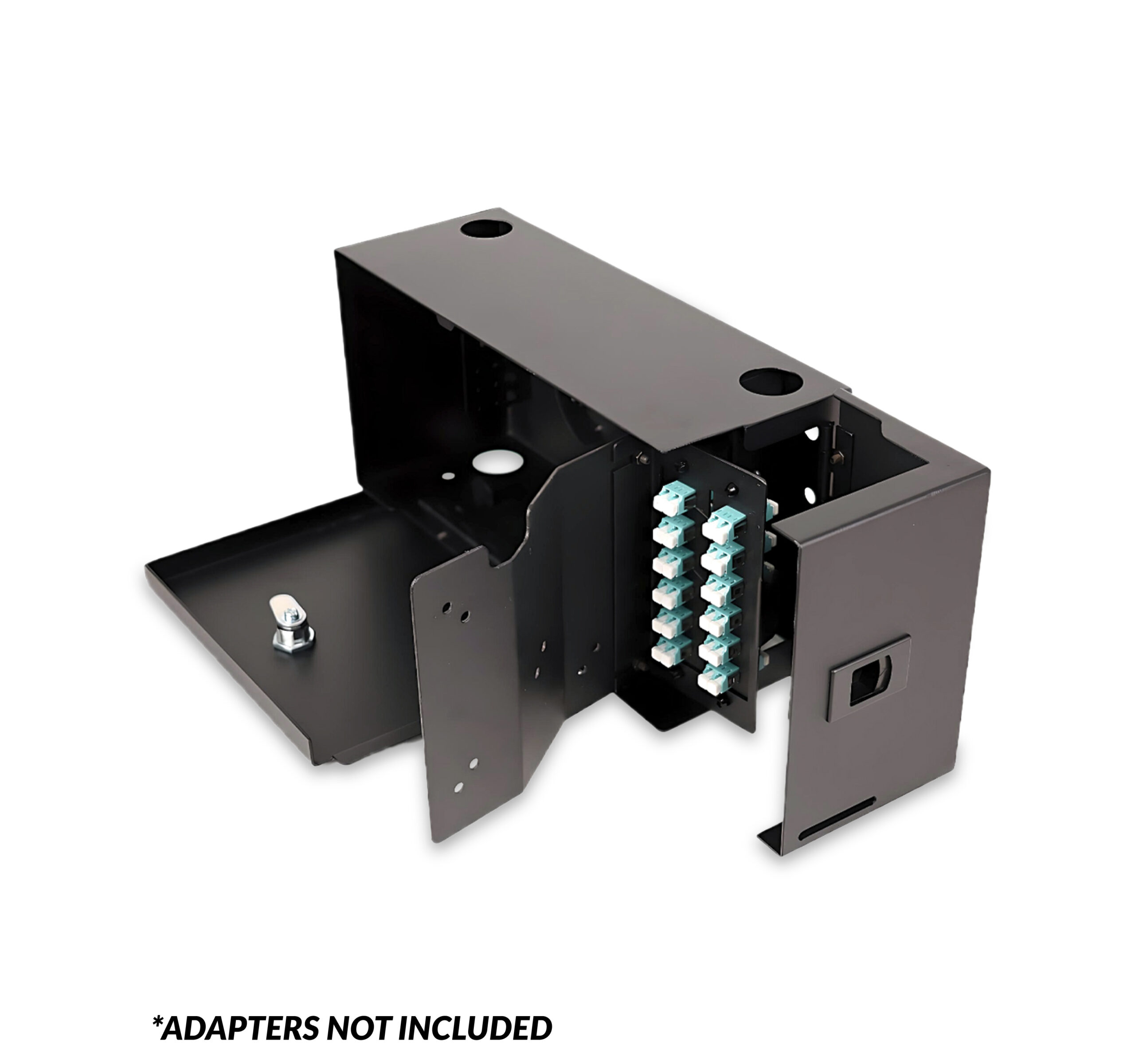

• Dual-Door Design: First door with latch opens sideways; second door with lock opens downward for versatile access options.
• Enhanced Security: Lock mechanism protects fiber connections from unauthorized access in shared or public spaces.
• Surface/Wall Mount Design: Installs directly to walls or other surfaces without requiring rack infrastructure.
• Durable Steel Construction: Built from 0.06 in. (1.5 mm) 16-GA cold-rolled steel with black powder-coated finish.
• Compact Profile: Measures 6.5 in. × 12.2 in. × 4.5 in. (165 mm × 310 mm × 115 mm) for efficient wall footprint.

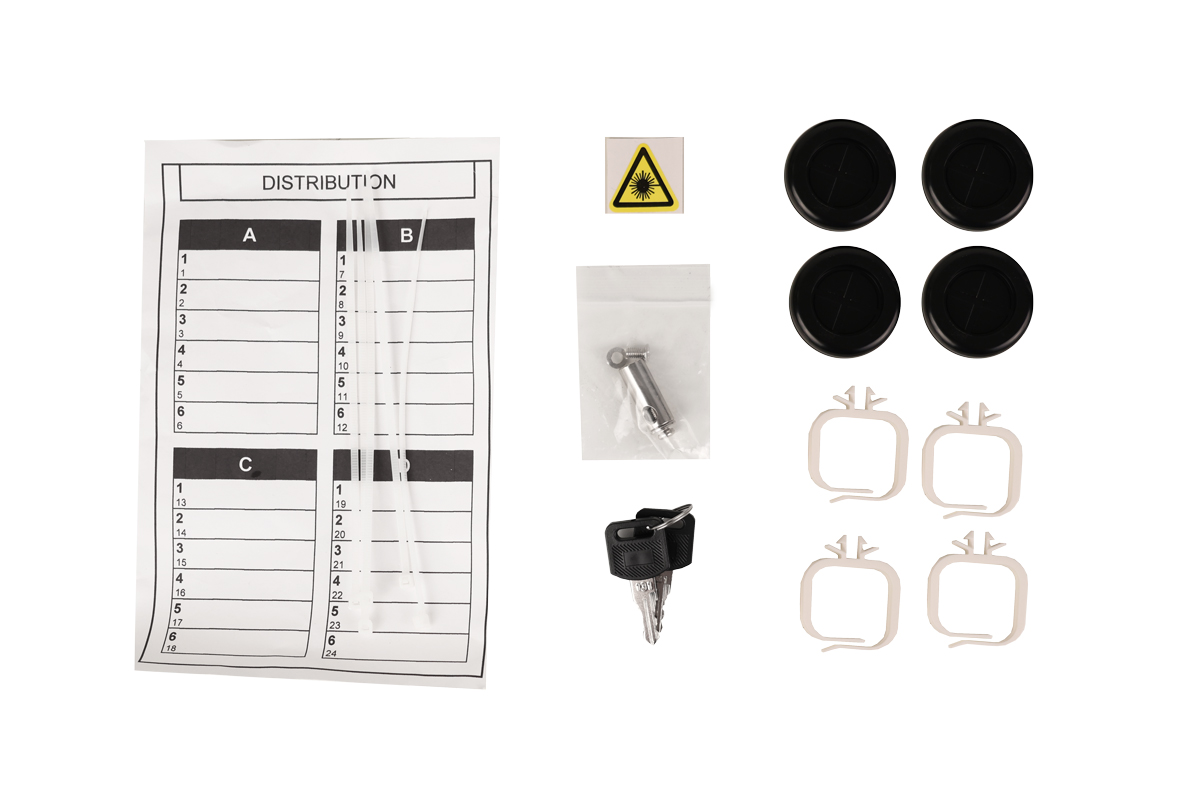

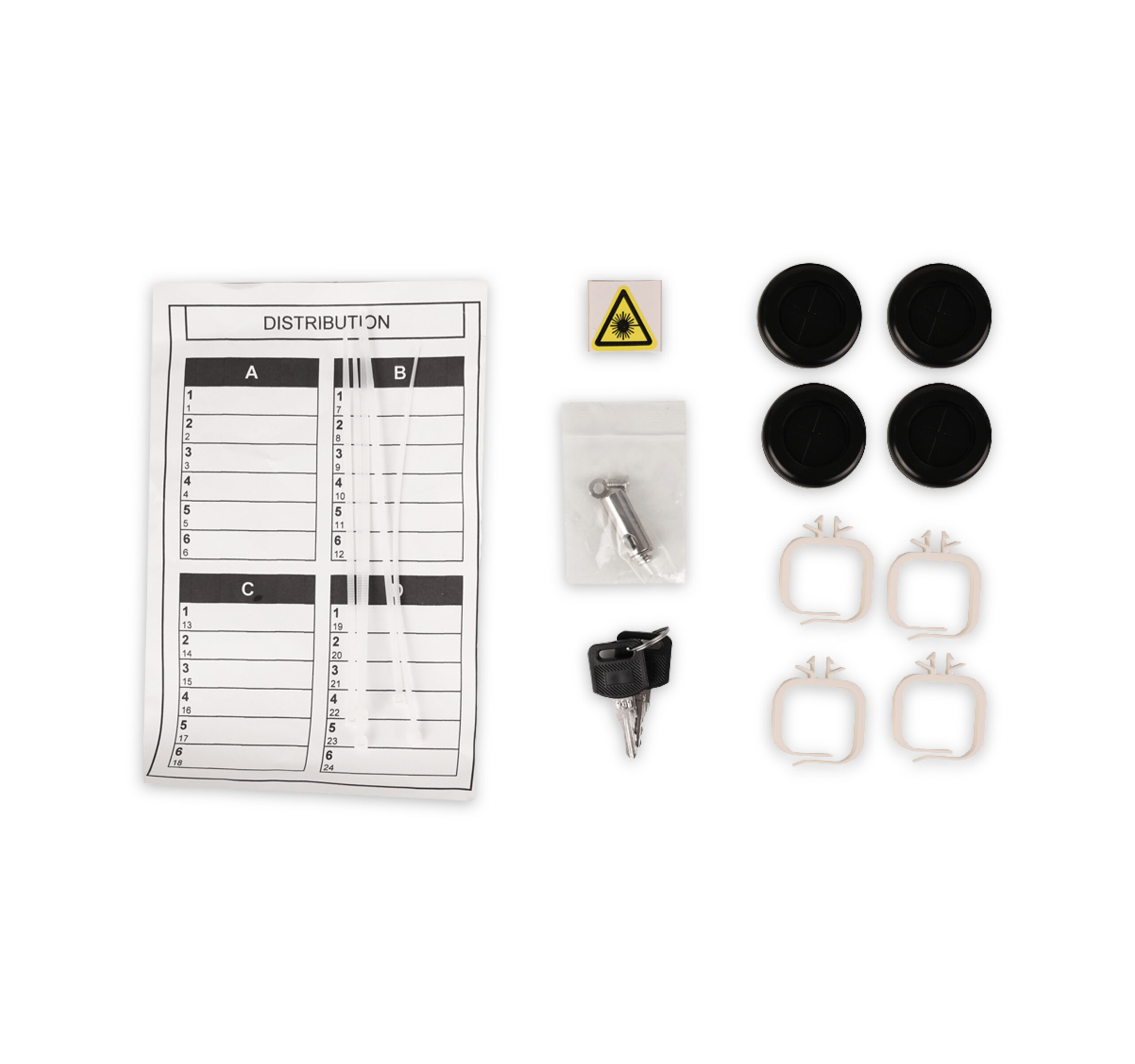

• Comprehensive Cable Management: Grommeted entry points, perforated cable anchor plates, strength element anchor points, and included cable ties and self-gripping tie wraps.
• Fiber Management Tools: Integrated spools and rings maintain proper bend radius for delicate fibers.
• Splice Tray Support: Accommodates up to two 24-fiber splice trays.
• Wide Operating Range: Performs reliably from -20°C to +70°C (-4°F to +158°F) in up to 95% RH non-condensing environments.

APPLICATIONS

The 268-STD02-1B12 optical fiber wall-mount enclosure excels in environments requiring secure, organized fiber termination:

• Multi-Tenant Buildings: Secure fiber connections in shared spaces where access control is essential.
• Educational Facilities: Protect fiber infrastructure in classrooms, labs, and public areas.
• Healthcare Environments: Safeguard fiber terminations supporting critical medical systems and patient data networks.
• Retail Locations: Secure point-of-sale fiber connectivity from tampering in back-office areas.
• Government & Municipal Sites: Comply with security requirements for public infrastructure fiber installations.

COMPATIBLE VERTICAL CABLE PRODUCTS

This wall-mount enclosure is designed for use with:

• 265-CAS01-1B200 (Compact Cassettes)
• 265-CAS01-2B200 (Standard Cassettes)
• 264-LAP Series LGX Adapter Plates


WHY CHOOSE THE 268-STD02-1B12 OPTICAL FIBER WALL-MOUNT ENCLOSURE?

Professionals choose the 268-STD02-1B12 because it combines secure access with flexible dual-door functionality. Here are 5 reasons to include it in your next fiber installation:

1. Dual-Access Design – Latch door opens sideways for quick access; lock door opens downward for secure, controlled entry.
2. Enhanced Security – Lock mechanism prevents unauthorized access in multi-tenant, public, or sensitive environments.
3. Built for Durability – Heavy-gauge cold-rolled steel construction stands up to demanding commercial and industrial environments.
4. Integrated Cable Management – Grommeted entry points, anchor plates, and included tie wraps keep cables organized from entry to termination.
5. Fiber-Safe Design – Spools, rings, and proper routing paths maintain bend radius to protect signal integrity.

WHAT’S NEXT?

Once you’ve installed the 268-STD02-1B12:

• Add LGX Adapter Plates – Populate with 264-LAP Series plates to match your connector requirements.
• Install Splice Trays – Add up to two 24-fiber splice trays for fusion or mechanical splicing.
• Label Your Fibers – Identify each connection for faster troubleshooting and maintenance.
• Secure the Keys – Store lock keys in a safe location and establish access protocols for authorized personnel.
