267-RES01-1C1

VERTICAL CABLE 267-RES01-1C1 – OPTICAL FIBER RACK-MOUNT ENCLOSURE | STANDARD SERIES | THREE POSITION | 1 RMU

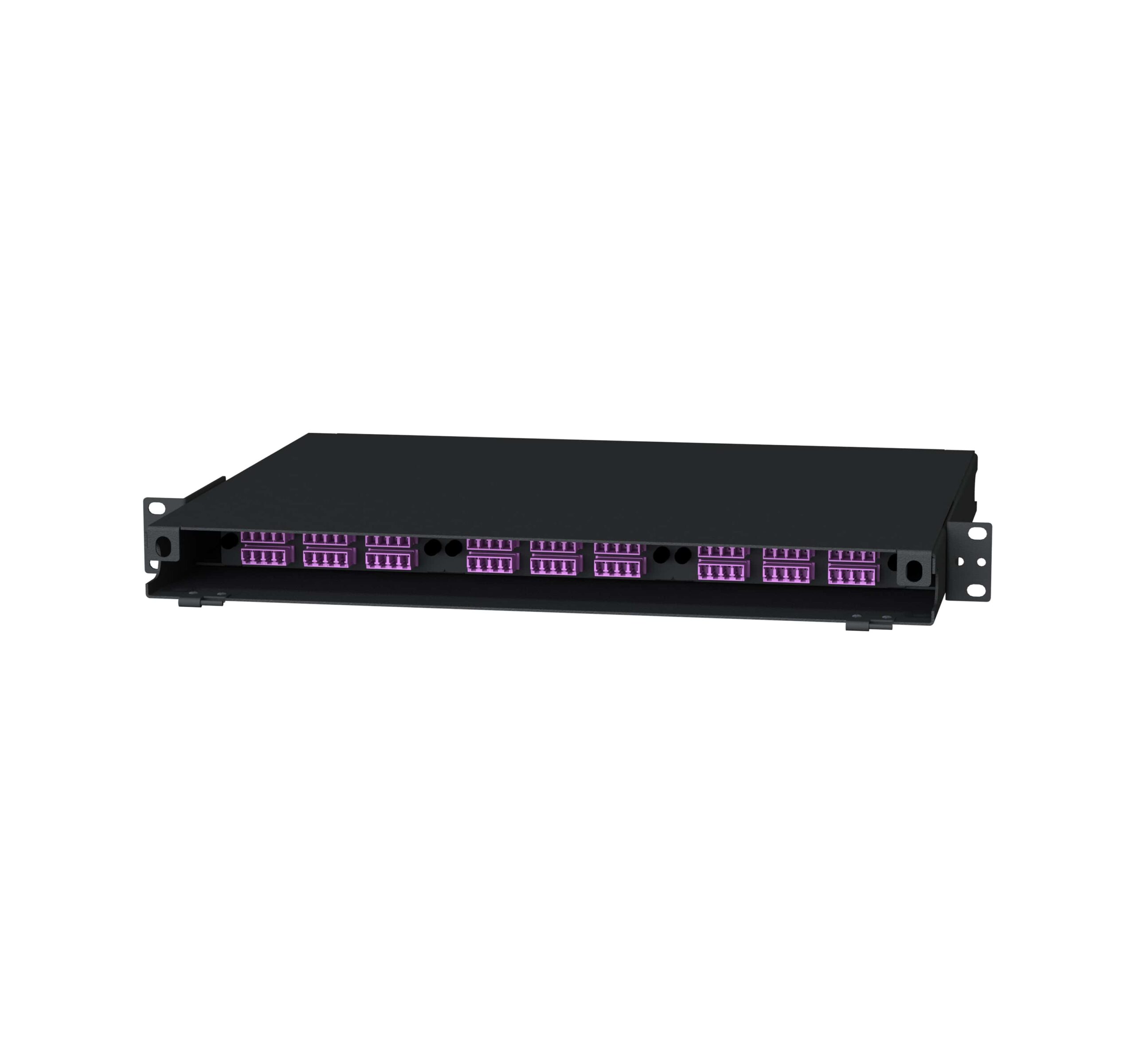

The 267-RES01-1C1 is a professional-grade optical fiber rack-mount enclosure designed for high-density fiber termination and management. This 1 RMU enclosure holds up to three LGX adapter plates, supporting up to 72 optical fibers in a compact form factor. Featuring front and rear access with a retractable stage, durable 16-GA steel construction, and a black powder-coated finish, this enclosure delivers reliable performance for demanding network environments.

KEY FEATURES

Here’s what makes the 267-RES01-1C1 a dependable solution for fiber infrastructure:

• 1 RMU Form Factor: Fits standard 19 in. racks per EIA-ECA-310-E mounting specifications.
• Three-Position LGX Capacity: Holds up to three LGX adapter plates supporting up to 72 optical fibers.

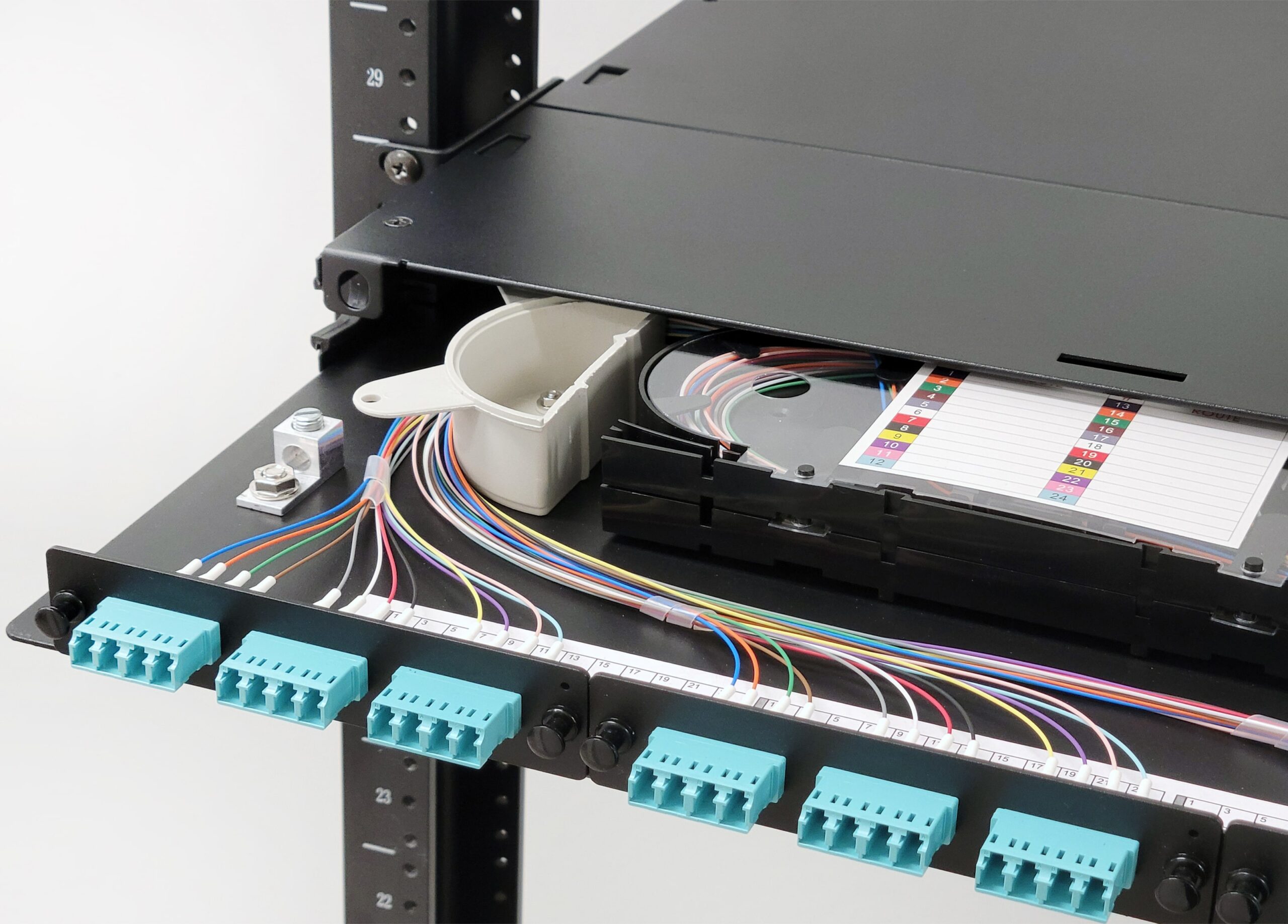

• Front and Rear Access: Retractable stage provides convenient access from both sides for easier terminations and maintenance.

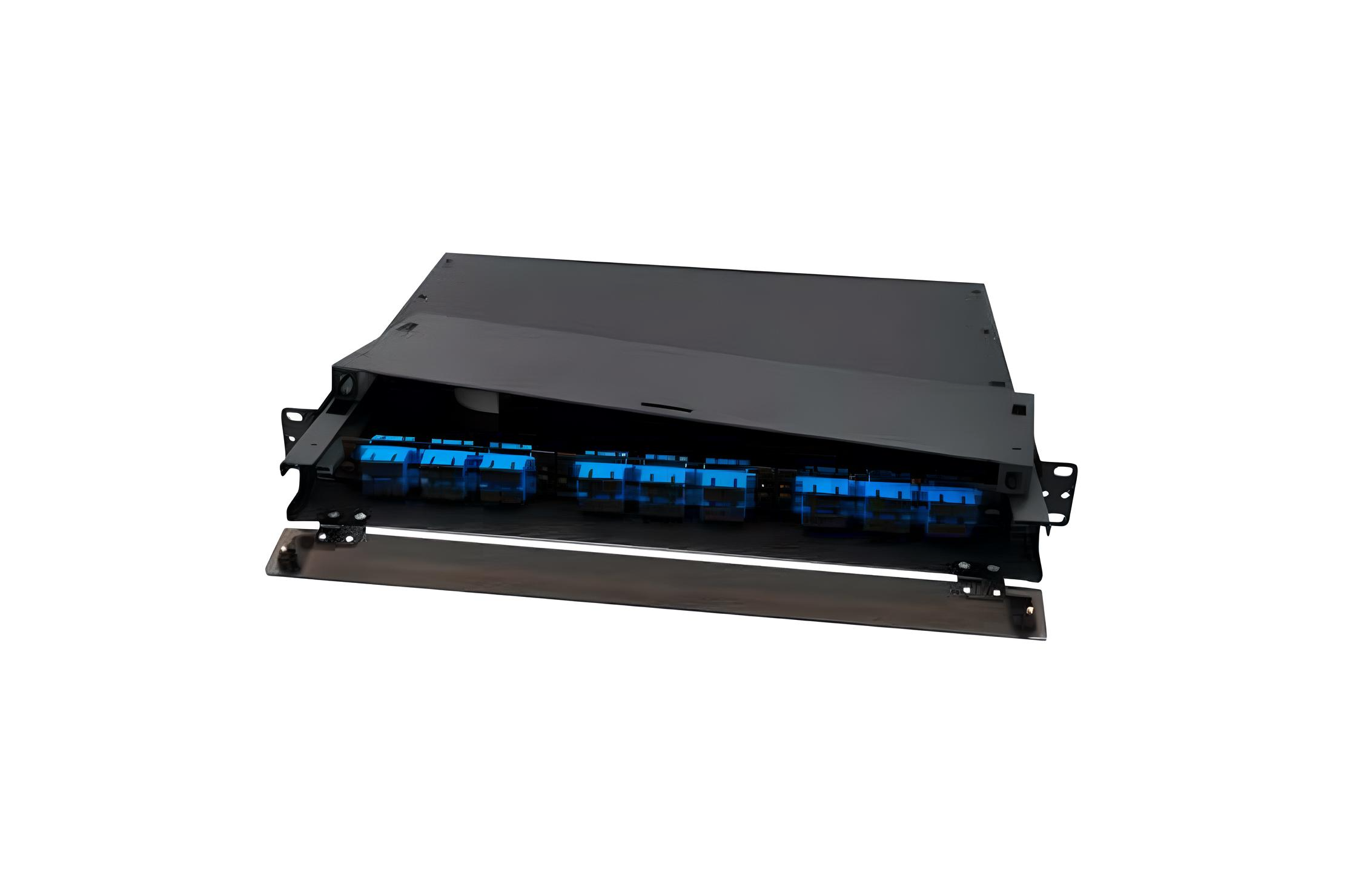

• Dual-Door Design: Clear plastic hinged front door for visibility; metal hinged rear door for protection—both removable.
• Removable Covers: Front and rear covers detach via screw joints for full access during installation.
• Durable Steel Construction: Built from 0.06 in. (1.5 mm) 16-GA steel with black powder-coated finish.
• Comprehensive Cable Management: Grommeted entry points, perforated cable anchor plates, strength element anchor points, and included cable ties and self-gripping tie wraps.

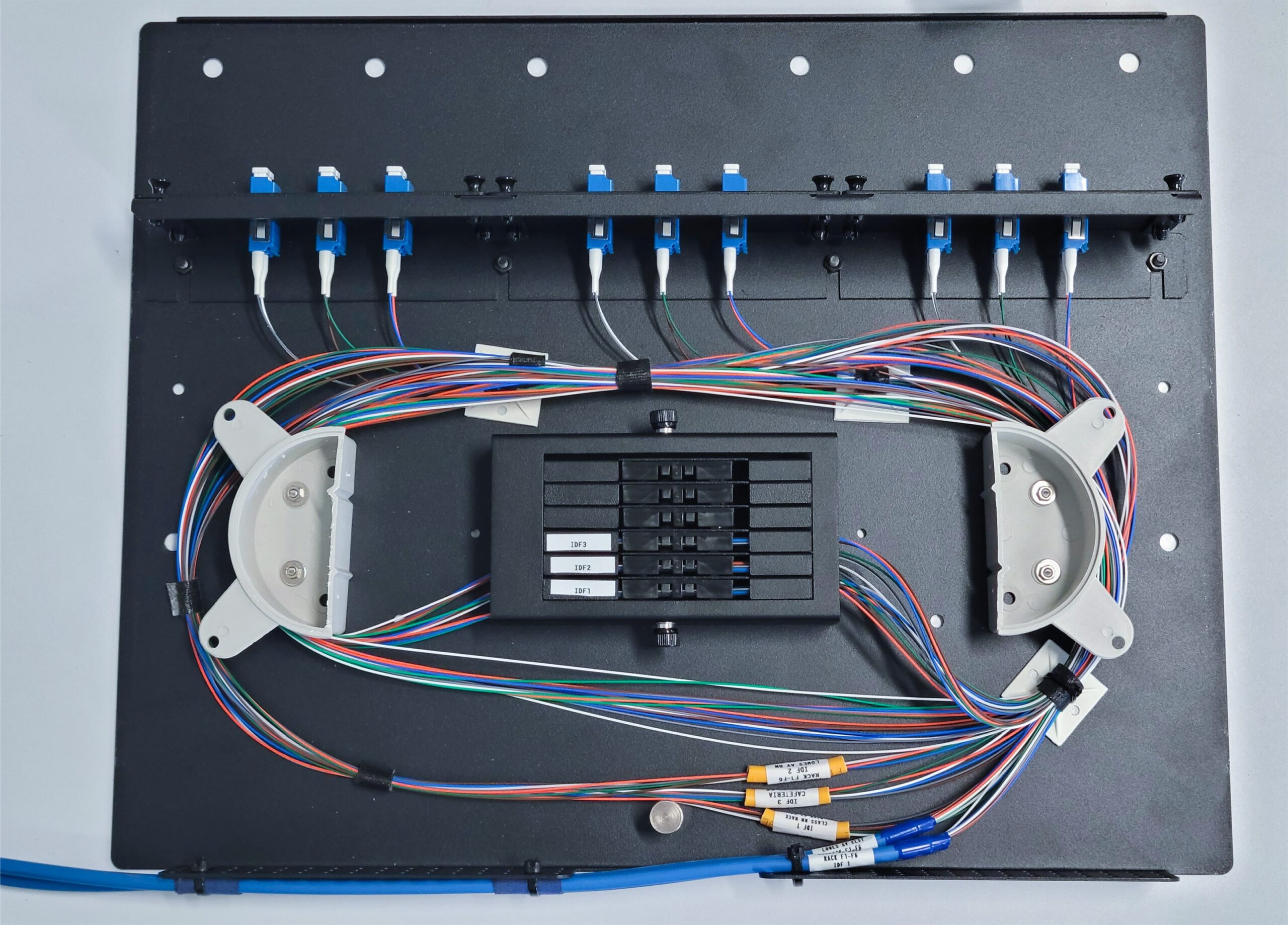

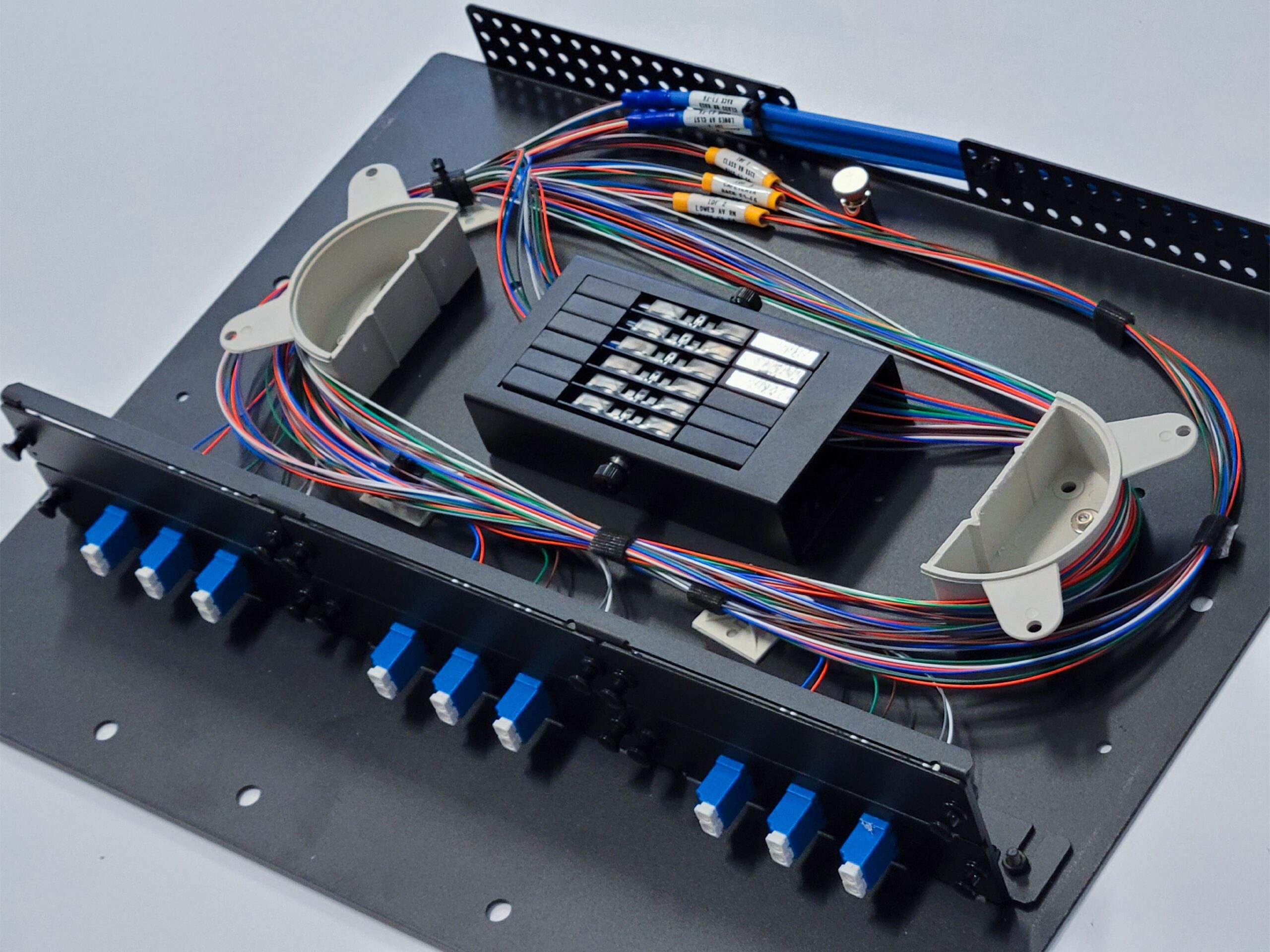

• Fiber Management Tools: Integrated spools and rings maintain proper bend radius for delicate fibers.
• Splice Tray Support: Accommodates up to two 24-fiber splice trays.
• Wide Operating Range: Performs reliably from -20°C to +70°C (-4°F to +158°F) in up to 95% RH non-condensing environments.

APPLICATIONS

The 267-RES01-1C1 optical fiber rack-mount enclosure excels in environments requiring organized, protected fiber terminations:

• Data Centers: Centralize fiber connections for server-to-switch and backbone infrastructure.
• Enterprise IT Rooms: Manage fiber runs between floors, buildings, or network segments.
• Telecom Rooms: Support carrier-grade fiber distribution for voice and data services.
• Broadcast & A/V Facilities: Protect fiber cabling for high-bandwidth video and audio transmission.
• Industrial Networks: House fiber connections in manufacturing and automation environments.

COMPATIBLE VERTICAL CABLE PRODUCTS

This optical fiber rack-mount enclosure is designed for use with:

• 2265-CAS01-1B200 (Compact Cassettes)
• 265-CAS01-2B200 (Standard Cassettes)
• 265-CAS10-F06A2
• 264-LAP Series LGX Adapter Plates


WHY CHOOSE THE 267-RES01-1C1 RACK-MOUNT ENCLOSURE?

Professionals choose the 267-RES01-1C1 because it combines high fiber density with accessible, well-organized management. Here are 5 reasons to include it in your next fiber installation:

1. Fiber-Friendly Design – Curved routing fingers protect delicate optical fiber from sharp bends and signal degradation.
2. Flexible Depth Options – Choose 3 in. or 4 in. depth based on your fiber cable density and routing requirements.
3. Easy Reconfiguration – Removable, interchangeable design allows quick adjustments as infrastructure changes.
4. Clean Aesthetics – Black powder coating delivers a professional look that complements modern rack equipment.
5. Broad Compatibility – Integrates with Vertical Cable modular patch panels and enclosures for a unified fiber management system.

WHAT’S NEXT?

Once you’ve installed the 267-RES01-1C1:

• Add LGX Adapter Plates – Populate with 264-LAP Series plates to match your connector requirements.
• Install Splice Trays – Add up to two 24-fiber splice trays for fusion or mechanical splicing.
• Label Your Fibers – Identify each connection for faster troubleshooting and maintenance.
• Pair with Cassettes – Use Vertical Cable compact or standard cassettes for plug-and-play fiber connectivity.
