ᐉ OSP Splice Closure 96 Fiber 6-Port In-Line

Optical Fiber OSP Splice Closure | 265-OSC00-09606

Optical Fiber OSP Splice Closures, Horizontal in-line, 96 Fiber Capacity, 6-Port

Height	Width	Depth	Color	*Weight
4.3 in. (110 mm)	8.7 in. (220 mm)	17.7 in. (450 mm)	Black	6.1 lbs. – 7.1 lbs. (2.75 kg – 3.2 kg)

*Weight range depends on the number of splice cassettes installed — none to maximum.

17 People watching this product now!

Download Specification

VERTICAL CABLE 265-OSC00-09606 – OSP SPLICE CLOSURE

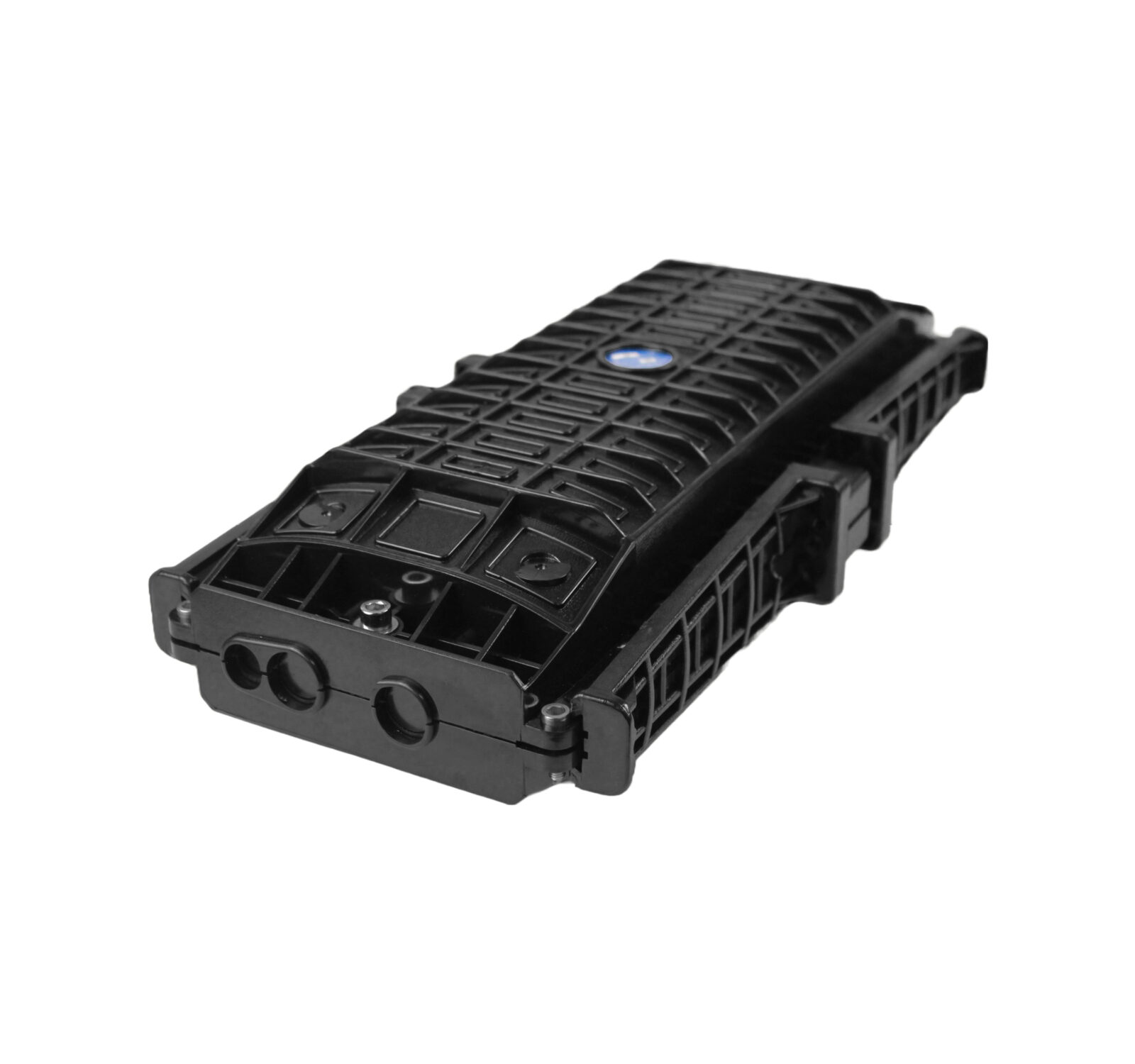

The 265-OSC00-09606 OSP Splice Closure is a rugged, horizontal in-line enclosure designed to protect fiber-optic splices in outdoor environments. Built with a high-impact, UV-resistant housing and IP68-rated sealing, it ensures reliable performance in harsh conditions. With support for up to 96 fibers and six cable entry ports, this closure provides flexible and scalable fiber management.

KEY FEATURES

The 265-OSC00-09606 Optical Fiber OSP Splice Closure is a rugged, in-line enclosure designed to protect and organize fiber-optic splices in demanding outdoor environments. Here are the key features that set it apart:

Horizontal In-Line Design: Engineered for in-line splicing, allowing for straightforward cable management in underground, aerial, or direct-burial installations.
6-Port Entry System: Accommodates up to six cable entries for flexible configurations in fiber distribution or backbone networks.
Weatherproof & Sealed Construction: Built to withstand harsh weather conditions with a durable, IP-rated sealing system that protects internal splices from moisture, dust, and environmental contaminants.

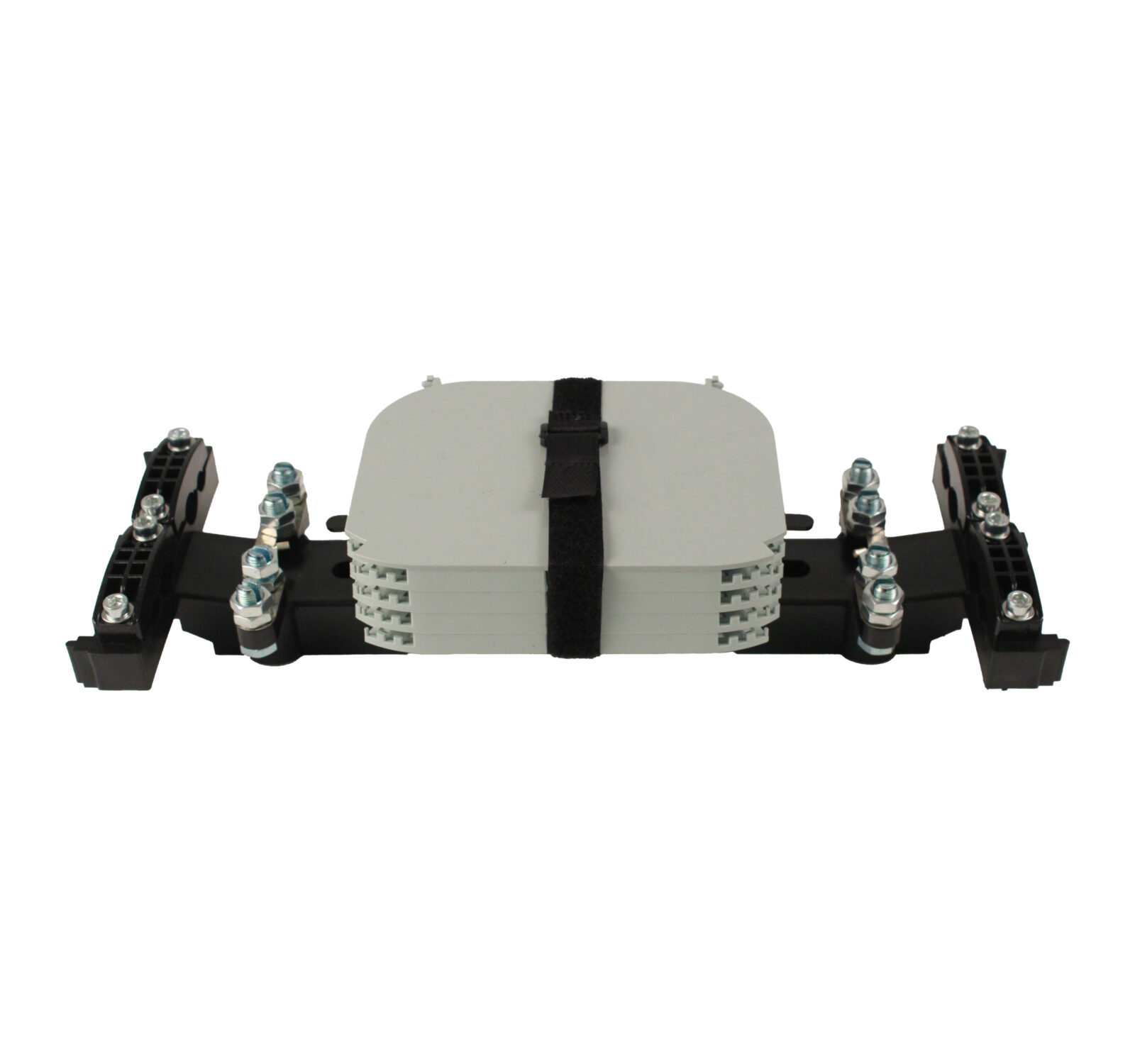

High-Capacity Splice Tray Support: It easily houses and organizes multiple splice trays, ensuring clean, secure, and accessible splicing.
Tool-Free Resealing: Designed for technician convenience, the closure can be opened and resealed without special tools, reducing maintenance time.
UV-Resistant Housing: UV-stable materials offer long-term performance in above-ground applications, protecting fibers from environmental wear and degradation.

APPLICATIONS

The 265-OSC00-09606 splice closure is ideal for a variety of outdoor fiber optic applications, including:

Long-Haul Backbone Fiber Networks
Aerial Fiber Cable Deployments
Underground Conduit or Direct-Burial Installations
FTTH (Fiber to the Home) Distribution Points
Utility and Campus Fiber Infrastructure

WHY CHOOSE THE 265-OSC00-09606 OSP SPLICE CLOSURE?

Choosing the 265-OSC00-09606 ensures long-term reliability and installation flexibility in outdoor fiber networks:

Built for Harsh Conditions: Weatherproof, dustproof, and UV-resistant for maximum durability in the field.
Flexible Cable Management: 6-port entry accommodates various layouts, from ring cuts to drop cables.
Fast Installation & Maintenance: Tool-less access speeds up field service and simplifies splicing workflow.
Scalable Capacity: Easily integrates with standard splice trays for expanding network needs.
Trusted Network Protection: A sealed, secure environment protects critical fiber splices from environmental threats.

WHAT’S NEXT?

After installing the 265-OSC00-09606 closure:

Add Compatible Splice Trays – Ensure you have the proper tray count and layout for your splice plan.
Use Fiber Management Sleeves – Protect splices and maintain bend radius integrity inside the closure.
Explore OSP Cable Options – Pair with our armored or dielectric cables for complete outdoor protection.

For more splicing and splicing accessories, visit Splicing and explore the tools and gear trusted by professionals.
