ᐉ 265-MEC01-C | Optical Fiber Mechanical Splice

Optical Fiber Mechanical Splice | 265-MEC01-C

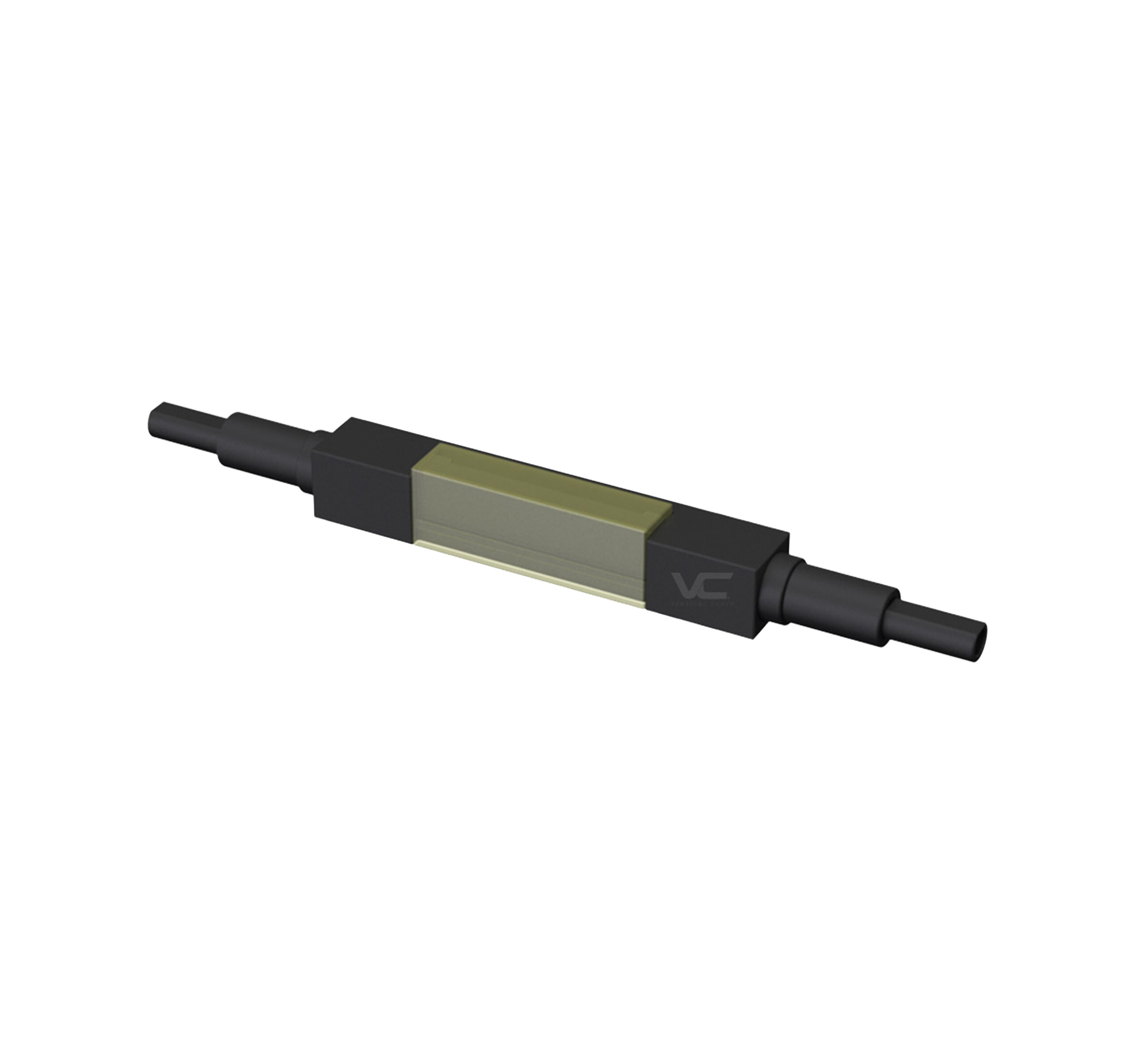

Optical Fiber Mechanical Splice, Universal, 0.25 and 0.9 mm, Pack of 6

Height	Width	Depth
0.3 in. (7.62 mm)	0.2 in. (5.08 mm)	1.5 in. (38.1 mm)

20 People watching this product now!

Download Specification

VERTICAL CABLE 265-MEC01-C – OPTICAL FIBER MECHANICAL SPLICE, UNIVERSAL (6-PACK)

The 265-MEC01-C is a universal mechanical splice designed for quick, reliable optical fiber termination. Built to support single-fiber applications, it simplifies splicing with tool-free installation in under 30 seconds. The compact profile and ANSI/TIA-568.3-D compliance make it ideal for professional fiber deployments in structured cabling systems.

KEY FEATURES

Here’s what makes the 265-MEC01-C mechanical splice a high-performance solution:

Standard 19-Inch Mounting: EIA-ECA-310-E compliant for universal rack or cabinet compatibility.
Universal Compatibility: Works with coated fibers from 250 μm to 900 μm.
Fast Installation: Splice and secure fiber in under 30 seconds—no epoxy or curing required.
Low Insertion Loss: Typical insertion loss of 0.1 dB; maximum of 0.3 dB.
High Return Loss: Provides a return loss of ≥45 dB for signal reliability.
Mechanical Strength: Maintains fiber integrity with a tensile strength of ≤4 N (0.9 lbf).
Compact Dimensions: Measures 1.5 in. × 0.2 in. × 0.3 in. (38.1 mm × 5.08 mm × 7.62 mm).
Wide Temperature Range: Operates from -20 °C to +70 °C (-4 °F to +158 °F).
Included in Each Pack: Sold as a 6-pack for field readiness and scalability.
Storage Resilience: Withstands temperatures down to -45 °C (-49 °F) in non-operational conditions.
Optional Holder Available: Compatible with Vertical Cable’s 12-fiber holder (265-HLD13-2B4-0).

APPLICATIONS

The 265-MEC01-C is ideal for technicians and integrators working in:

Fiber Termination in the Field: Enables fast splicing during emergency repairs or last-mile installations.
FTTH/FTTX Projects: Excellent for residential or commercial drop fiber applications.
LAN and Data Networks: Supports structured cabling backbones and telecom closets.
Test Labs or Temporary Links: Easily reversible splicing for testing or move/add/change environments.
Tight Spaces or Low-Profile Installations: Compact size fits confined enclosures or raceway runs.

WHY CHOOSE THE 265-MEC01-C UNIVERSAL MECHANICAL SPLICE?

Professionals trust the 265-MEC01-C for its speed, reliability, and field flexibility. Here are five reasons it’s a top-tier choice:

Tool-Free Simplicity – No curing, polishing, or special tools required.
Time-Saving Install – Complete splicing in under 30 seconds for faster field workflows.
Versatile Fiber Support – Splice 250 μm to 900 μm coated fibers with ease.
Standards-Compliant – Meets ANSI/TIA-568.3-D requirements for fiber network performance.
Pack Efficiency – 6-pack configuration helps streamline field kit stocking and job site prep.

WHAT’S NEXT?

After adding the 265-MEC01-C to your fiber install toolkit:

Pair with the 12-Fiber Holder – Organize multiple splices cleanly with the optional 265-HLD13-2B4-0.
Stock Up – Keep multiple packs on hand for volume installs or unexpected service calls.
Combine with Patch Panels – Splice and terminate inside LGX-style fiber panels.
Label Clearly – Use color-coded sleeves or tape to mark fiber types or destinations.
Train Your Team – Equip field staff with splicing confidence through quick demos and practice runs.
