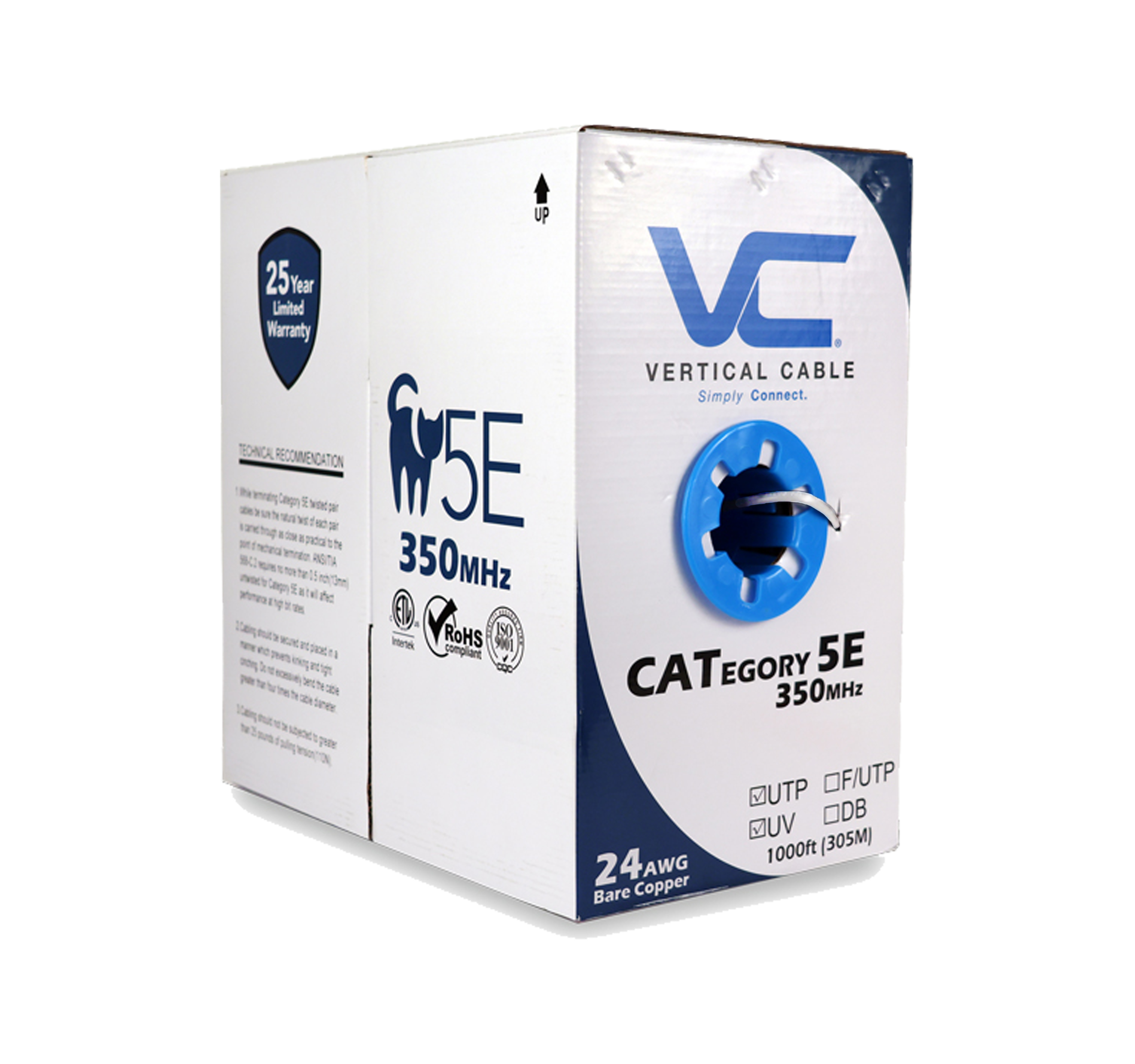

VERTICAL CABLE 059-484/CMX/WH – CAT5E OUTDOOR CABLE
The 059-484/CMX/WH CAT5E outdoor cable is designed to withstand harsh environmental conditions while delivering fast and reliable Ethernet performance. Its UV-rated jacket and solid copper conductors make it the go-to solution for outdoor networking.
KEY FEATURES
Here are its key features:
- Cable Type: CAT5E UTP (Unshielded Twisted Pair) with UV-resistant CMX-rated jacket
- Bandwidth: Rated up to 350 MHz for high-speed data, voice, and PoE applications
- Conductor: Solid bare annealed copper, 24 AWG (0.51 mm diameter)
- Structure: 4 twisted pairs (8 conductors total) for minimized crosstalk and signal integrity
- Insulation: Polyethylene with 0.04″ (0.91 mm) outer diameter per conductor
- Jacket Material: Linear Low-Density Polyethylene (LLDPE), engineered for outdoor exposure
- Outer Diameter: 0.20″ (5.10 mm) for compact and flexible routing
- Jacket Thickness (Avg/Min): 0.0236″ / 0.0212″ (0.60 mm / 0.54 mm)
- Rip Cord: Included for easy and clean jacket removal
- Color Coding: Standard CAT5E pairs—Blue, Orange, Green, Brown with white stripe matches
- Jacket Markings: CMX UV CAT5E 350MHz ANSI/TIA-568.2-D, RoHS, ETL Verified
- Temperature Range: –40 °F to 167 °F (–40 °C to 75 °C)
- Fire Rating: CMX per NEC Article 800
- Weight: 20 lb (9.07 kg) per 1000 ft (304.8 m) pull box
- Color: White for low-visibility exterior installs
- Certifications: ETL Listed, RoHS Compliant, CAN/CSA-C22.2 No. 214 certified
APPLICATIONS
Ideal for outdoor network runs where performance, safety, and weather resistance are critical. Perfect for:
- Exterior IP Camera Cabling
- Outdoor Wireless Access Points
- Temporary Outdoor Ethernet Drops
- Building-to-Building Network Links
- Commercial, Event, or Campus Networking
WHY CHOOSE THE 059-484/CMX/WH – CAT5E OUTDOOR CABLE?
Engineered for extreme conditions, this cable combines electrical reliability with physical resilience:
- Weather-Tough Jacket: UV-rated LLDPE resists sunlight and moisture degradation.
- PoE-Ready: Solid copper conductors support Gigabit Ethernet and PoE applications.
- Install-Friendly: Rip cord and flexible build simplify outdoor installations.
- Standards-Based: Meets or exceeds TIA and ISO/IEC specs for CAT5E cable.
- Sleek Finish: The white jacket blends seamlessly into outdoor trim and structures.
WHAT’S NEXT?
After selecting the 059-484/CMX/WH:
- Plan Your Route – Ideal for outdoor-to-indoor transitions
- Choose Compatible Connectors – Use with CAT5E-rated RJ45 jacks
- Label and Protect – Apply weatherproof labeling and outdoor-rated enclosures
For more premium CAT5E Outdoor Cables and other solutions, visit CAT5E Outdoor and discover top-tier solutions today!
