047-SRD-4268

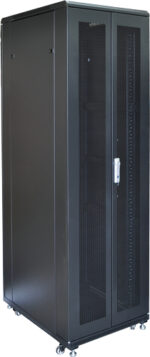

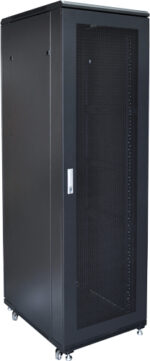

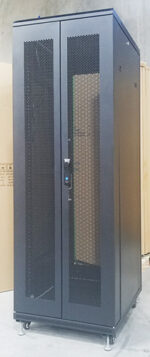

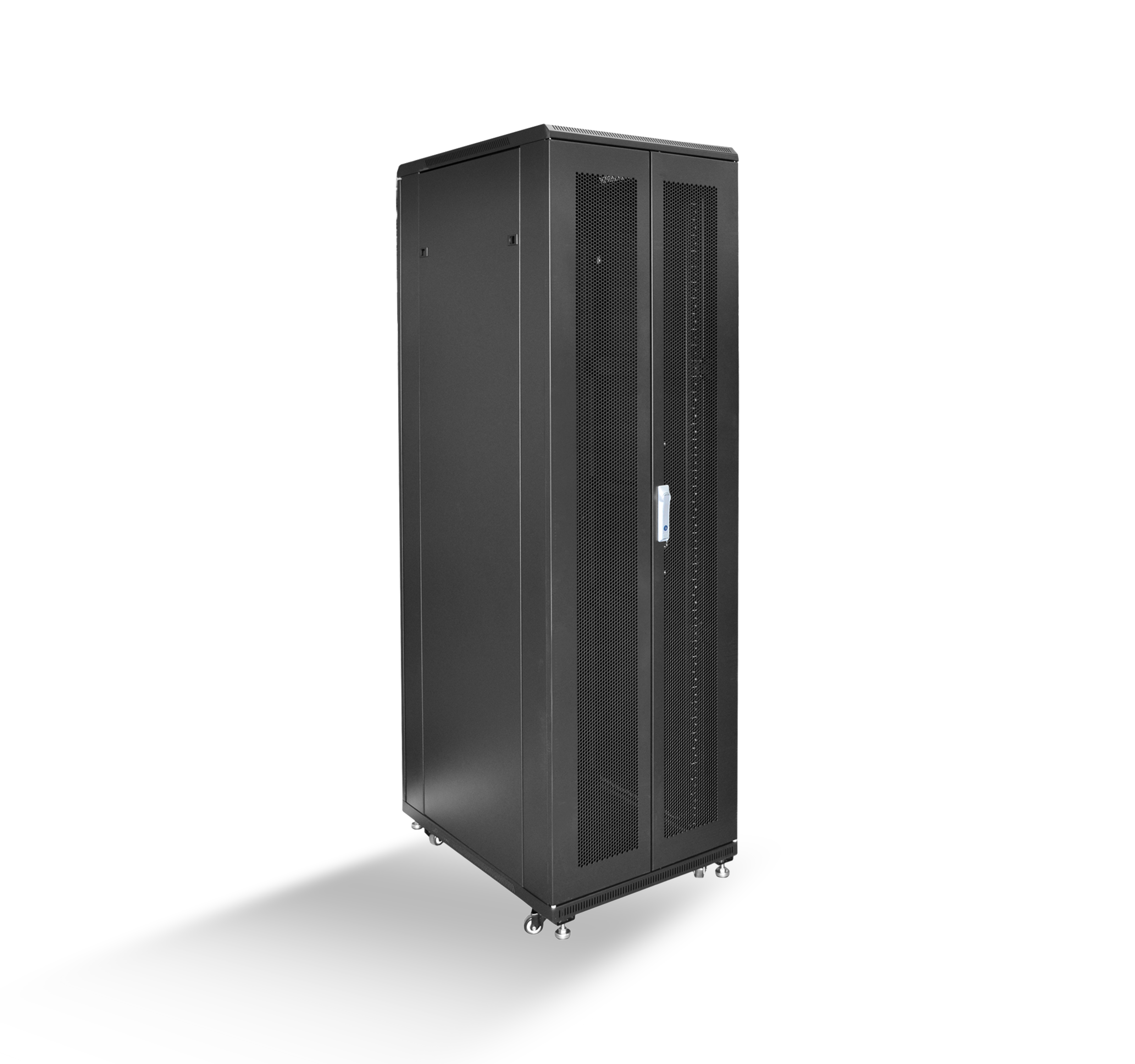

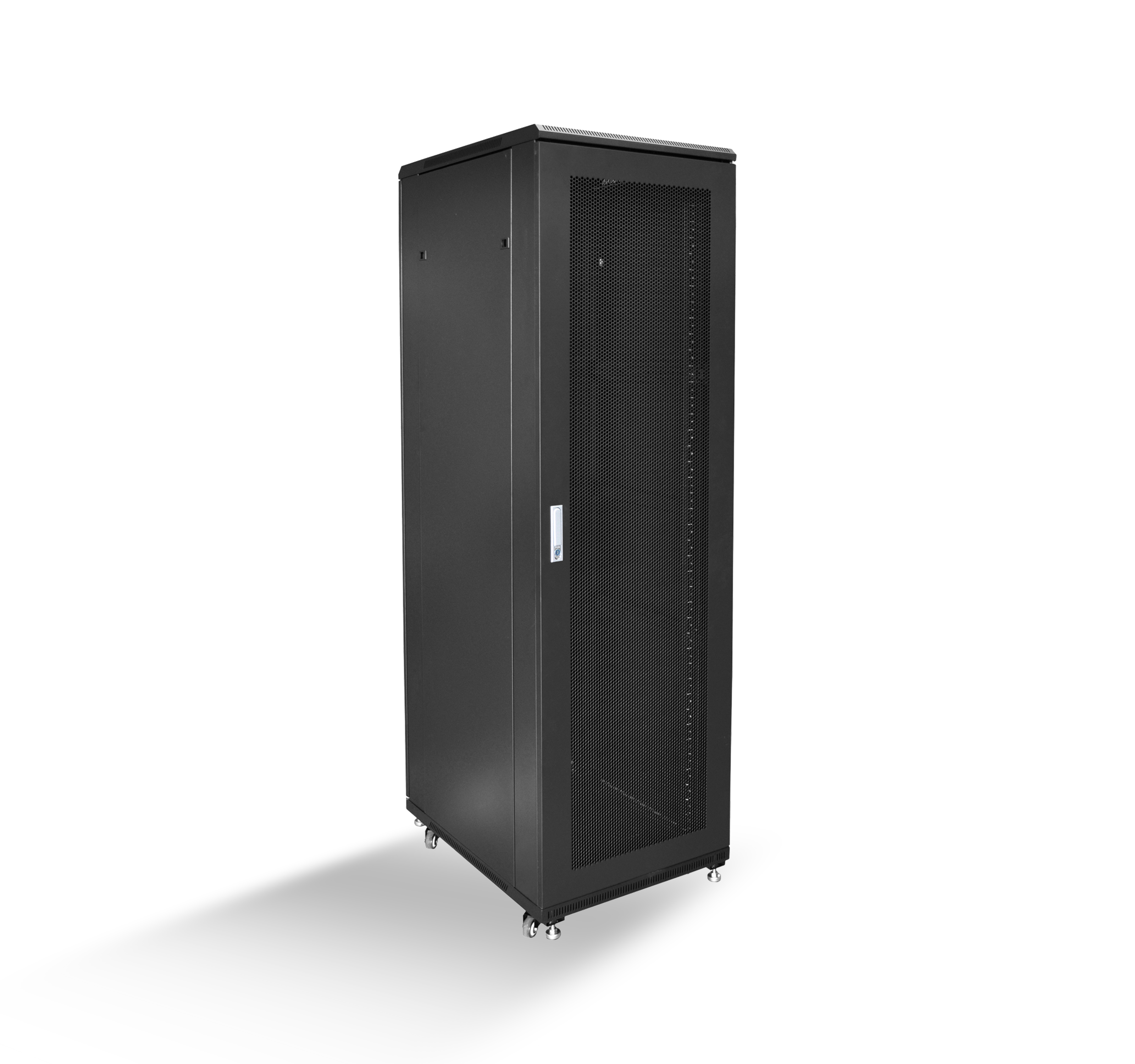

VERTICAL CABLE 047-SRD-4268 – 42 RMU NETWORK SERVER CABINET

The Vertical Cable 047-SRD-4268 is a high-capacity, fully enclosed 19-inch server cabinet designed to house critical IT and AV equipment. With strong airflow support, cable routing features, and lockable access points, it delivers performance, protection, and flexibility for professional installations.

KEY FEATURES

Here are some of its standout features:

• Rack Capacity: 42 rack mount units (RMU) for 19″ (482.6 mm) standard equipment
• Usable Depth: 27.1″ (688.34 mm) for mounting deep network gear
• Weight: 235 lb (106.59 kg) empty
• Load Rating: Supports up to 2204 lb (999.72 kg) of mounted equipment
• Construction: Heavy-duty steel frame with durable black powder-coated finish
• Thermal Control: Vented top and bottom panels with integrated cooling fans

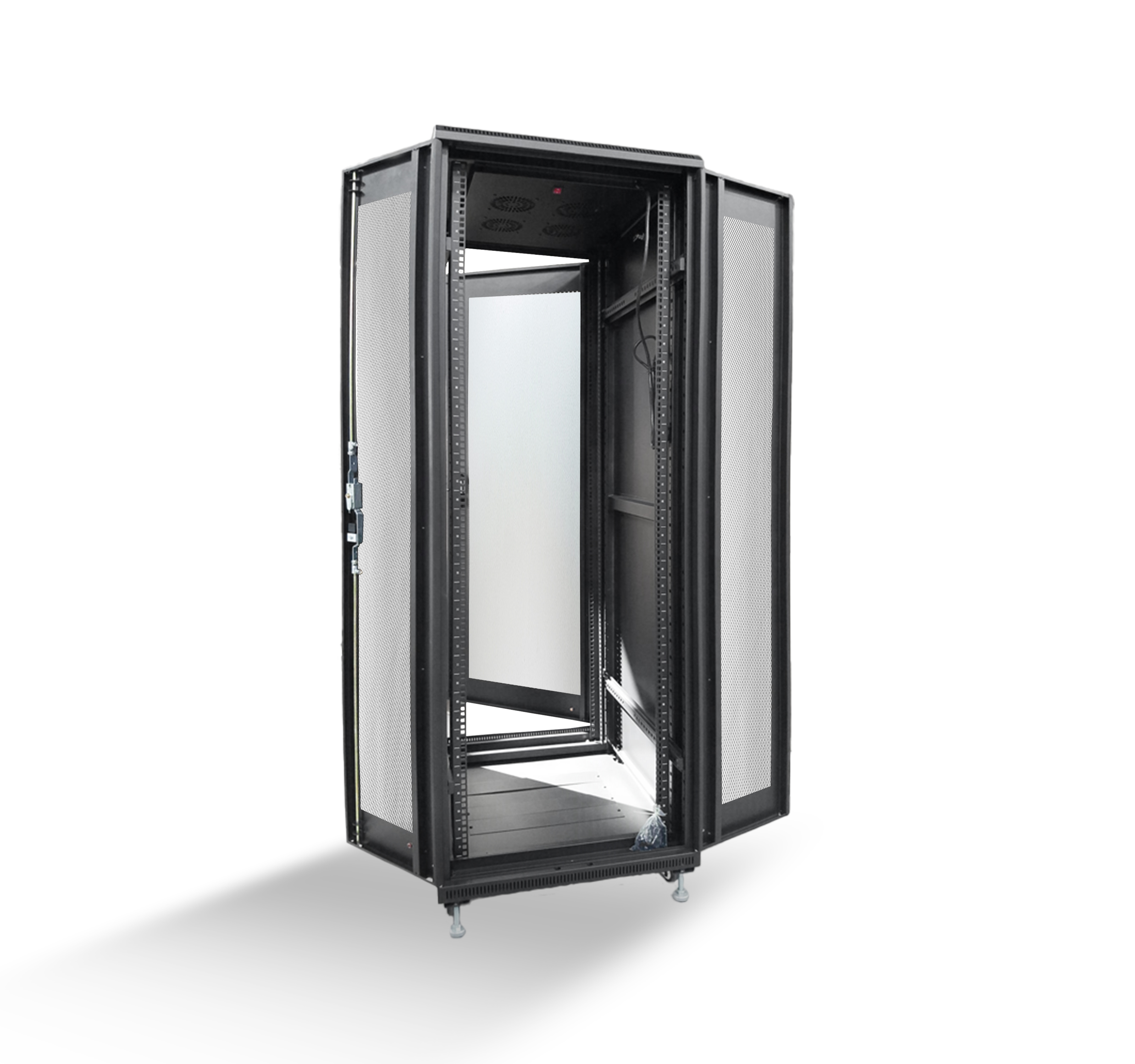

• Access Design: Locking front and rear doors with removable side panels
• Cable Management: Adjustable cable routing channels on both top and bottom
• Mounting Hardware: Ships fully assembled with support feet and pre-installed casters

APPLICATIONS

The 047-SRD-4268 cabinet is ideal for data infrastructure projects that require secure, well-organized, and thermally managed storage. Best for:

• Data Centers
• Enterprise Network Closets
• Telecom Rooms
• AV and Broadcast Control Rooms
• Managed IT Services

WHY CHOOSE THE 047-SRD-4268 NETWORK SERVER CABINET?

This 42U cabinet provides the features network professionals need to install, secure, and manage critical hardware efficiently:

1. High Capacity & Strength: Supports heavy-duty equipment up to 2204 lb (999.72 kg).
2. Built-in Cooling: Includes fans and ventilation to prevent heat buildup.
3. Complete Access Control: Lockable front and rear doors protect sensitive gear.
4. Easy Cable Routing: Top and bottom access points keep wiring clean and accessible.
5. Fully Assembled: Saves time on-site with a ready-to-deploy configuration.

WHAT’S NEXT?

After installing your 047-SRD-4268:

• Organize Cables – Use Velcro straps or vertical cable managers for a clean setup
• Add Rack Accessories – Install compatible shelves, PDUs, or blanking panels
• Label Devices – Mark-mounted hardware for fast maintenance and upgrades

For more options and information on similar products, visit Network Enclosure.
