047-WVS-3400
3 RMU, 19 in Single-Sided Vented Shelf
| Height | Width | Depth | Color | Weight | Capacity |
| 5.3 in. (134.6 mm) | 19 in. (482.6 mm) | 15.8 in. (401.3 mm) | Black | 4.1 lb (1.9 kg) | 37 lb (16.8 kg) |
047-WSS-3400
3 RMU 19 in. Single-Sided Non-Vented Shelf
| Height | Width | Depth | Color | Weight | Capacity |
| 5.3 in. (134.6 mm) | 19 in. (482.6 mm) | 15.7 in. (398.8 mm) | Black | 4.9 lb (2.2 kg) | 44 lb (20 kg) |
047-WSS-3551
1 RMU 19 in. Vented Sliding Shelf
| Height | Width | Depth | Color | Weight | Capacity |
| 1.8 in. (45.7 mm) | 19 in. (482.6 mm) | 25-36 in. (635-914.4 mm) | Black | 12 lb (5.4 kg) | 44 lb (20 kg) |
047-WSS-2400
2 RMU 19 in. Single-Sided Non-Vented Shelf
| Height | Width | Depth | Color | Weight | Capacity |
| 3.5 in. (88.9 mm) | 19 in. (482.6 mm) | 15.7 in. (398.8 mm) | Black | 4.4 lb (2 kg) | 44 lb (20 kg) |
047-WSS-1300
1 RMU 19 in. single-sided non-vented steel shelf, 12 in. (304.8 mm) deep, supports up to 30.8 lb, with mounting hardware.
| Height | Width | Depth | Color | Weight | Capacity |
| 1.8 in. (44.5 mm) | 19 in. (482.6 mm) | 12 in. (304.8 mm) | Black | 3.9 lb (1.8 kg) | 30.8 lb (14 kg) |
047-WFM-1226
12 RMU Wall-Mount Open Fixed Rack – A compact, adjustable-depth rack perfect for organizing small network or AV setups. Ideal for wall-mounted installations in tight spaces.
| Height | Width | Mounting Width | Adjustable Depth | Color | Weight | Capacity |
| 24.8 in. (629.9 mm) | 20 in. (508 mm) | 19 in. (482.6 mm) | 18-30 in. (457.2-762 mm) | Black | 23.1 lb. (10.5 kg) | 66 lb. (29.9 kg) |
047-WFM-0826
8 RMU Wall-Mount Open Fixed Rack – A compact, adjustable-depth rack perfect for organizing small network or AV setups. Ideal for wall-mounted installations in tight spaces.
| Height | Width | Mounting Width | Adjustable Depth | Color | Weight | Capacity |
| 17.8 in. (452.12 mm) | 20 in. (508 mm) | 19 in. (482.6 mm) | 18-30 in. (457.2-762 mm) | Black | 22 lb. (10 kg) | 44 lb. (20 kg) |
047-WSM-2026
20 RMU Wall Mount Open Frame Rack – Front Swing Out is designed for easy installation with M6 screws and cage nuts. It features an adjustable depth ranging from 18 to 30 inches and comes unassembled for convenient shipping and setup.
| Height | Width | Depth | Color | Weight | Capacity (Open) | Capacity (Closed) |
| 40.9 in. (1038.9 mm) | 21.7 in. (551.2 mm) | 18-30 in. (457.2-762 mm) | Black | 32.6 lb (14.8 kg) | 44 lb (20 kg) | 65 in. (29.5 kg) |
047-WHS-1270
The 12 RMU Wall-Mount Swing-Out Enclosure (31″ depth) provides secure, deep rack space with rear swing access, built-in ventilation, and lockable panels.
| Height | Width | Depth | Usable Depth | Color | Weight | Capacity |
| 25 in. (635 mm) | 24 in. (609.6 mm) | 31 in. (787.4 mm) | 22.5 in. (571.5 mm) | Black | 69 lb (31.3 kg) | 132 lb (59.9 kg) |
047-WSM-0826
8 RMU Wall Mount Open Frame Rack – Front Swing Out is designed for easy installation with M6 screws and cage nuts. It features an adjustable depth ranging from 18 to 30 inches and comes unassembled for convenient shipping and setup.
| Height | Width | Depth | Color | Weight | Capacity (Open) | Capacity (Closed) |
| 19.9 in. (505.5 mm) | 21.7 in. (551.2 mm) | 18-30 in. (457.2-762 mm) | Black | 27 lb (12.2 kg) | 25 lb (11.3 kg) | 65 in. (29.5 kg) |
047-WSM-1226
12 RMU Wall Mount Open Frame Rack – Front Swing Out is designed for easy installation with M6 screws and cage nuts. It features an adjustable depth ranging from 18 to 30 inches and comes unassembled for convenient shipping and setup.
| Height | Width | Depth | Color | Weight | Capacity (Open) | Capacity (Closed) |
| 26.9 in. (683.3 mm) | 21.7 in. (551.2 mm) | 18-30 in. (457.2-762 mm) | Black | 29 lb (13.2 kg) | 33 lb (15 kg) | 65 in. (29.5 kg) |
046-390/E
4U Hinge Type Adjustable Wall Mount Bracket. 10” to 13” Adjustable Depth.
Fits 96 Port

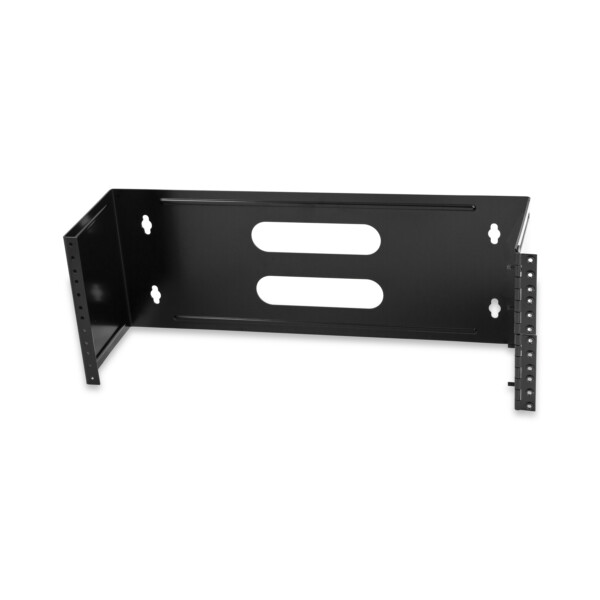

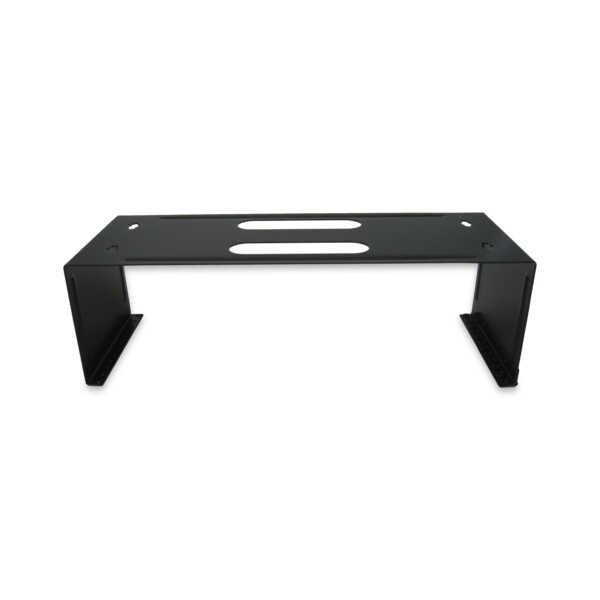

046-390
The 046-390 hinged wall-mount bracket features a sturdy bracket and hinge made of 2 mm and 1.5 mm thick black-painted steel, respectively. It is designed to fit a 96 port, 4 RMU standard 19-inch patch panel and includes 16 M5 screws (5 mm x 15 mm) for easy installation.
047-DVR-V
Vertical DVR Mounting Bracket – Durable steel bracket designed to mount DVRs or NVRs in a vertical position securely. Ideal for under-desk, shelf, or wall installations.
| Height | Width | Depth | Color | Weight |
| 21 in. (533.4 mm) | 8 in. (203.2 mm) | 8 in. (203.2 mm) | Black | 6.3 lb (2.86 kg) |
