VERTICAL CABLE 214-2360s SERIES – OSDP CABLE
The OSDP plenum Cable is a high-performance cable designed for plenum-rated security, control, speaker and motion sensor applications. Built with multiple shielded and unshielded components, this low-voltage cable ensures reliable two-way data transmission, device supervision, and secure encrypted connectivity between access control panels and readers.
KEY FEATURES
Here’s what sets the 214-2360s Series apart for demanding building infrastructure:

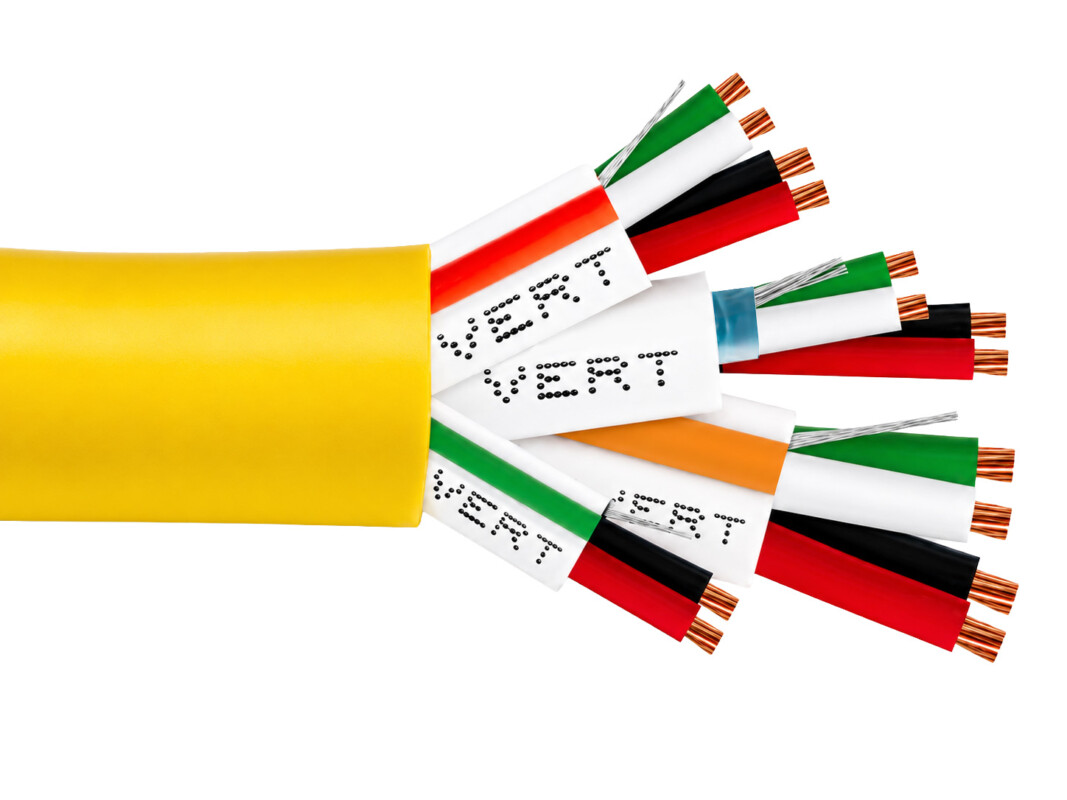

- 4-Component Composite Cable: Includes 22/2 Shielded & 18/2 + 18/4 +22/4 + 22/2 conductors.
- Plenum Rated: Compliant for installation in air-handling spaces and commercial buildings.
- Enhanced Security: Creates a more secure and modern access control connection, with encrypted communication.
- Stranded Bare Copper Conductors: Improves flexibility and conductivity across all components.
- Color-Coded Jackets: Printed component markings for easy identification—card reader, power, REX, and door contact.
- Foil Shielded Pair: The 22/2P component features a foil shield and drain wire for enhanced noise protection.
- Rip Cords Included: Each component features its nylon rip cord, and there’s an overall ripcord for simplified jacket stripping.
- Meets ANSI/TIA-568.2-D & ISO/IEC 11801: Designed to exceed industry performance standards.
- ETL Listed & RoHS Compliant: Ensures environmental safety and regulatory approval.
- Available Jacket Colors: Choose from White or Yellow to suit your site’s identification needs.

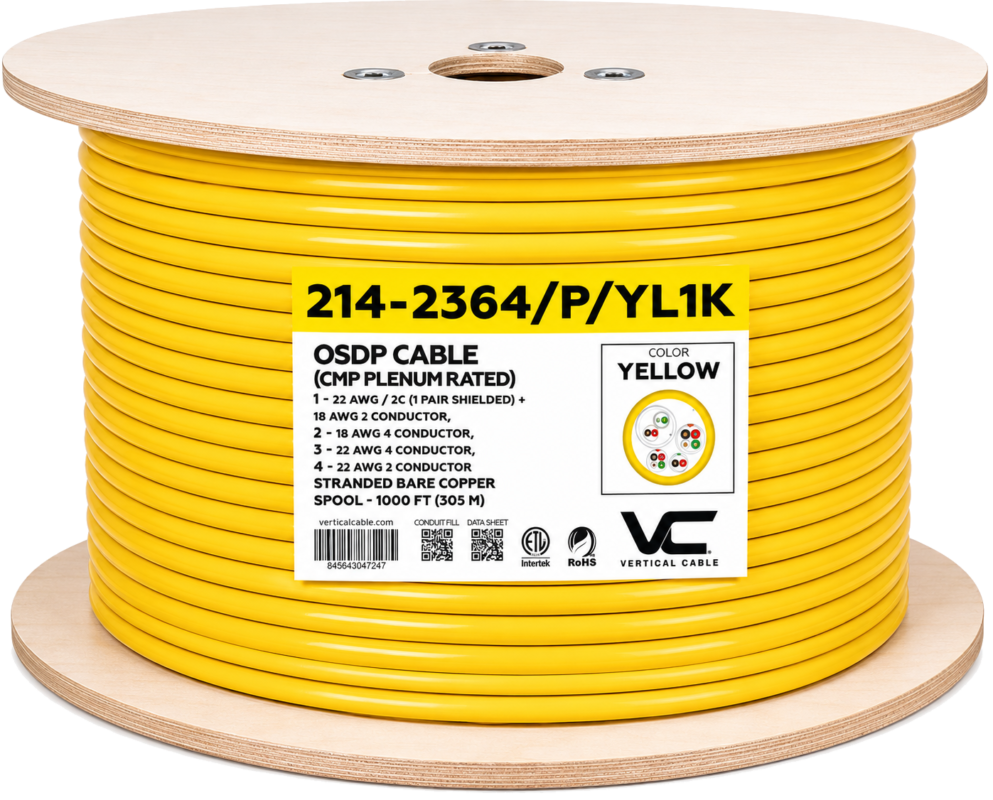

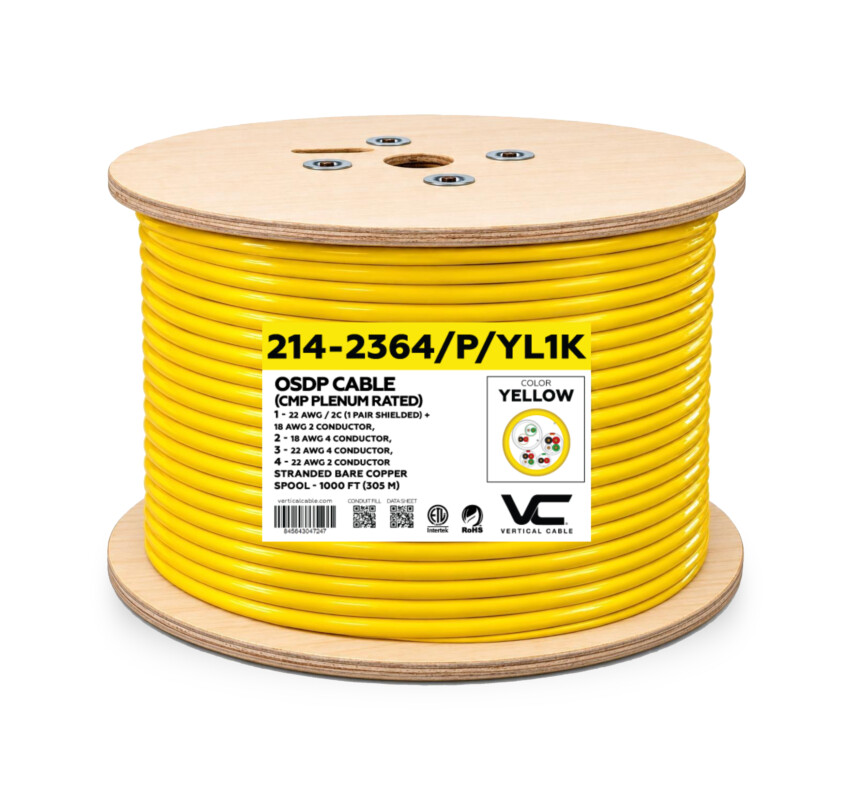

- Packaged on a Wooden Spool: Comes in a 1000 ft (304.8 m) spool for large-scale installations.
APPLICATIONS
The OSDP Cable is engineered for multi-function access and control systems, including:
- Security Panels
- Card Readers and Keypad Circuits
- Door Contact Sensors and Power Locks
- Alarm Triggers and REX Motion Sensors
- Microphones, Audio Paging, and Speakers
WHY CHOOSE THE 214-2360s SERIES OSDP CABLE?
Our Access Control cable may suffice your needs, but the table below shows why you would want to choose our OSDP cable instead:
| Feature | 214-2300s Access Control | 214-2360s OSDP |
|---|---|---|
| Reader Communication | Traditional Wiegand | OSDP (RS-485) |
| Data Flow | One-way | Two-way |
| Cybersecurity | No encryption | Supports AES-128 Secure Channel |
| Reader Pair | 22/3P shielded (3 twisted pairs) | Dedicated 22/2 shielded OSDP pair |
| Characteristic Impedance | Not specified | 120Ω (RS-485 optimized) |
| Capacitance | Standard access control | 12.5 pF/ft for OSDP pair |
| Shielding | Shielded reader component | Dedicated shielded communication pair |
| Future Readiness | Legacy systems | Modern access control systems |
| Maximum Distance | ~500 ft (Wiegand typical) | Up to 4,000 ft (1,200 m) |
Installers choose the 214-2360s Series for efficiency, performance, and compliance:
- Four Cables in One: Reduces installation time and material clutter.
- Shielded and Unshielded in One Run: Perfect for signal integrity and noise isolation.
- Pre-Marked Components: Eliminates guesswork during installation.
- Plenum Rated Safety: Approved for use in plenum ceilings and HVAC spaces.
- Trusted by Pros: Meets electrical, mechanical, and environmental standards across multiple industries.
WHAT’S NEXT?
Once you’ve selected the OSDP cable:
- Map Cable Paths – Label runs for each component function.
- Pair with Access Devices – Compatible with all major security panels.
- Use Color Coding – Select Yellow or White for simplified site ID.
- Explore More Solutions – Browse our selection of power supplies, connectors, and enclosures.
For complete Access Control Cable Wiring Solutions, visit Access Control Cable and discover top-tier solutions today!
