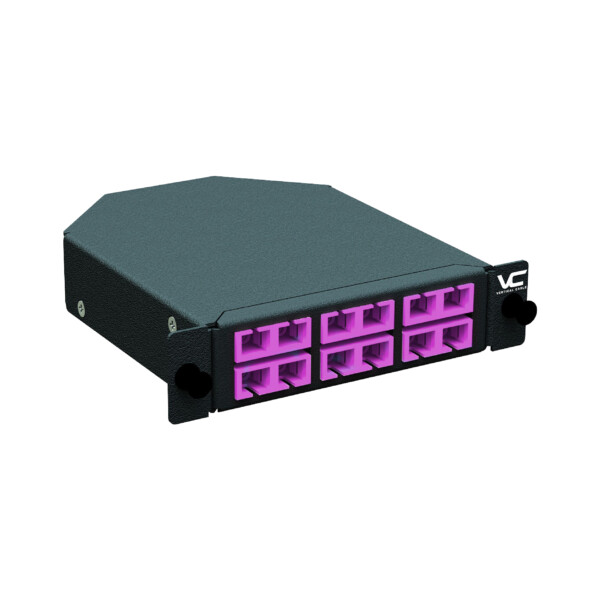

MPO Pre-Connectorized SC Multimode LGX Cassette | 264-MCA0412-2AAS1
Back to products
264-MCS0312-3A90
Splicing LC Multimode OM3 LGX Cassette | 264-MCS0312-3A90

MPO Pre-Connectorized SC Singlemode LGX Cassette | 264-MCA0U12-2AAS2

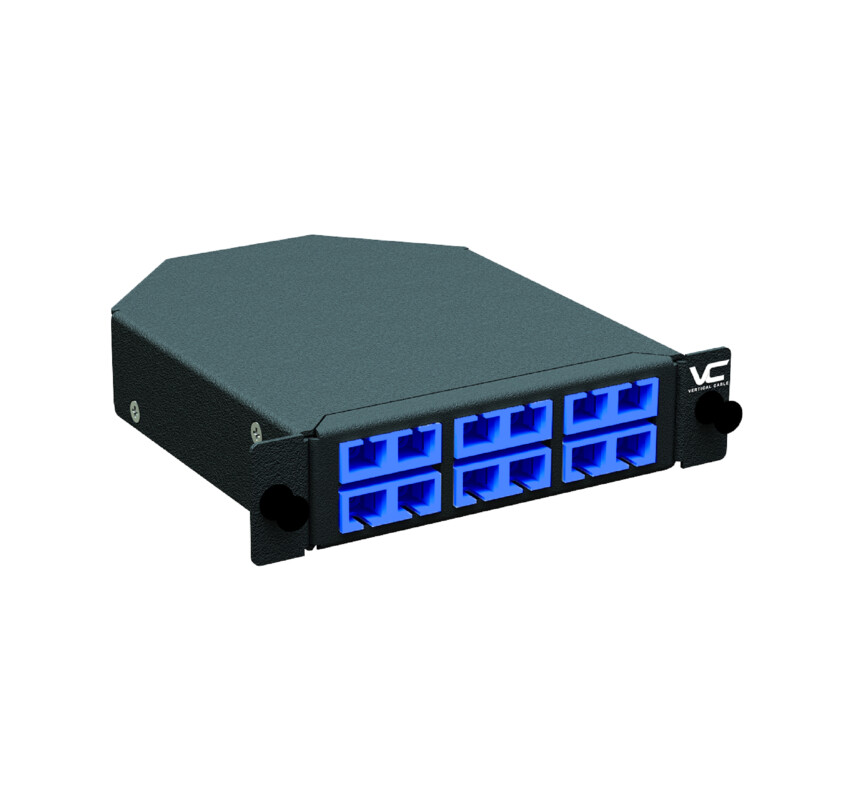

MPO Pre-Connectorized LGX Cassette SC Singlemode UPC, Standard Loss, Type-A, 1x MPO, 12-Fiber

HeightWidthDepthWeight
(Cassette Box)		Weight
(Assembled)
1.14 in.
(29 mm)		5.12 in.
(130 mm)		5.12 – 5.7 in.
(130 – 145 mm)		0.33 lbs.
(5.3 oz)		0.44 lbs.
(7 oz)
Compatible with LGX enclosures and available in multiple port types and configurations.
Compare
Add to wishlist
18 People watching this product now!
SKU: 264-MCA0U12-2AAS2 Category:
Download Specification
Description

VERTICAL CABLE 264-MCA0U12-2AAS2 – SC SINGLEMODE UPC MPO PRE-CONNECTORIZED LGX CASSETTE

The 264-MCA0U12-2AAS2 is a 12-fiber LGX Cassette that converts MPO/MTP trunk connectivity into individual SC duplex singlemode connections. Delivered as a fully pre-terminated and tested kit, this LGX Cassette pairs a Type-A MPO-12 rear interface with SC duplex front adapters optimized for singlemode UPC performance. Built to the standard LGX footprint, the 264-MCA0U12-2AAS2 simplifies high-density fiber deployments by eliminating field termination while maintaining low insertion loss and Telcordia GR-326-CORE compliance.

KEY FEATURES

Here’s what makes the 264-MCA0U12-2AAS2 an ideal LGX Cassette:

  • 12-Fiber SC Duplex Front Interface: Breaks out a single 12-fiber MPO trunk into 6 SC duplex singlemode connections.
  • Type-A MPO-12 Rear Adapter: Flanged Type-A polarity configuration for standard MPO trunk cable compatibility.
  • Standard Loss MPO-12 Pinned (SENKO): Reliable rear connectivity using industry-standard SENKO pinned MPO adapters.
  • Fully Pre-Terminated and Tested: Ships ready to install, eliminating on-site fiber termination and testing.
  • Singlemode UPC Optimized: Front SC adapters rated for SM performance with 0.20 dB typical / 0.25 dB max insertion loss.
  • Standard LGX Footprint: Fits standard LGX-compatible enclosures and mounting hardware.
  • Complete Kit Includes: Base with cover, front bracket with installed adapters, matching wiring harness, rear cable-entry adapter plate, and 2 blank rear adapter plates.
  • Zirconia Ceramic Sleeves: One-piece front adapter construction with split ceramic sleeves for durable, low-loss mating.
  • Telcordia GR-326-CORE Compliant: Meets carrier-grade standards for fiber optic connector hardware.

APPLICATIONS

The 264-MCA0U12-2AAS2 LGX Cassette excels in high-density singlemode fiber deployments:

  • Data Centers: Rapidly deploy pre-terminated SC singlemode connectivity from MPO backbone trunks, reducing installation time and testing errors.
  • Telecommunications Rooms: Simplify MDF/IDF cross-connects by converting MPO trunks to individual SC duplex singlemode ports.
  • Enterprise Fiber Networks: Support singlemode uplinks and long-haul backbone runs using legacy or current SC-terminated equipment.
  • Colocation Facilities: Standardize high-density, pre-tested fiber connectivity across multi-tenant deployments.
  • Central Offices and Carrier Networks: Meet Telcordia GR-326-CORE requirements for carrier-grade singlemode connectivity.

WHY CHOOSE THE 264-MCA0U12-2AAS2 LGX CASSETTE?

Professionals choose the 264-MCA0U12-2AAS2 for its plug-and-play deployment, reliable singlemode performance, and standard LGX compatibility. Here are 5 reasons to specify it for your next project:

  1. Faster Deployment – Fully pre-terminated and tested construction eliminates field termination, significantly reducing installation time.
  2. Reliable Singlemode Performance – SC UPC front adapters deliver low, consistent insertion loss for long-haul and backbone applications.
  3. Complete Kit Convenience – Ships with the base, bracket, harness, and rear adapter plates, ready for immediate installation.
  4. Standard LGX Compatibility – Fits existing LGX enclosures and mounting hardware without modification.
  5. Carrier-Grade Reliability – Telcordia GR-326-CORE and ANSI/TIA-568.3-D compliance support demanding enterprise and carrier applications.

WHAT’S NEXT?

Once you’ve specified the 264-MCA0U12-2AAS2 for your project:

  • Confirm Trunk Compatibility – Verify your MPO-12 trunk cable matches Type-A polarity and standard loss (SENKO pinned) connectivity.
  • Select SC Patch Cables – Choose singlemode UPC SC duplex patch cords to complete front-side connections.
  • Verify Enclosure Rear Depth – Ensure the target enclosure provides adequate rear depth space (8 in. enclosed / 6.5 in. open) for cassette installation.
  • Install and Label – Mount the cassette in the LGX enclosure, connect the MPO trunk, and label all 6 SC positions for easy maintenance.
