VERTICAL CABLE 167 SERIES – CAT6 UTP CMP (PLENUM-RATED) UL-LISTED
The 167 Series CAT6 UTP CMP cable offers high-performance data transmission and fire safety for commercial and enterprise-grade networks. Designed for plenum spaces, it’s ideal for installations that demand UL-listed safety, PoE compatibility, and U.S.-manufactured quality. This cable comes in a 1000 ft pull box and supports speeds up to 10 Gbit/s.
KEY FEATURES
What makes the 167 Series a trusted choice for network cabling professionals:
- CMP Fire Rating: Certified for use in plenum air spaces per UL 444 and NFPA 262.

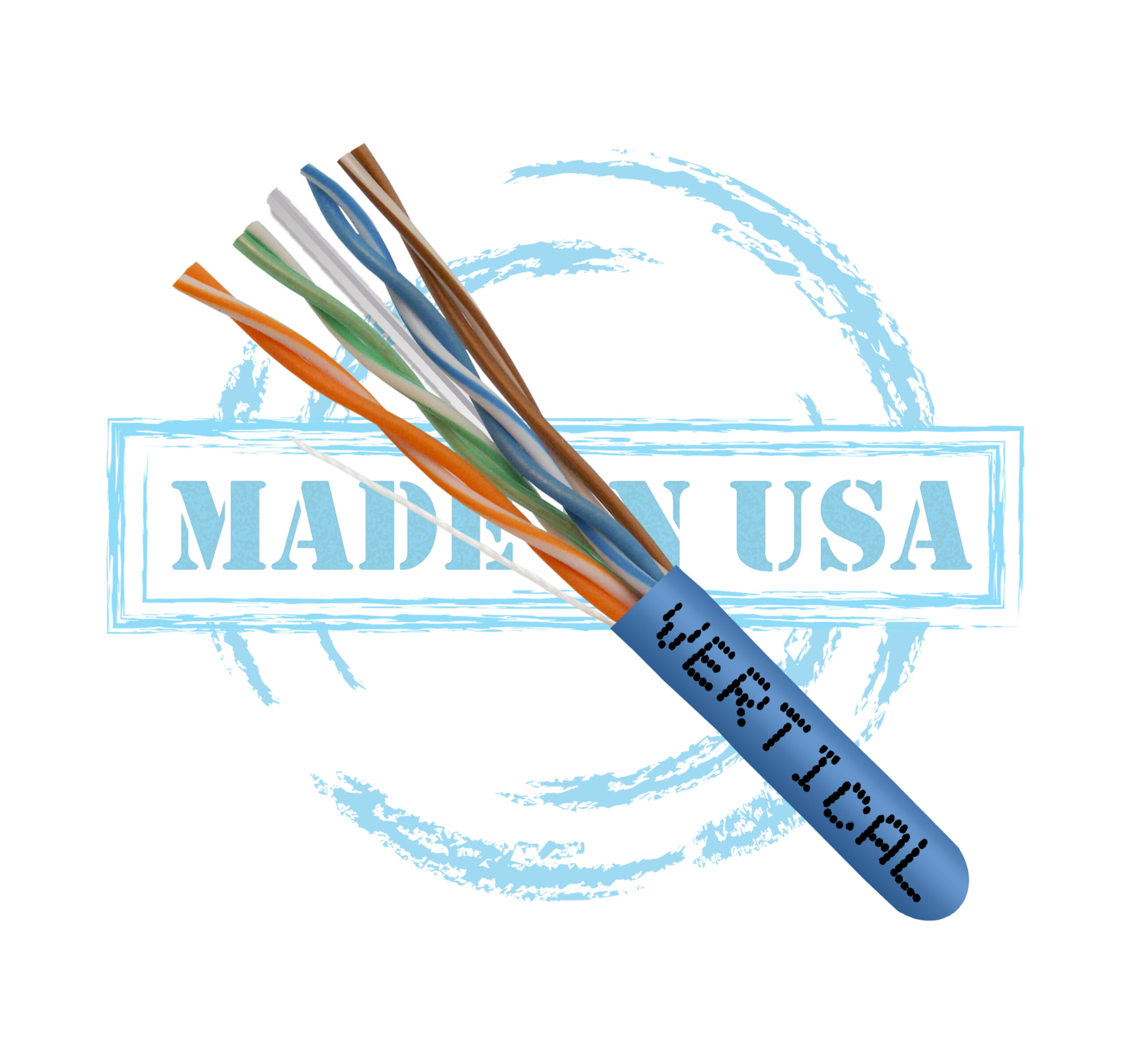

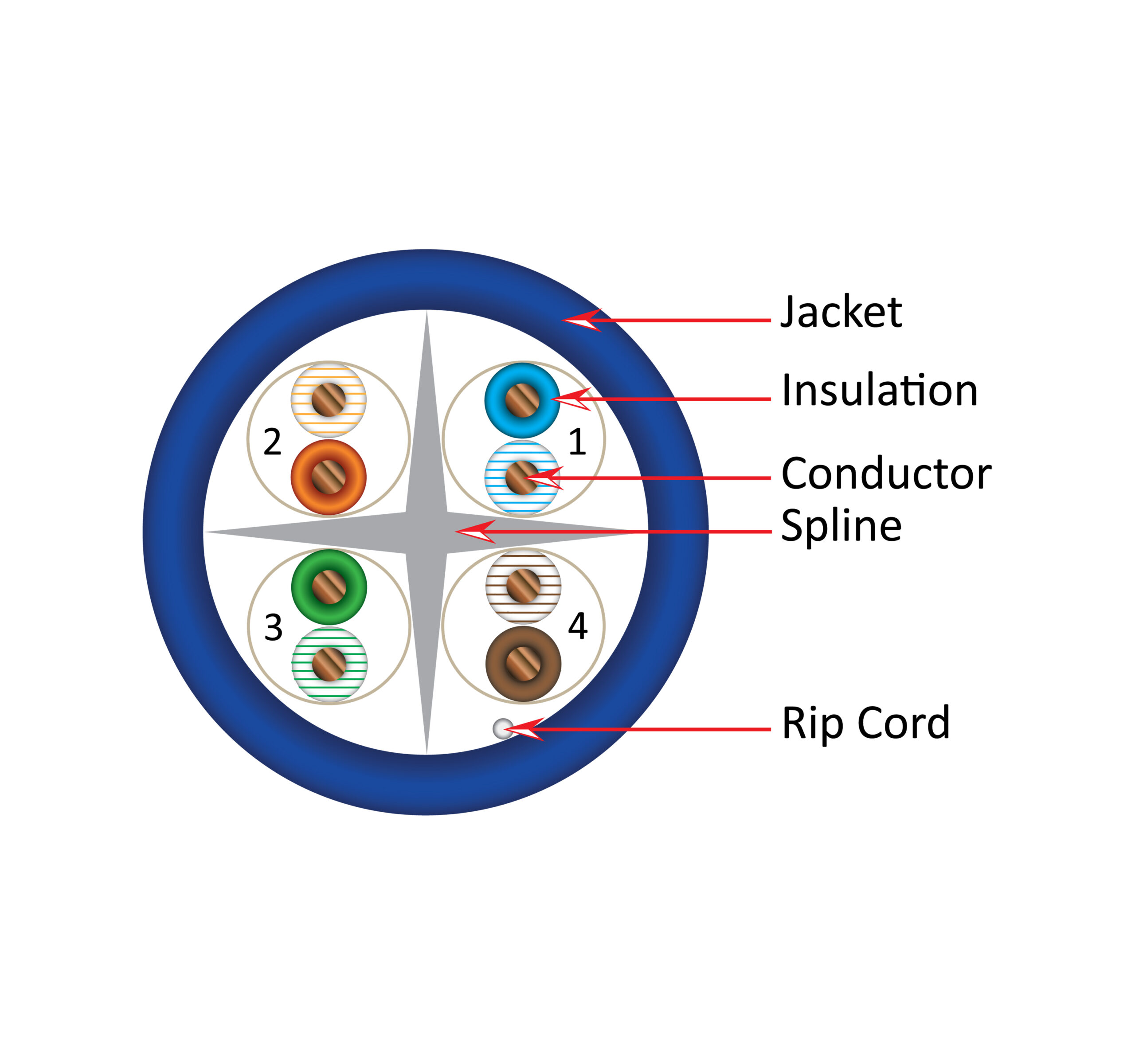

- Solid Bare Copper Conductors: 23 AWG construction ensures strong signal transmission and mechanical durability.
- Enhanced PoE Support: Supports IEEE 802.3af, 802.3at, and 802.3bt (15W, 30W, 60W, 100W) applications.
- Color Variety: Available in Blue and White for easy network identification.

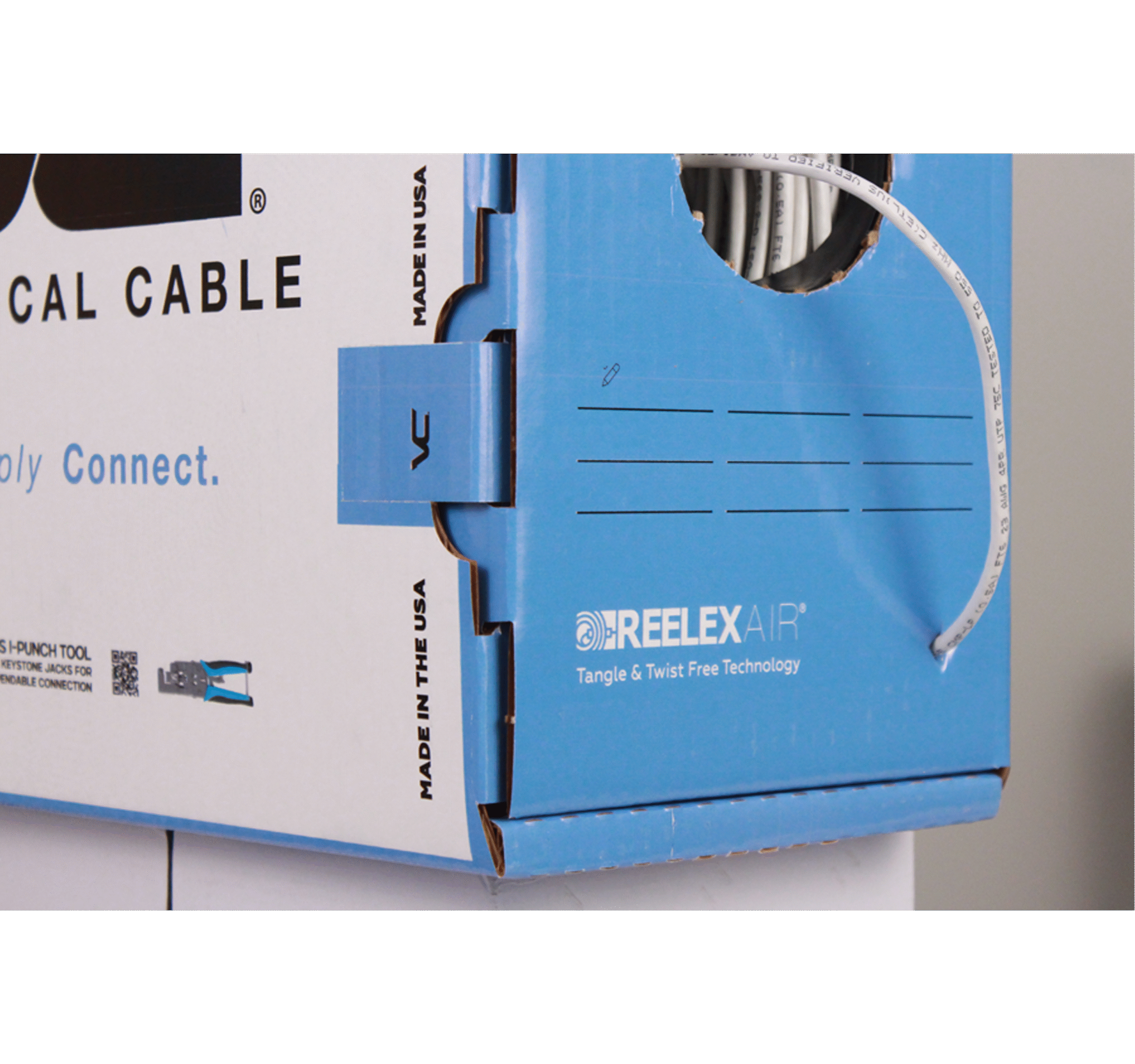

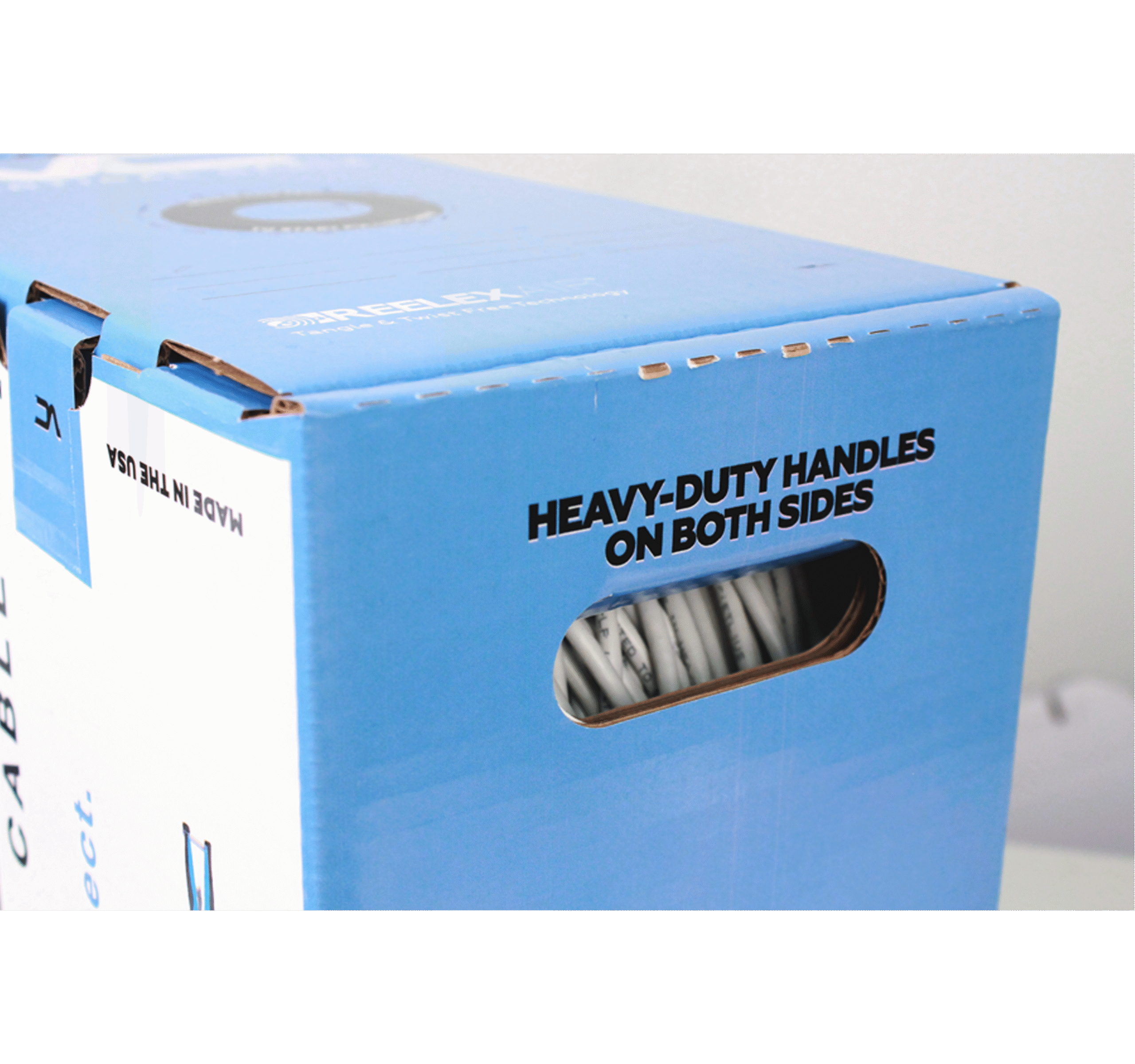

- 1000 ft Pull Box: Moisture-resistant box with an easy-pull tube simplifies long runs and organized pulls.
- Excellent Performance: Supports 10GBASE-T, HDBase-T, Gigabit Ethernet, and ATM standards.
- Low Crosstalk & Insertion Loss: Excellent electrical specs for minimal interference and maximum bandwidth.
- RoHS Compliant: Meets environmental safety standards per Directive 2011/65/EU.
- USA Manufacturing: Proudly made in the USA for consistent quality and shorter lead times.
APPLICATIONS
The 167 Series CAT6 CMP cable is engineered for demanding structured cabling environments:
- Data centers and server rooms requiring plenum-rated compliance
- Commercial offices with drop ceilings or air-return ducts
- Schools and universities prioritizing UL-listed, high-performance cabling
- Healthcare and financial institutions with strict network and safety standards
- Enterprise IT infrastructure supporting 10G Ethernet and PoE++
WHY CHOOSE THE 167 SERIES CAT6 CABLE?
Opting for the 167 Series means selecting a space-saving, high-performance cable built to exceed expectations:
- Plenum-Rated Confidence: CMP jacket ensures code-compliant use in high-airflow building spaces.
- Top-Tier Electrical Specs: ETL-verified, ANSI/TIA-568.2-D compliant performance with tight electrical tolerances.
- Flexible Compatibility: Supports Ethernet, PoE, HDBase-T, and ATM applications at various speeds.
- Trusted Build Quality: Solid copper conductors and FEP insulation provide long-term durability.
- Proudly American-Made: Built in the USA for quality assurance, domestic availability, and reliability.
WHAT’S NEXT?
After installing the 167 Series CAT6 CMP cable:
- Terminate with Quality – Use Vertical Cable keystone jacks or patch panels for optimal system performance.
- Label & Document – Keep your infrastructure organized with proper labeling and color-coding.
- Bundle with Accessories – Use cable managers, raceways, and wire ties to protect and route your cabling.
- Upgrade PoE Hardware – Pair with PoE switches or injectors to leverage full power-delivery capabilities.
- Explore More CMP Options – View additional UTP, STP, and fiber plenum solutions in our catalog.
For more premium CAT6 cables, twisted-pair systems, and installation tools, visit Twisted-Pair Systems and discover top-tier solutions today!
