CAT5E Patch Cords, F/UTP with Boot & Protector - 071 Series

268-EZX01-1A1[xx]

Optical Fiber Wall-Mount Enclosure

LGX, Blank Door, 1-Position, Slim, Cam Latch.


Each unit is recommended to be ordered with a choice of two cable entry adapters (see accessories below), which provide specific options for cable entry, fixation, or connection, and serve as structural binding elements.

Component Checklist [Interactive PDF]

HeightWidthDepth (Box Only)ColorWeight
7 in11 in2 inBlack2 lb
Compare
Add to wishlist
14 People watching this product now!
Category:
Download Specification
Description

Features :

    • Single door access
    • Cam latch option (Southco® brand hardware)
    • 1.5-mm (15-GA) aluminum alloy; black powder coating
    • Surface/wall mounting; left- or right-hand independent
    • Cable entry port adapters (ordered separately)
    • Cable anchor points (bridge lances)
    • Set of cable ties and Velcro® tie wraps
    • FM spools (default)
    • FM stage (optional)
    • Removable label holder, plain paper inserts
    • SI (metric)
    • Average ultimate load: 180 N (40.5 lbf)
    • Recommended mounting nut tightening torque: 5 N-m (44 pfi) max
    • Recommended pawl screw tightening torque: 4 N-m (35 pfi) max
    • Cycle life: 25,000 cycles at no load
    • Capacity: (SLIM Design)
      • 1 LGX adapter plate
      • up to 24 fibers
      • up to 24 splices
  • See Cable Entry Adapters

Substitute [xx] in PN with red lettering:

Adapter Plate Enclosures – EZX Series

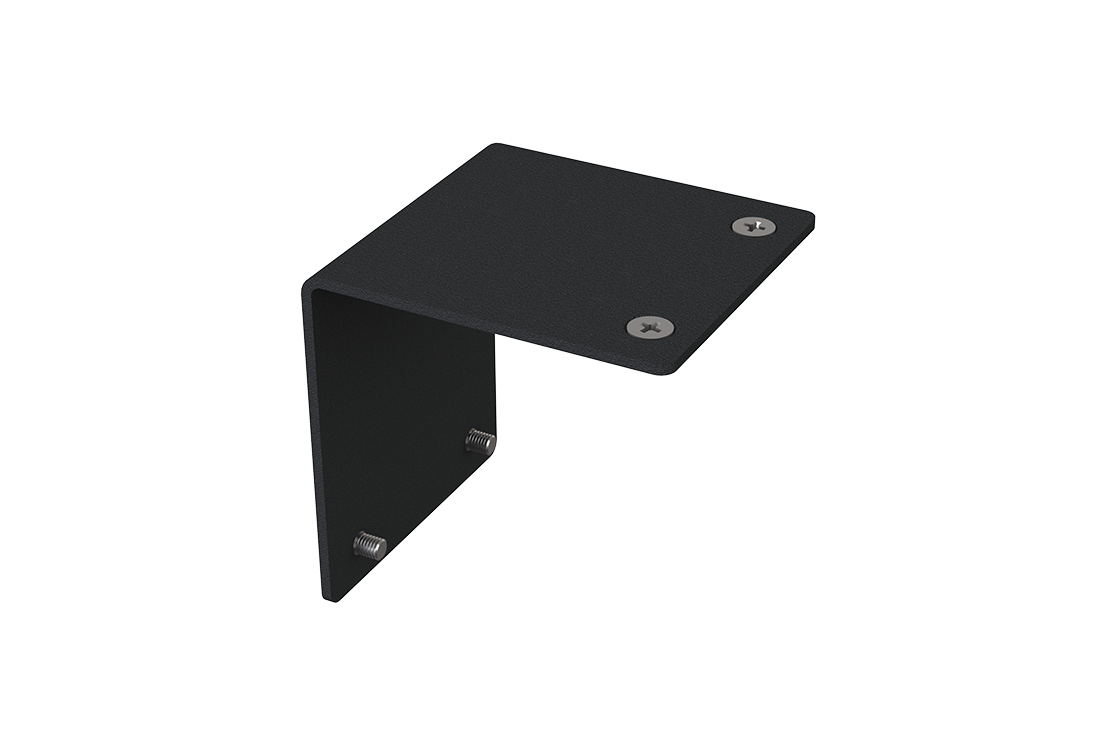

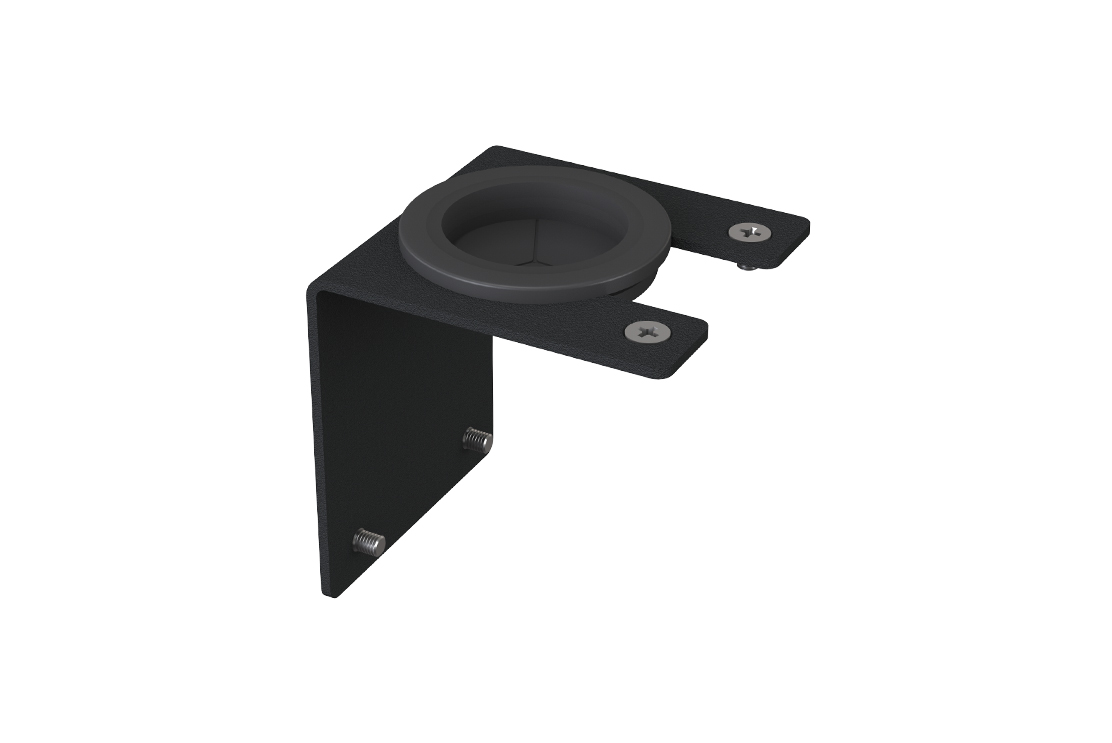

**EZX and EZV enclosures, excluding “blank-box” configurations, are supplied with one blank and one specialized cable entry adapter brackets. Cable entry adapter brackets may be ordered separately, adding flexibility in creating configurations per project requirements.
