212-222SO/5GY

VERTICAL CABLE 212-222SO/5GY – ALARM-SECURITY CABLE

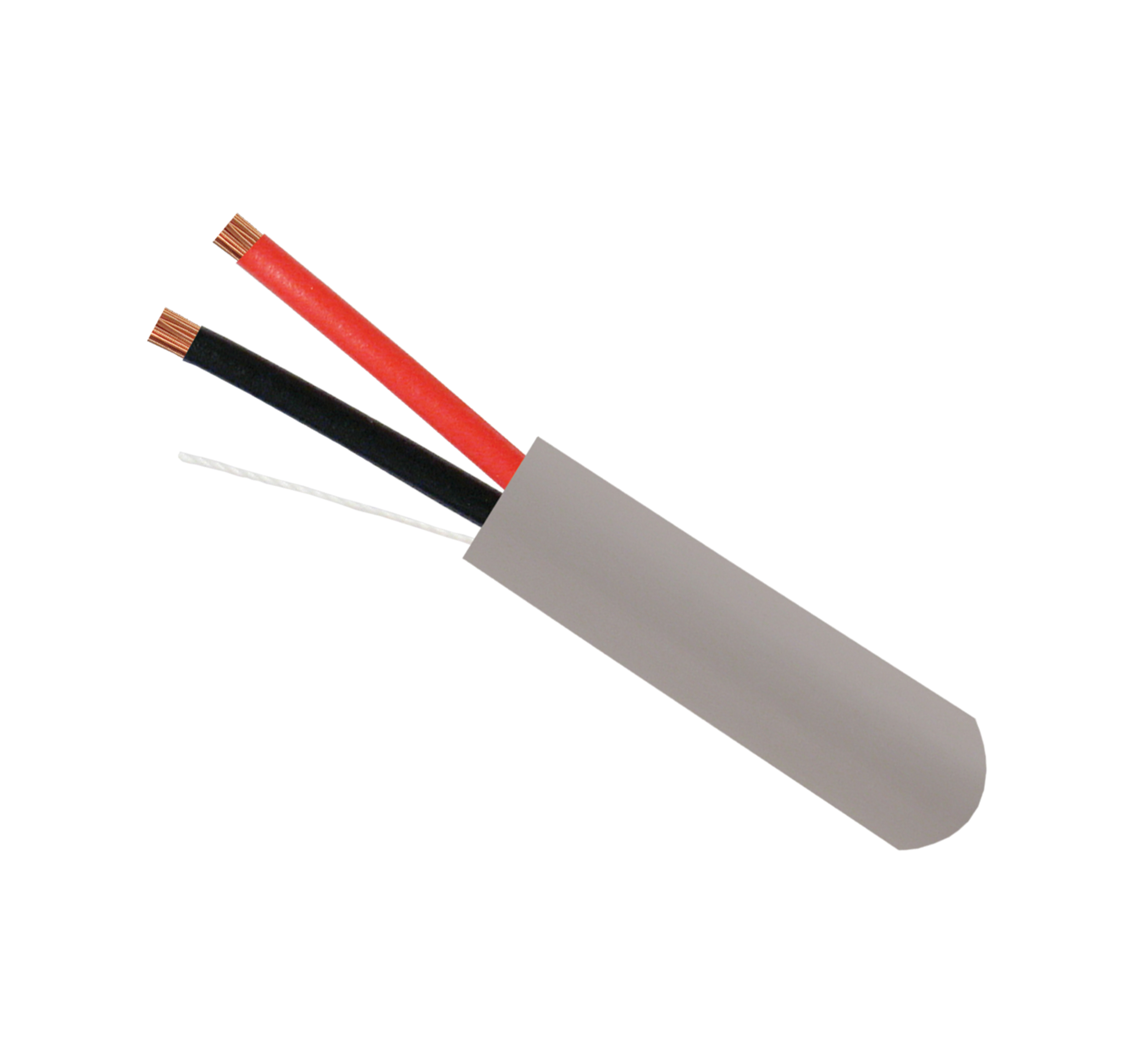

The 212-222SO/5GY is a reliable low-voltage cable designed for indoor security and alarm systems. It features two solid conductors and durable PVC insulation.

KEY FEATURES

Here are the features that make it a wise choice:

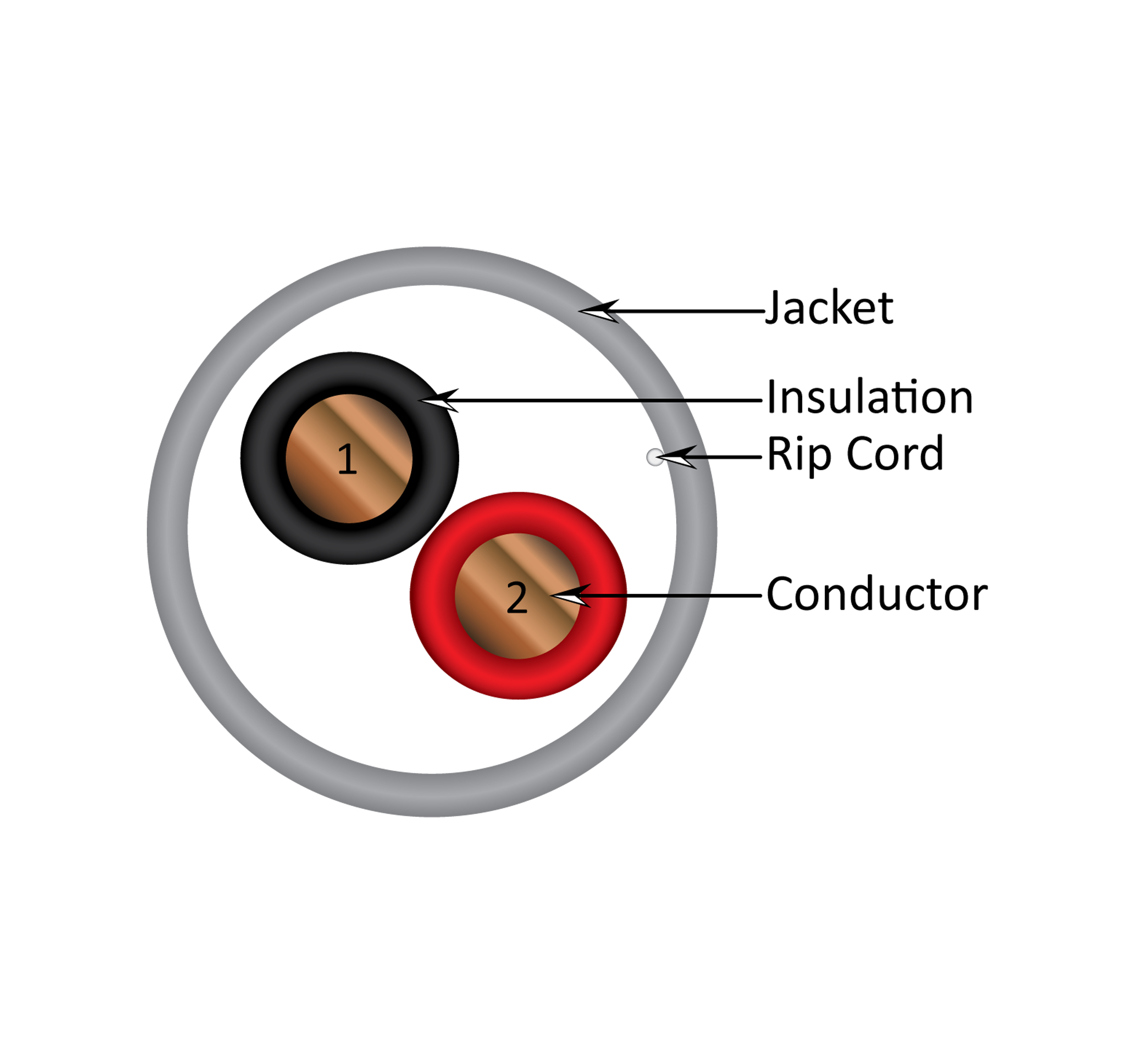

• Conductor Type: 22 AWG solid bare copper
• Conductor Count: 2 conductors (Red, Black color-coded)
• Conductor Diameter: 0.02″ (0.61 mm)
• Insulation: PVC, 0.04″ (0.96 mm) outer diameter
• Jacket: PVC outer jacket, 0.1″ (2.80 mm) outer diameter
• Jacket Thickness: 0.02″ (0.45 mm)
• Cable Shape: Round
• Rip Cord: Included for easy jacket stripping
• Temperature Rating: 75°C
• Voltage Rating: 300V RMS

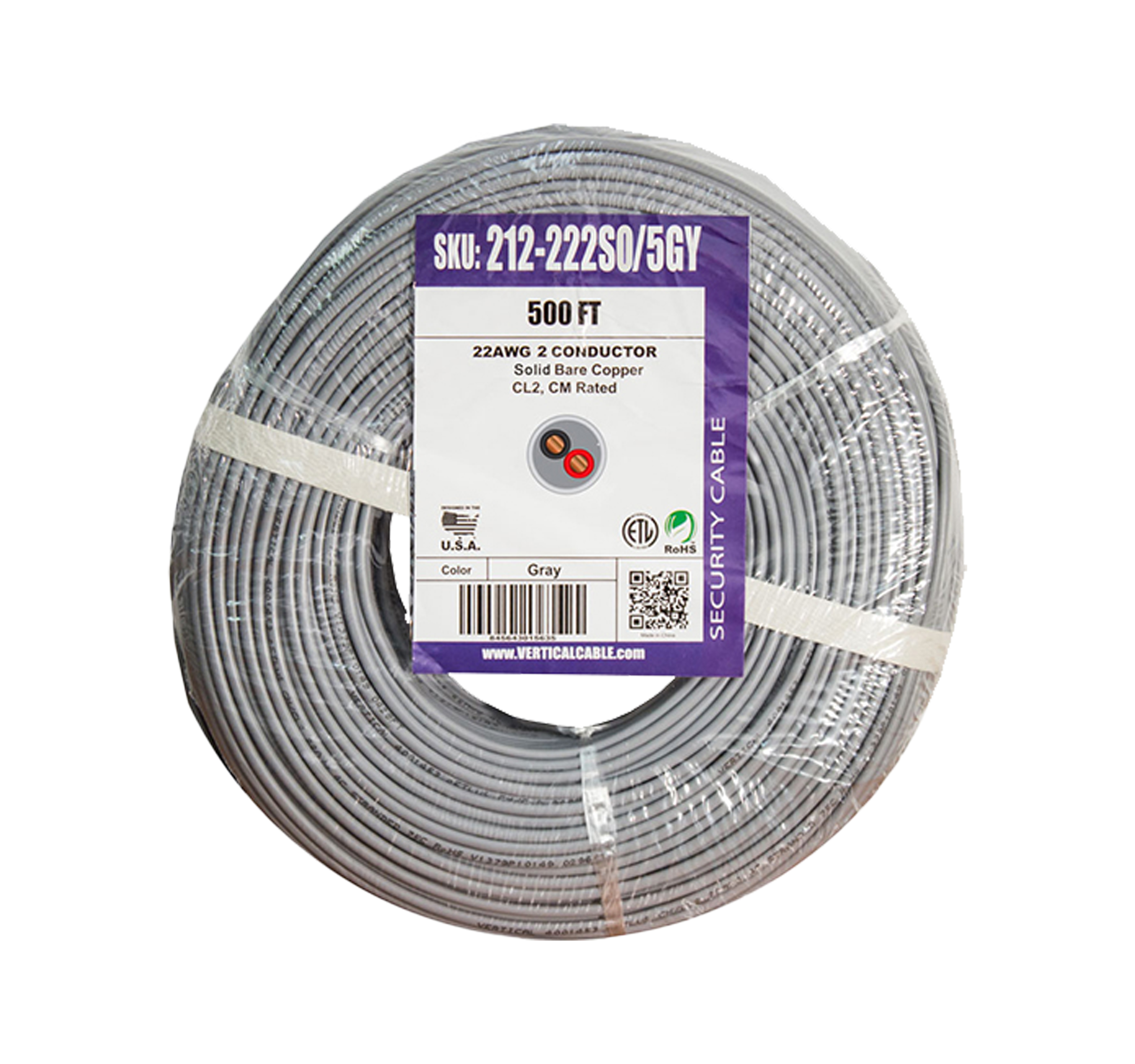

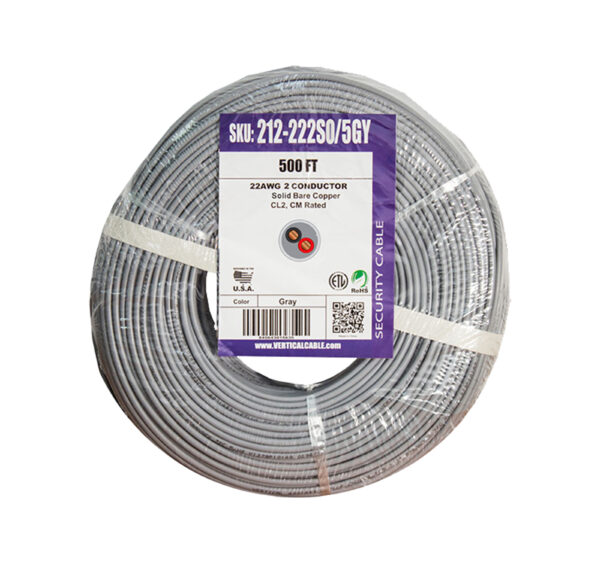

• Packaging: 500 ft (152.4 m) coil pack
• Weight: 3.7 lb (1.68 kg)
• Color: Grey
• Marking: ETL listed, CM/CL2 rated, RoHS compliant

APPLICATIONS

This alarm-security cable is ideal for a variety of indoor low-voltage system applications, including:

• Alarm and Security Systems
• Intercom and Access Control
• Keypads and Door Controllers
• Smoke Detectors and Sensors
• Sound and Audio Signaling
• Power-Limited Control Circuits

WHY CHOOSE THE 212-222SO/5GY – ALARM-SECURITY CABLE?

Engineered for dependable indoor performance, this cable is built for fast installs and consistent reliability:

1. Maximized Usable Depth: 22.5 in. internal depth supports servers, switches, and patch panels easily.
2. Solid Copper Build: Delivers strong signal integrity over short and medium runs.
3. Color-Coded Conductors: Red and black insulation simplifies installation and identification.
4. Easy to Strip: Rip cord and flexible jacket speed up installation time.
5. Code Compliant: Meets NEC CM/CL2 fire safety and ETL listing requirements.
6. Installer-Friendly Pack: Lightweight coil pack is easy to carry and deploy.

WHAT’S NEXT?

After selecting the 212-222SO/5GY:

• Run and Secure – Route through walls, ceilings, or conduit
• Terminate Easily – Connect to screw terminals or splicing blocks
• Label Clearly – Use tags or printed sleeves for system documentation
