107-2321/BK

This Siamese RG59 coaxial cable features 18AWG stranded power cables, ideal for CCTV transmissions. It includes a 20AWG solid CCS conductor, 85% CCA braid coverage for signal protection, and comes in a CM rated jacket. ETL verified and RoHS compliant, it is available in black, supplied in a 1000 ft spool.

18 People watching this product now!

Download Specification

KEY FEATURES

The 107-2321/BK coaxial cable is a highly versatile option, perfect for various applications. Here are some of the key features that make it stand out:

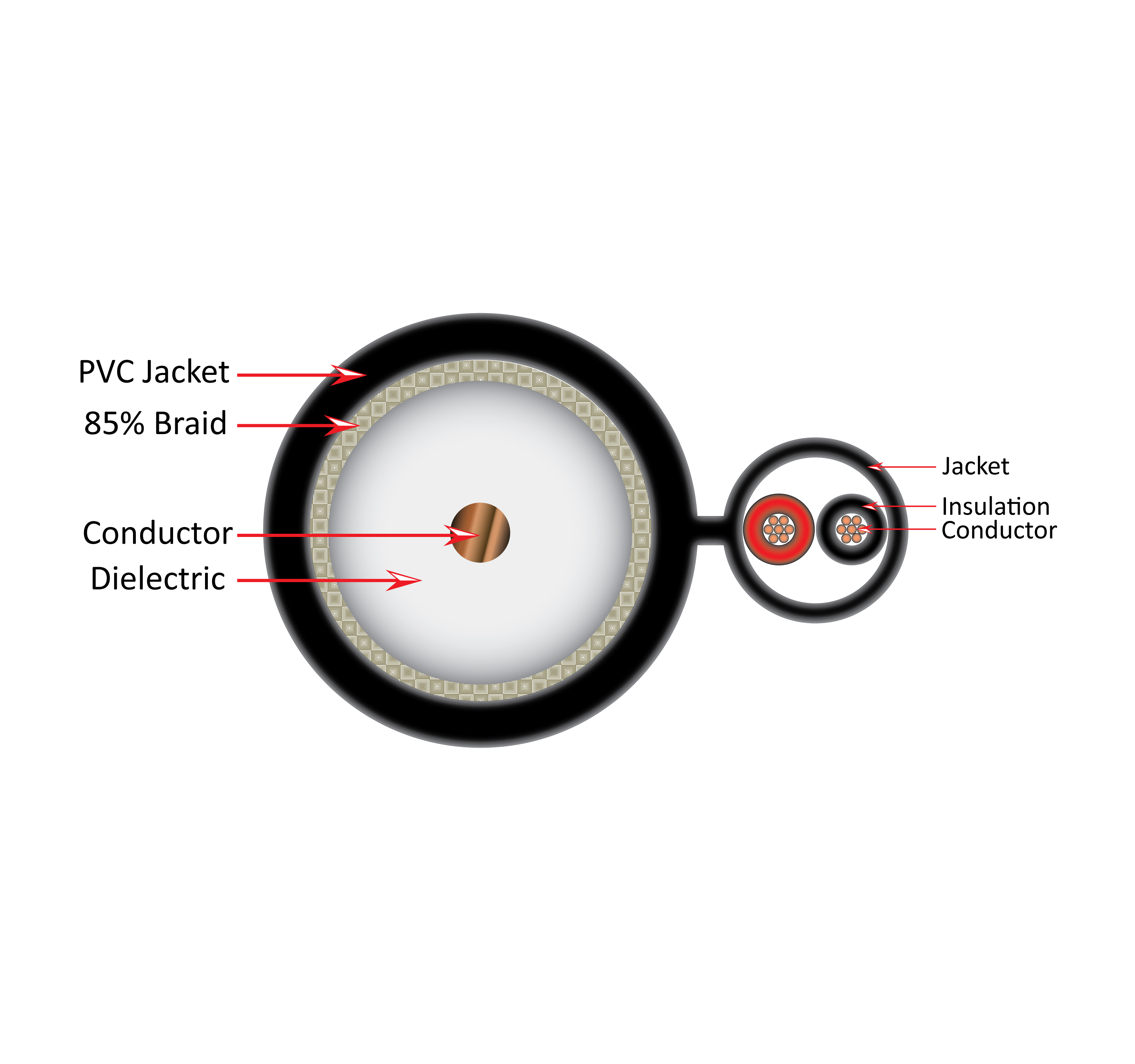

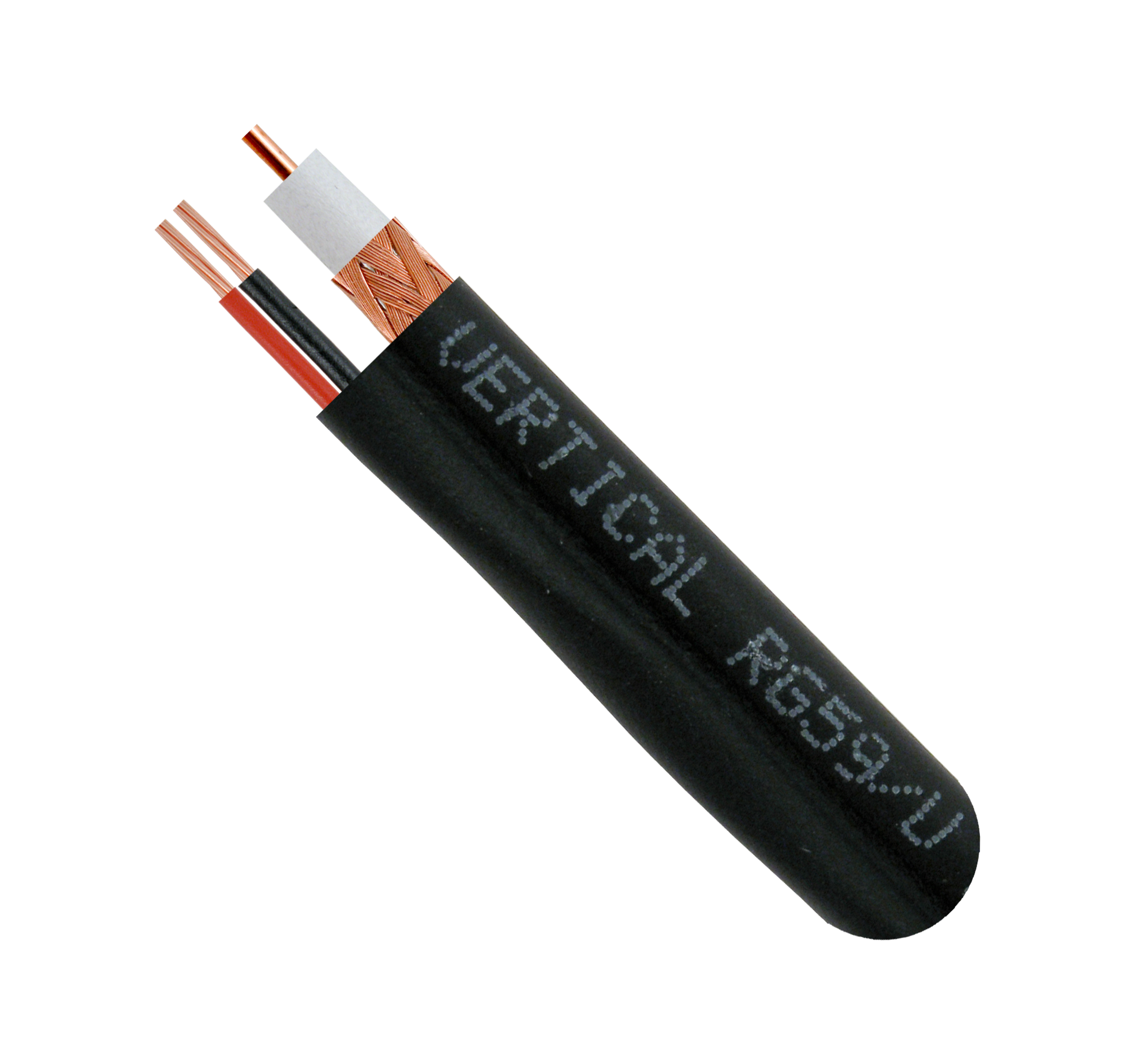

Siamese Cable Construction: Combines coax and power in one jacket for simplified routing and setup.
20 AWG CCS Coax Conductor: Provides excellent signal transmission for video and data in CCTV and RF systems.
18 AWG CCA Power Conductors: Delivers consistent low-voltage power to cameras and devices.
Standard Shielding (85% CCA Braid + Aluminum Foil): Offers dependable protection against EMI for clear signal quality.
High-Performance Electrical Specs: 75 Ohm impedance, return loss ≥ 22 dB (1–470 MHz), sweep-tested up to 3000 MHz

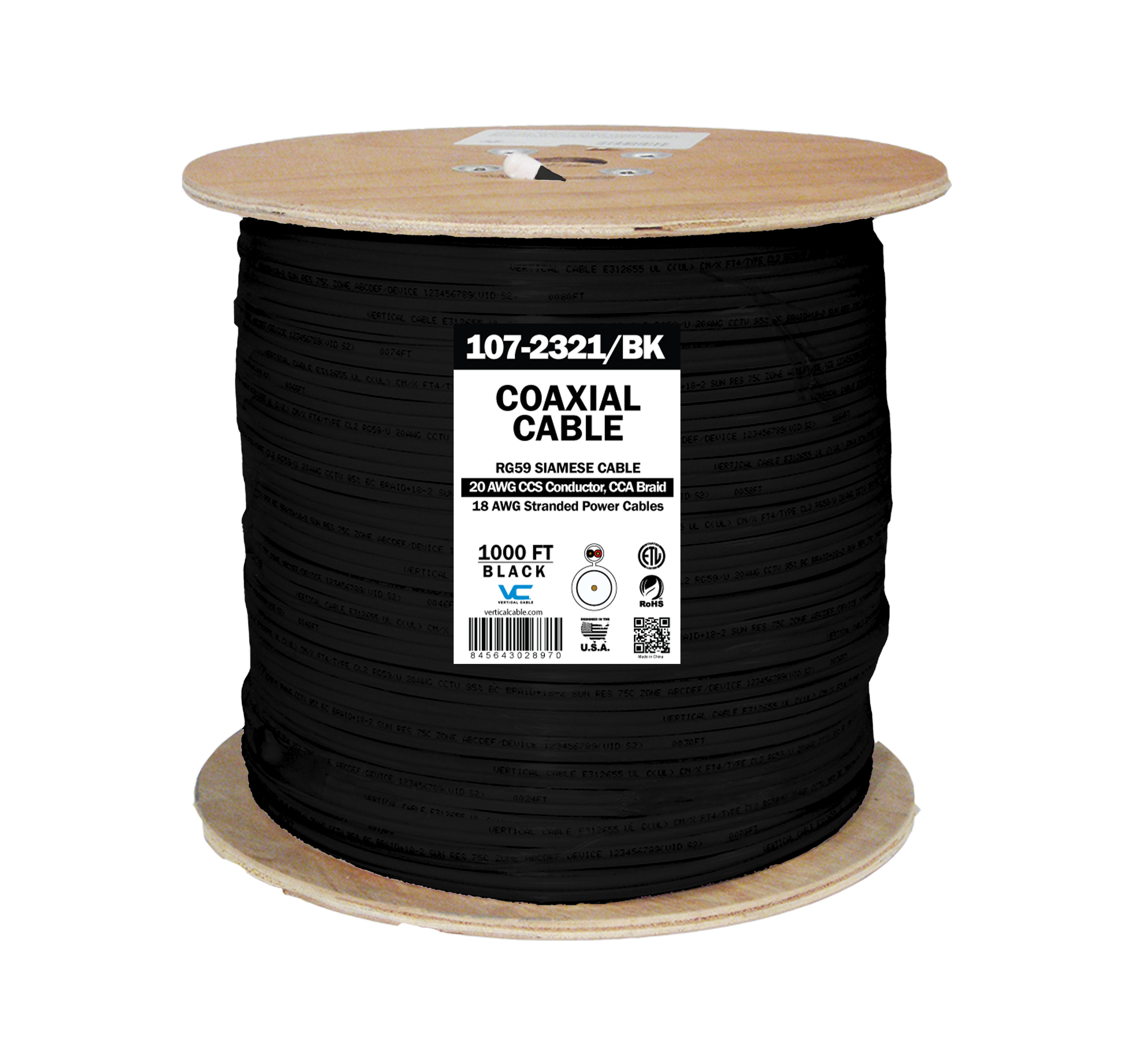

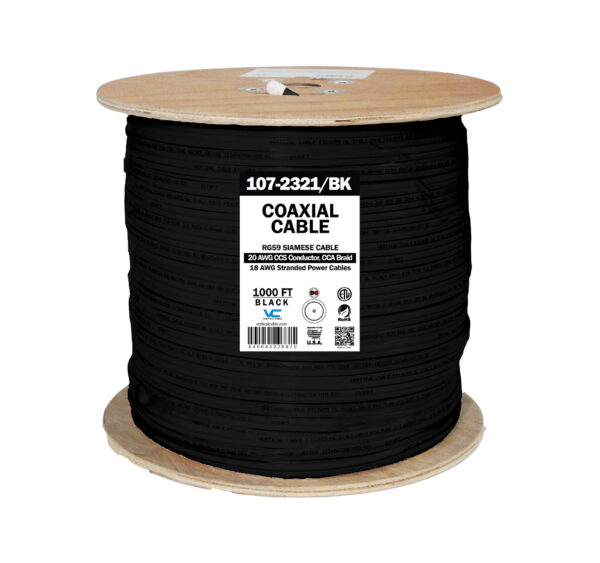

1000 ft Wooden Spool: Long continuous run for large-scale projects, easy dispensing.

APPLICATIONS

The RG59 Coaxial Cable is engineered for a variety of professional and commercial uses, including:

CCTV Security Camera Systems: Ideal for connecting analog cameras to DVRs with built-in power support
Residential & Commercial Surveillance: Simplifies wiring in homes, offices, warehouses, and retail spaces
Low-Voltage Video Transmission: Effective for short-to-medium distance A/V setups
Broadcast and Media Infrastructure: Suitable for routing analog video signals in production environments

RECOMMENDED TOOLS FOR 107-2321/BK COAXIAL CABLE

For the best results when working with the 107-2321/BK Coaxial Cable, we recommend using high-quality tools designed for precision and efficiency. These tools will help ensure a secure, professional-grade installation:

078-1018 Compression Tool – Ensures fast and precise terminations of RCA, BNC, RG59, and RG6 connectors for reliable, professional-grade cable installations.
078-1022 Universal Cable Stripper – Simplifies cable preparation by stripping insulation cleanly and accurately for quick and efficient installations.
078-1256 Coaxial Stripper – Ensures precise and efficient stripping for RG59 and RG6 cables.

WHY CHOOSE THE 107-2321/BK COAXIAL CABLE?

Choosing to install the 107-2321/BK in your system does not just guarantee functionality; it also brings about numerous benefits that enhance your overall experience:

All-in-One Solution – Coax + power in a single run saves time and simplifies installation
Strong Signal Integrity – 20 AWG CCS with foam dielectric and 85% shield ensures stable video transmission
Installer-Friendly – Packaged on a 1000-ft spool for convenient pulling and cutting
Versatile Compatibility – Designed for 75 Ohm CCTV systems, compatible with most analog cameras
Built to Industry Standards – ETL verified, RoHS compliant, and tested up to 3000 MHz

WHAT’S NEXT?

After installing your 107-2321/BK coaxial cable, take your network to the next level:

Stock Up – Ensure you have enough cable for future projects.
Explore Connectors & Accessories – Pair with high-quality RG59 connectors and adapters for optimal performance.
Enhance Your Setup – Discover signal boosters, splitters, and amplifiers to maximize signal strength.

For more premium coaxial cables and accessories, visit our Coax Cables category and discover top-tier solutions today!
