VERTICAL CABLE 268-SMB12-2BW00 – OPTICAL FIBER SURFACE-MOUNT BOX, 2-POSITION | BLANK
The 268-SMB12-2BW00 is a compact, impact-resistant optical fiber surface-mount box ideal for structured cabling systems. Designed to support SC SX or LC DX adapters, this enclosure is built with labeling flexibility and splice protection in mind. Its low-profile design allows easy surface mounting while maintaining organized, accessible fiber routing.
KEY FEATURES
Here’s what makes the 268-SMB12-2BW00 a versatile and reliable surface-mount solution:
- 2-Position Design: Accommodates two SC SX or LC DX fiber adapters (not included).

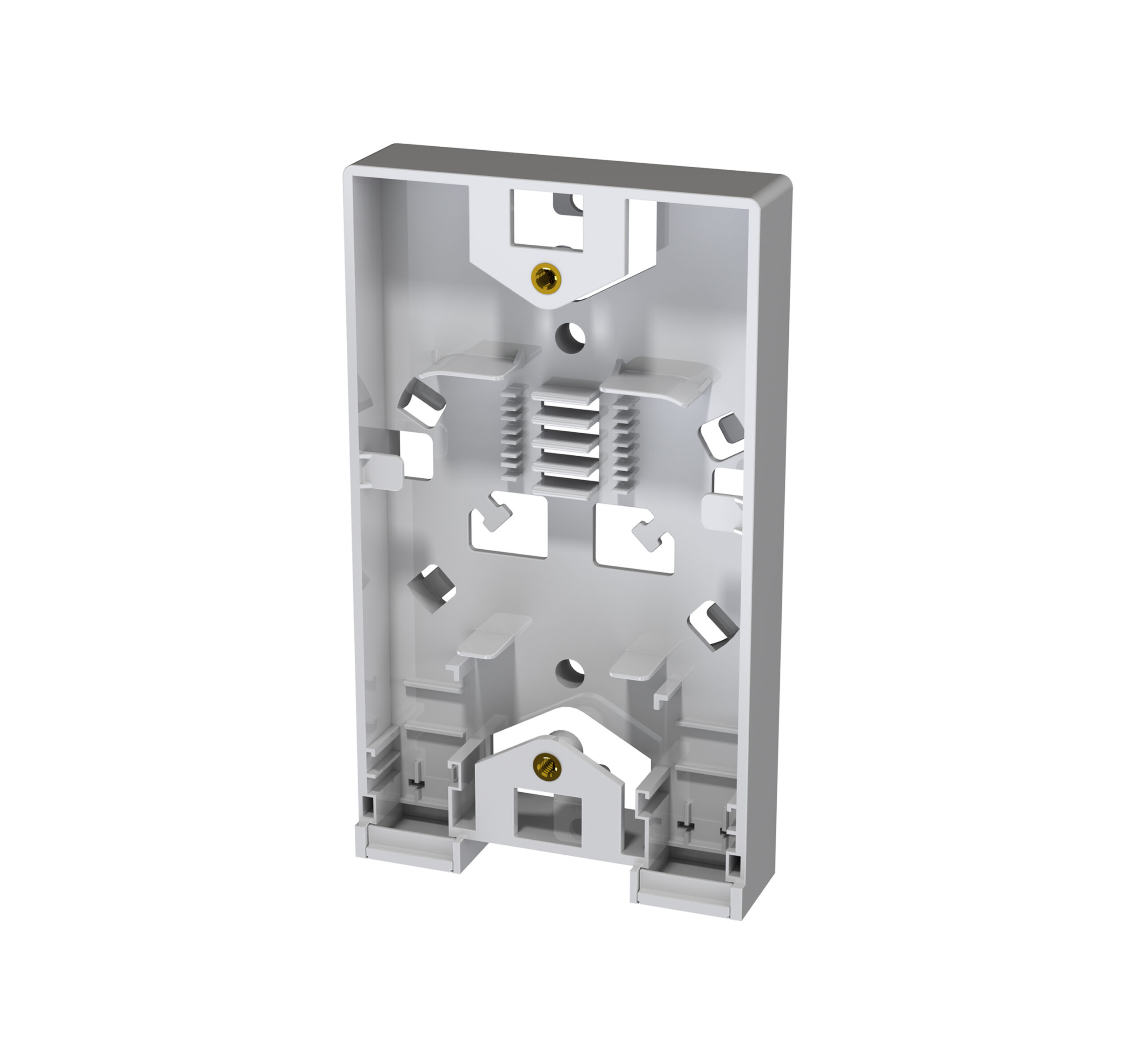

- Fusion Splice Ready: Includes four slots for fusion splice sleeves (sleeves not included).
- Durable Build: ABS PP 94V0-rated plastic body offers impact resistance and UV stabilization.

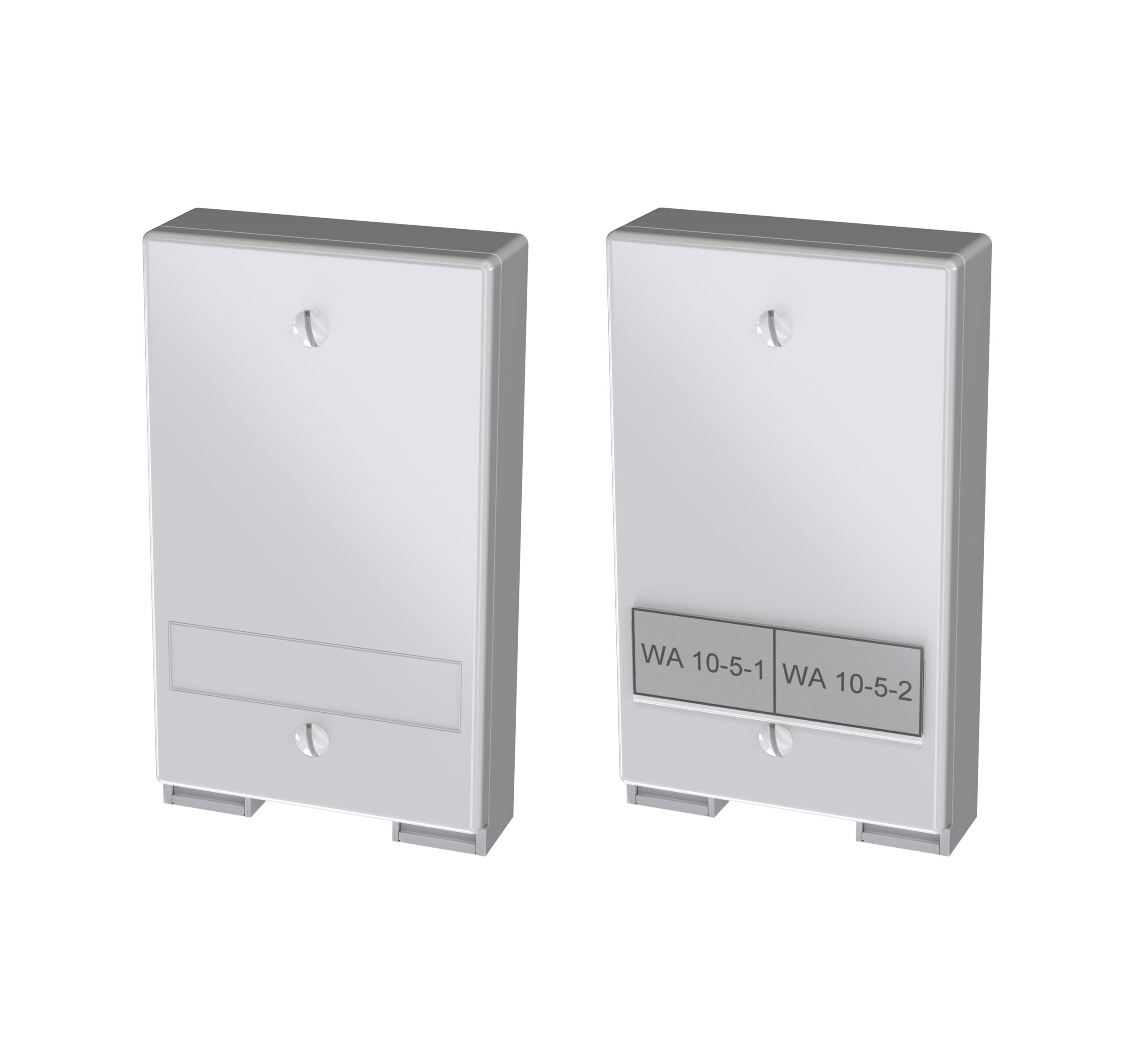

- Labeling Options: Choose between write-on space or the included clear label holder with adhesive backing.

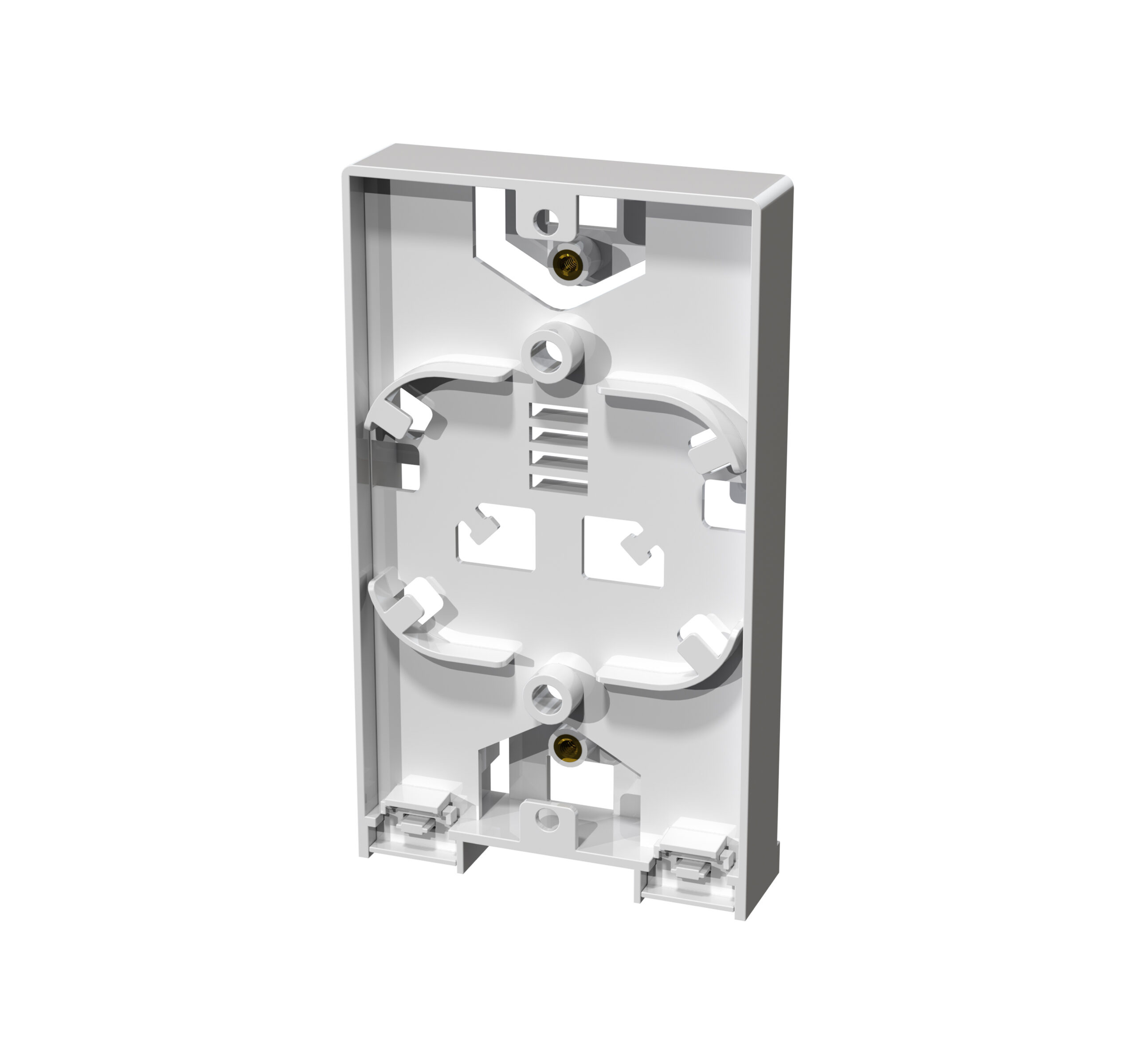

- Cable Entry Points: Rear and side cable entry options with breakout points for flexible routing.
- Shuttered Entry Ports: Built-in shutters protect unused adapter slots from debris and dust.
- Adapter Compatibility: Works with SC and LC connectors per IEC 61754-4 and 61754-20 standards.
- Ceramic Sleeves: Zirconia ceramic split sleeves ensure high-performance fiber alignment.

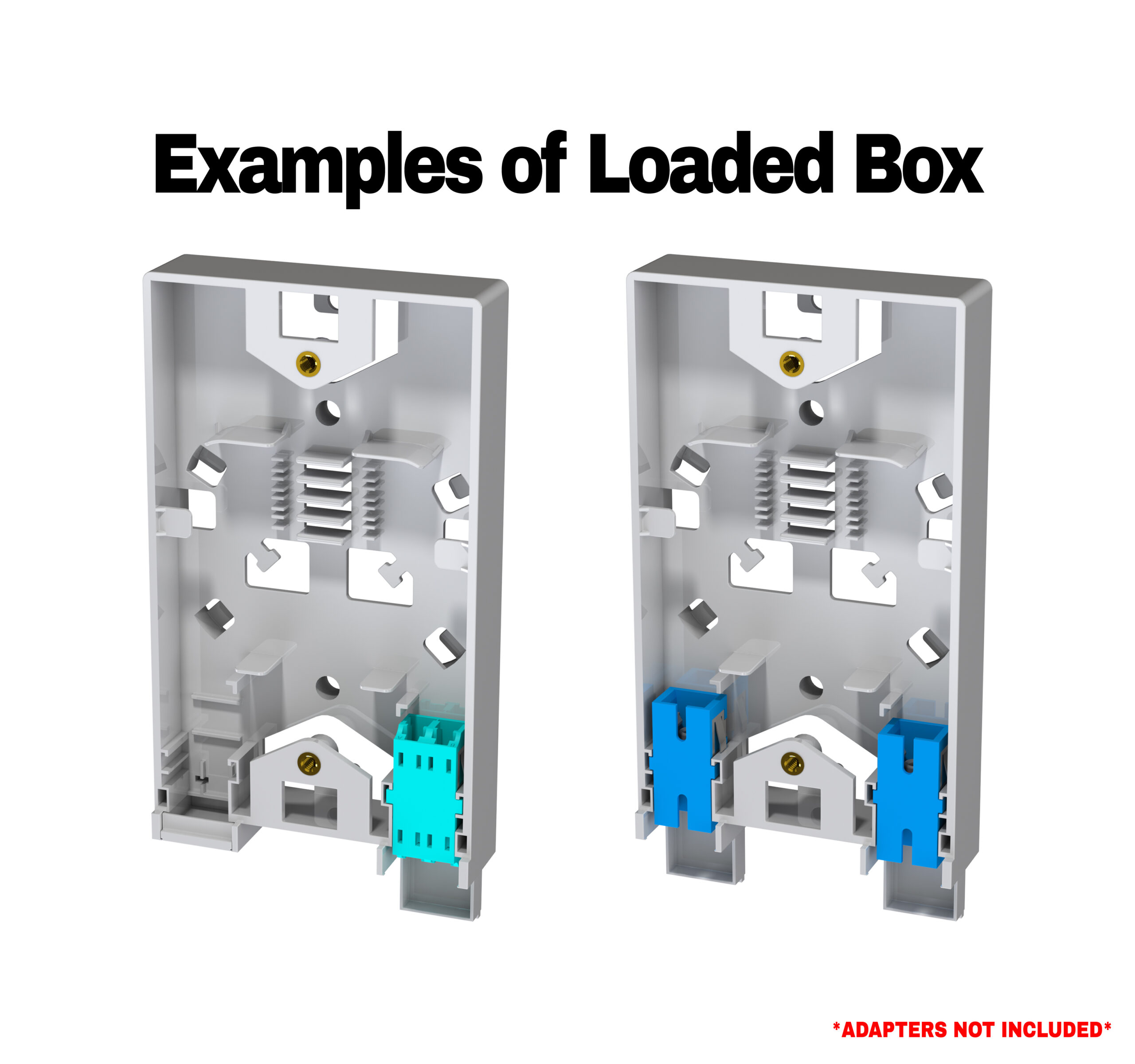

- Blank Configuration: Ships unloaded for custom adapter configuration.
- Operating Temp Range: -20 °C to +70 °C (-4 °F to +158 °F).
APPLICATIONS
The 268-SMB12-2BW00 excels in environments that demand clean fiber routing, easy access, and flexible labeling:
- FTTH/FTTP Installations: Ideal for residential or MDU fiber drop terminations.
- Data Closets: Adds organized fiber access at the wall level for quick connection.
- Telecom/Network Rooms: Creates junction points between vertical and horizontal cabling systems.
- Security & Surveillance: Supports fiber-connected IP camera and access control devices.
- Educational & Retail: Perfect for indoor, low-voltage optical fiber drops requiring a clean surface finish.
WHY CHOOSE THE 268-SMB12-2BW00 OPTICAL FIBER SURFACE-MOUNT BOX?
Professionals rely on the 268-SMB12-2BW00 for its combination of flexibility, durability, and ease of use. Here’s why:
- Customizable Configuration – Use with SC or LC adapters and choose your preferred fiber entry point.
- Secure Splice Integration – Built-in support for up to four fusion splices keeps terminations protected.
- Field-Friendly – Quick mounting and adaptable labeling options streamline installs in real-world conditions.
- Reliable Construction – UV-stabilized, flame-rated ABS plastic ensures long-term performance indoors.
- Compliance Ready – Meets key international standards (RoHS, REACH, UL94V-0) for safety and interoperability.
WHAT’S NEXT?
After installing the 268-SMB12-2BW00:
- Add your preferred SC or LC adapter set.
- Route fibers and secure fusion splices inside the box.
- Use the included label holder for port identification.
- Pair with Vertical Cable fiber patch cords and connectors for a complete solution.
- Expand to more surface-mount or in-wall boxes for larger fiber rollouts.
